Fig 13.3
Fig 13.3

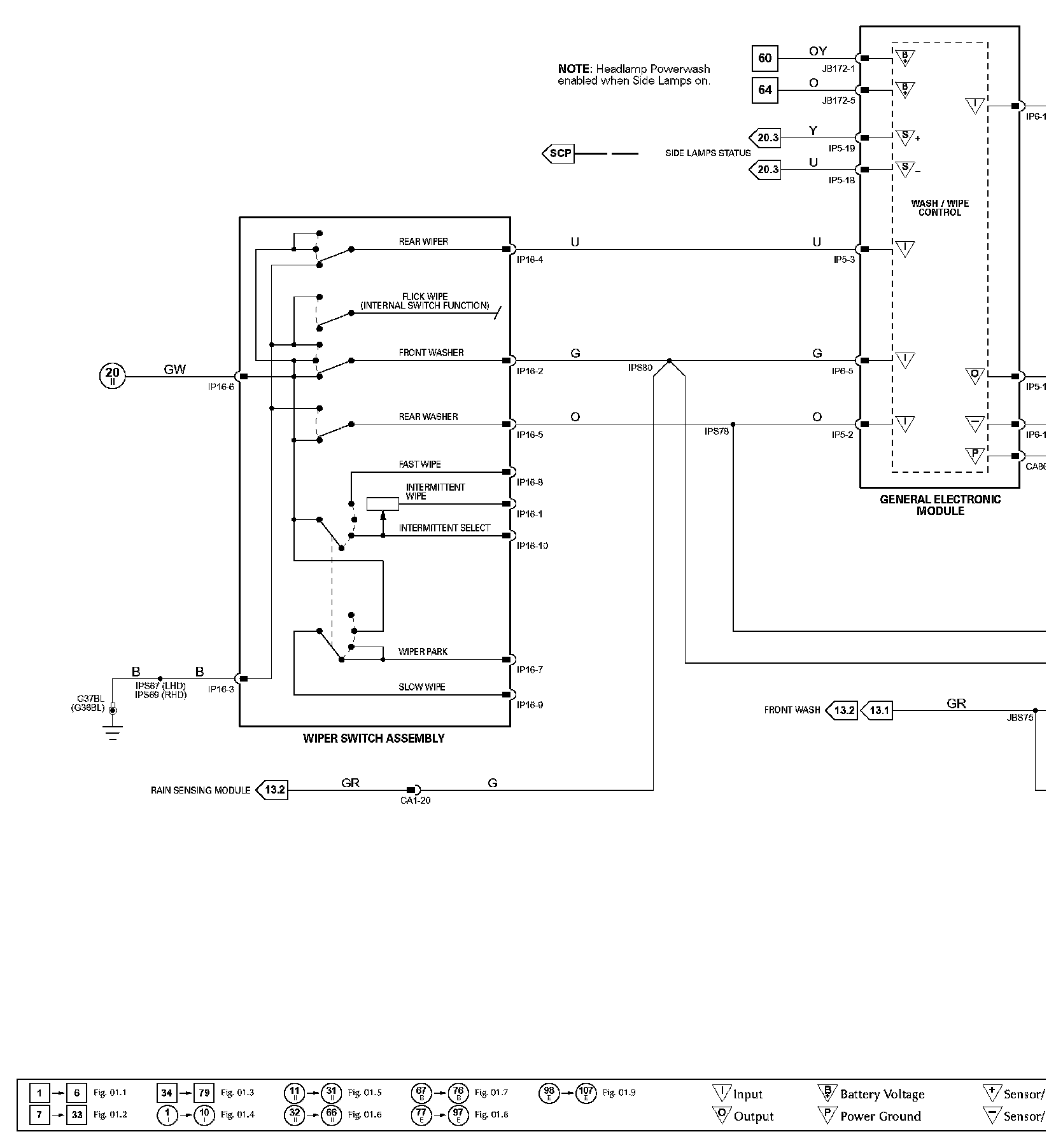

5��&Diagram Figure 13.3:

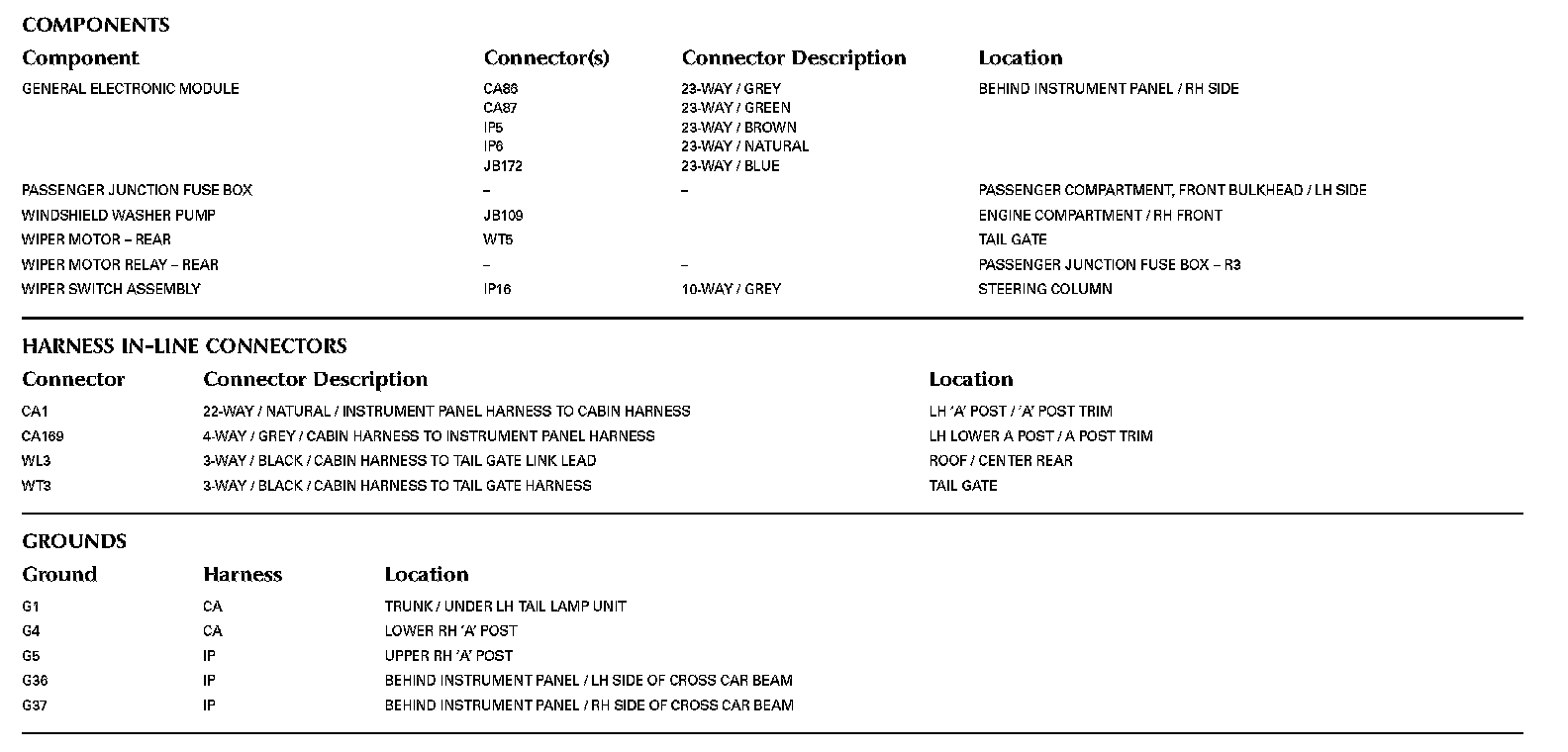

Diagram Data Sheet 13.3 (Part 1):

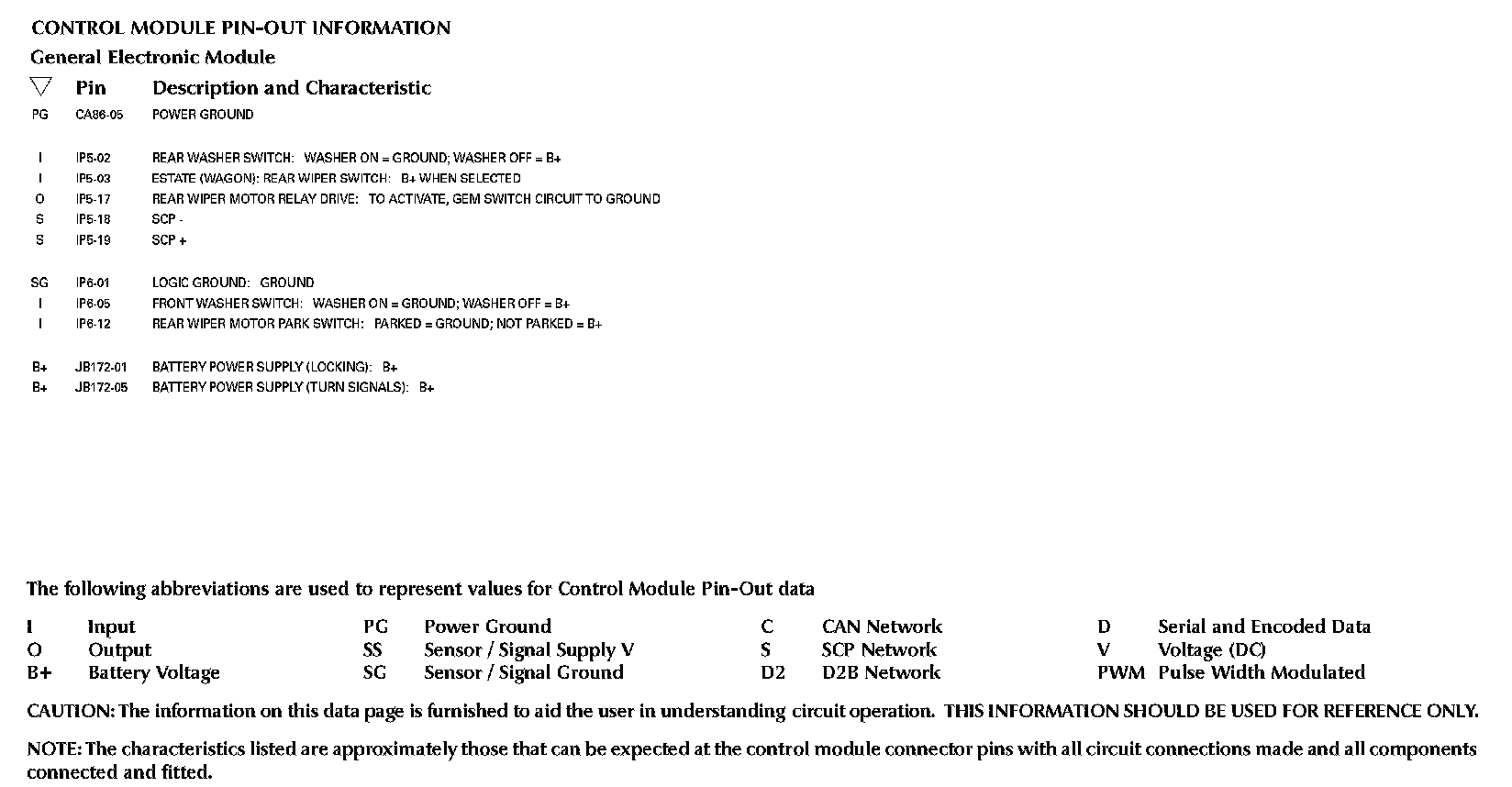

Diagram Data Sheet 13.3 (Part 2):
