Fig 13.2
Fig 13.2

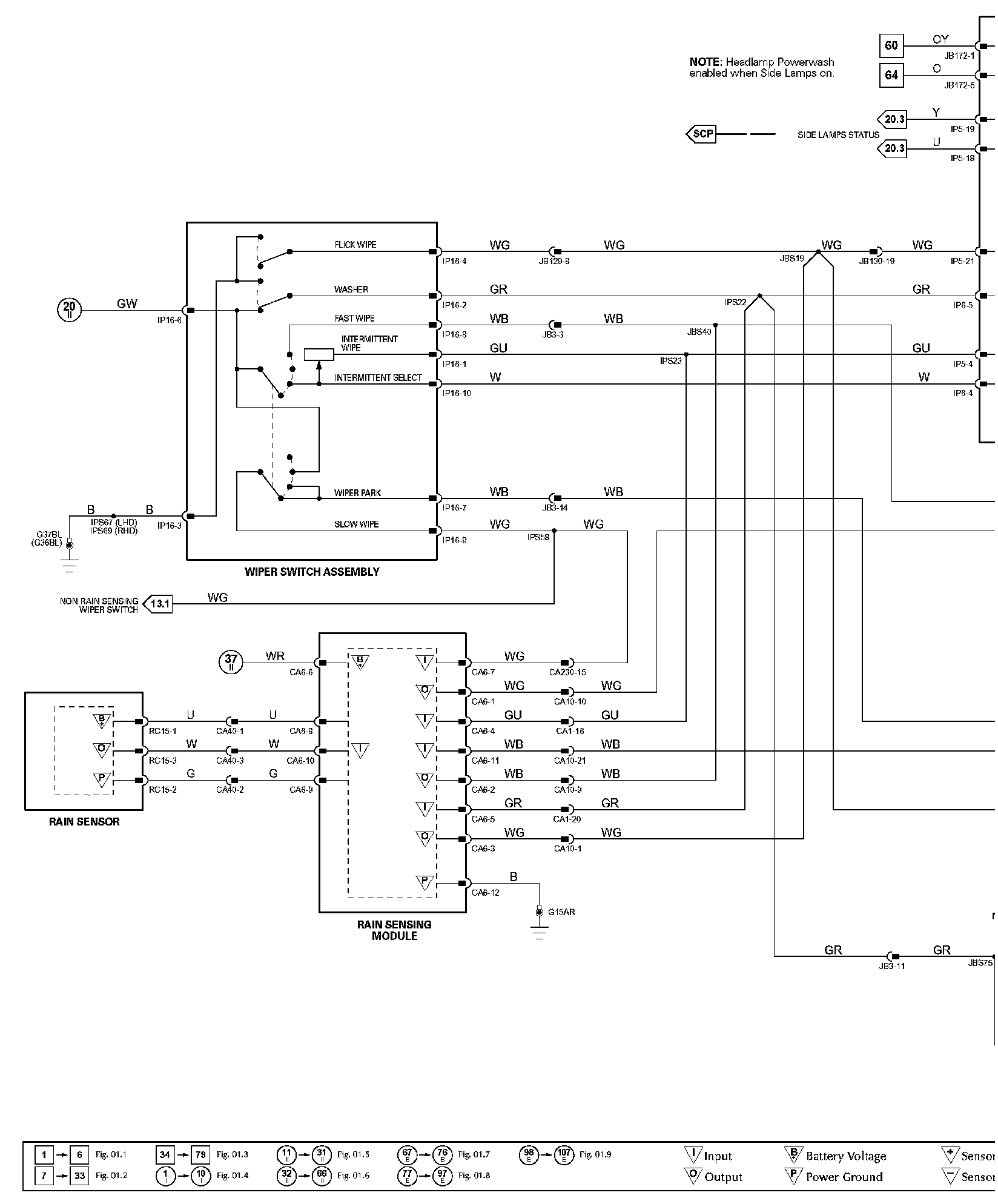

<Q�&Diagram Figure 13.2:

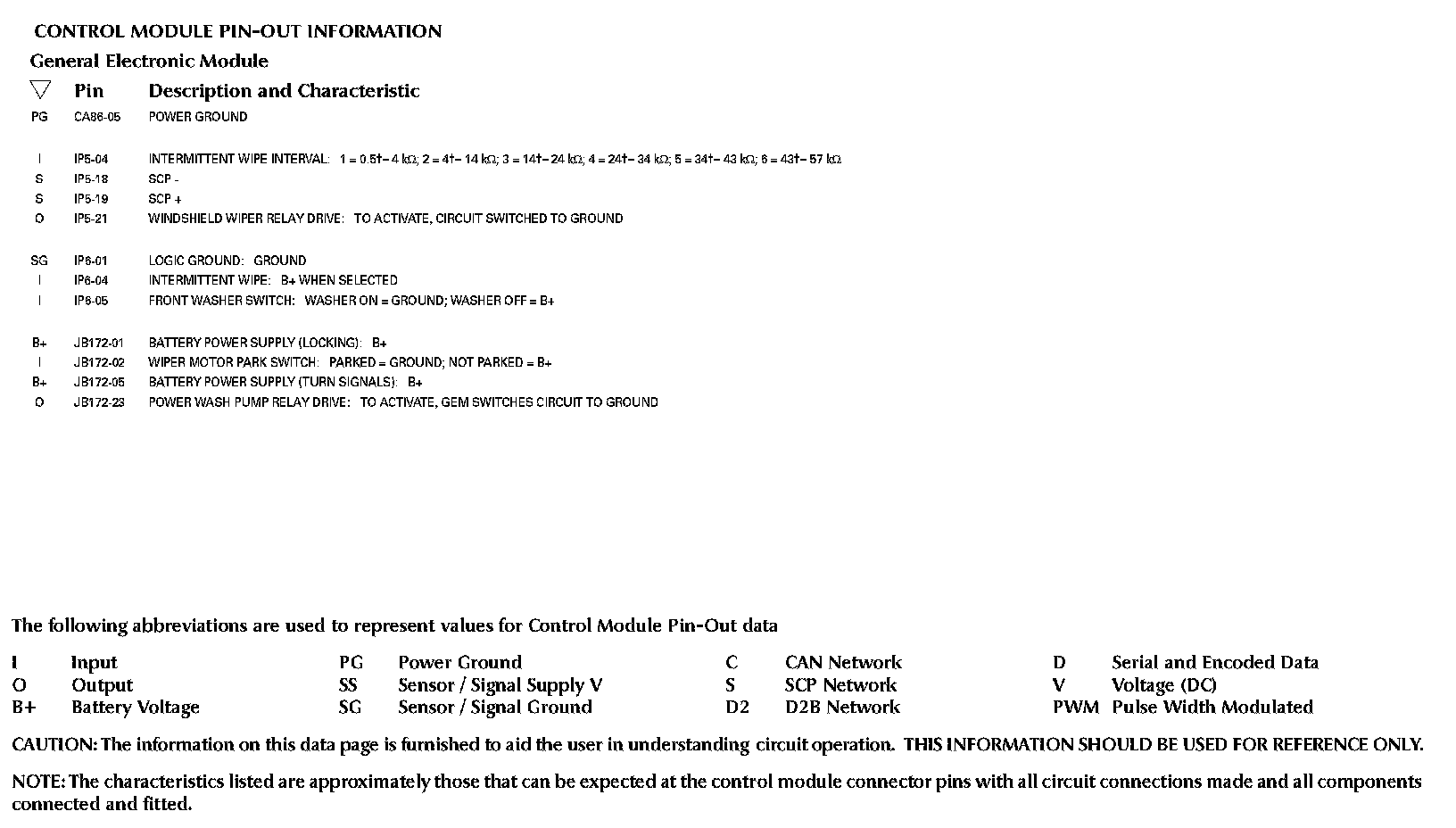

Diagram Data Sheet 13.2 (Part 1):

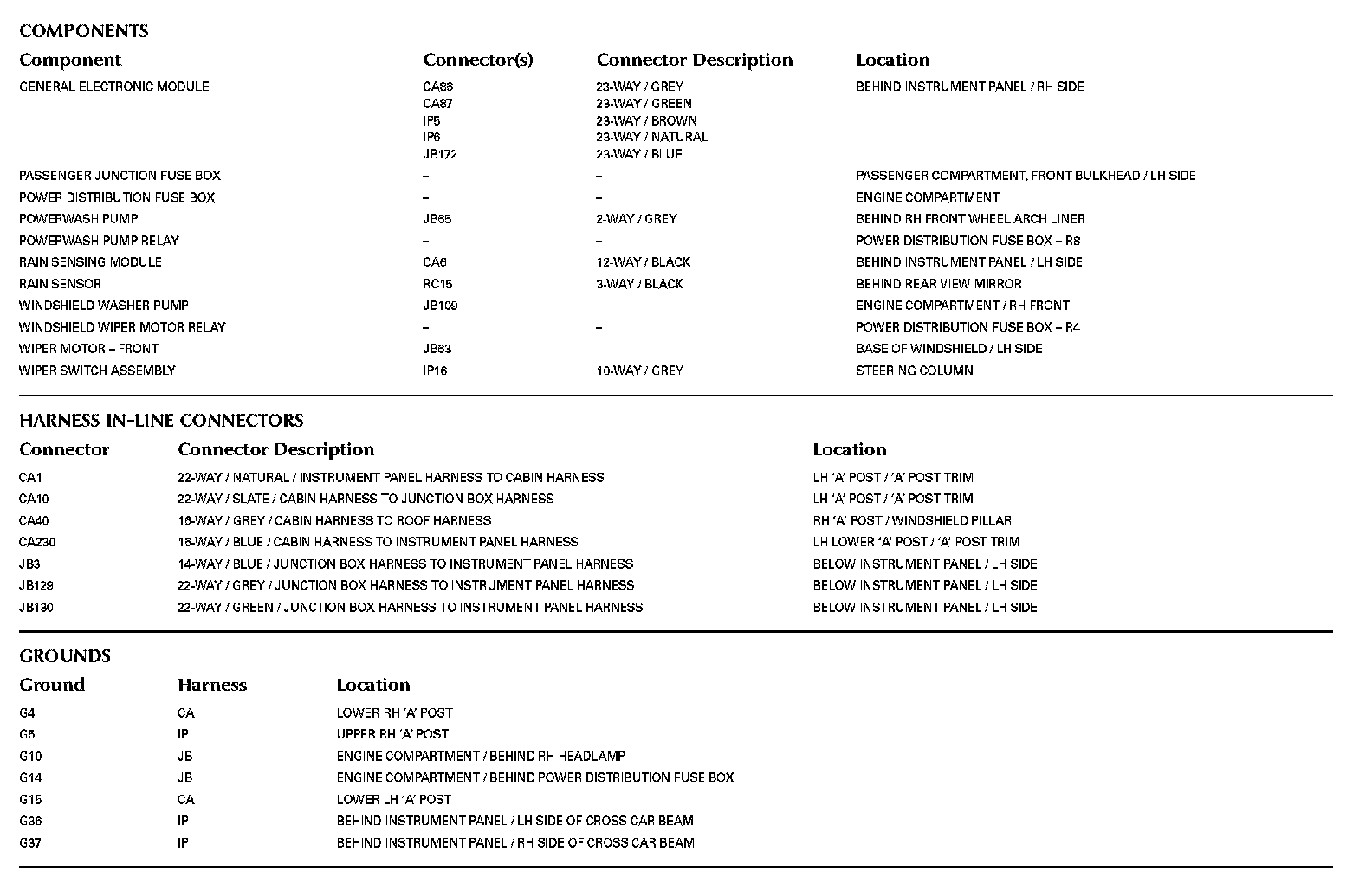

Diagram Data Sheet 13.2 (Part 2):
