Home >> Jaguar >> 2004 >> X-Type (X400) V6-2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig 12.3

Fig 12.3

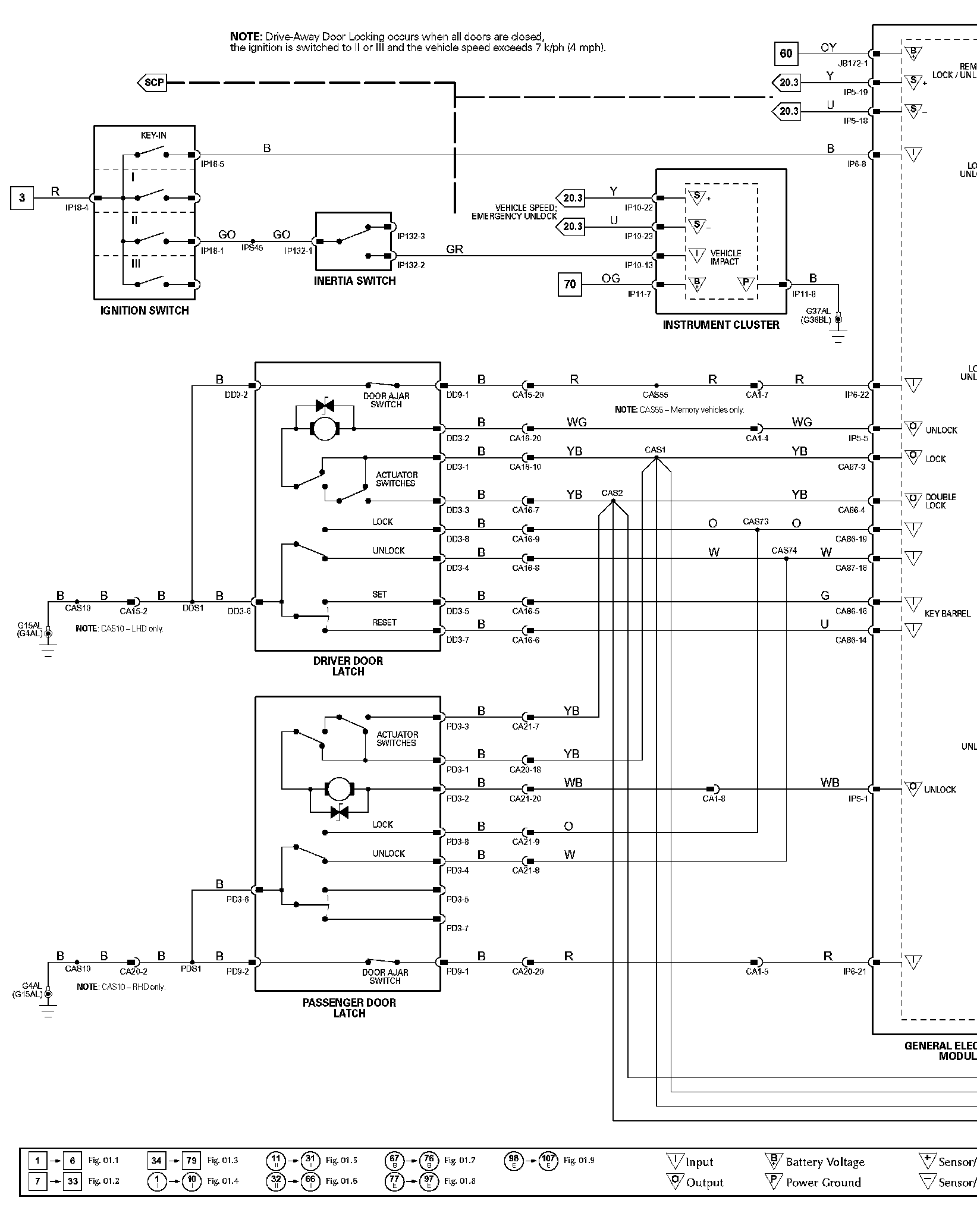

6v'Diagram Figure 12.3:

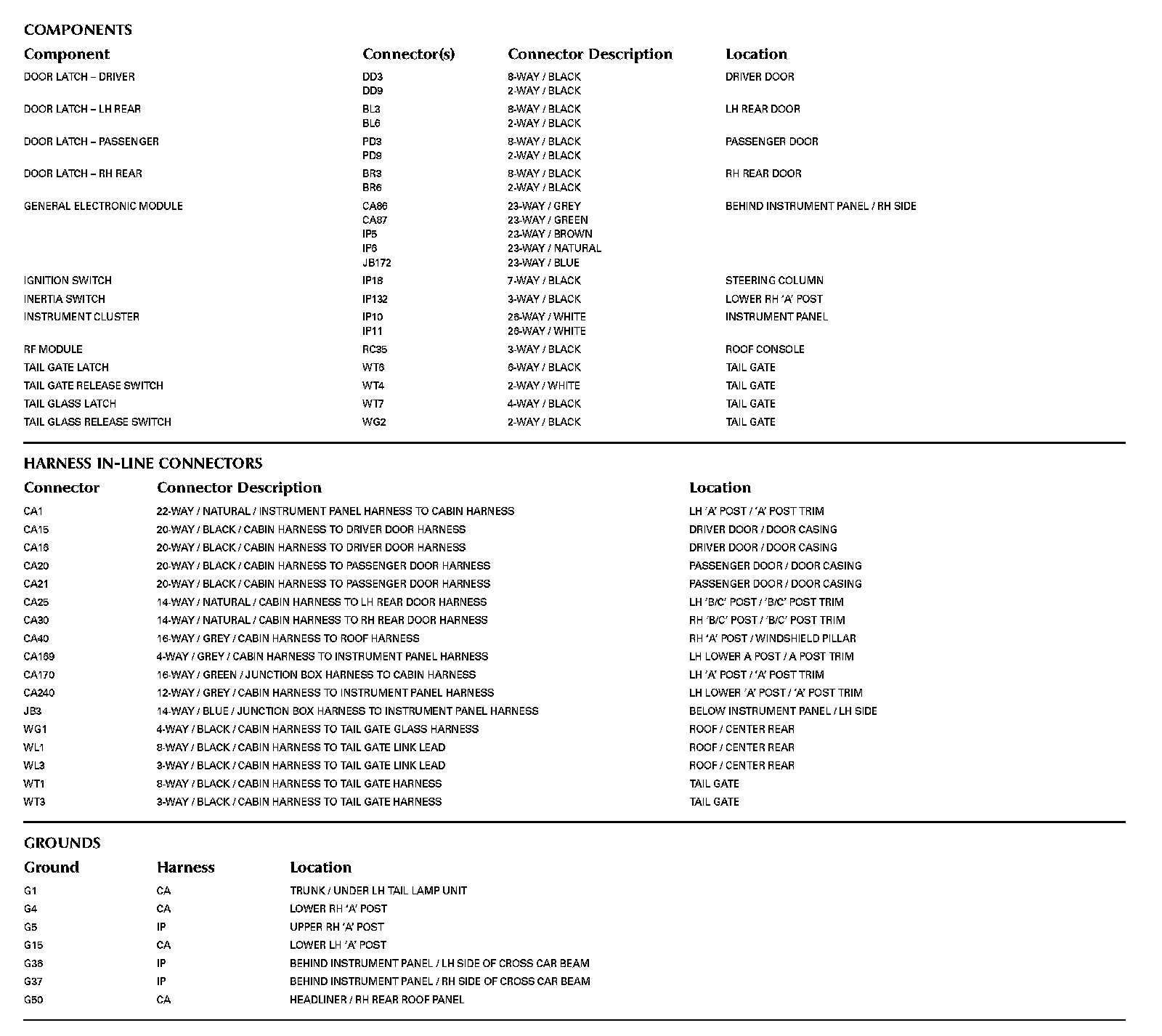

Diagram Data Sheet 12.3 (Part 1):

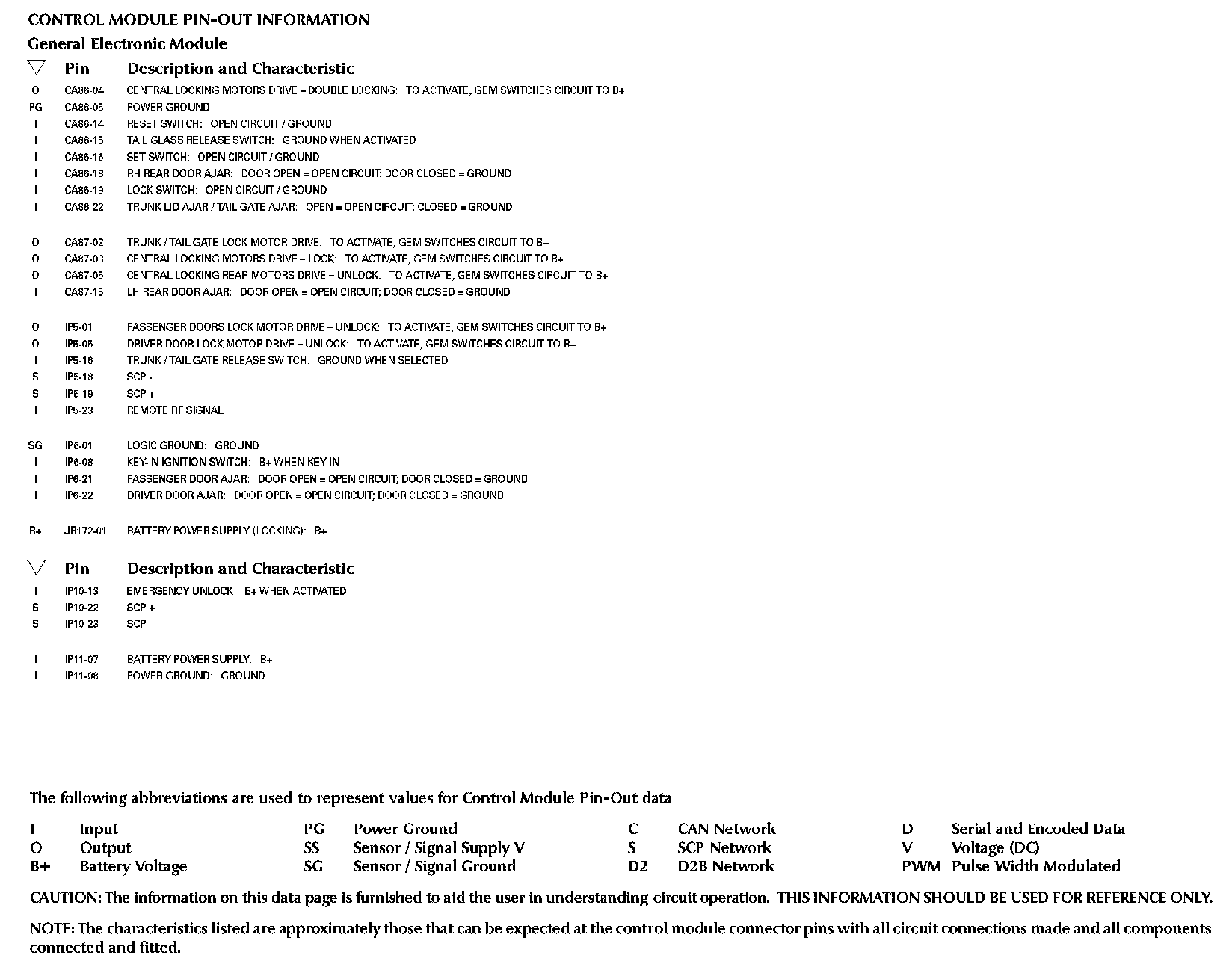

Diagram Data Sheet 12.3 (Part 2):
