Fig 12.2
Fig 12.2

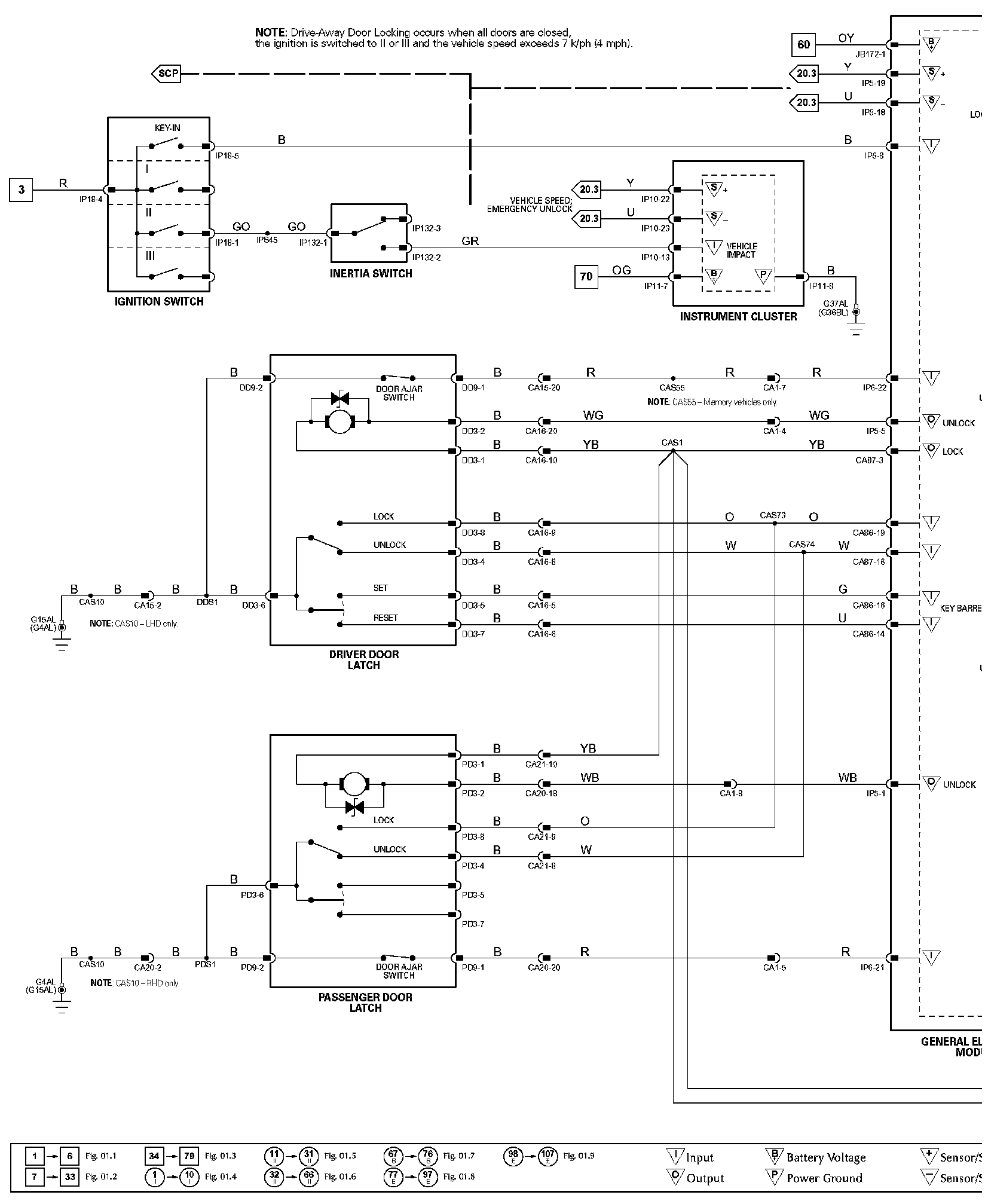

% �Diagram Figure 12.2:

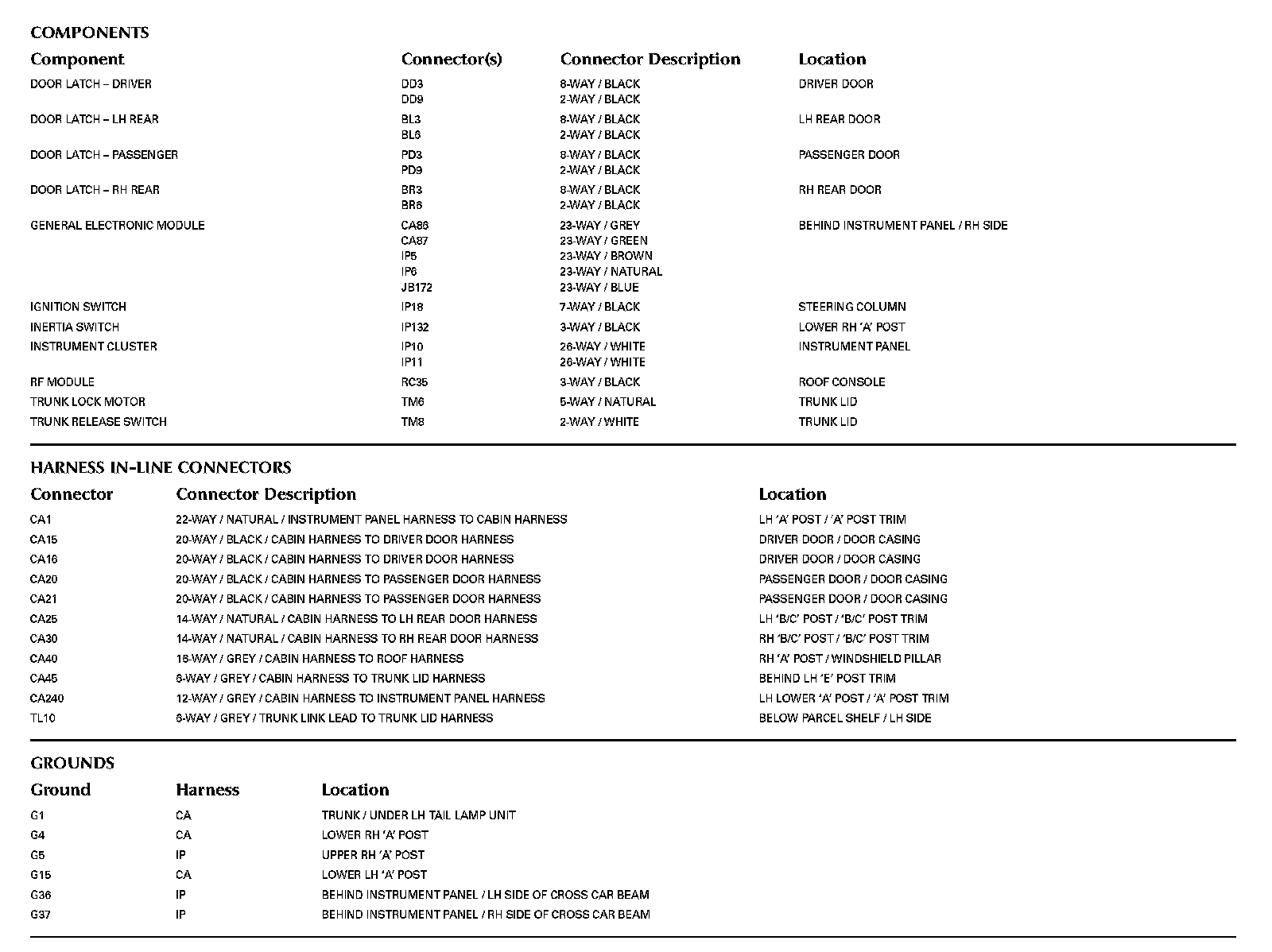

Diagram Data Sheet 12.2 (Part 1):

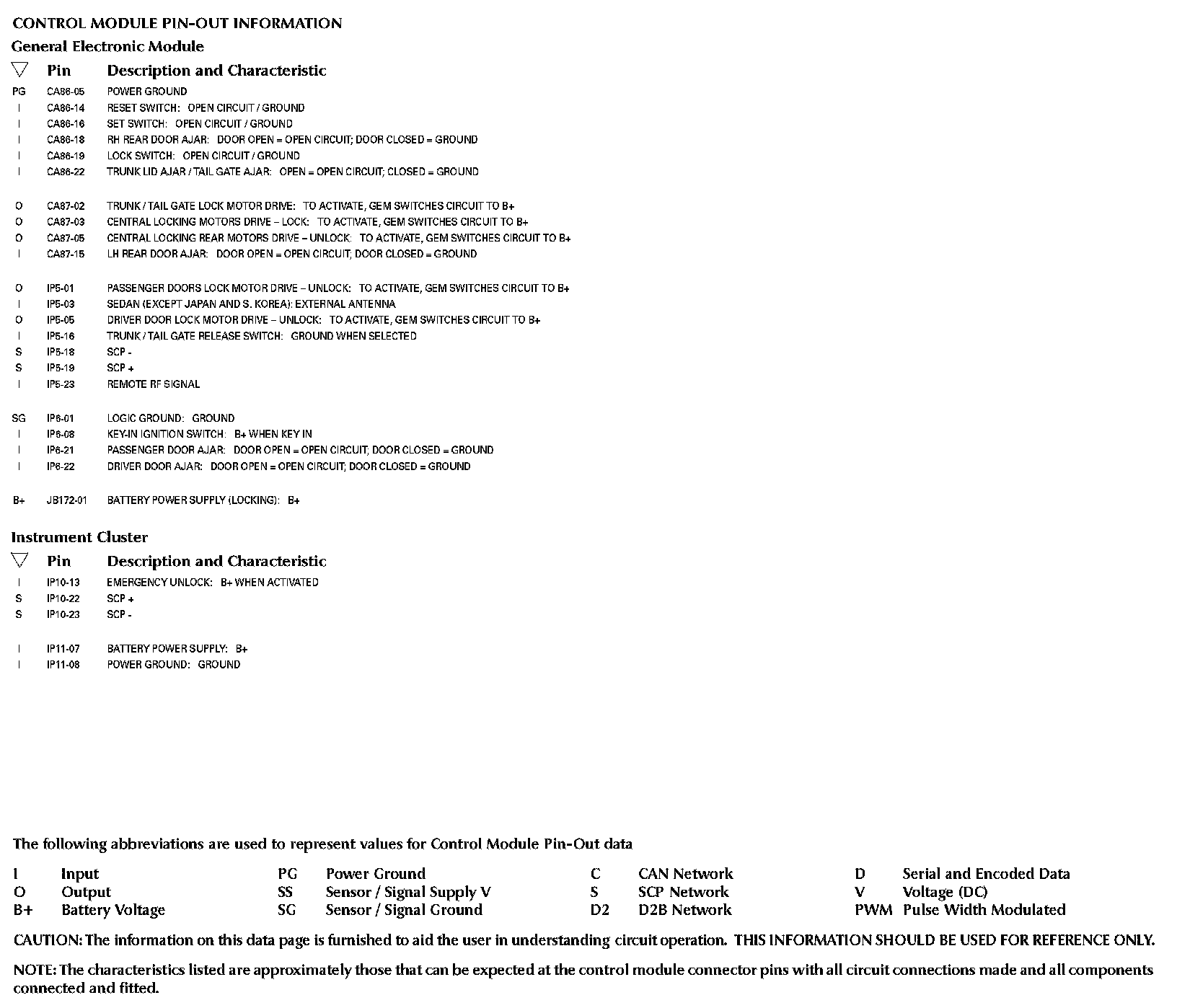

Diagram Data Sheet 12.2 (Part 2):
