Fig 12.1
Fig 12.1

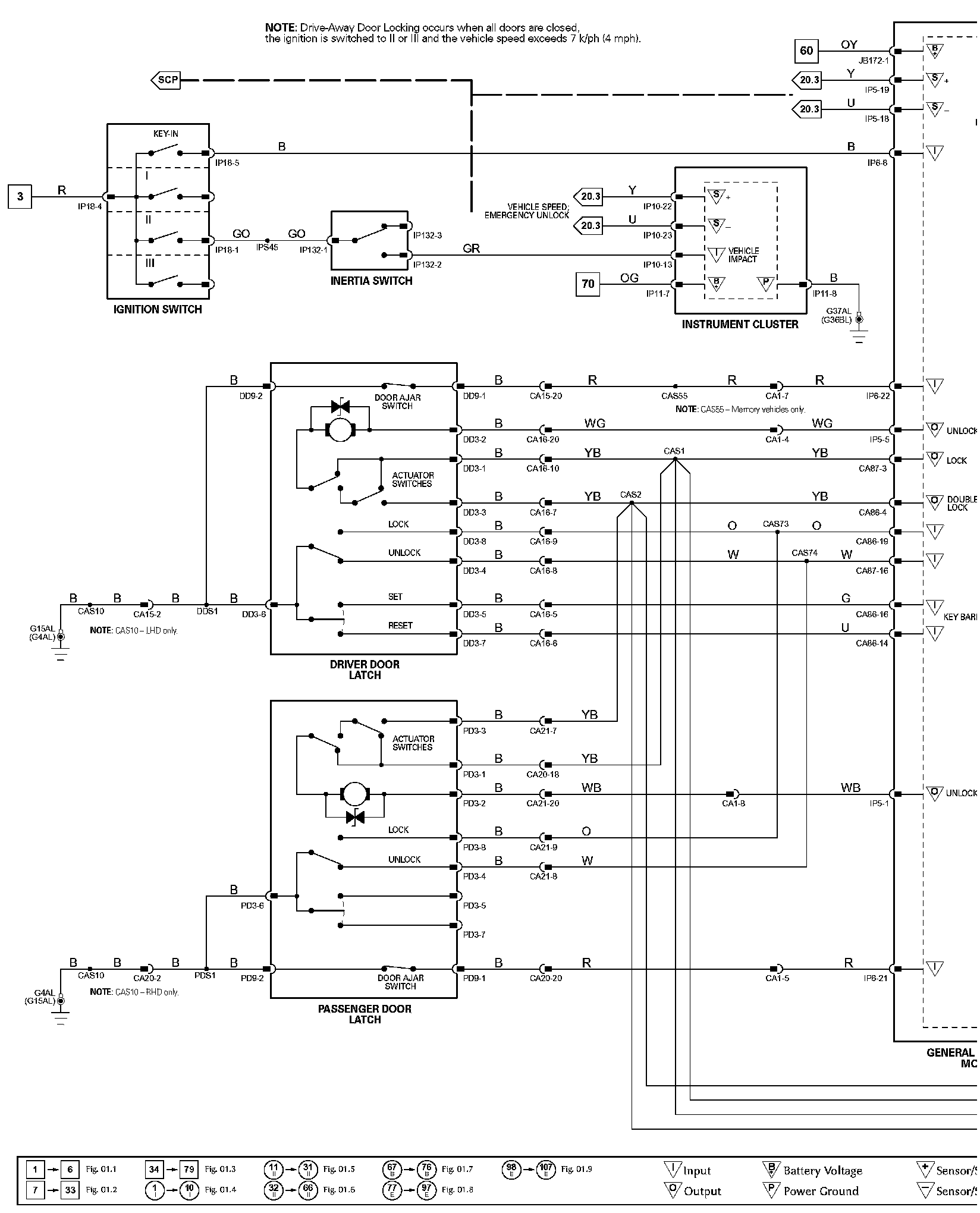

�!�Diagram Figure 12.1:

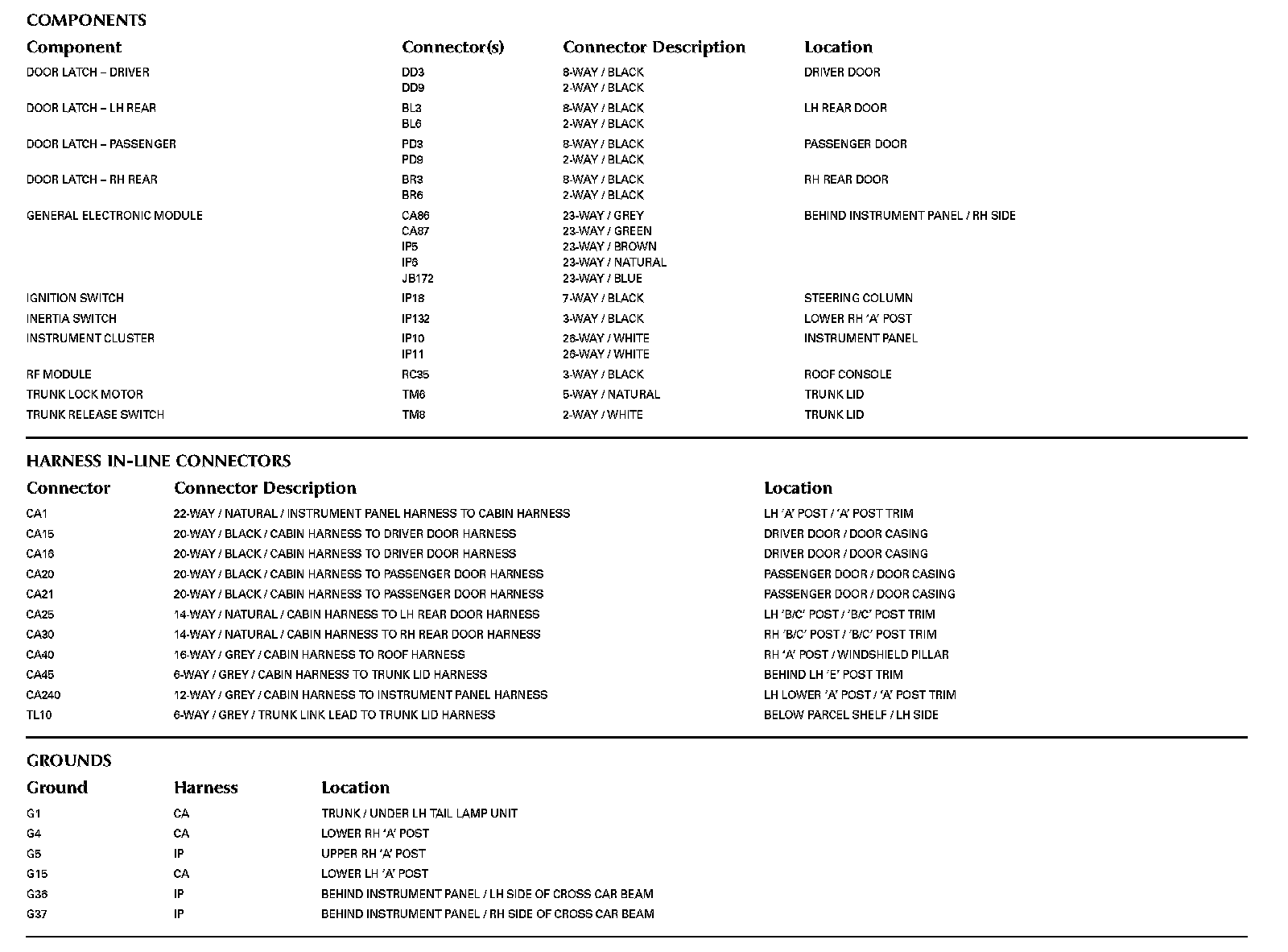

Diagram Data Sheet 12.1 (Part 1):

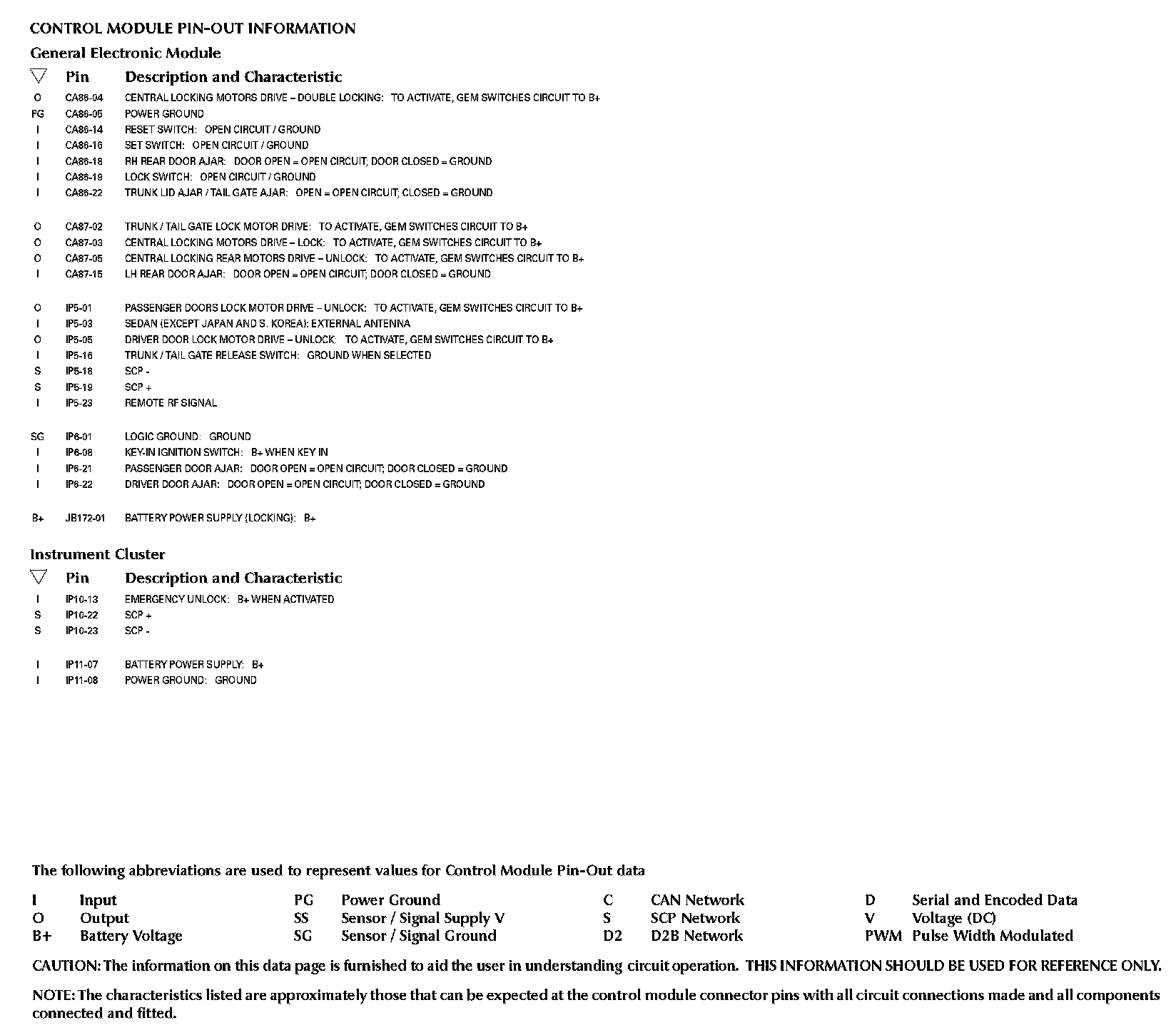

Diagram Data Sheet 12.1 (Part 2):
