Fig 11.6
Fig 11.6

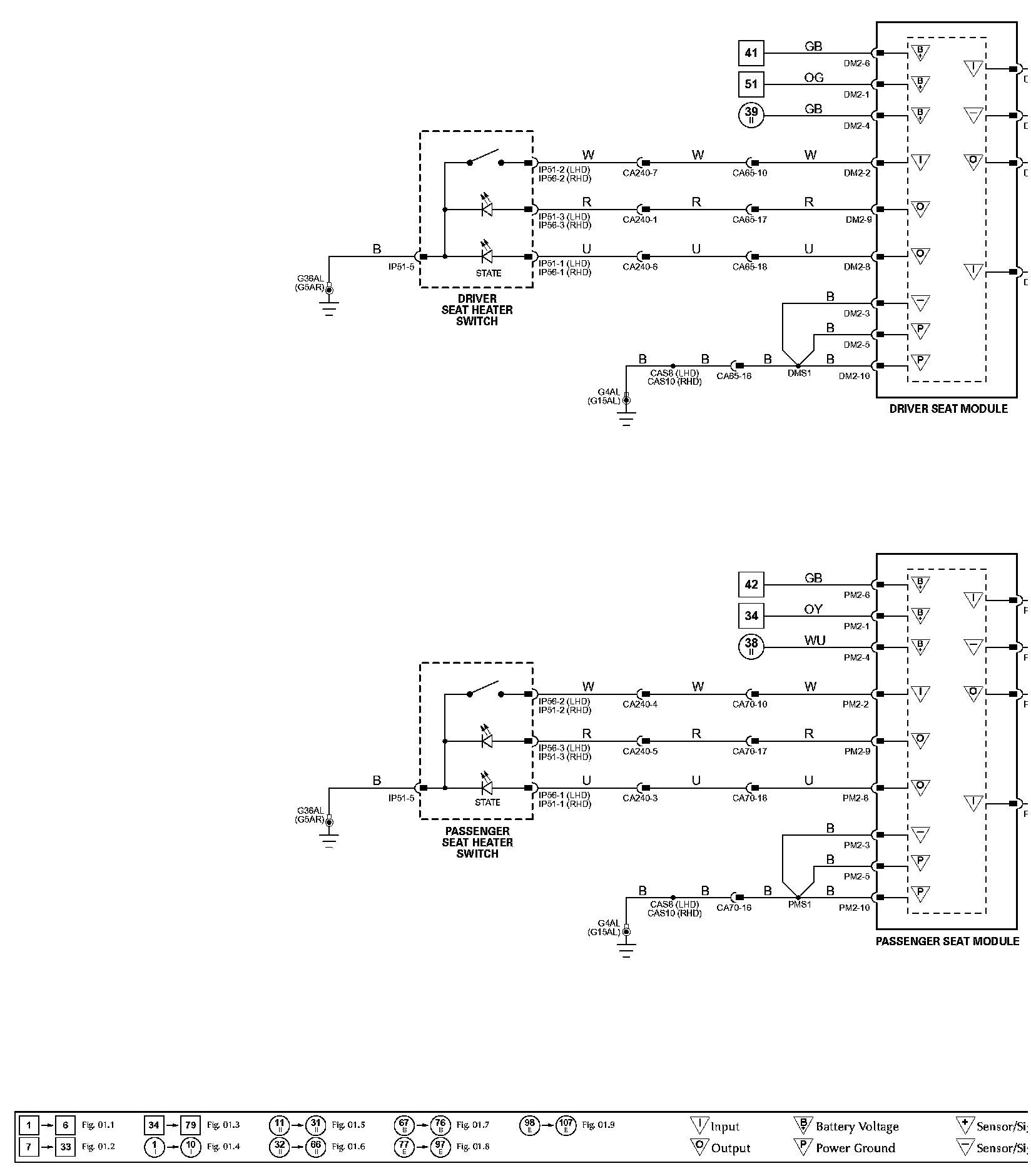

��V"Diagram Figure 11.6:

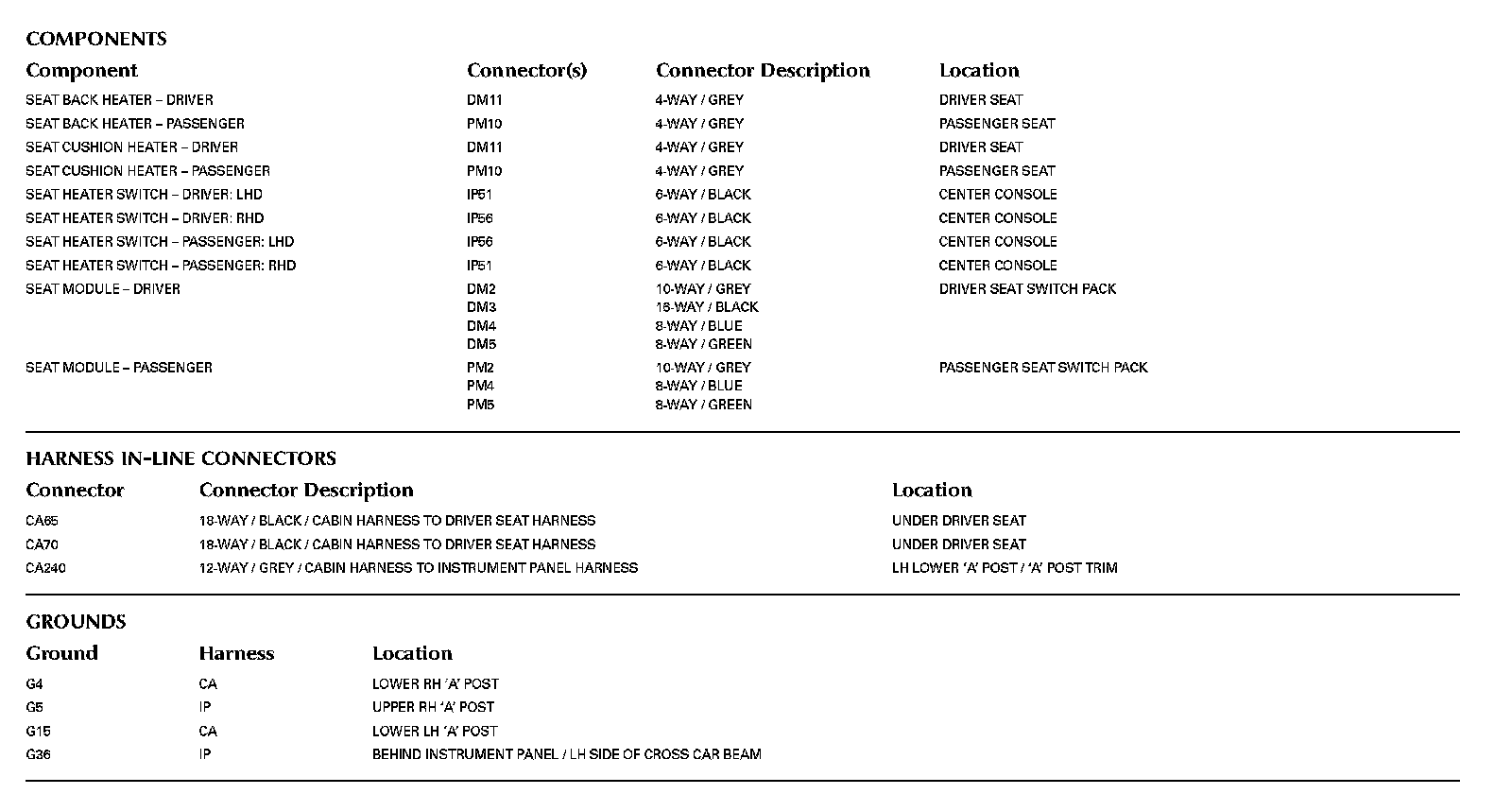

Diagram Data Sheet 11.6 (Part 1):

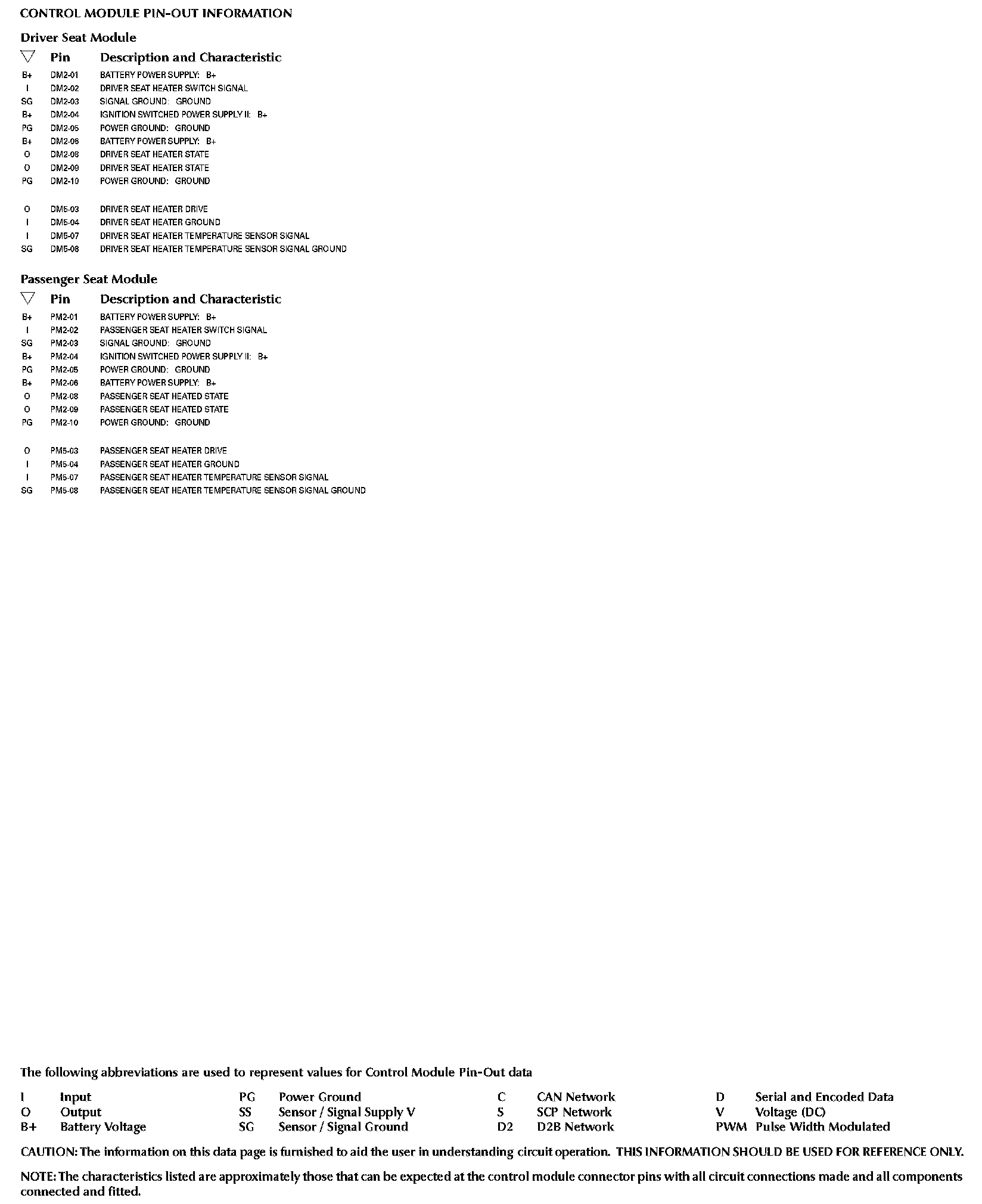

Diagram Data Sheet 11.6 (Part 2):
