Fig 11.2

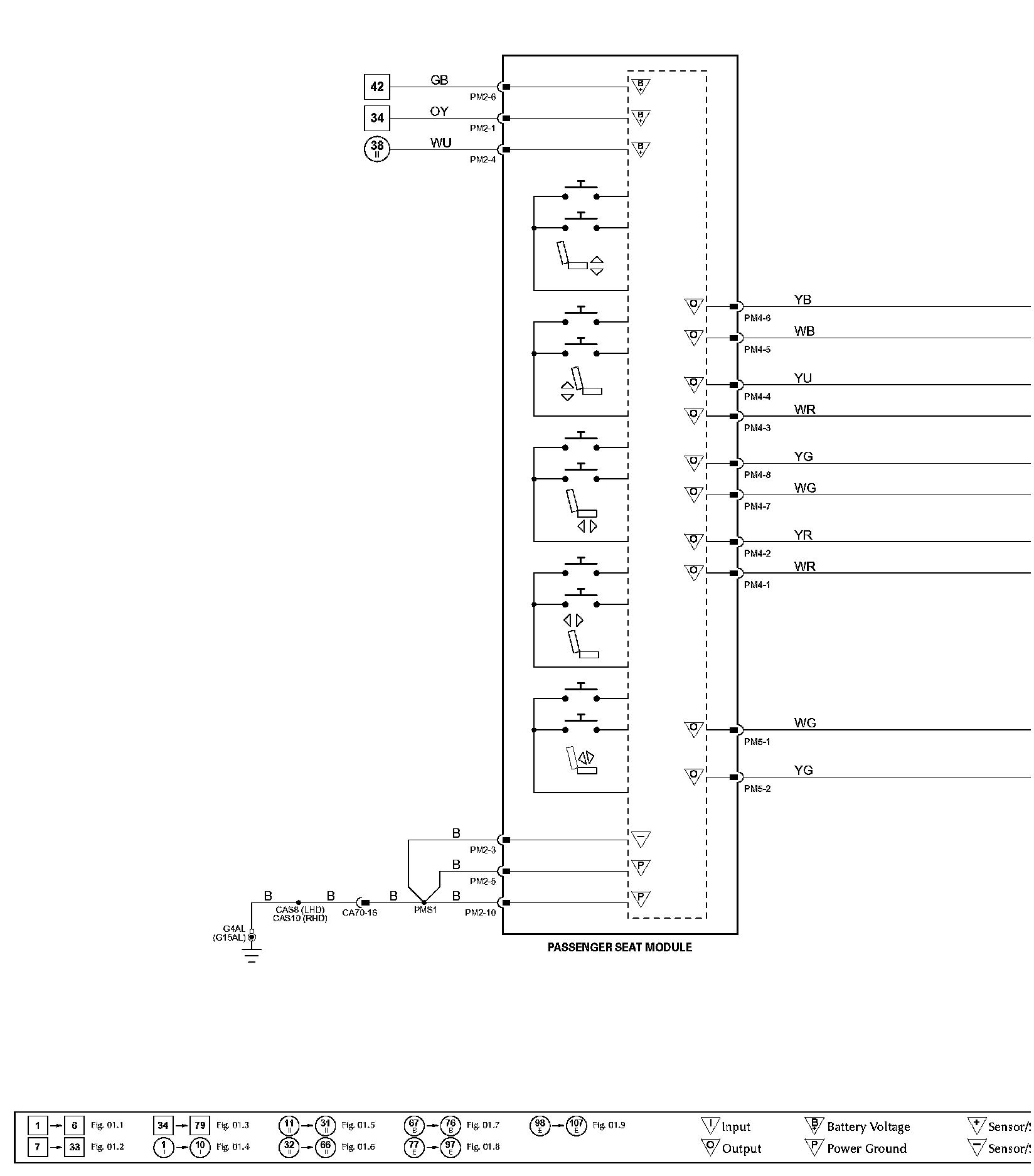

�O�Diagram Figure 11.2:

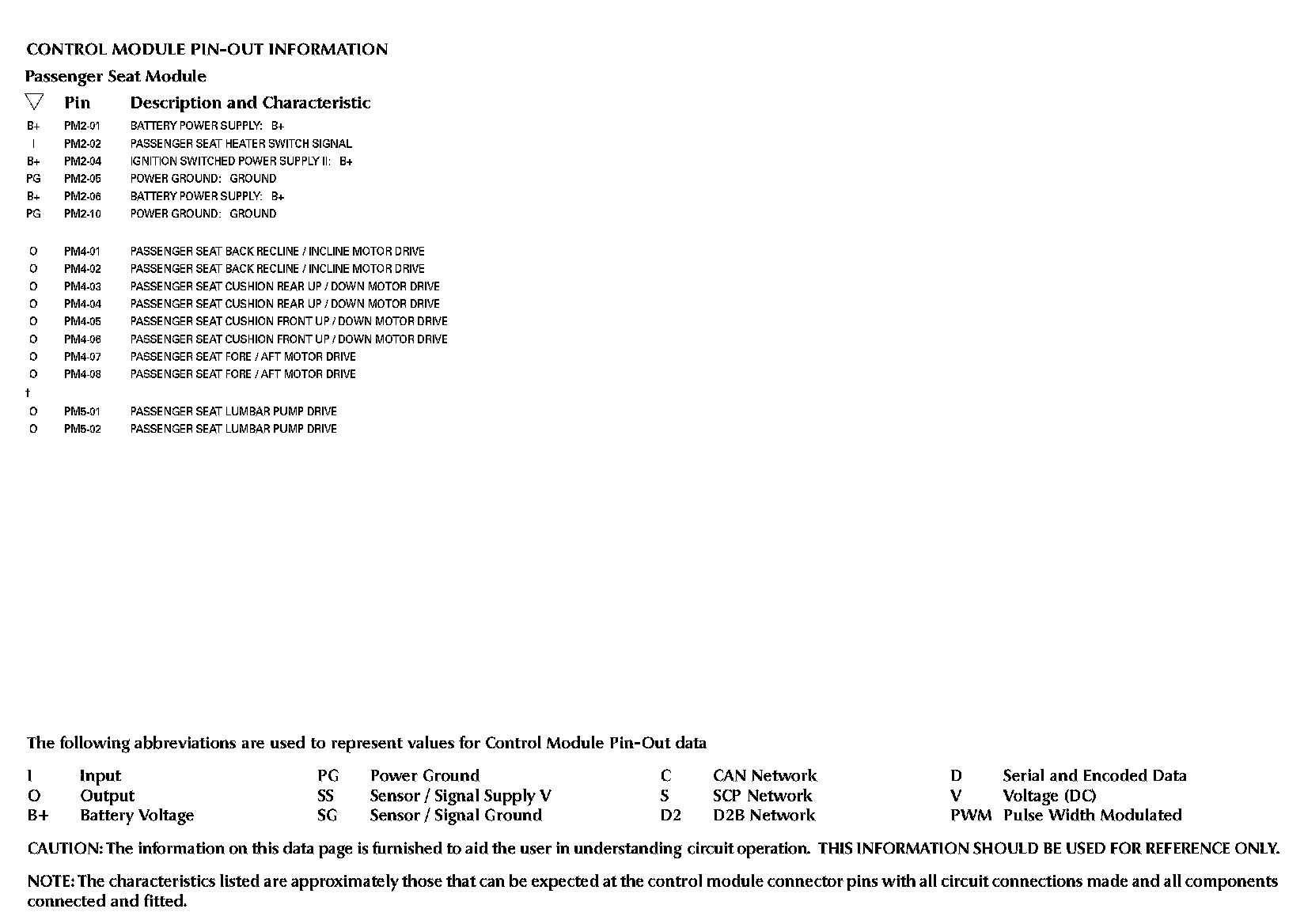

Diagram Data Sheet 11.2 (Part 1):

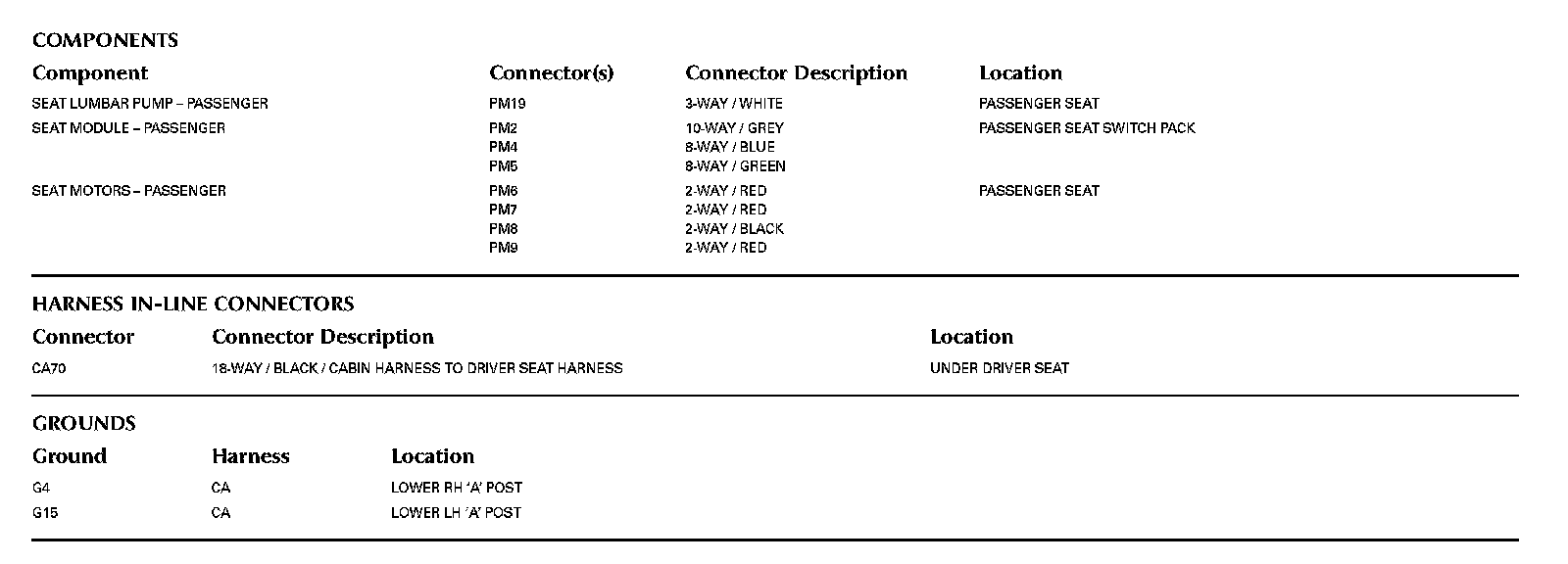

Diagram Data Sheet 11.2 (Part 2):
