Fig 10.2
Fig 10.2

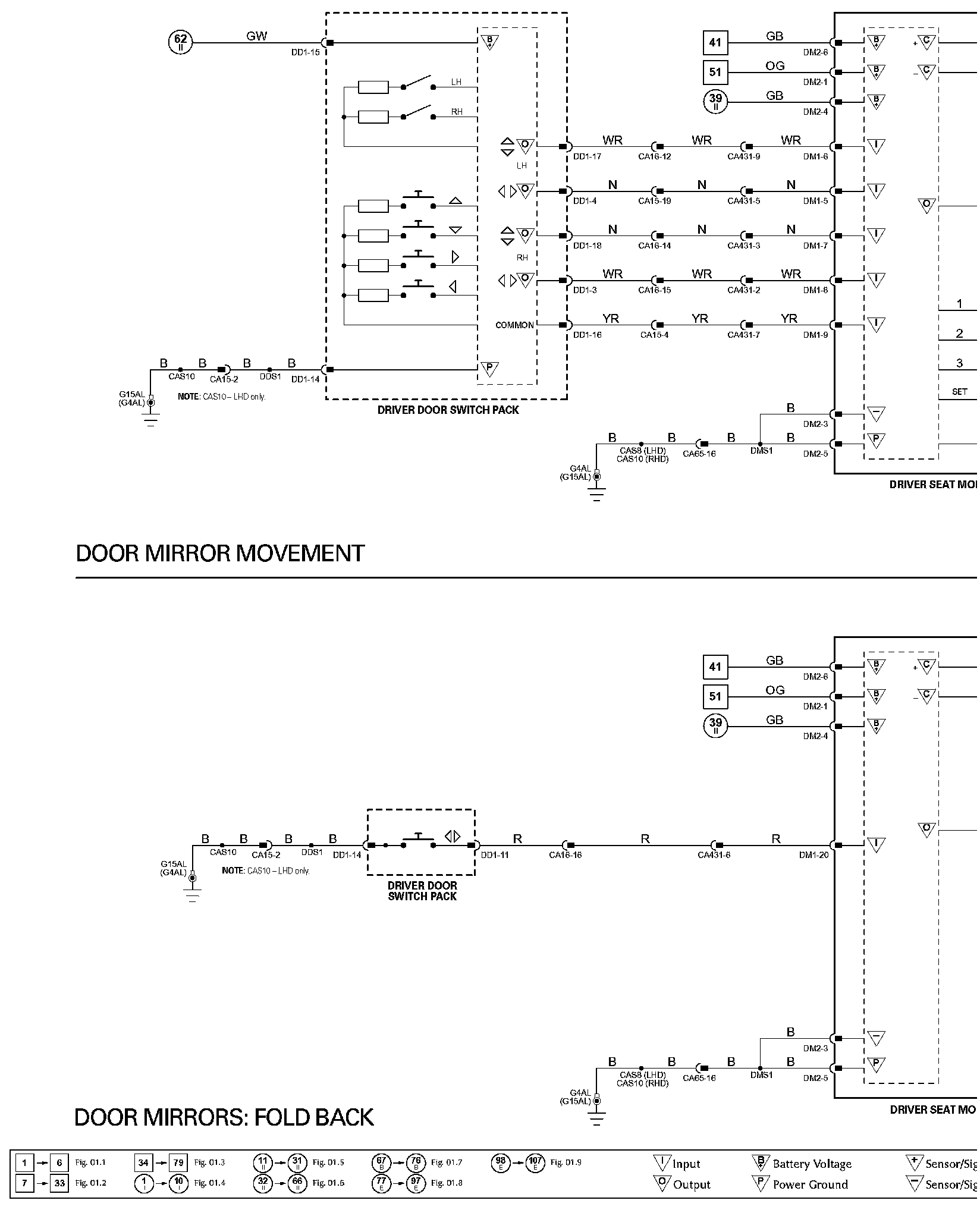

�'�Diagram Figure 10.2:

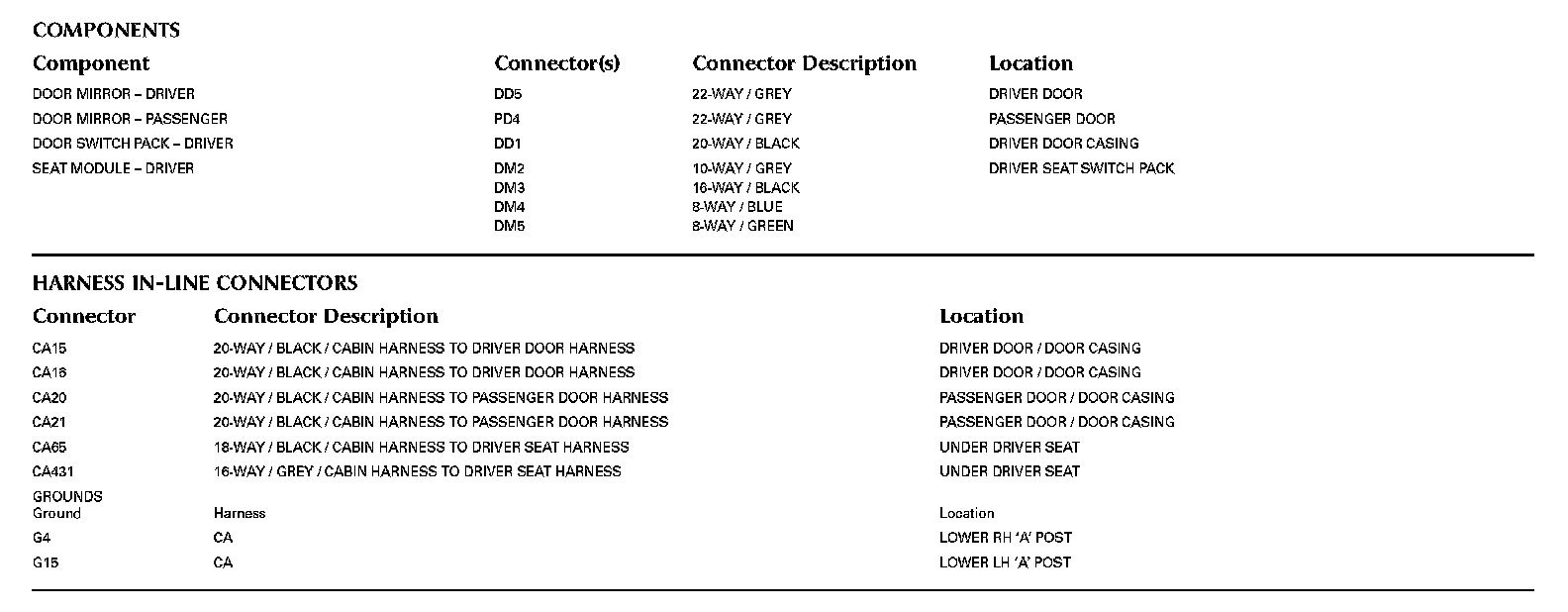

Diagram Data Sheet 10.2 (Part 1):

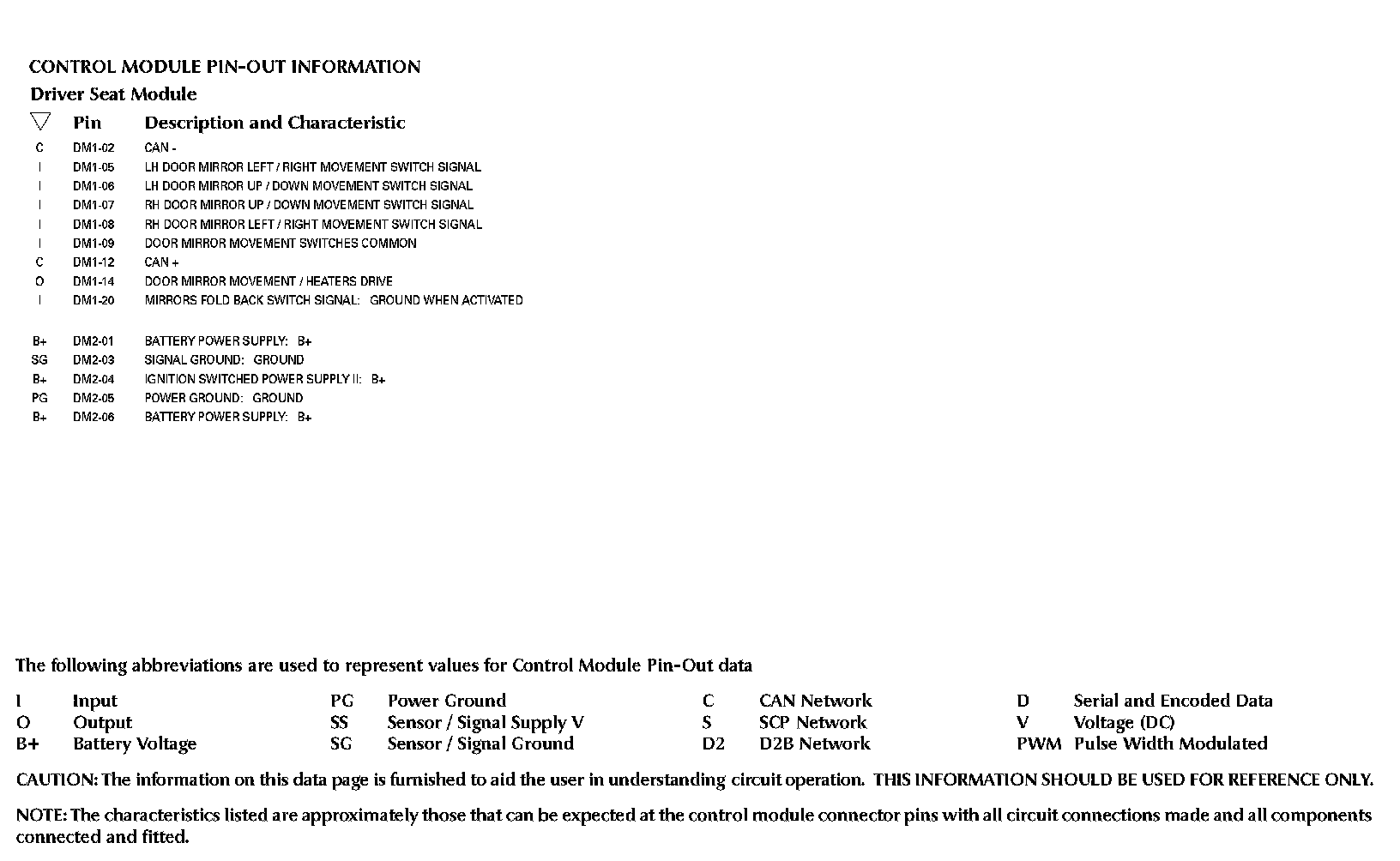

Diagram Data Sheet 10.2 (Part 2):
