Fig 09.1
Fig 09.1

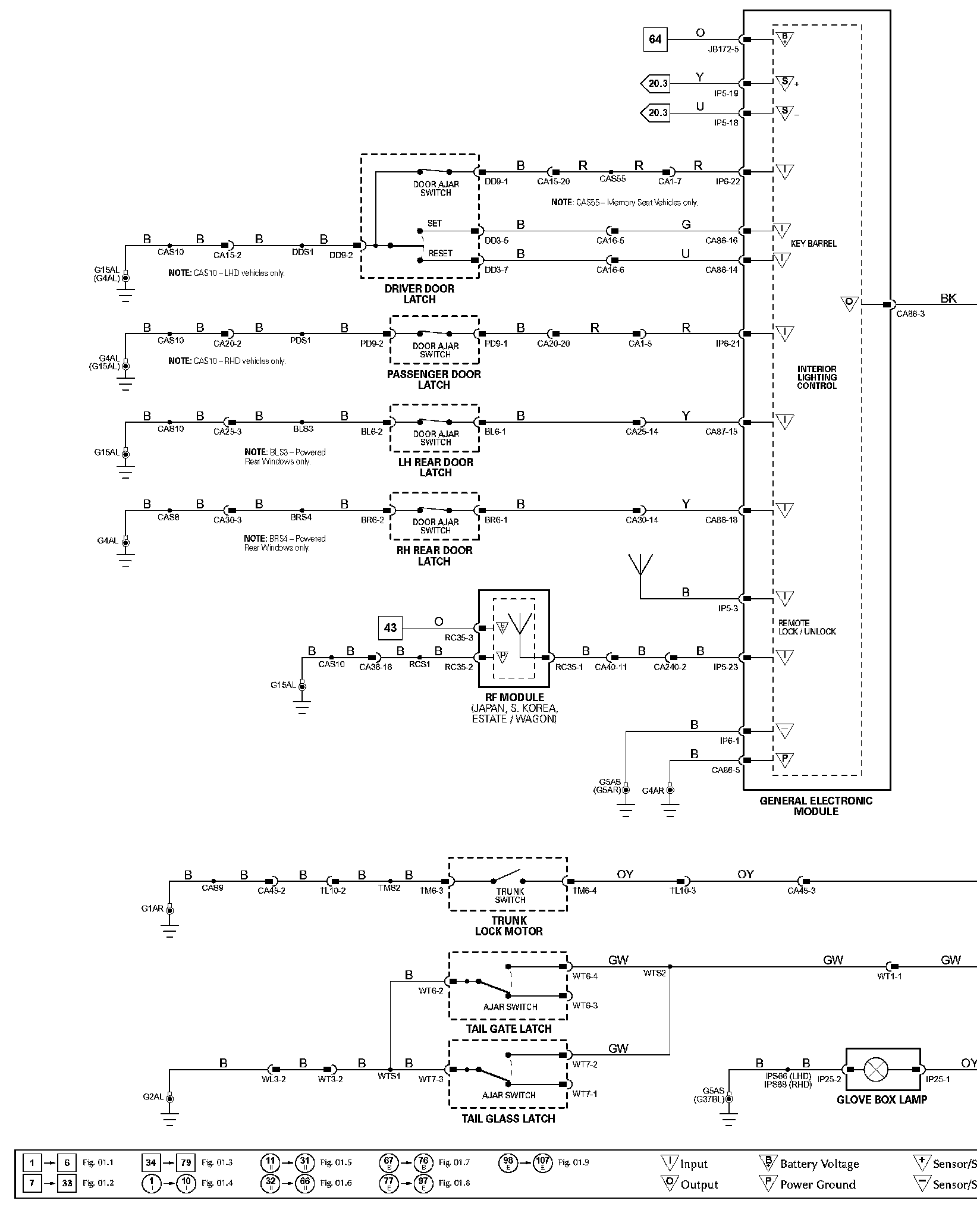

jў%Diagram Figure 09.1:

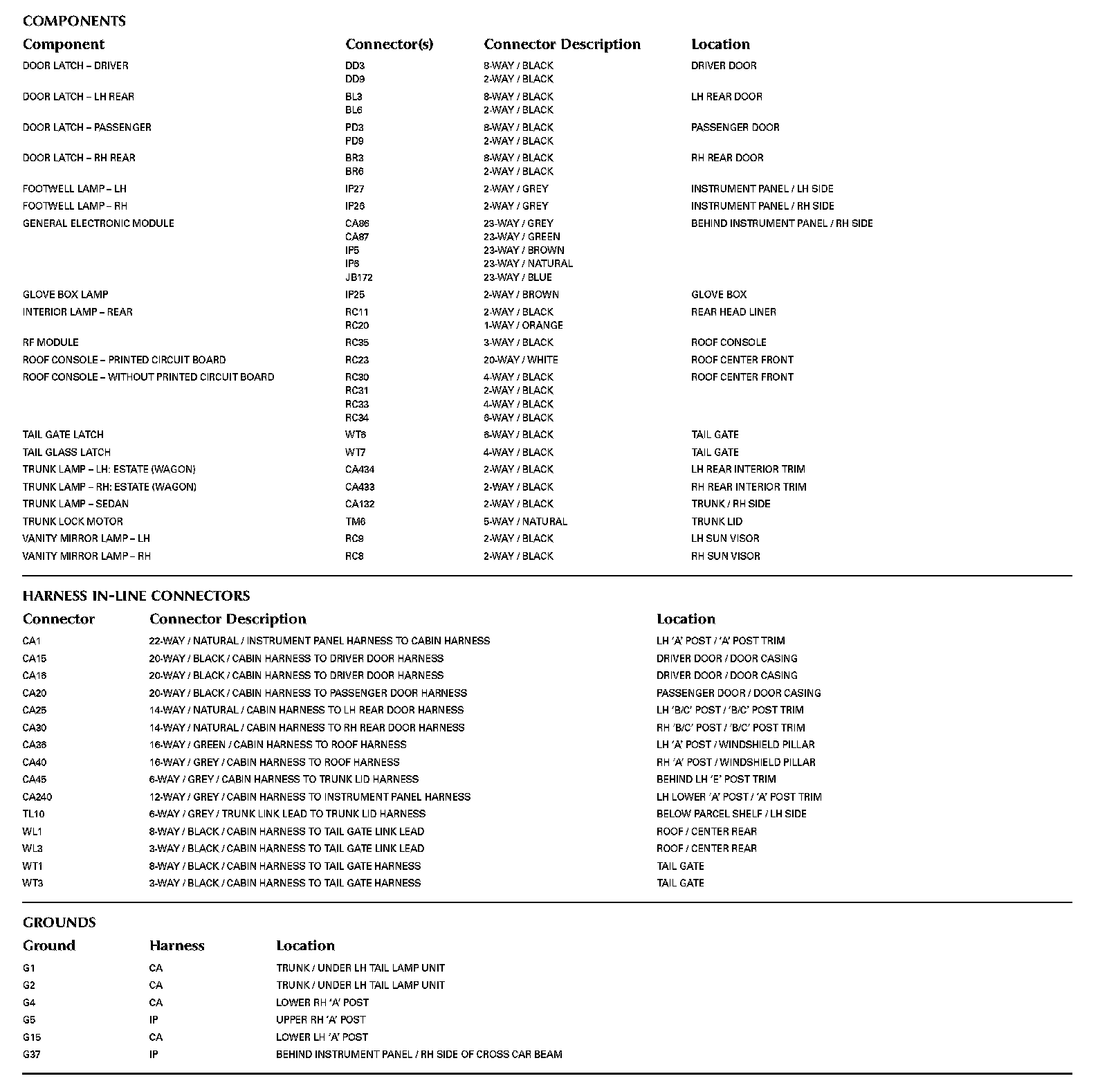

Diagram Data Sheet 09.1 (Part 1):
Diagram Data Sheet 09.1 (Part 2):
