Fig 08.4
Fig 08.4

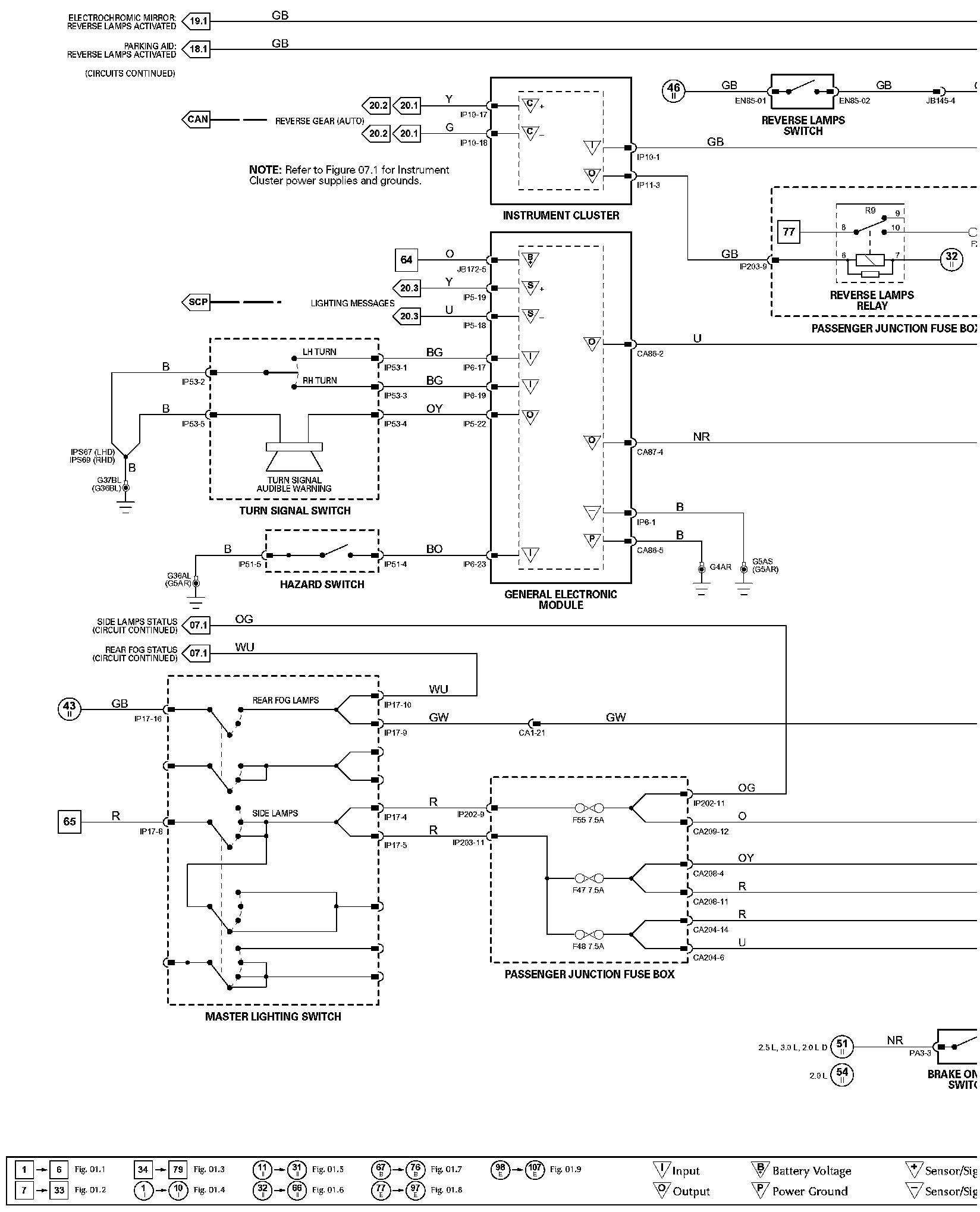

��%Diagram Figure 08.4:

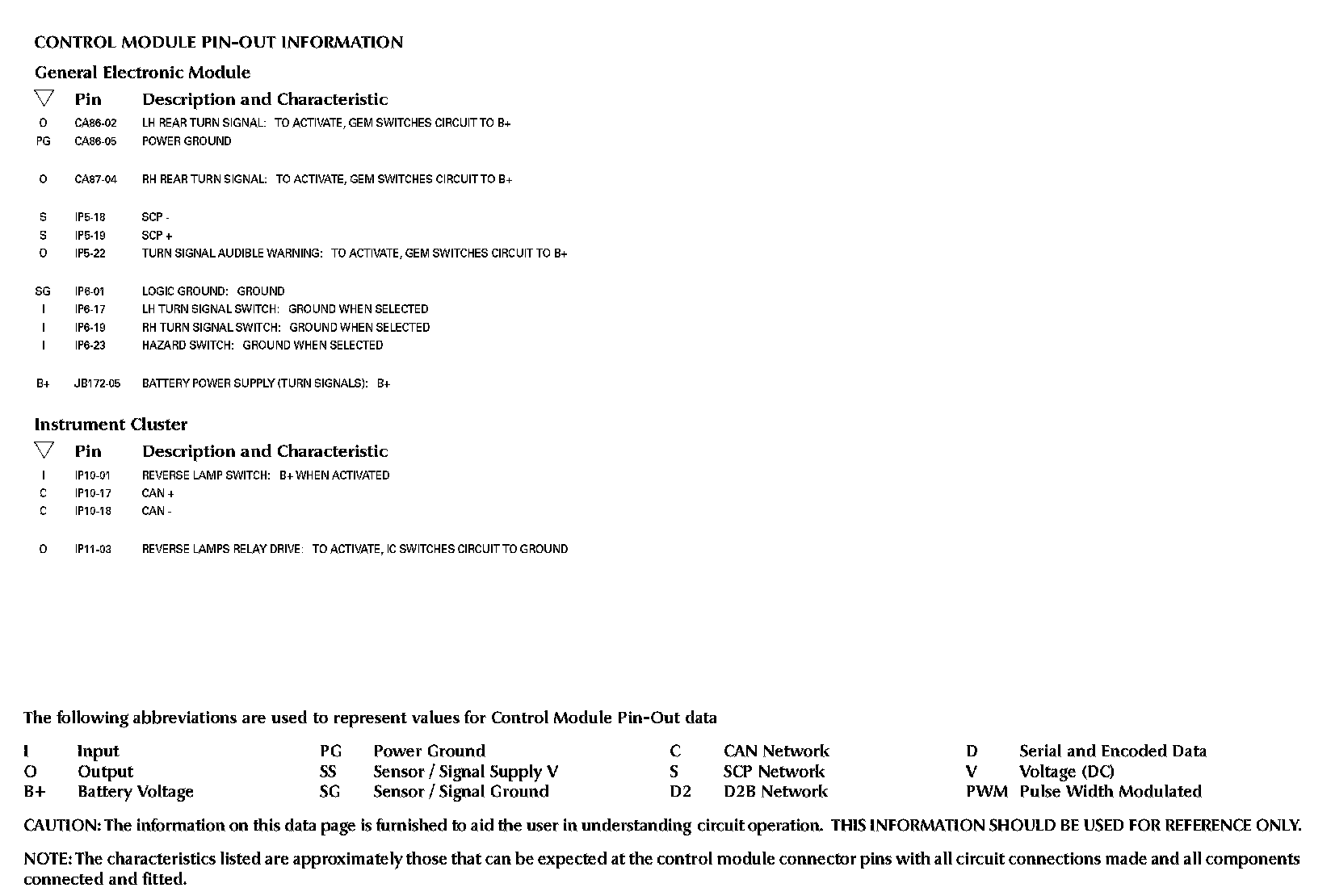

Diagram Data Sheet 08.4 (Part 1):

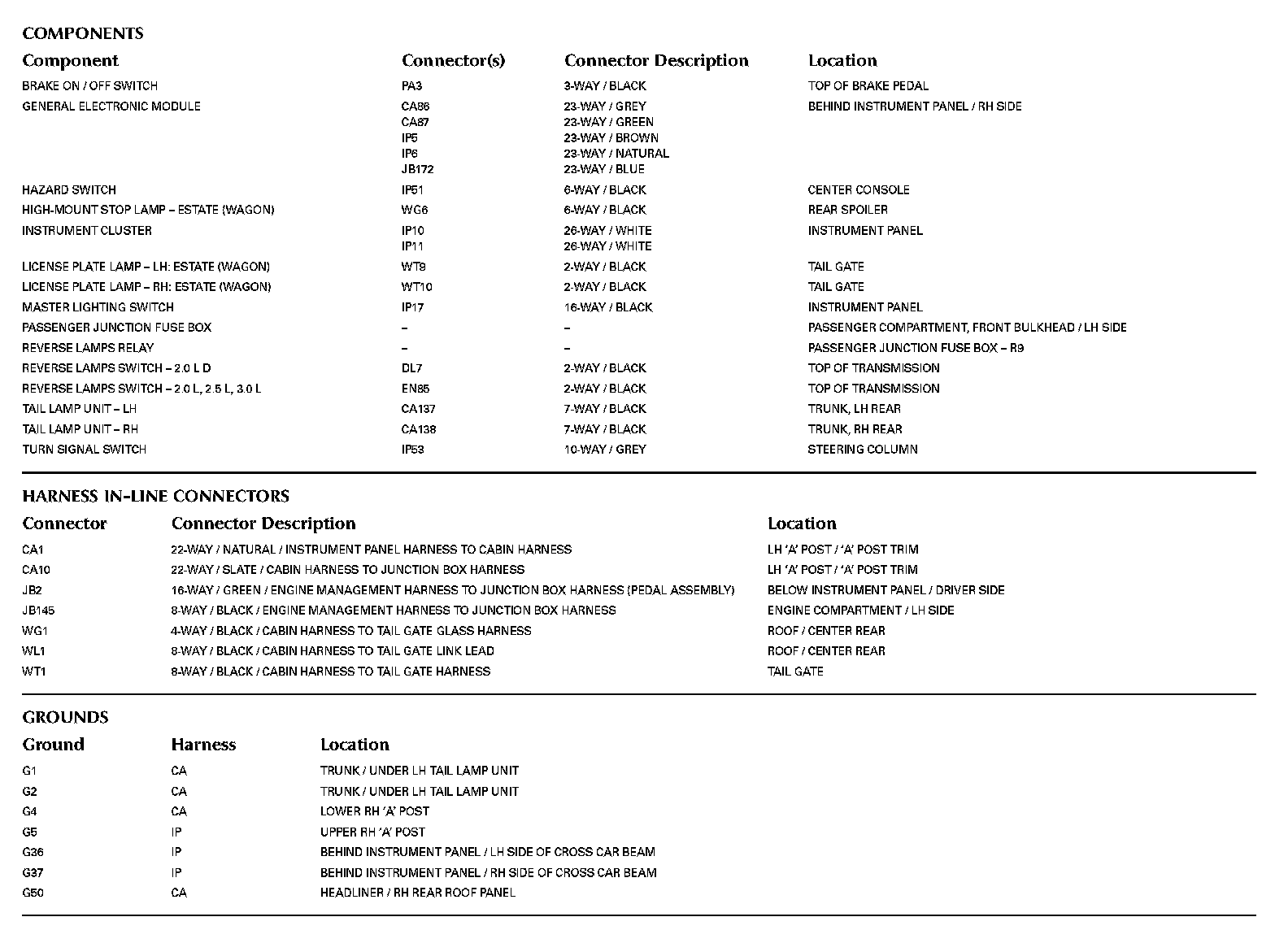

Diagram Data Sheet 08.4 (Part 2):
