Fig 08.3
Fig 08.3

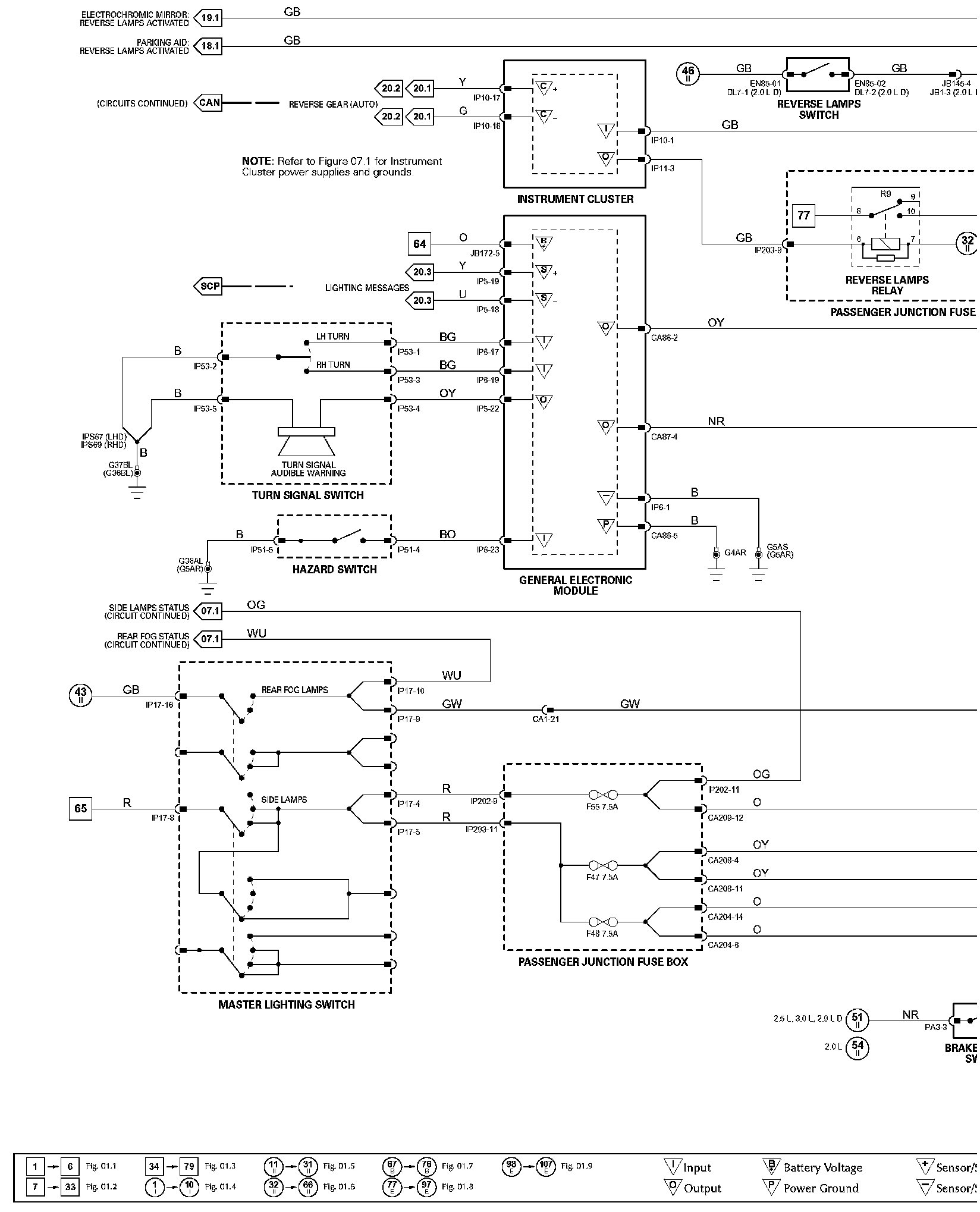

!݂%Diagram Figure 08.3:

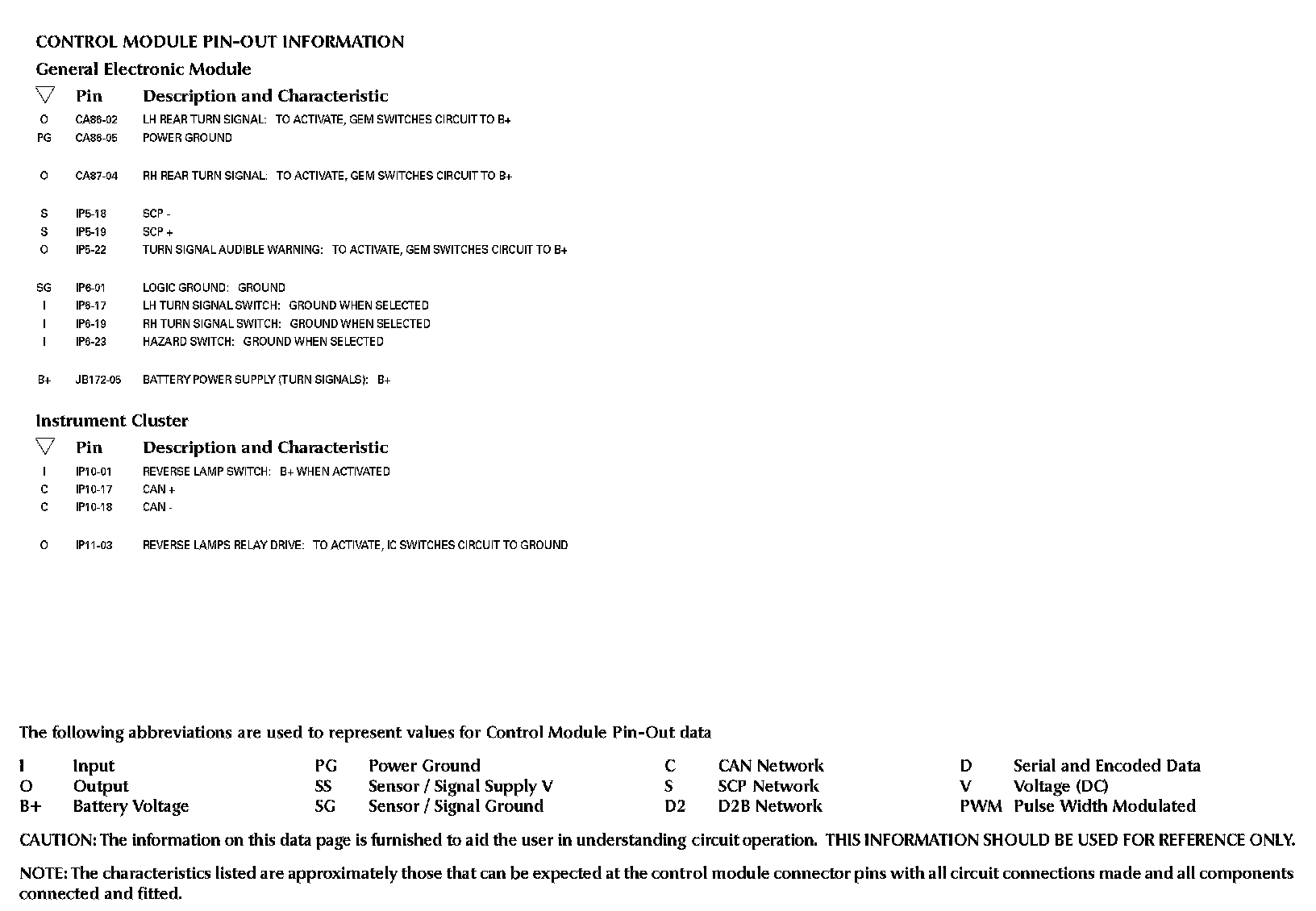

Diagram Data Sheet 08.3 (Part 1):

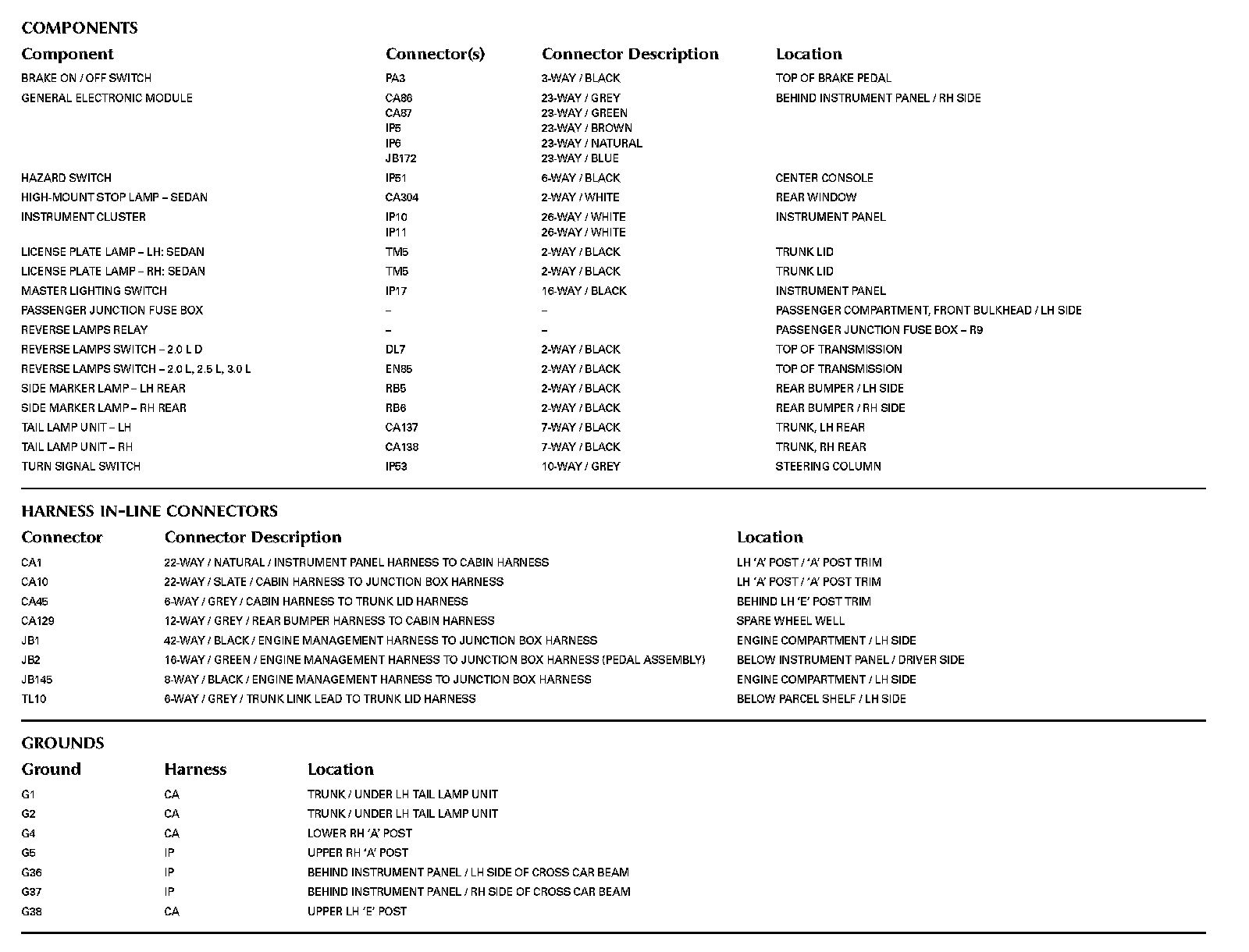

Diagram Data Sheet 08.3 (Part 2):
