Fig 07.2
Fig 07.2

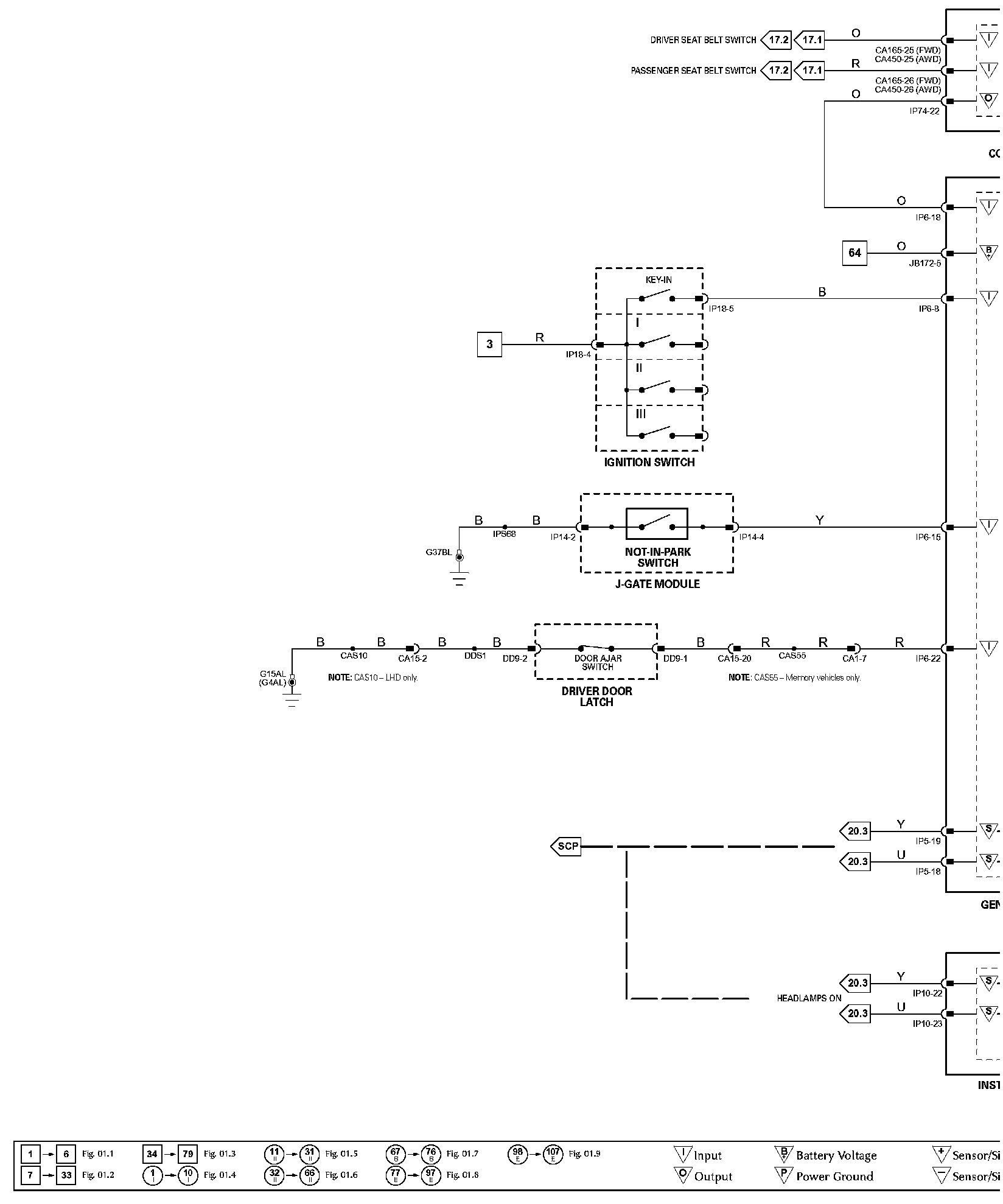

y�#Diagram Figure 07.2:

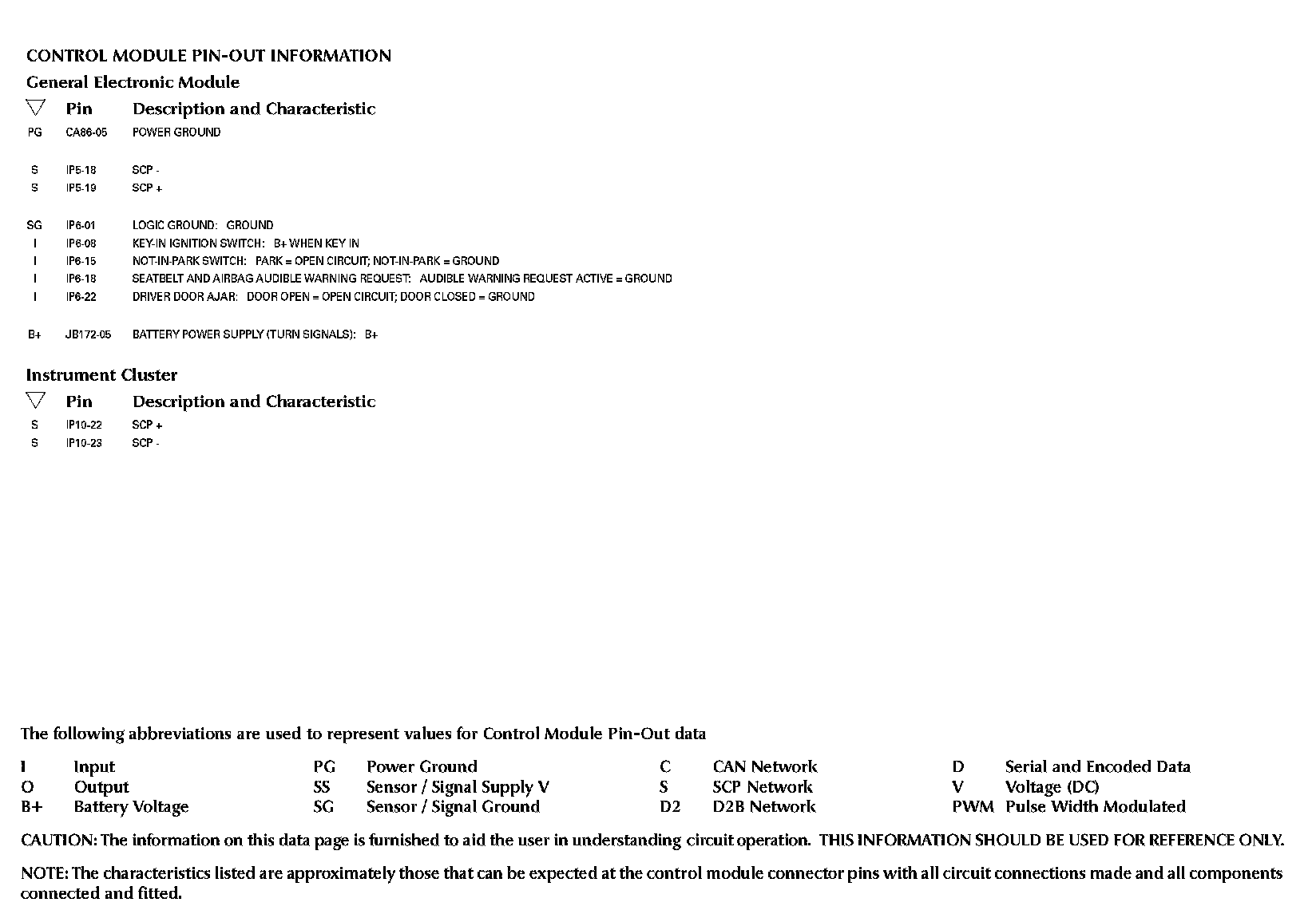

Diagram Data Sheet 07.2 (Part 1):

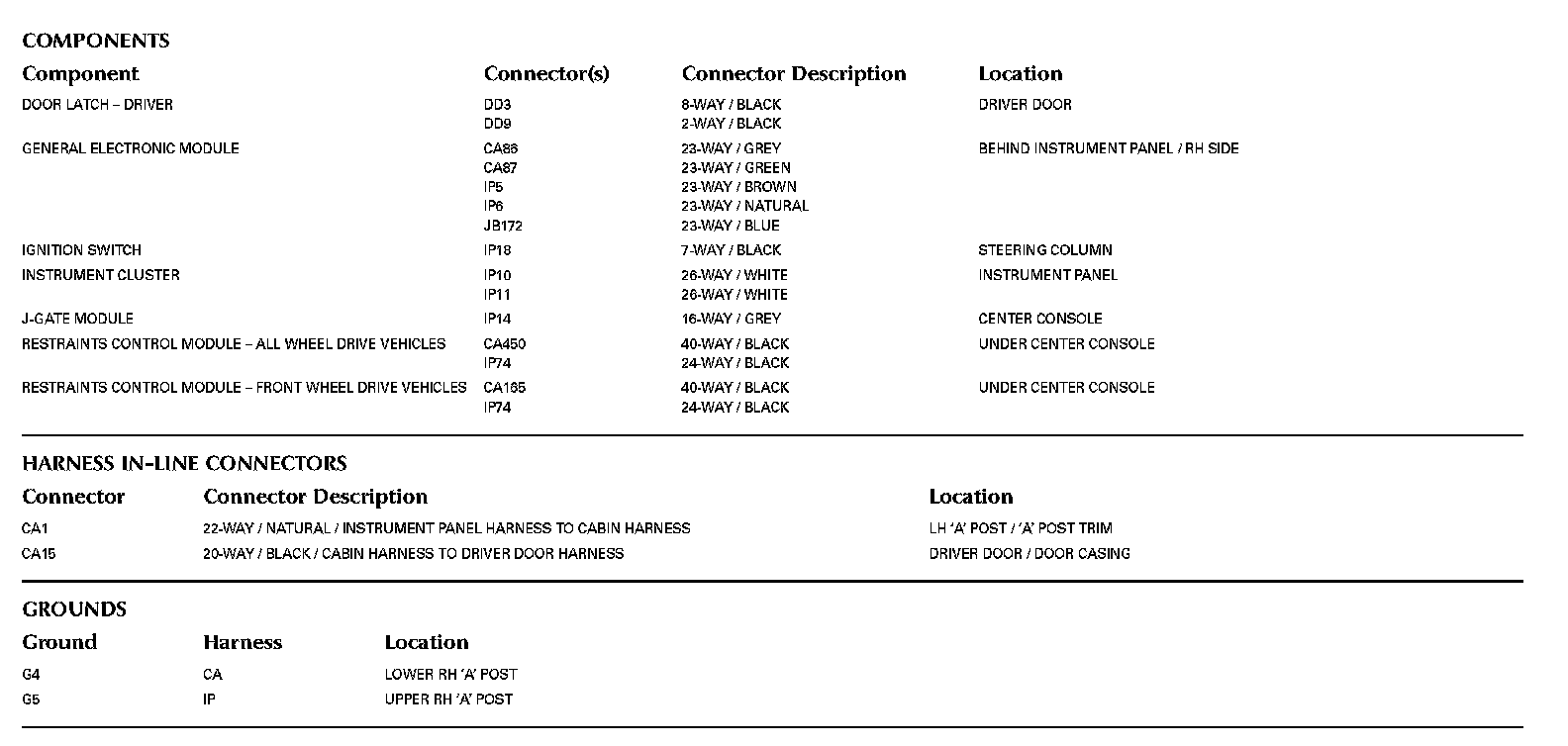

Diagram Data Sheet 07.2 (Part 2):
