Fig 07.1
Fig 07.1
�i�$Diagram Figure 07.1:

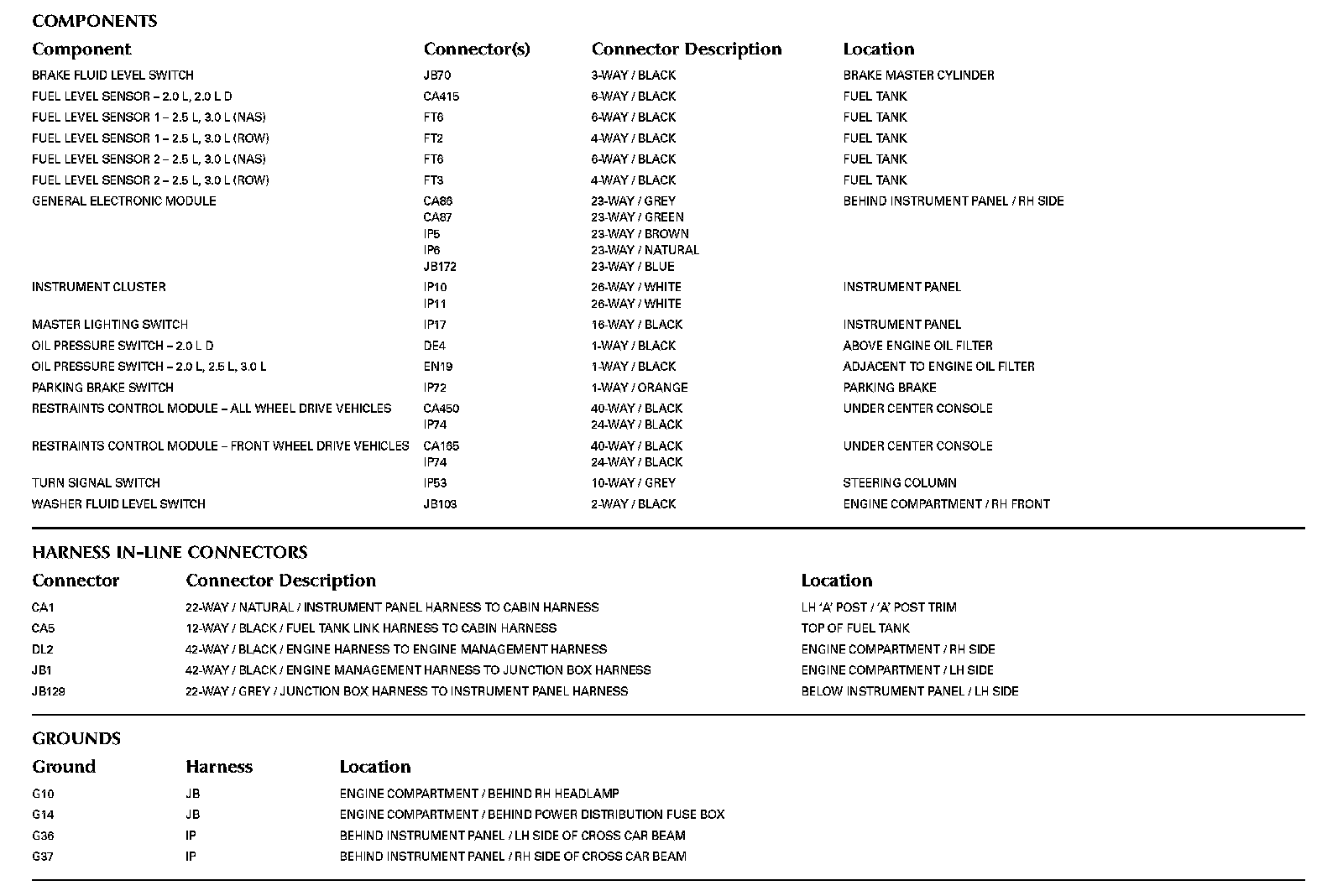

Diagram Data Sheet 07.1 (Part 1):

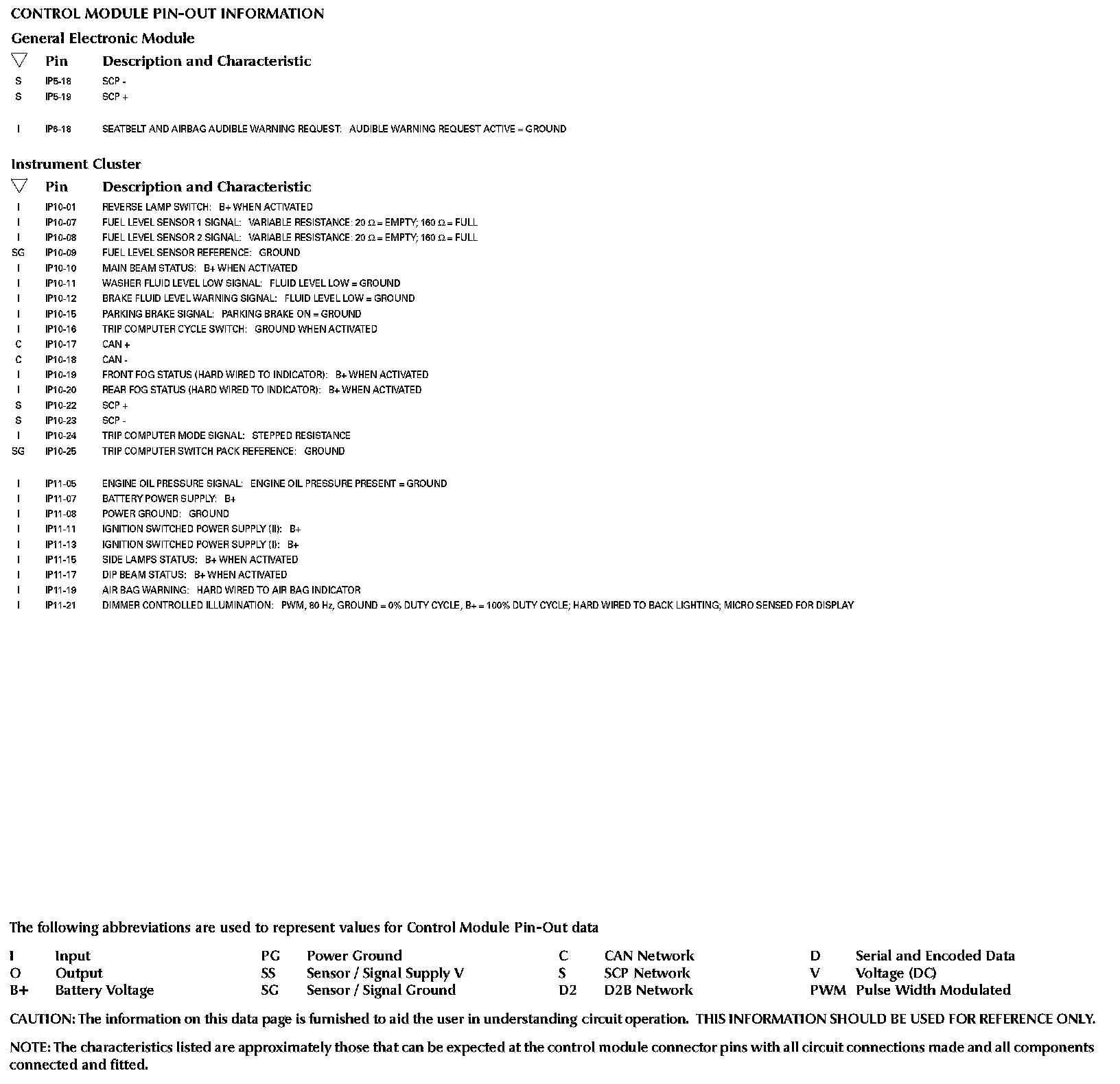

Diagram Data Sheet 07.1 (Part 2):
