Antenna: Service and Repair

Wagon 86.51.17.60

Antenna

Removal
1. Remove the overhead console.
2. Remove the both sun visors.







3. Remove the sun visor retaining clips.







4. Detach the front door opening weatherstrip.

NOTE: Right-hand shown, left-hand similar.

5. Remove both A-pillar trim panels.

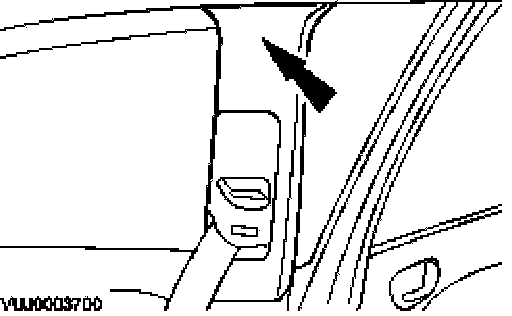

6. Detach the B-pillar upper trim panel.

NOTE: Right-hand shown, left-hand similar.

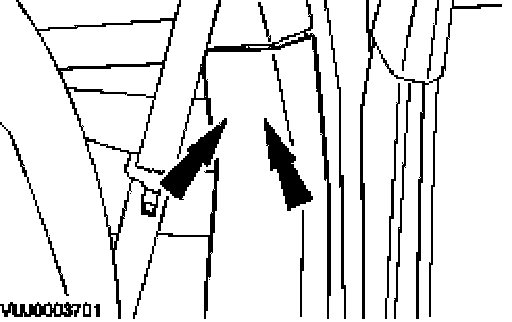

7. Detach the B-pillar lower trim panel.

NOTE: Right-hand shown, left-hand similar.

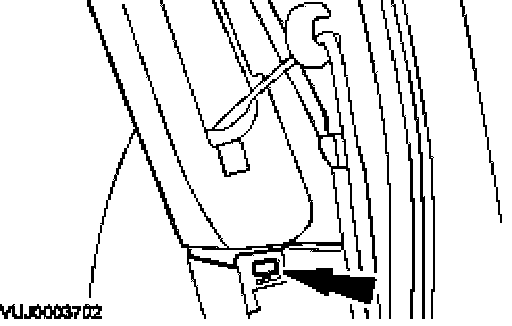

8. Detach the B-pillar upper trim panel from the B-pillar trim lower trim panel.

NOTE: Right-hand shown, left-hand similar.

9. Remove both C-pillar trim panel.

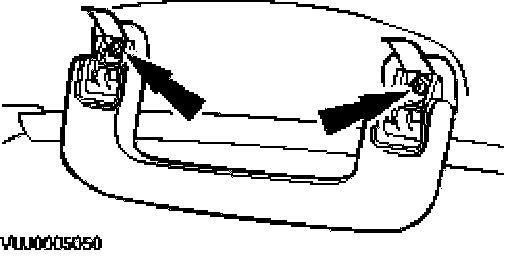

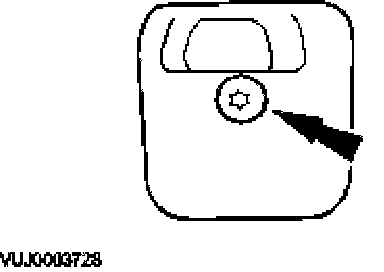

10. Detach the covers to expose the screws and remove the driver and passenger assist handles.
11. Remove both D-pillar trim panels.

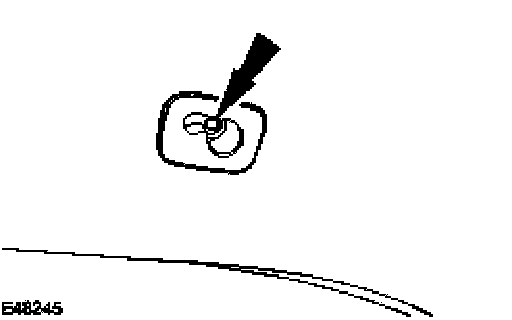

12. Remove the luggage net retaining clip.

NOTE: Right-hand shown, left-hand similar.

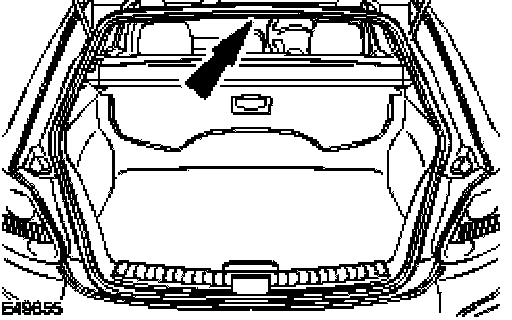

13. Remove and discard the liftgate opening weatherstrip.

NOTE: The liftgate weatherstrip must be replaced once removed.

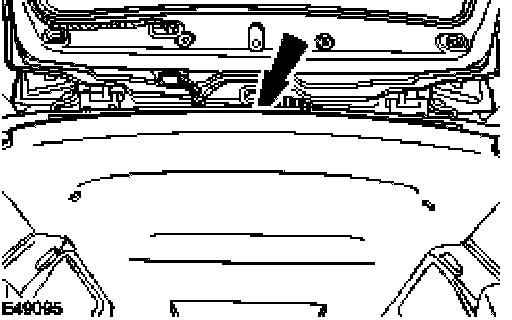

14. Detach the headliner.







15. Lower the headliner.

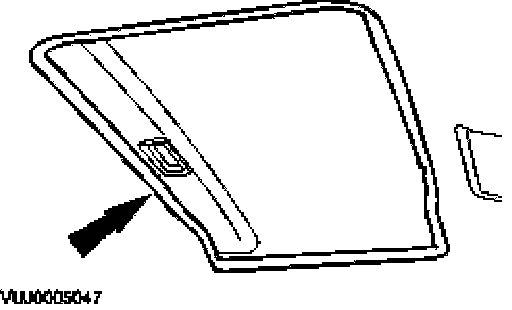

- Remove the sunroof opening panel weatherstrip.


CAUTION: The headliner must not be creased or folded during removal or installation. Failure to follow this instruction may result in damage to the component.







16. Disconnect the sunroof motor electrical connector.







17. Disconnect the rear washer hose connector.

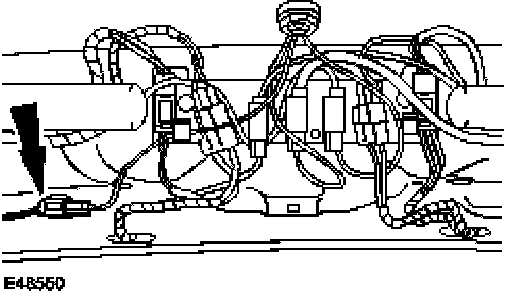

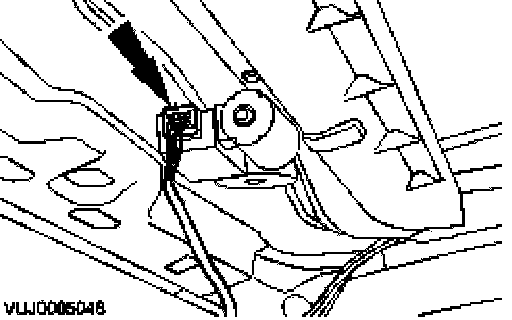

18. Disconnect the electrical connector.

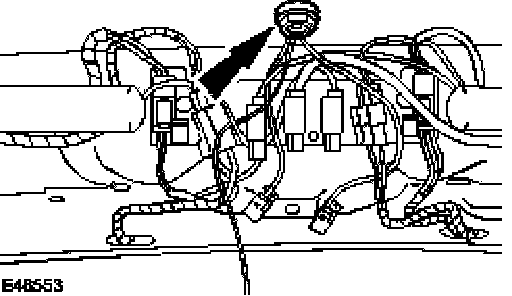

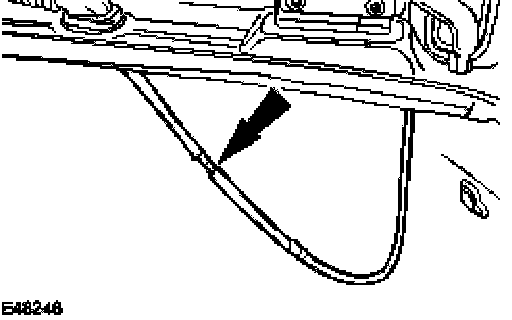

19. Detach the antenna harness.

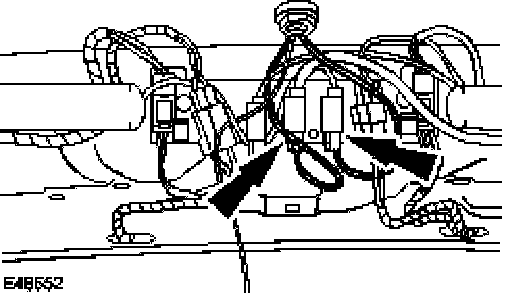

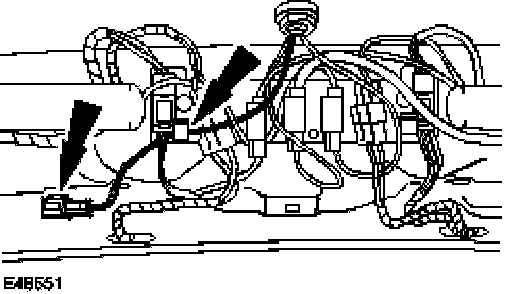

20. Disconnect the electrical connectors.







21. Remove the antenna.

Installation







1. To install, reverse the removal procedure.
- Tighten to 7 Nm.







2. Install a new liftgate opening weatherstrip.

NOTE: The liftgate weatherstrip must be replaced once removed.
