Air Conditioning Line Fitting

Air Conditioning Line Peanut Fitting

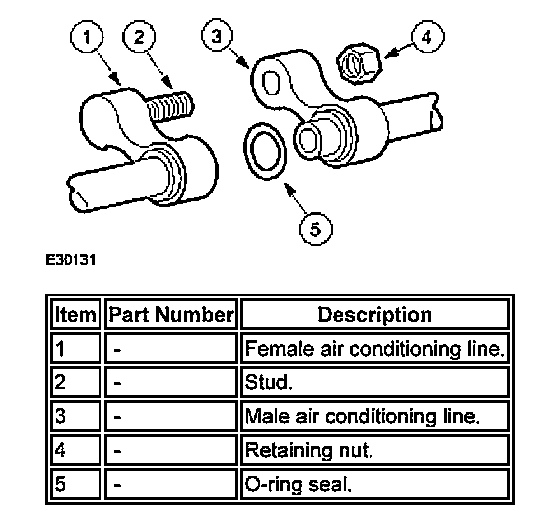

Peanut Fitting Assembly







The connections between the air conditioning (A/C) condensor core/receiver drier and the connections between the lines use peanut fittings.
- The male and female line of the peanut fitting are retained with a nut.
- An O-ring seal is installed around the tube on the male line.
- The female line is welded to the tube and is not adjustable.
- Support the female line with a wrench to prevent the twisting of the tubes.
- The male line will pivot around the tube to allow for alignment with the female line during assembly.
- When correctly assembled, the mating surfaces of the male and female fittings should be flush.
