A/T - Squeal/Squeak on Acceleration: Overview

307-19

DATE
08/04

Amended 12/04

XK

MODEL
2003 MY-ON
XK Range

VIN
A30645-ON

Squeal/Squeak Noise During Acceleration - Flush And Replace ZF Transmission Fluid - Repair Procedure

Remove and destroy Bulletin 307-19, dated 08/04.
Replace with this Bulletin.

Revisions are marked with a bar and asterisks.

Some 2003 MY-ON XK vehicles may exhibit a squeal or squeak noise heard during shifts while accelerating. To solve this concern, the transmission needs to be flushed and the fluid replaced with a new specification fluid.

Action:

In case of a verified customer complaint of the above condition, flush the transmission and replace the fluid as outlined below.

Note:
Please inform the customer that the squeal or squeak noise may persist until the vehicle has covered at least 20 miles. This distance is required to allow the transmission fluid to flow through all areas of the transmission.

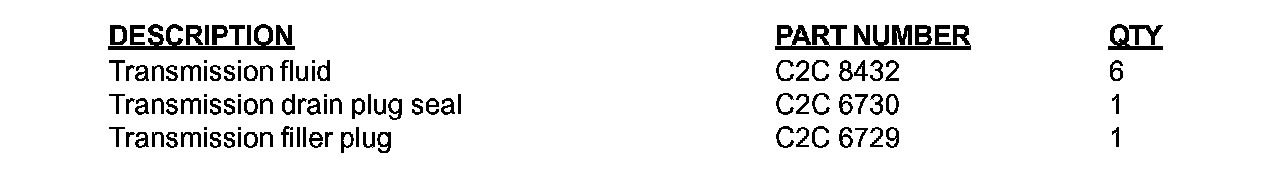

Parts Information:

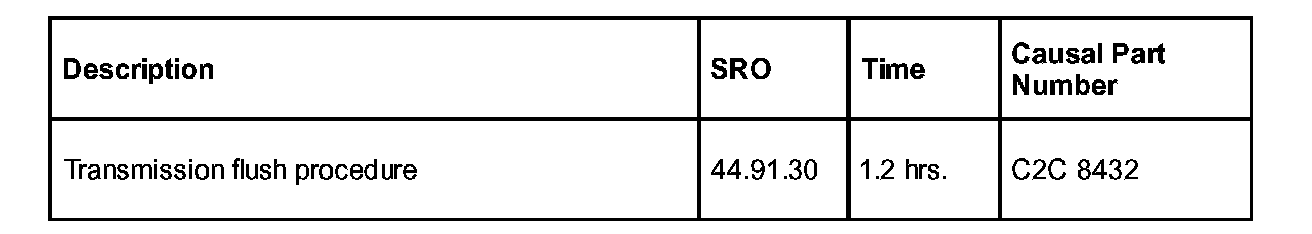

Warranty Information:
