Transmission Mount: Service and Repair

Special Service tools

Removal

1. Raise and support the vehicle.

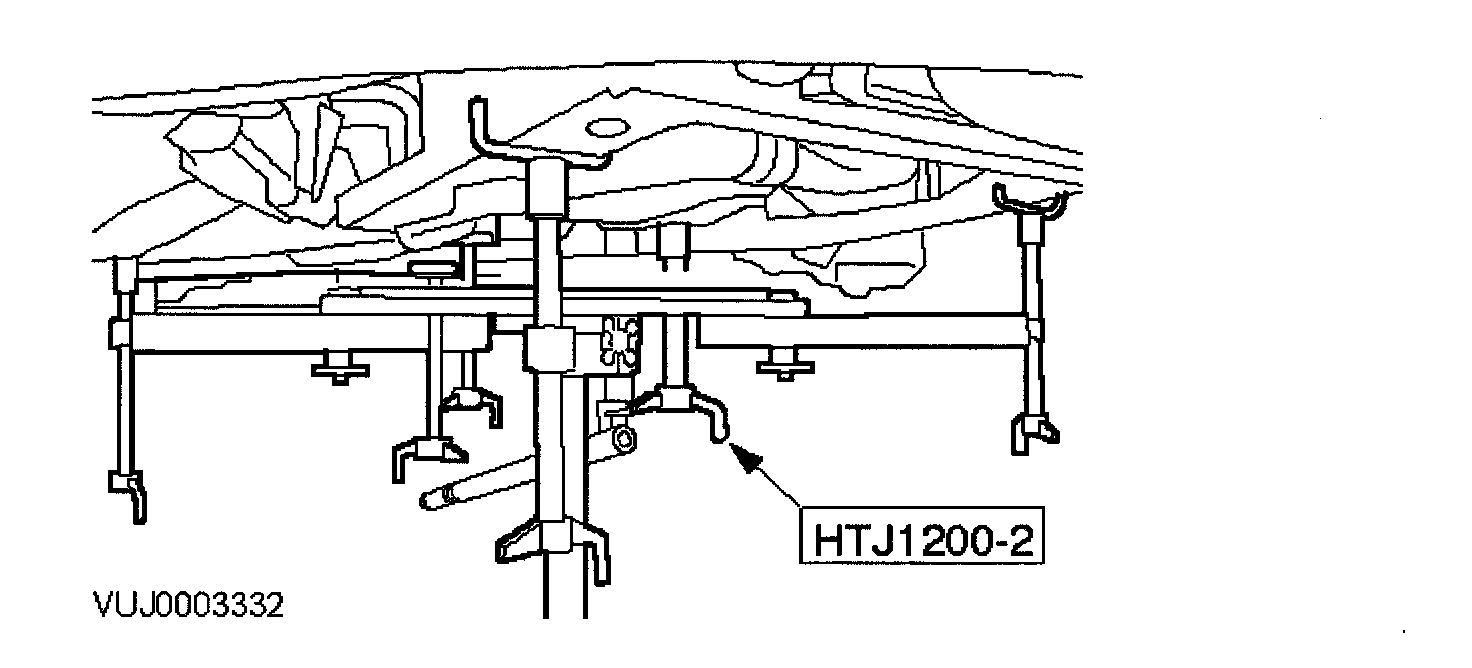

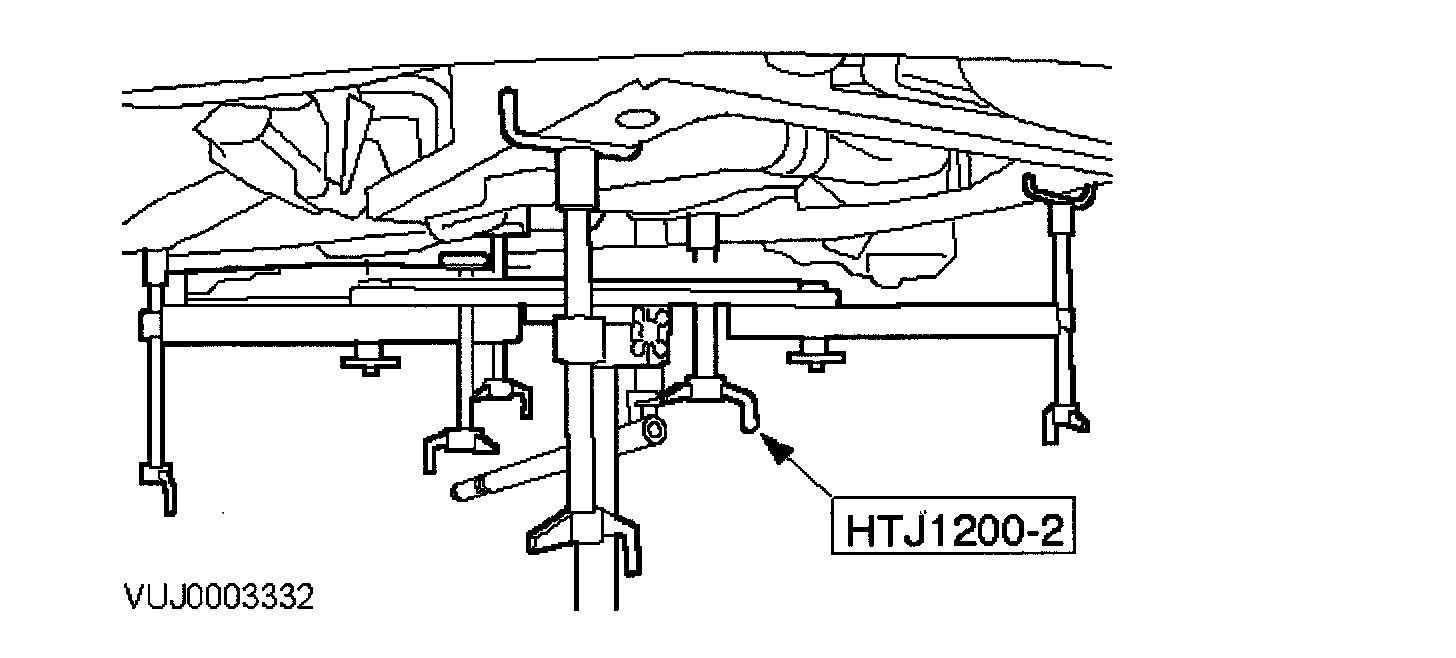

2. Install the special tool.

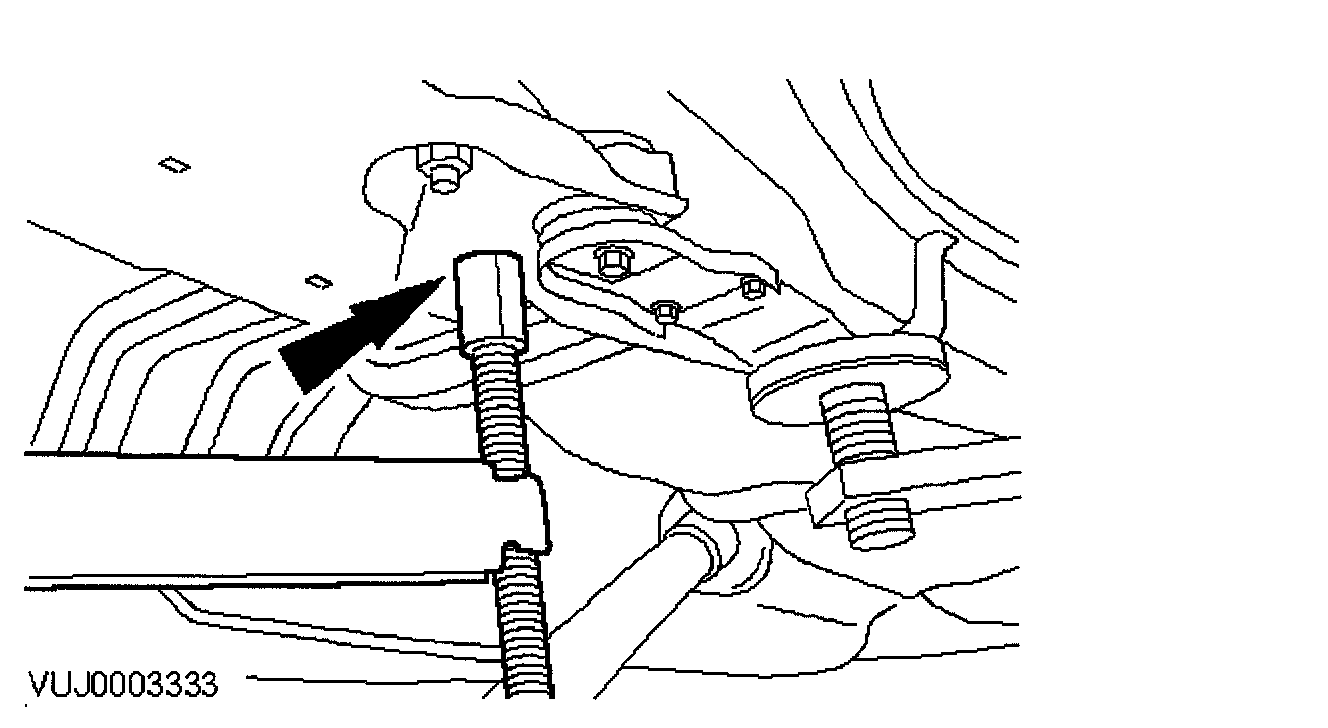

3. Position and adjust the special tool height rear adjuster.

NOTE: Left-hand shown, right-hand similar.

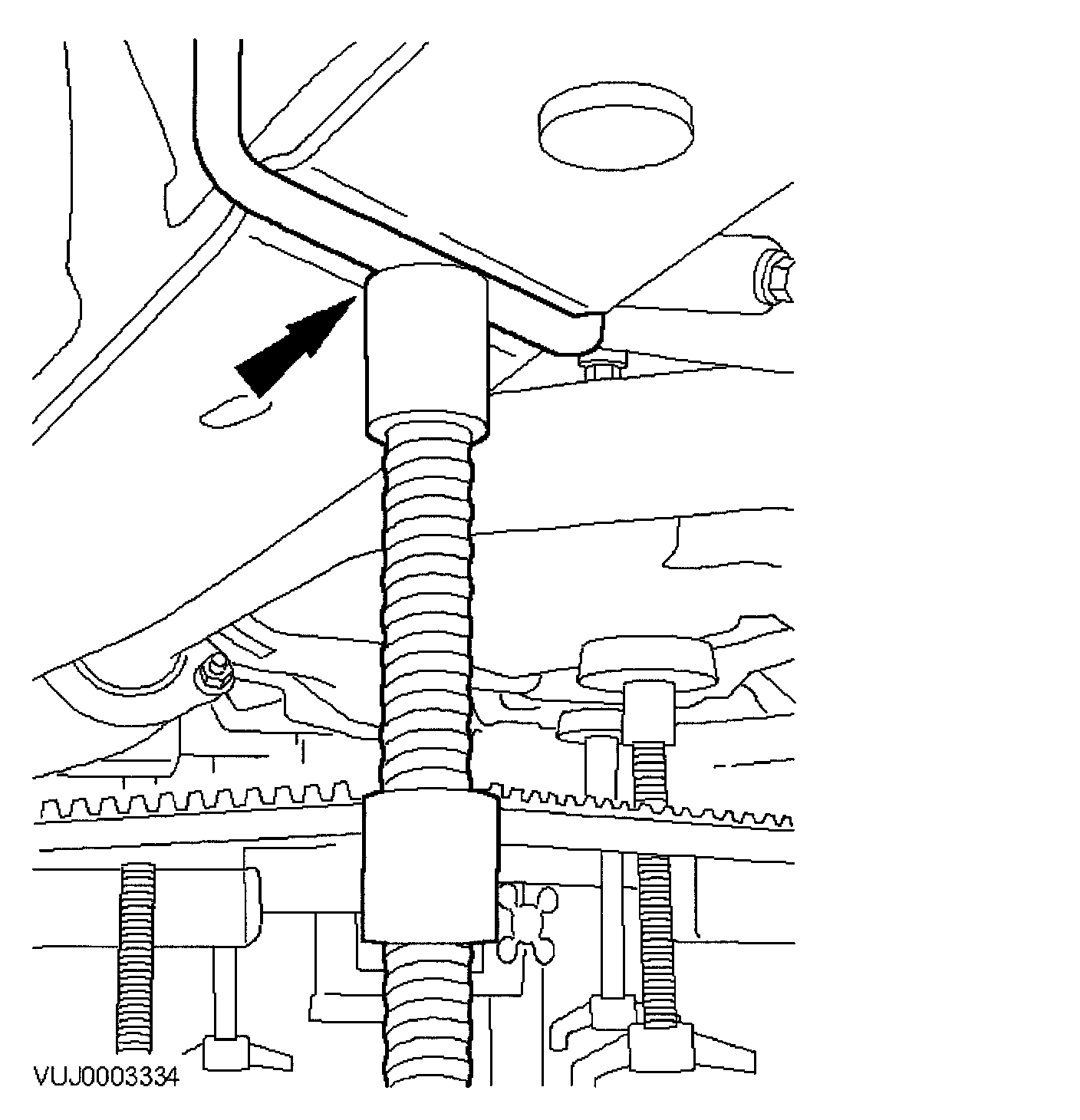

4. Position and adjust the special tool front height adjuster.

NOTE: Right-hand shown, left-hand similar.

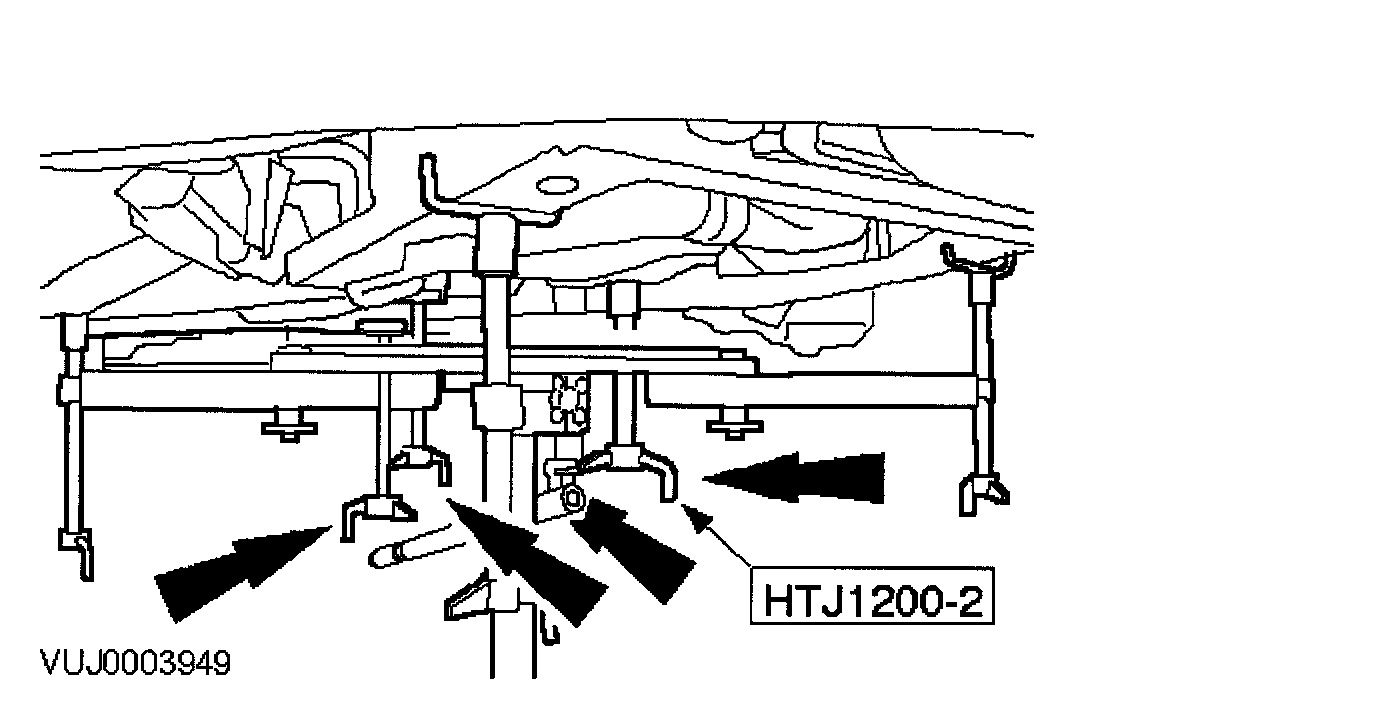

5. Position and adjust the special tool engine height adjusters.

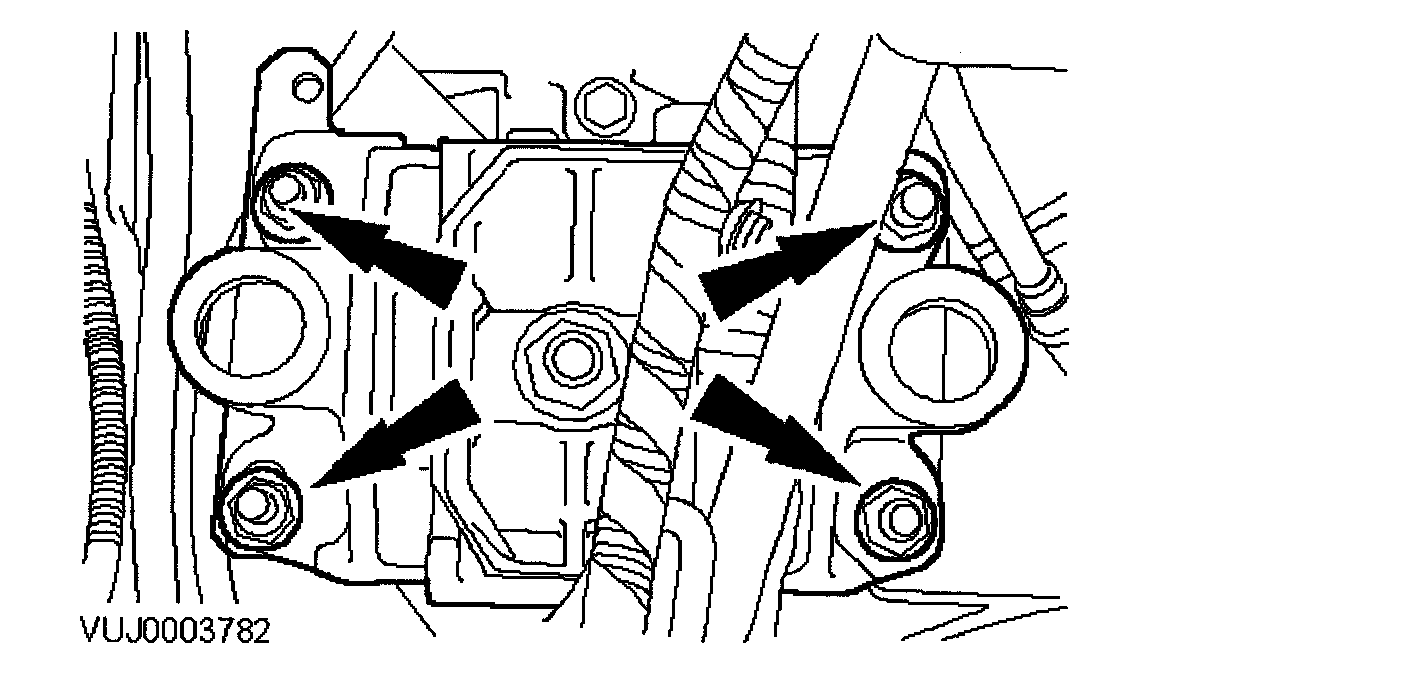

6. Remove the transmission mount retaining nuts.





7. Remove the transmission mount.

Installation





1. Install the transmission mount.

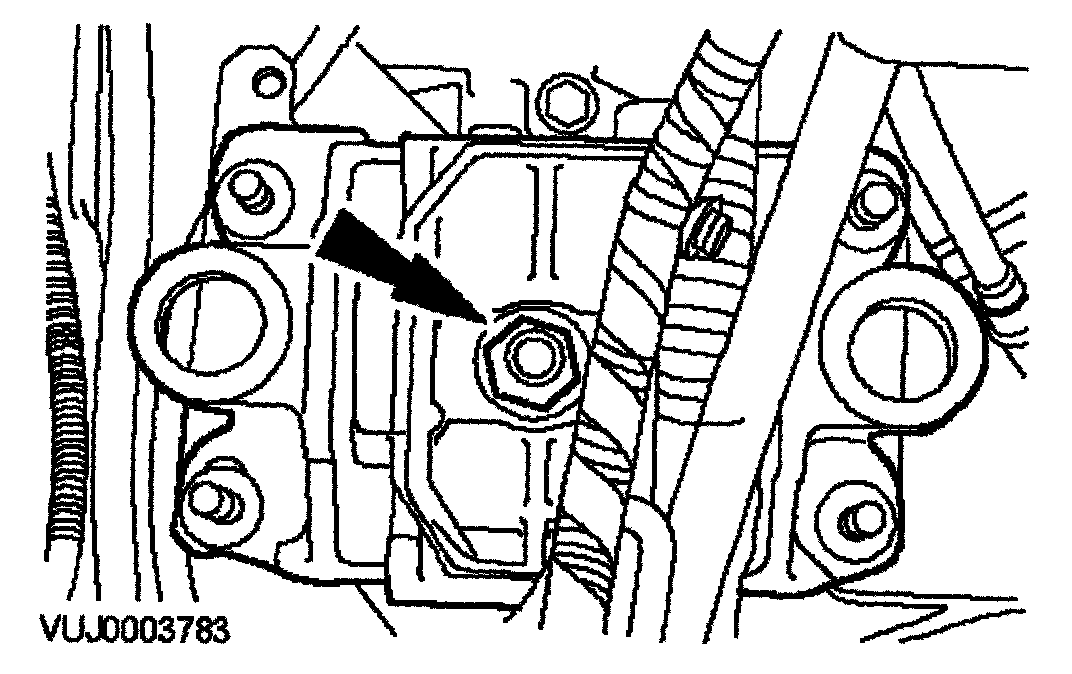

^ Tighten to 133 Nm.





2. Install the transmission mount retaining nuts.
^ Tighten to 47 Nm.





3. Remove the special tool.

4. Lower the vehicle.
