Shifter A/T: Service and Repair

Shift Selector Gate

Removal

1. Move the gear selector lever to the "N" position.

NOTE: To move the gear selector lever, the ignition must be in the RUN position, with the foot brake pressed.

2. Remove the center console.

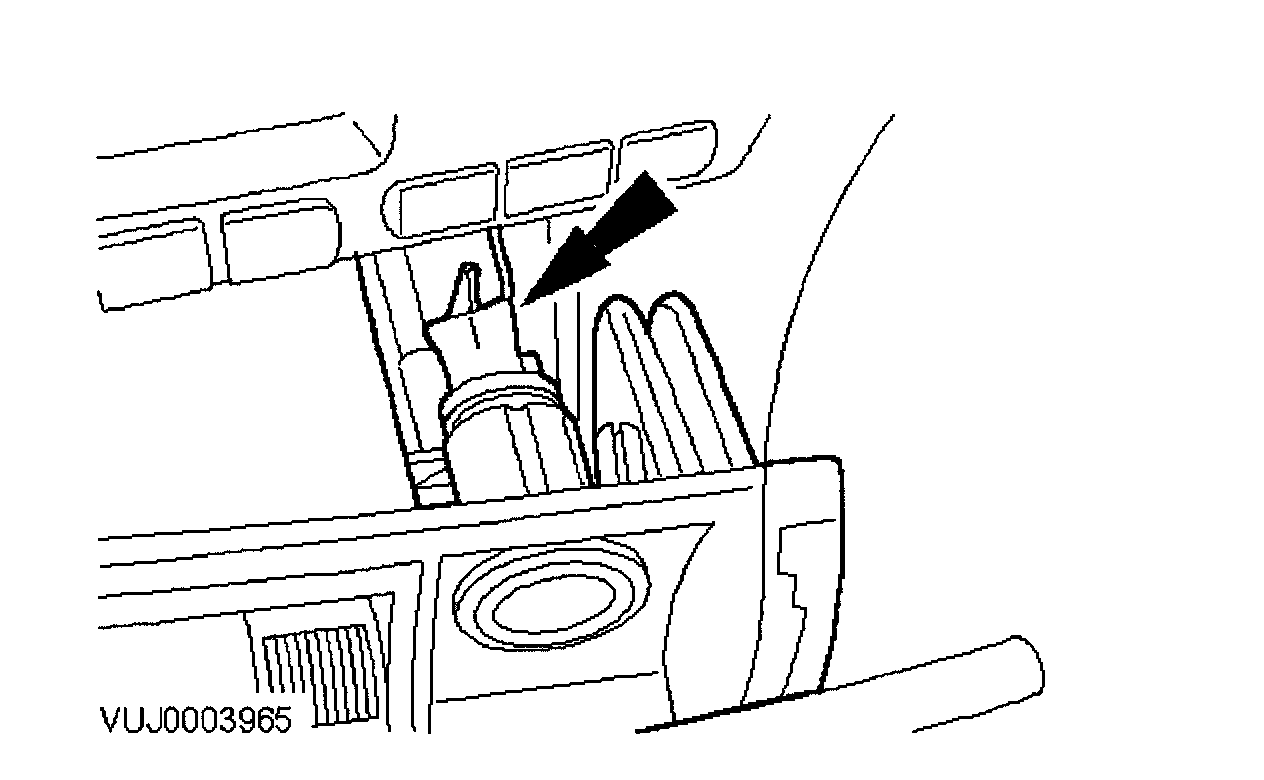

3. Disconnect the electrical connector.

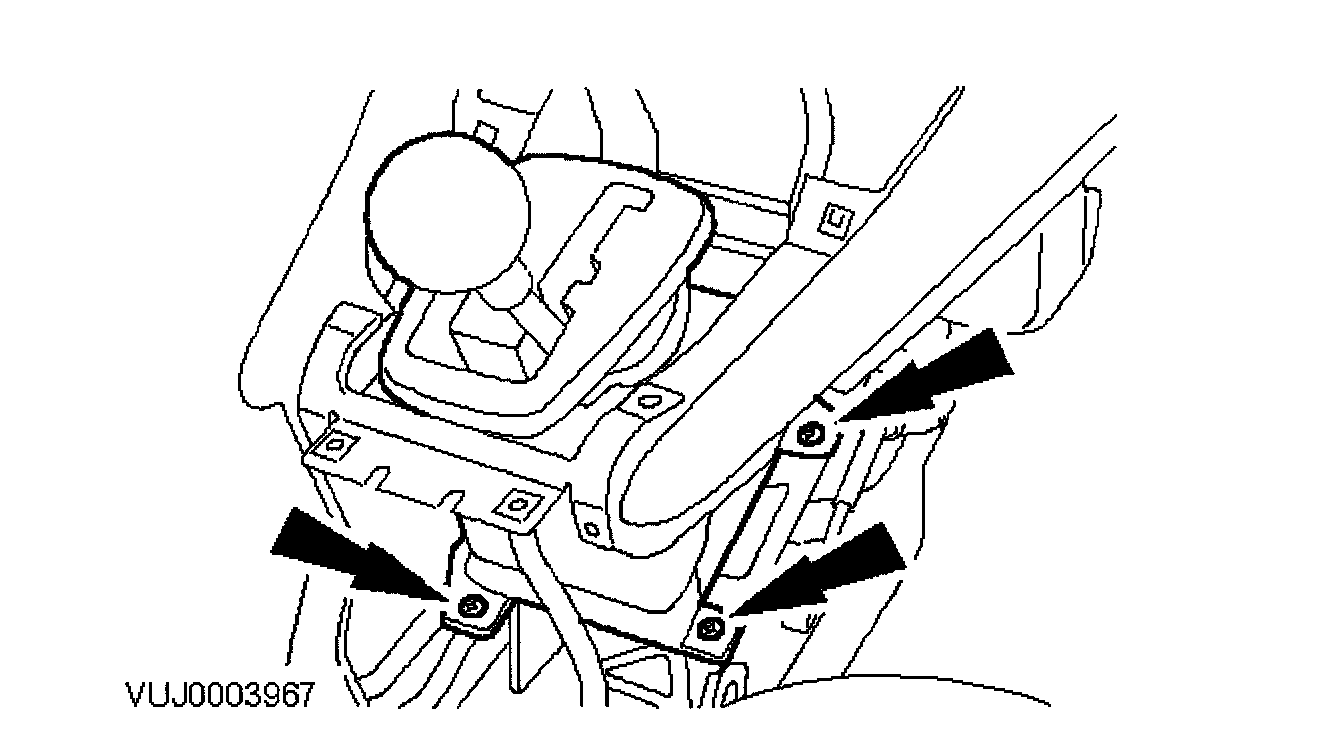

4. Remove the center console bracket retaining screws.

NOTE: The center console bracket cannot be removed at this stage.

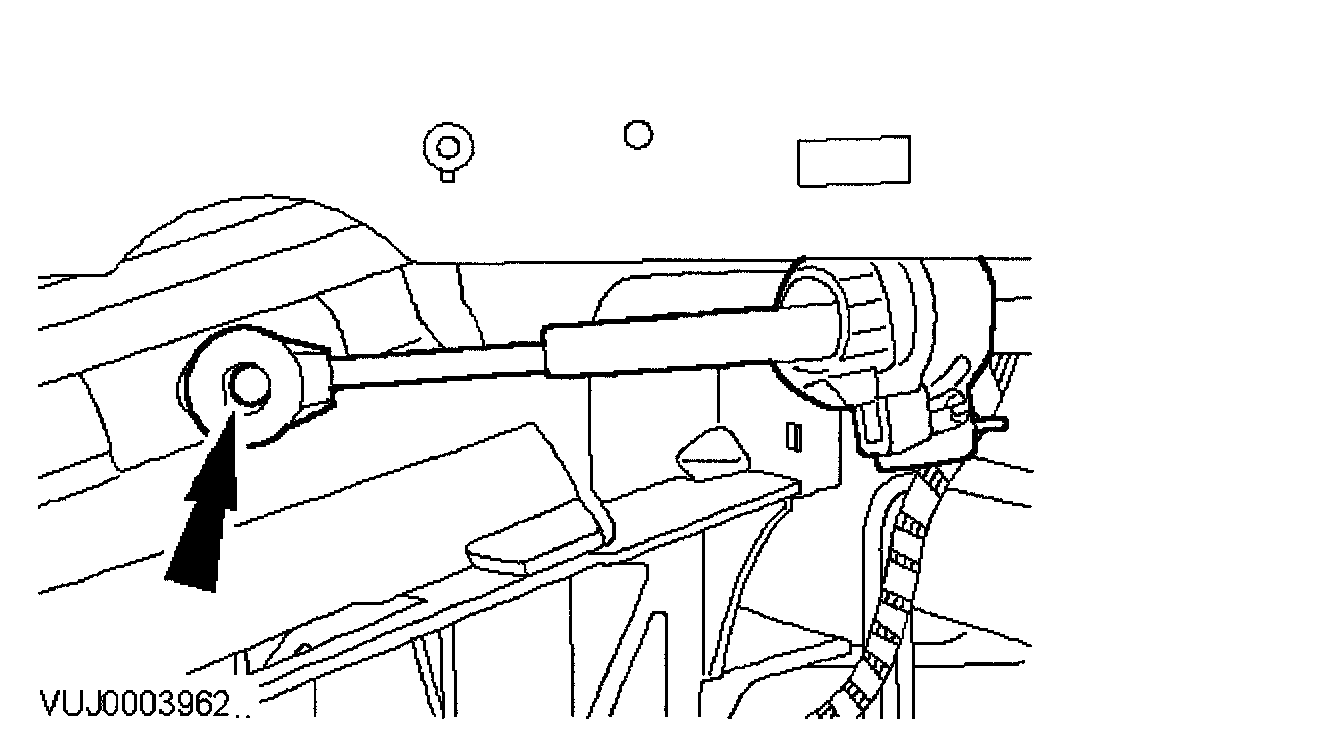

5. Remove the gear selector cable locking pin.





6. Disconnect the gear selector cable from the J-gate.

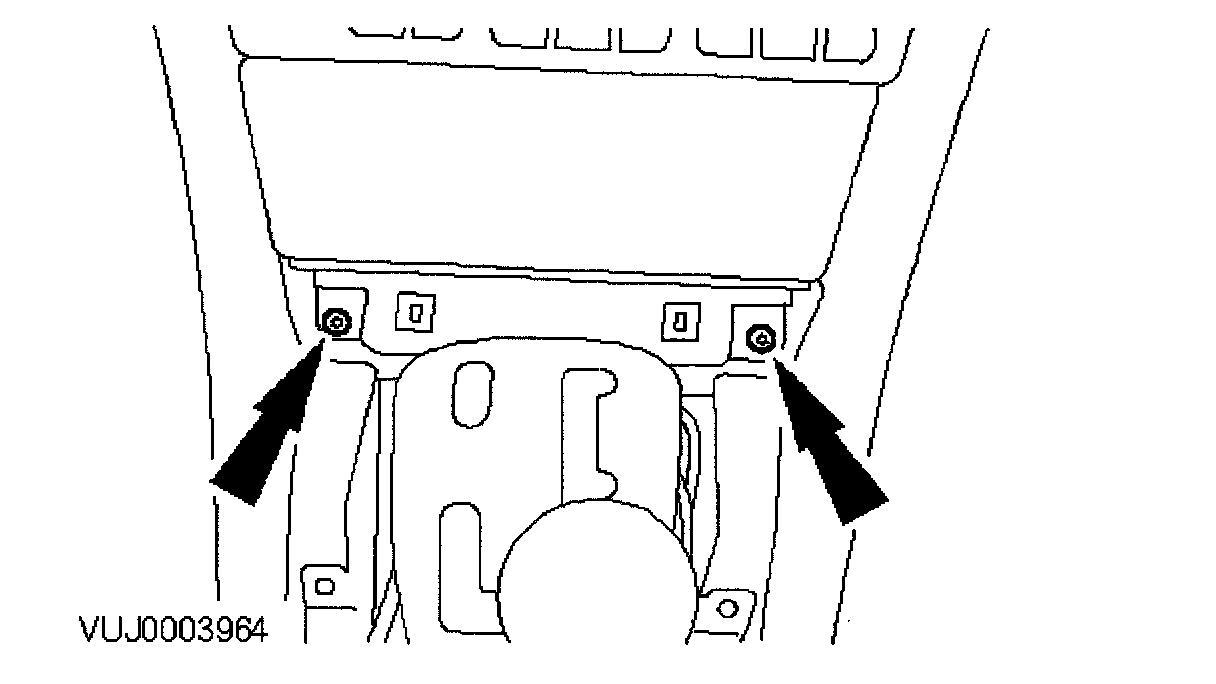

7. Remove the ashtray retaining screws.





8. Remove the ashtray.
^ Disconnect the electrical connectors.

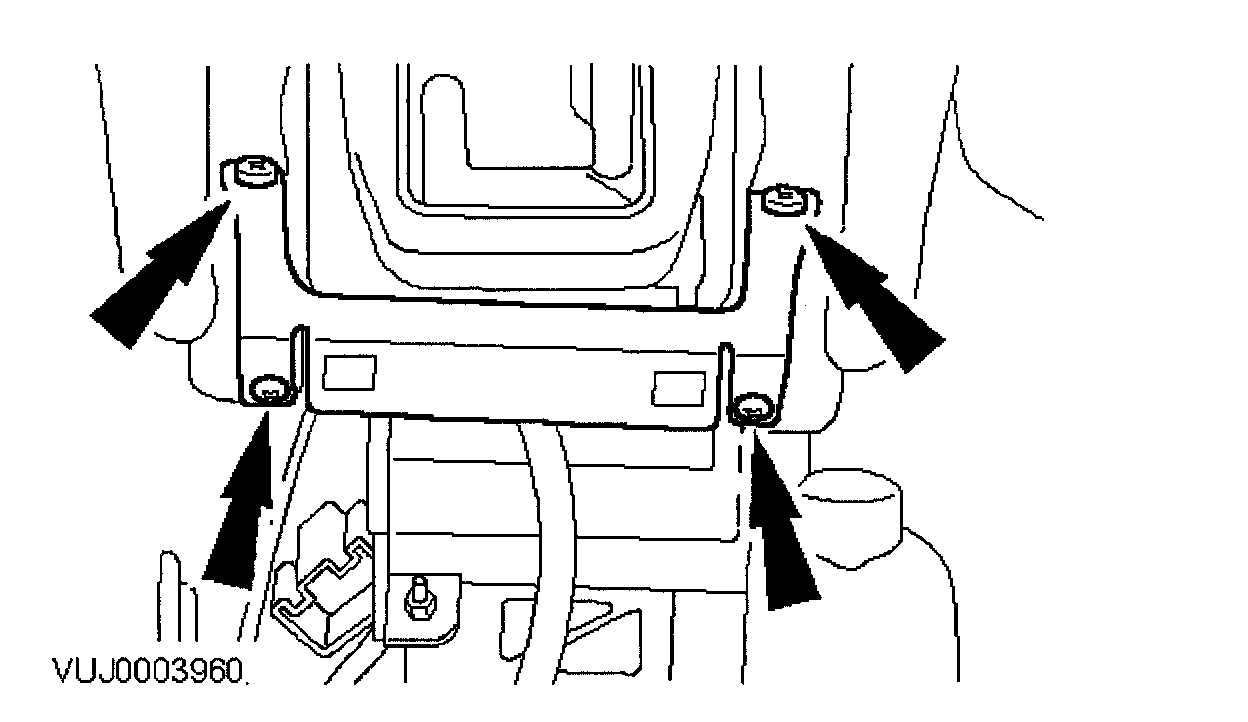

9. Remove the J-gate retaining screw.





10. Remove the J-gate.

Installation
1. To install, reverse the removal procedure.
