Shift Solenoid: Service and Repair

Removal

1. Remove the main control valve body.

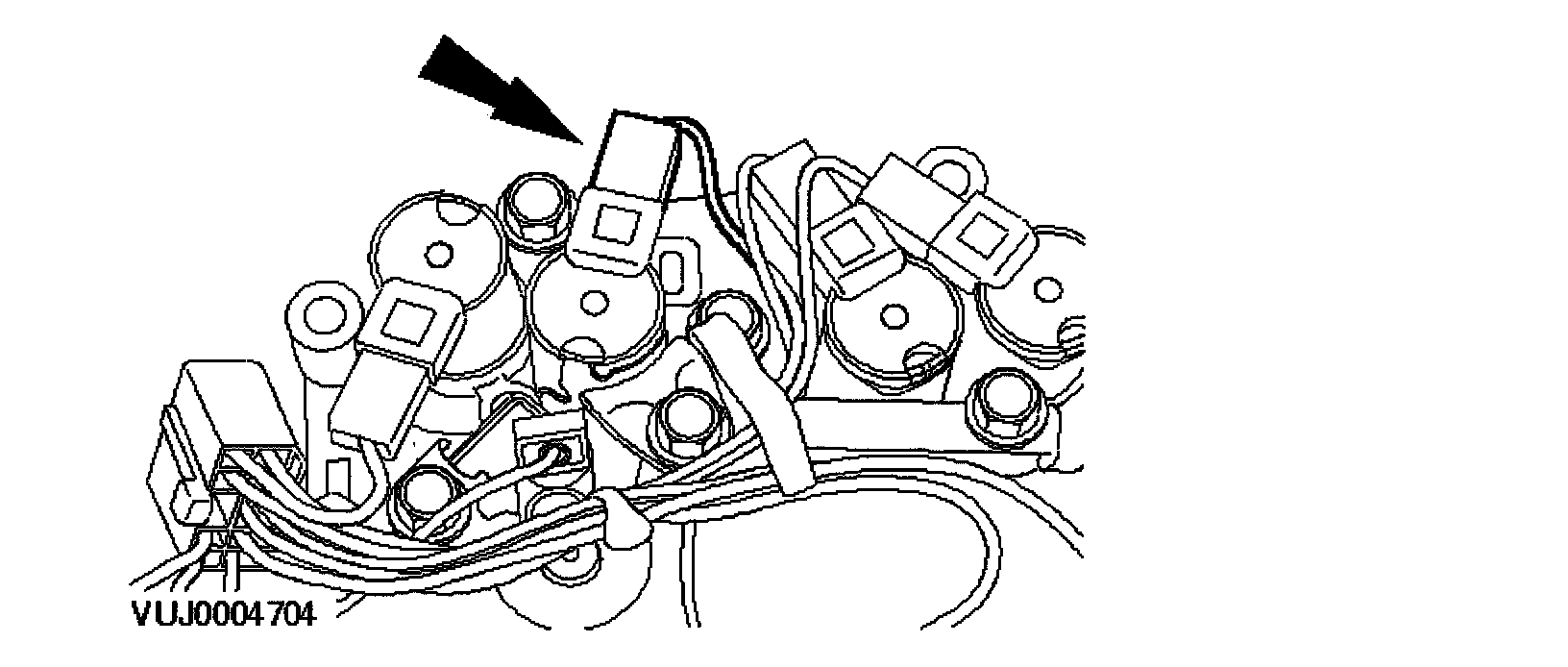

2. Disconnect the electrical connector.

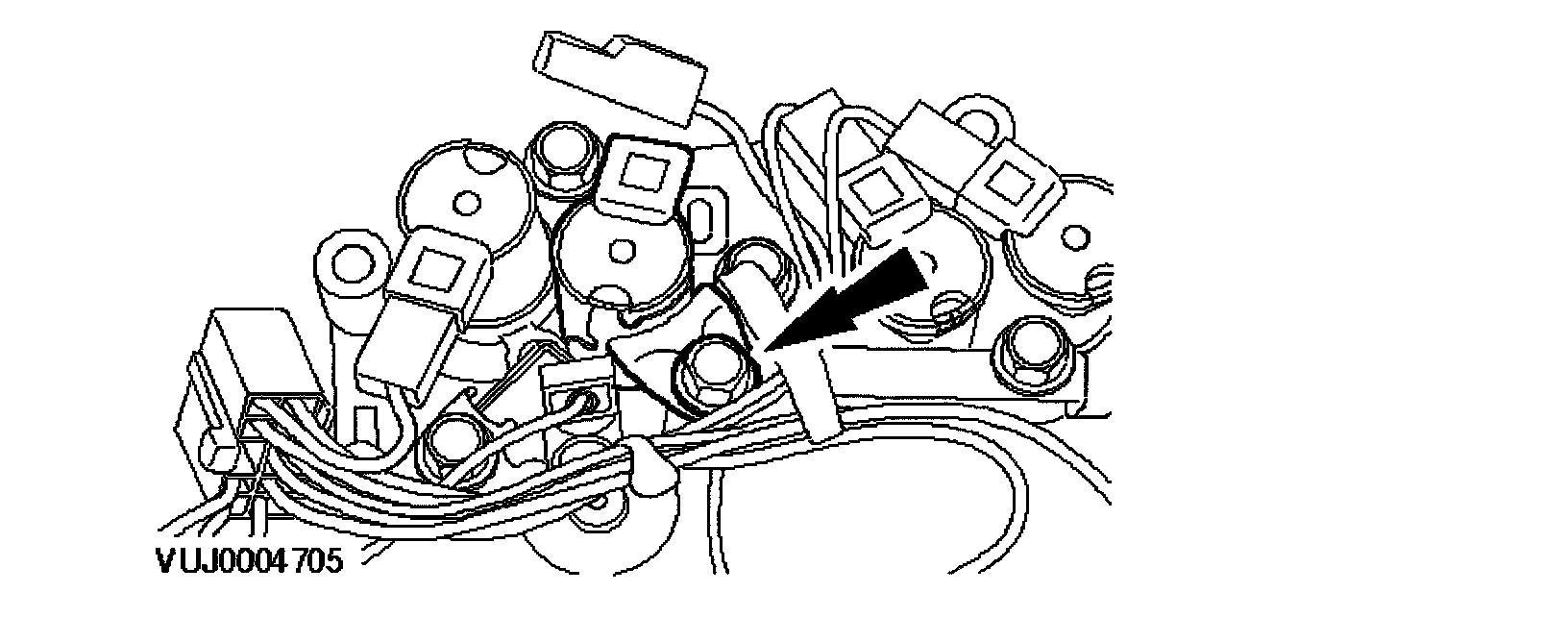

3. Remove the shift solenoid.

Installation





1. To install, reverse the removal procedure.

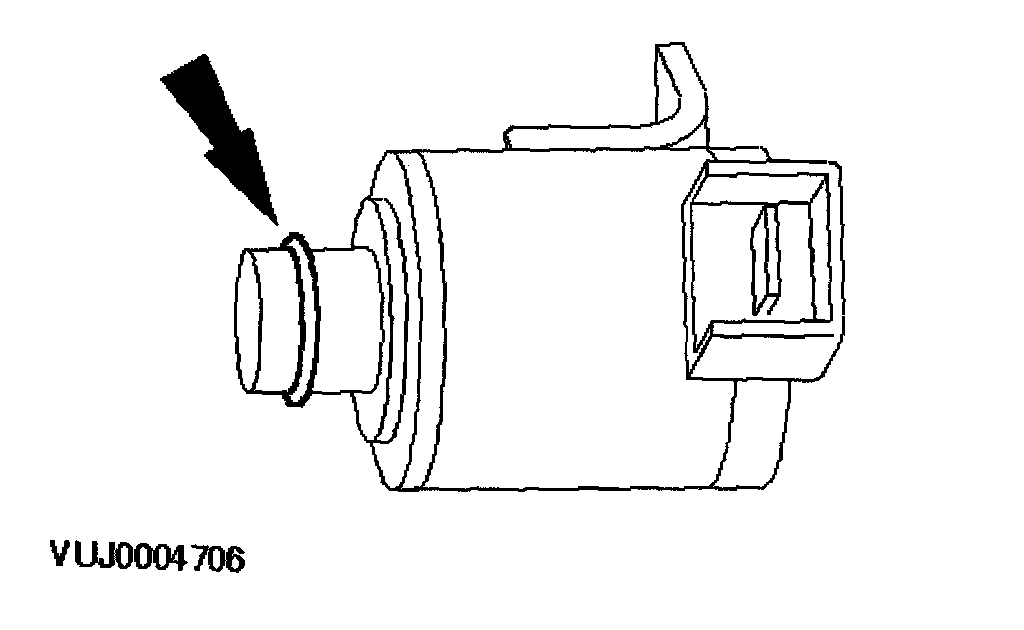

^ Lubricate the shift solenoid O-ring seal.

NOTE: Lubricate the shift solenoid O-ring seal with automatic transmission fluid WSS-M2C922-A1 or equivalent meeting Jaguar specification.

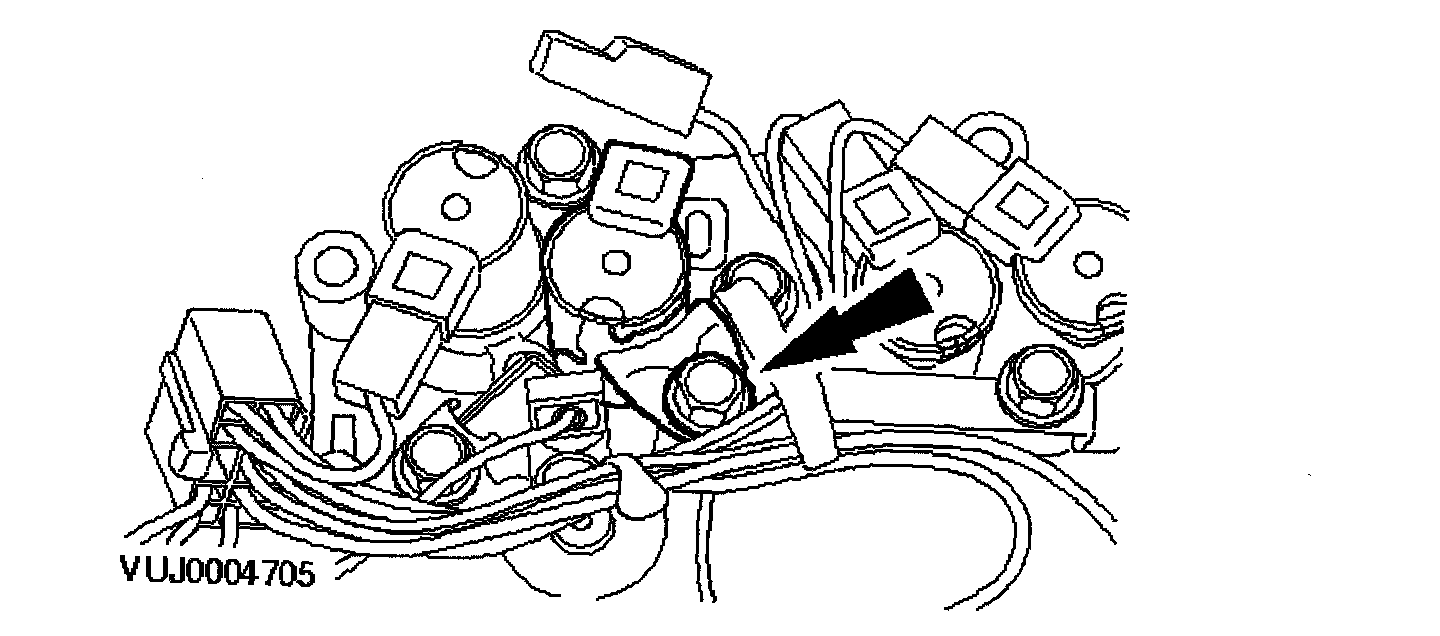

2. Tighten to 8 Nm.

3. Install the main control valve body.
