Steering Wheel: Service and Repair

Steering Wheel

Removal
1. Remove the driver airbag module.
2. Position the front wheels in a straight ahead position and centralize steering wheel.

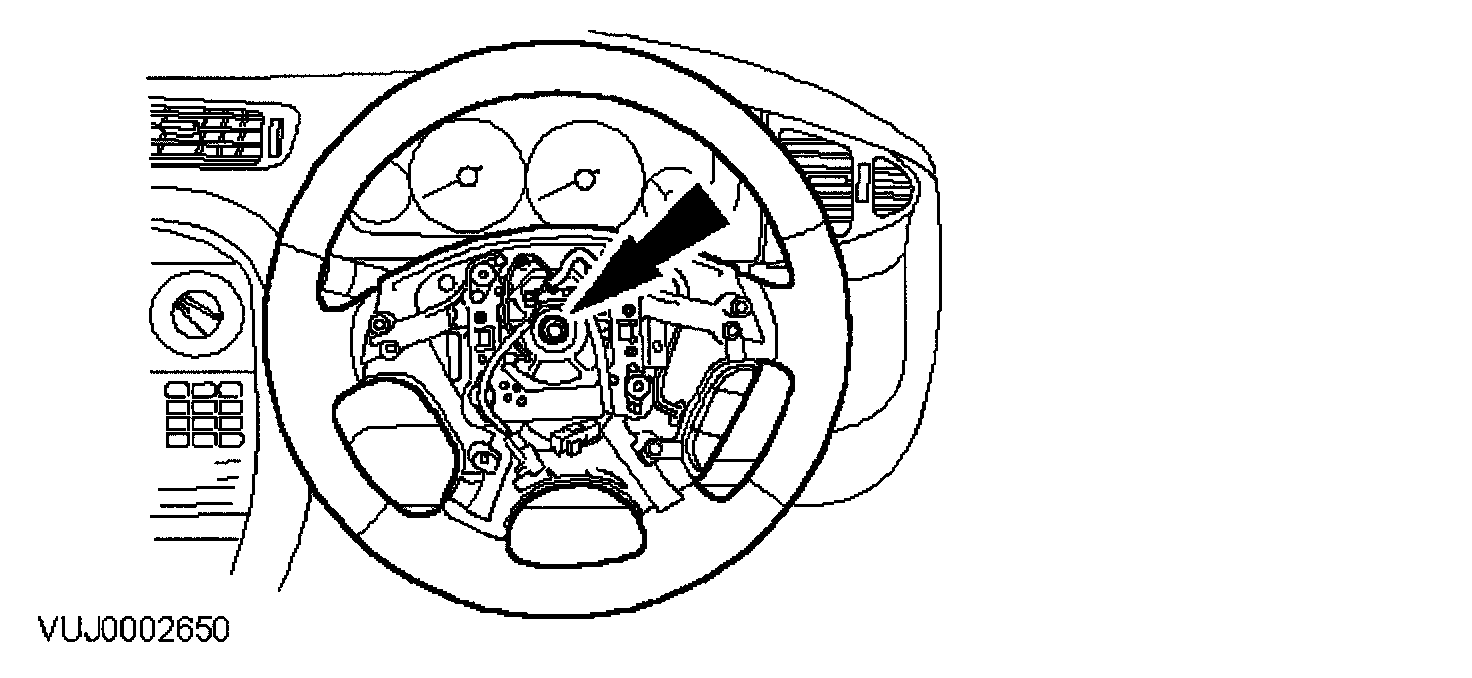

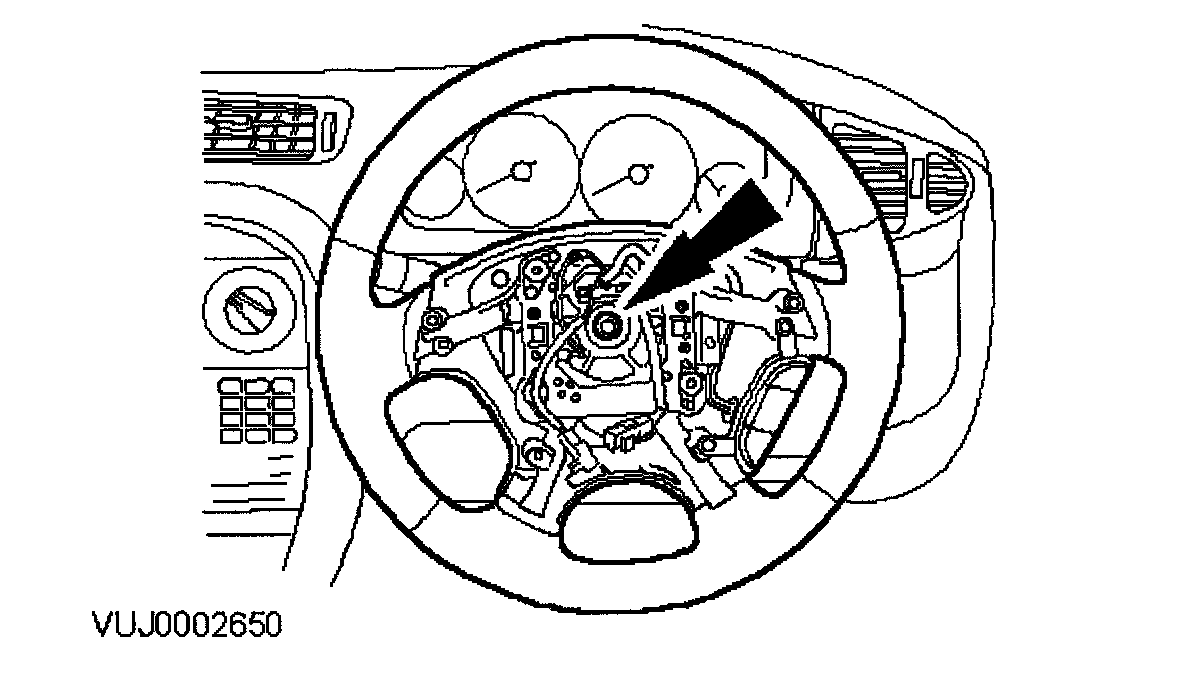

3. Remove the steering wheel.
4. Using a suitable insulation/masking tape, secure the cassette module to prevent movement from the centralized position.

Installation
1. To install, reverse the removal procedure.





^ Tighten to 47 Nm.
