Throttle Body: Service and Repair

Throttle Body 19.70.04

Removal

All vehicles

CAUTION: Do not attempt to clean the throttle body. The bore and the throttle plate has a special coating applied during manufacture which should not be removed.

1. Remove the air cleaner outlet pipe.

Vehicles with 2.0L engine







2. Disconnect the cruise control cable.







3. Disconnect the accelerator cable.
1. Position the accelerator actuator to the open position.

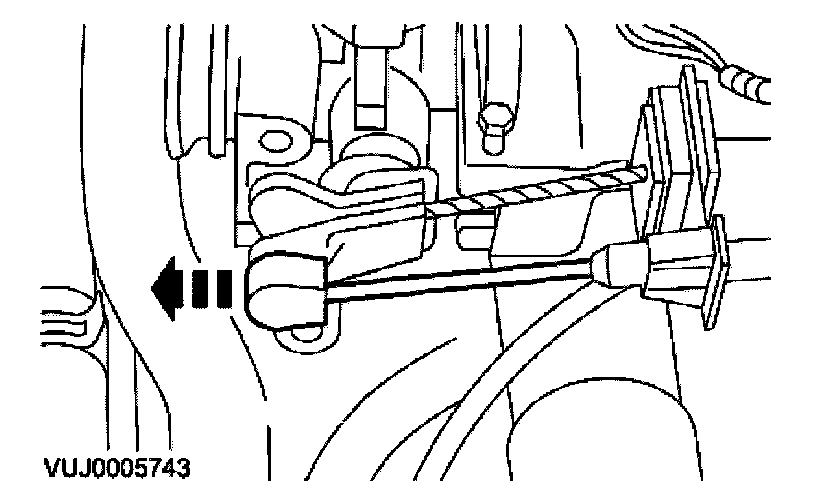

2. Disconnect the accelerator cable.

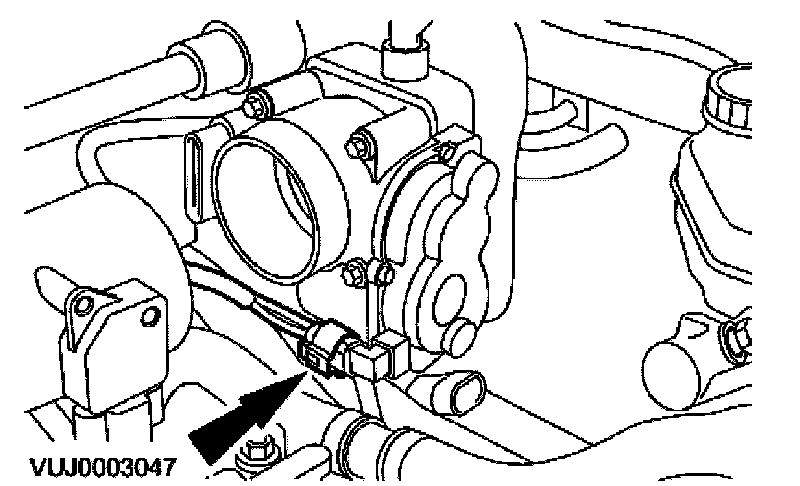

4. Disconnect the electrical connector.

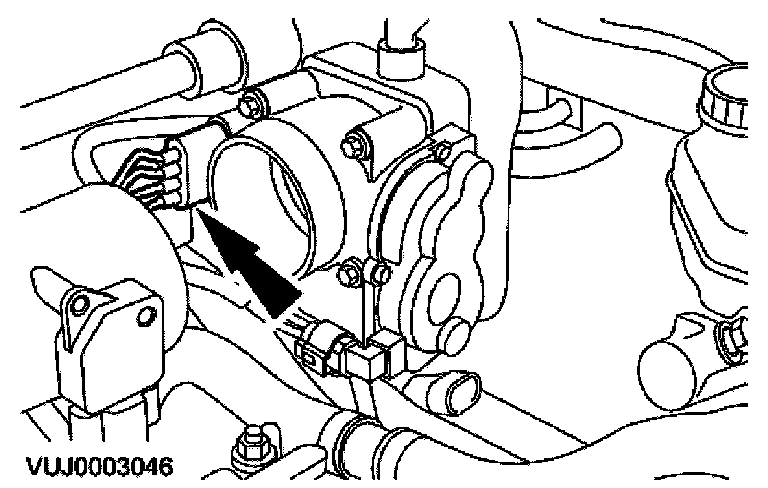

5. Disconnect the electrical connector.

Vehicles with 2.5L or 3.0L engine

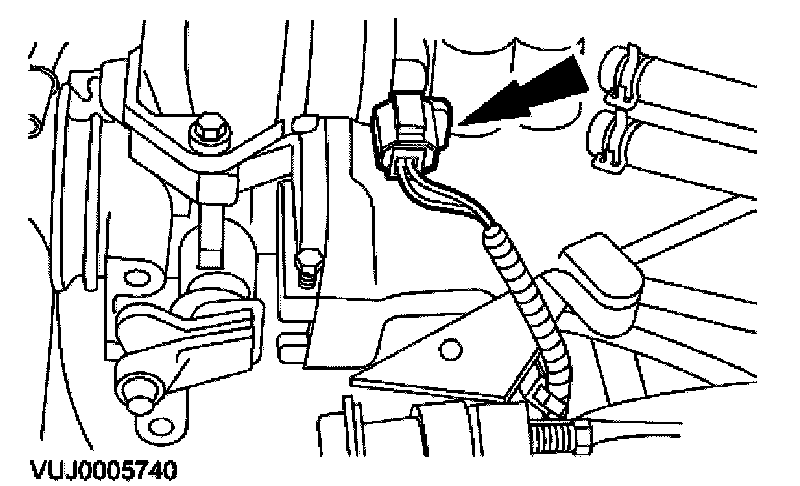

6. Disconnect the electrical connector.







7. Disconnect the electrical connector.

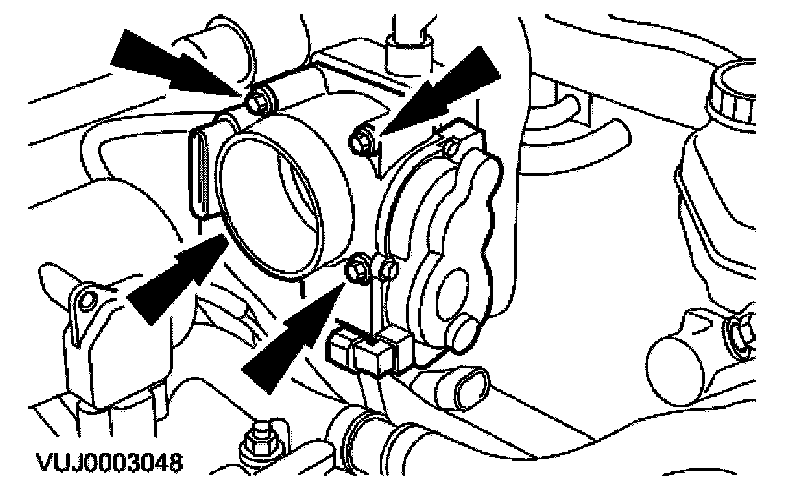

8. Remove the throttle body.

Vehicles with 2.0L engine

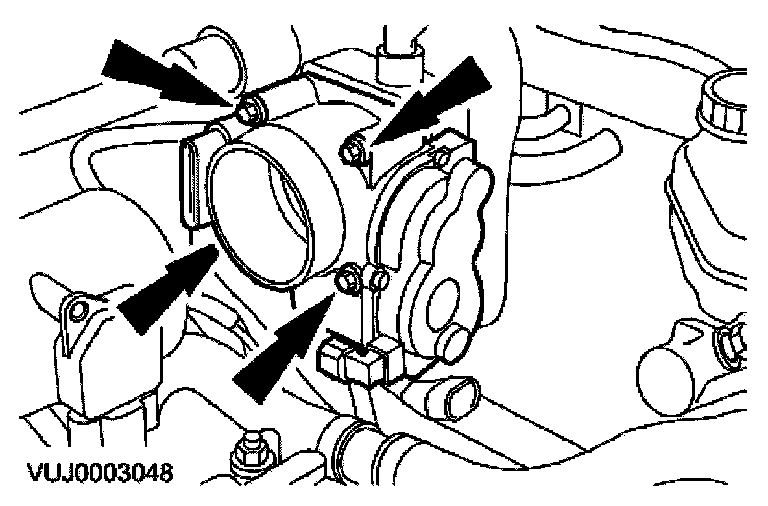

9. Remove the throttle body.

All vehicles







10. NOTE: 2.5L and 3.0L shown, 2.0L similar.

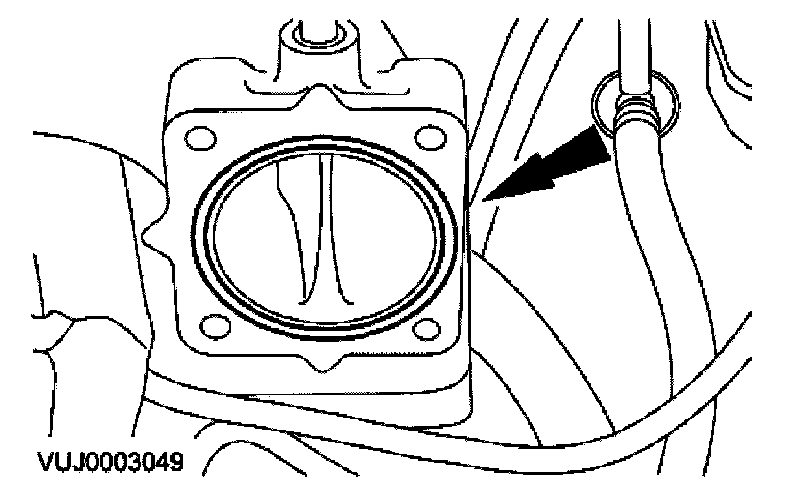

Remove and discard the O-ring seal.

Installation

All vehicles

CAUTION: Do not attempt to clean the throttle body. The bore and the throttle plate has a special coating applied during manufacture which should not be removed.







1. NOTE: 2.5L and 3.0L shown, 2.0L similar.

To install, reverse the removal procedure.
- Install a new O-ring seal.


Vehicles with 2.5L or 3.0L engine

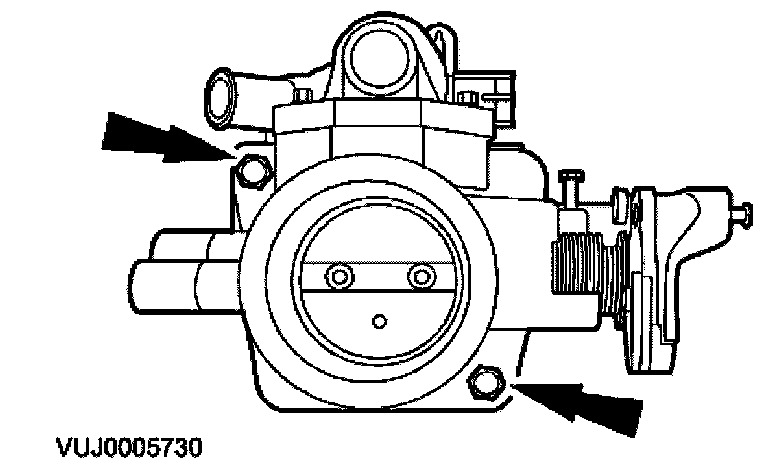

2. Tighten to 10 Nm.

Vehicles with 2.0L engine







3. Tighten to 10 Nm.
