Passenger Side Register

Removal

1. WARNING:
TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BACK UP POWER SUPPLY MUST BE DEPLETED BEFORE REPAIRING OR REPLACING ANY AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS) COMPONENTS. TO DEPLETE THE BACK UP POWER SUPPLY ENERGY, DISCONNECT THE BATTERY GROUND CABLE AND WAIT FOR ONE MINUTE. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY.

Disconnect the battery ground cable. Service and Repair





2. CAUTION:
The passenger side air bag door is retained to the air bag by a securing strap.

Detach the passenger side air bag door.

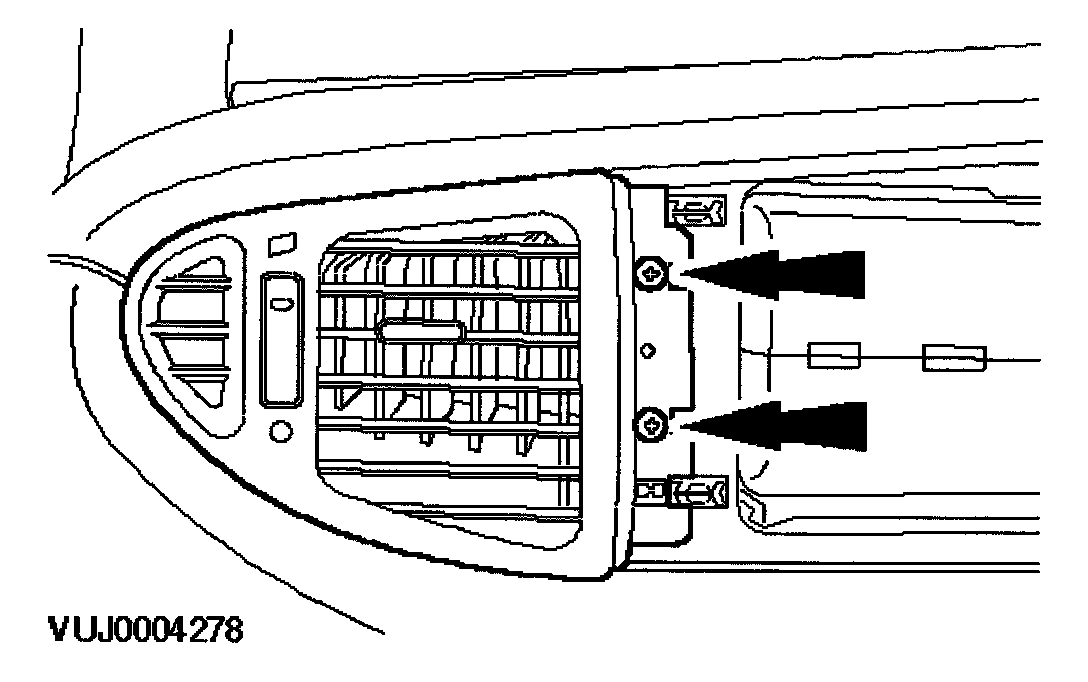

3. Remove the passenger side register.
- Remove the passenger side register retaining screws.


Installation
1. To install, reverse the removal procedure.
