Wiper Pivot Arm

Wiper Pivot Arm

Special Service tools

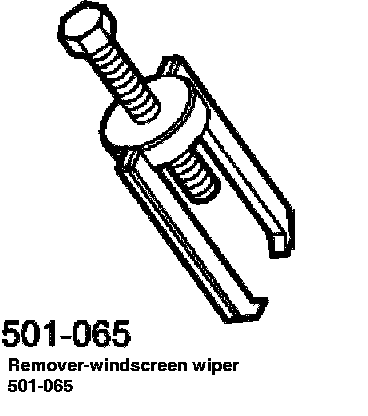

Remover - Windscreen Wiper:

Removal

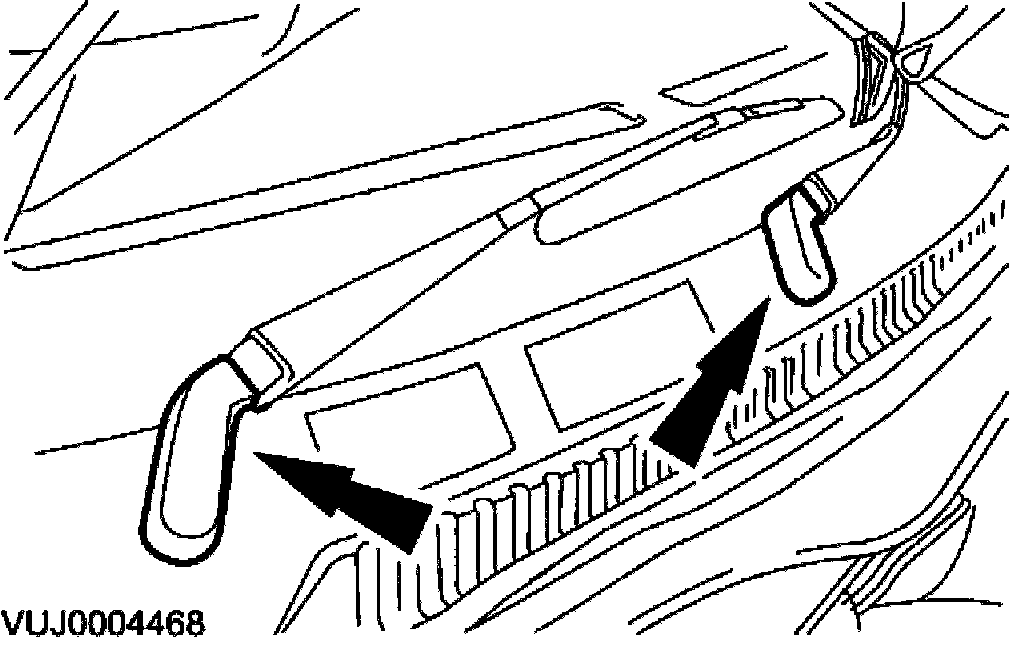

1. Remove the wiper arm nut covers

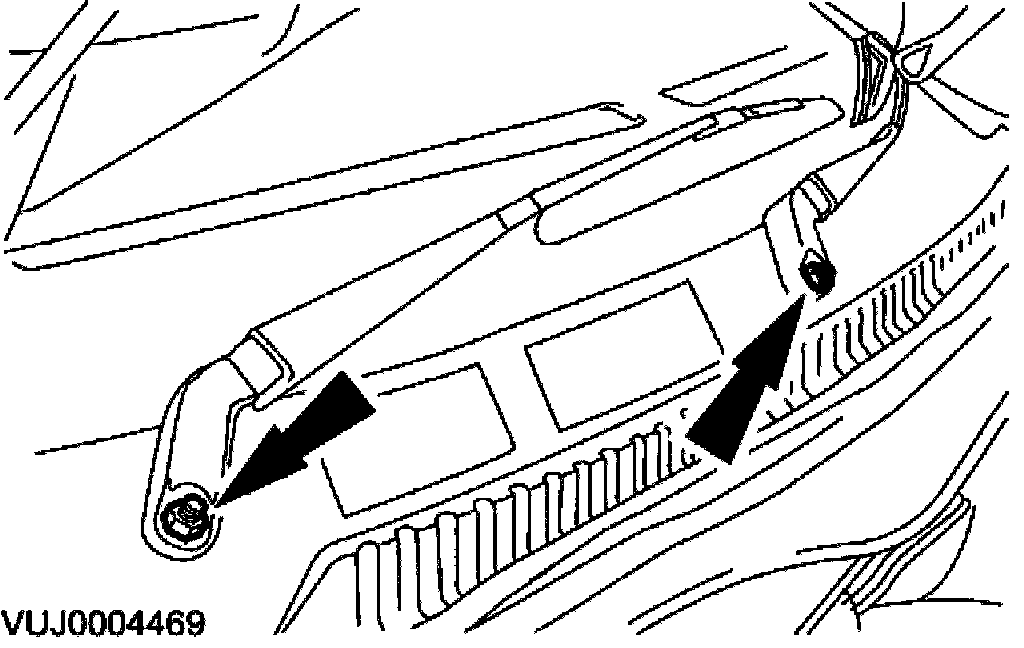

2. Remove the wiper arm nuts.







3. Using the special tool, detach the wiper arms.







4. Remove the wiper arms

Installation







1. To install, reverse the removal procedure.
- Tighten to 17 Nm.
