Wiper Mounting Arm and Pivot Shaft

Wiper Mounting Arm and Pivot Shaft

Removal

1. Remove the plenum cover.

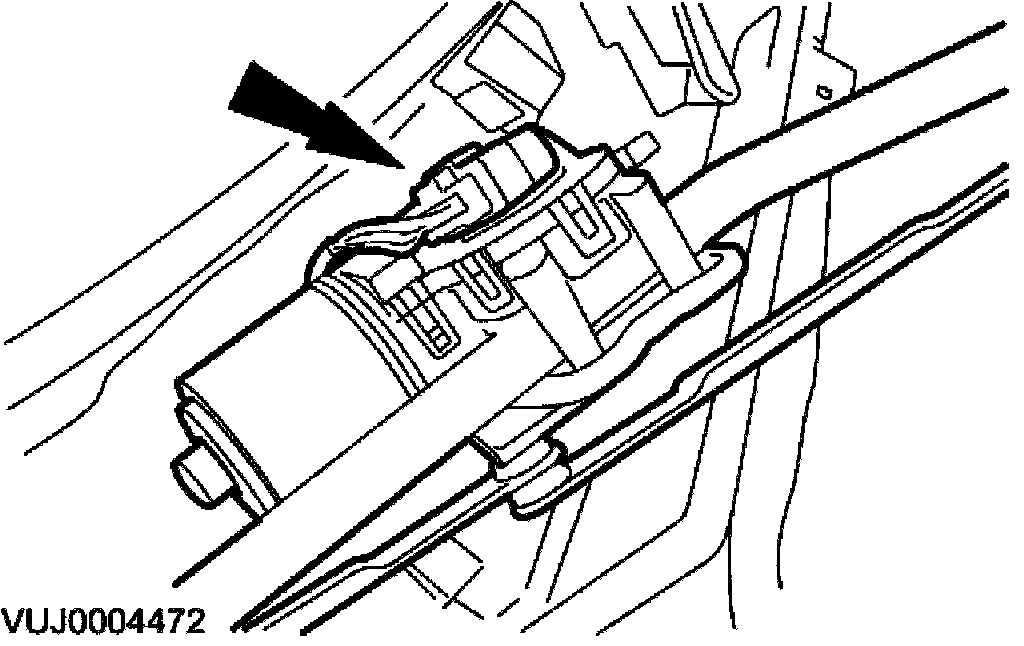

2. Detach the mounting arm and pivot shaft assembly.

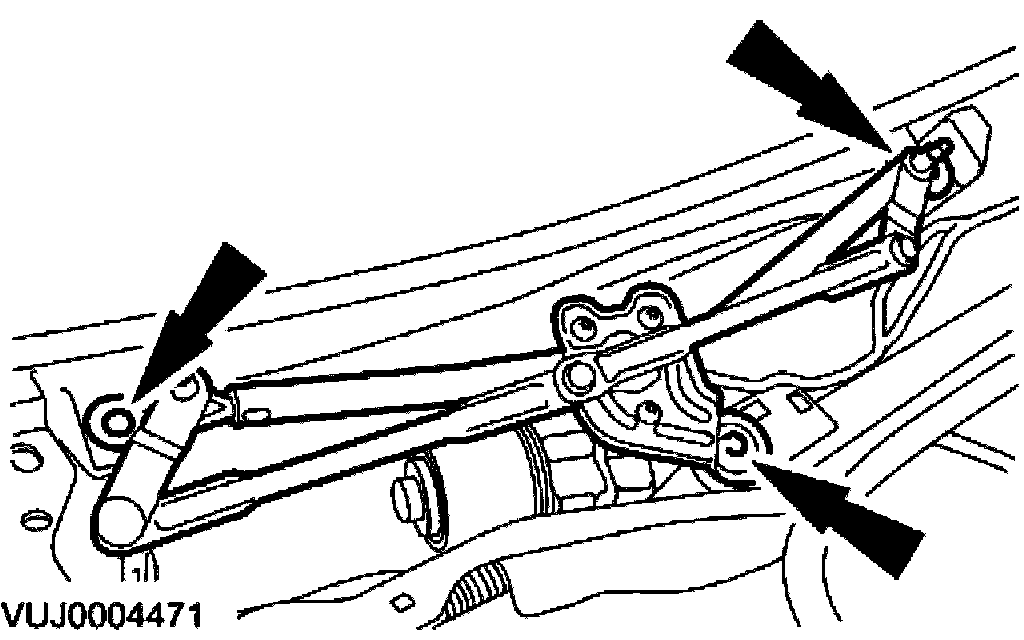

3. Remove the mounting arm and pivot shaft assembly.


Installation







1. To install, reverse the removal procedure.
- Tighten to 8 Nm.
