Shifter M/T: Service and Repair

Gearshift lever

Removal

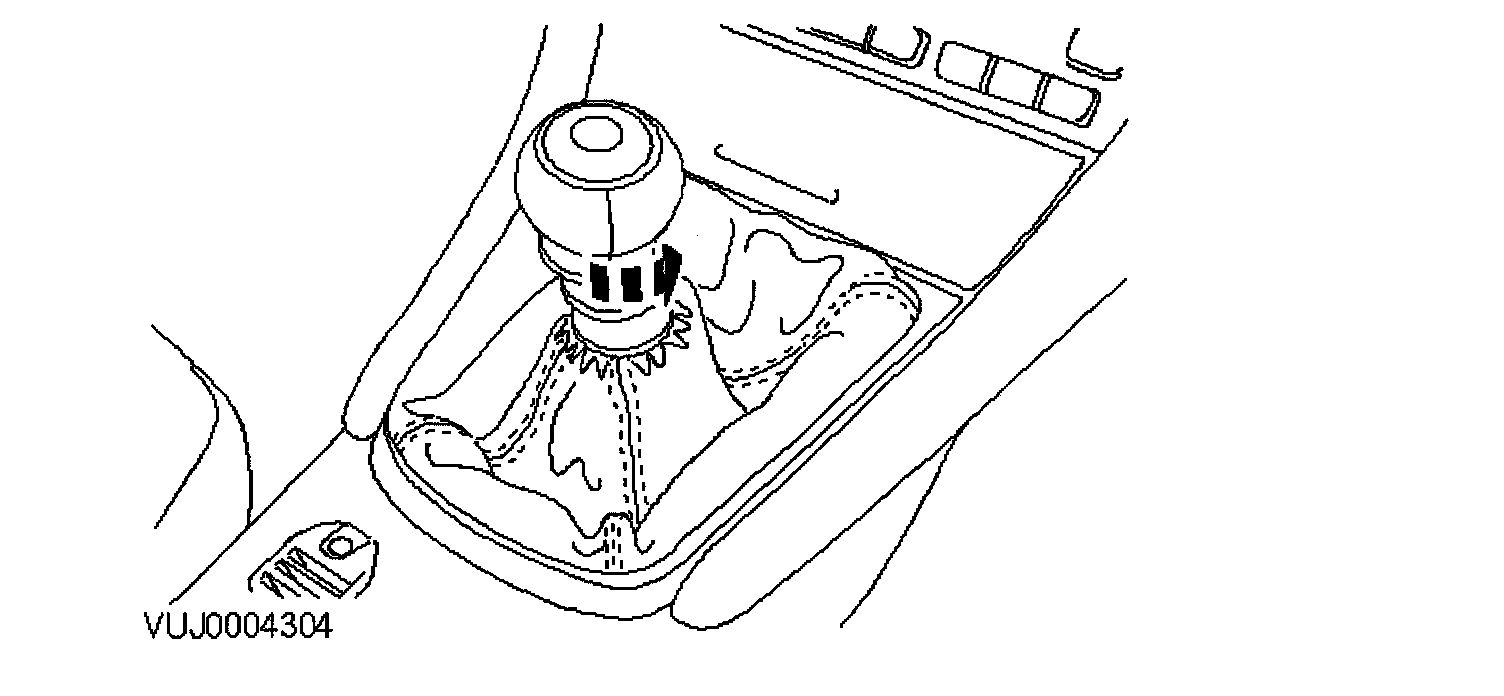

1. Remove the gearshift lever knob

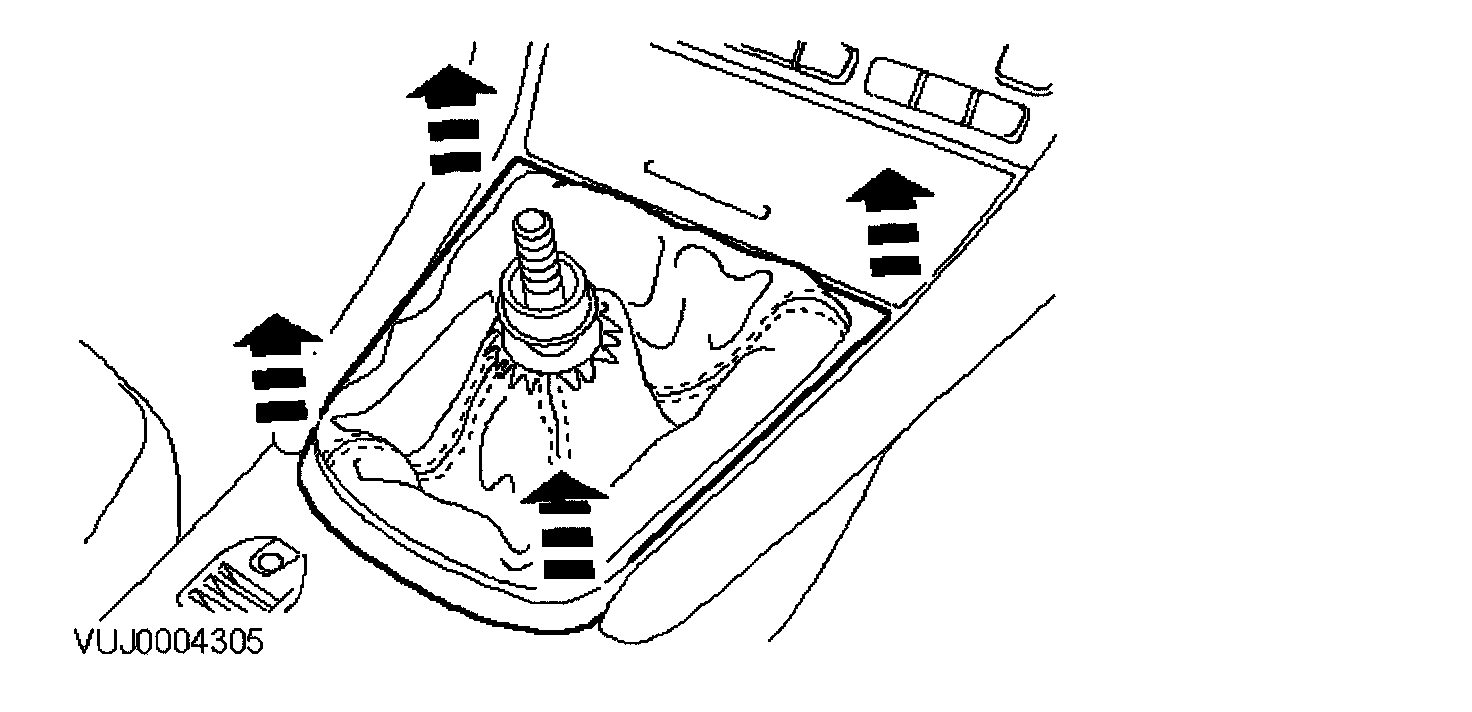

2. Detach the gearshift lever surround

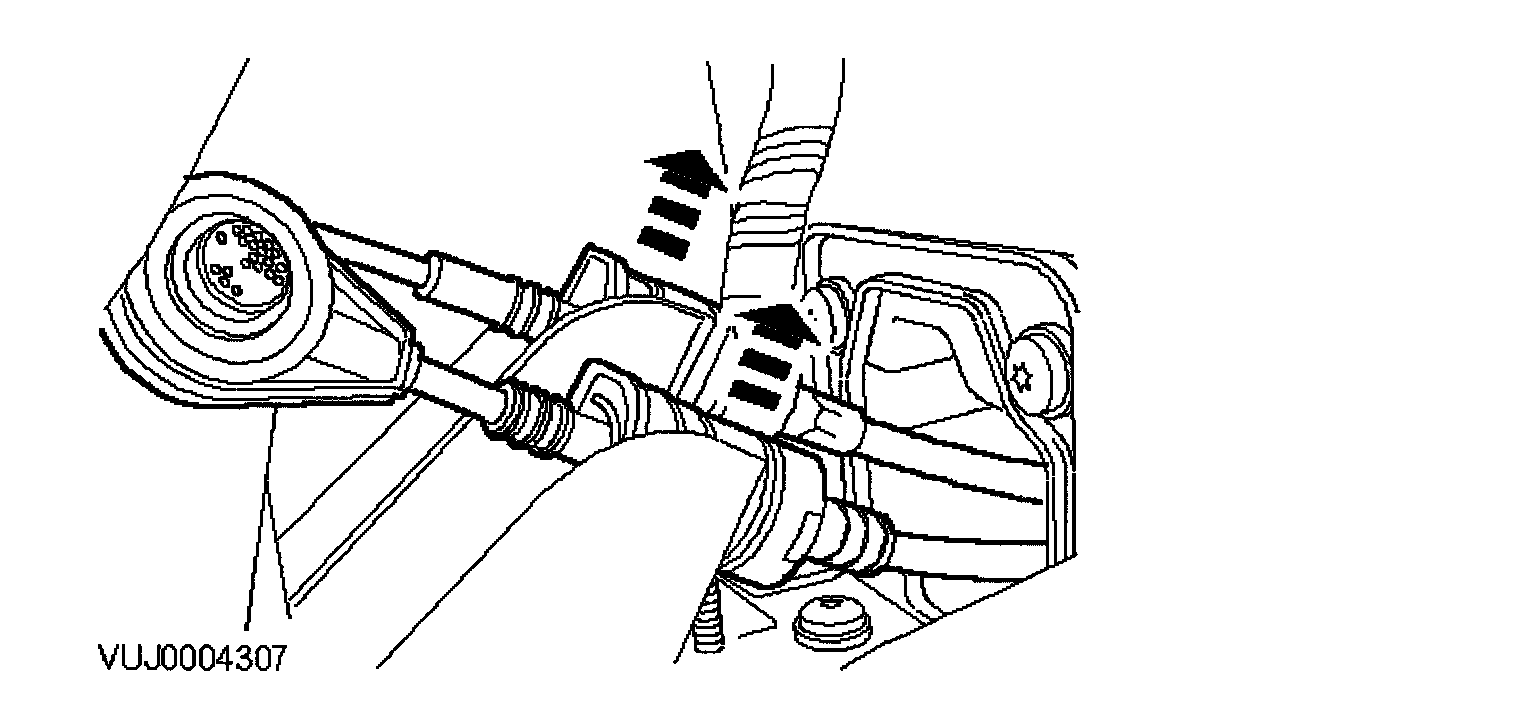

3. Disconnect the gearshift selector cables.

NOTE: Press the button to release the cable fitting before disconnecting the cable.





4. Remove the gear shift lever surround

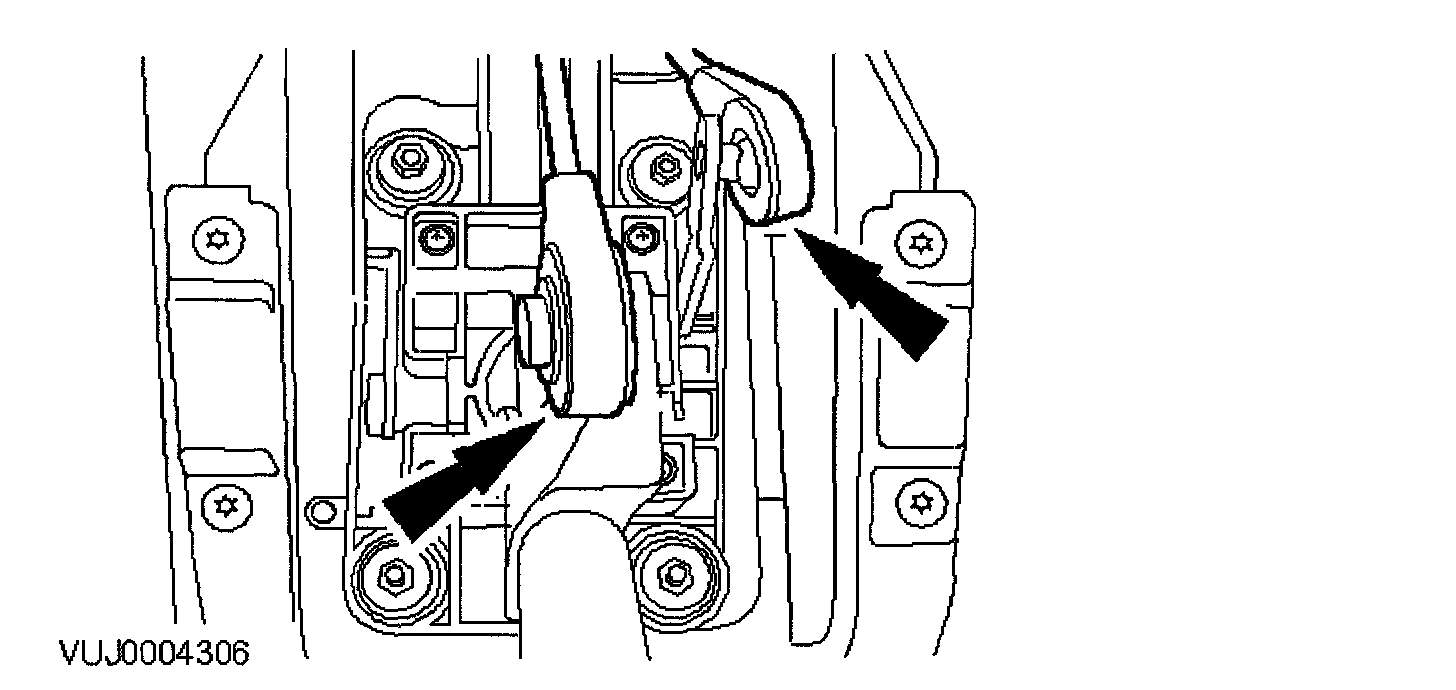

1. Detach the reverse gear selector rods.
2. Remove the gearshift lever surround.





5. Disconnect the gearshift selector cables.





6. NOTE: Right-hand shown, left hand similar.

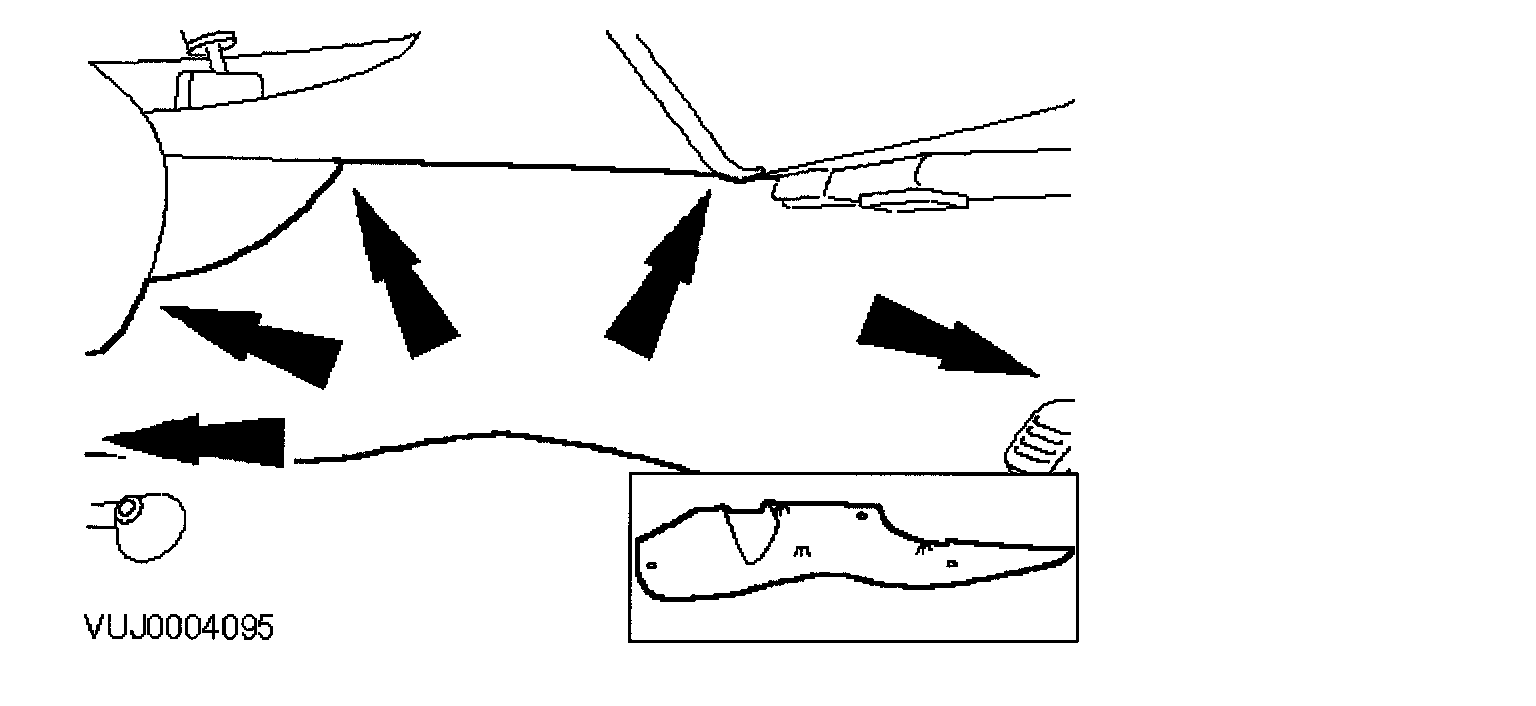

Remove the center console right-hand side trim panel.

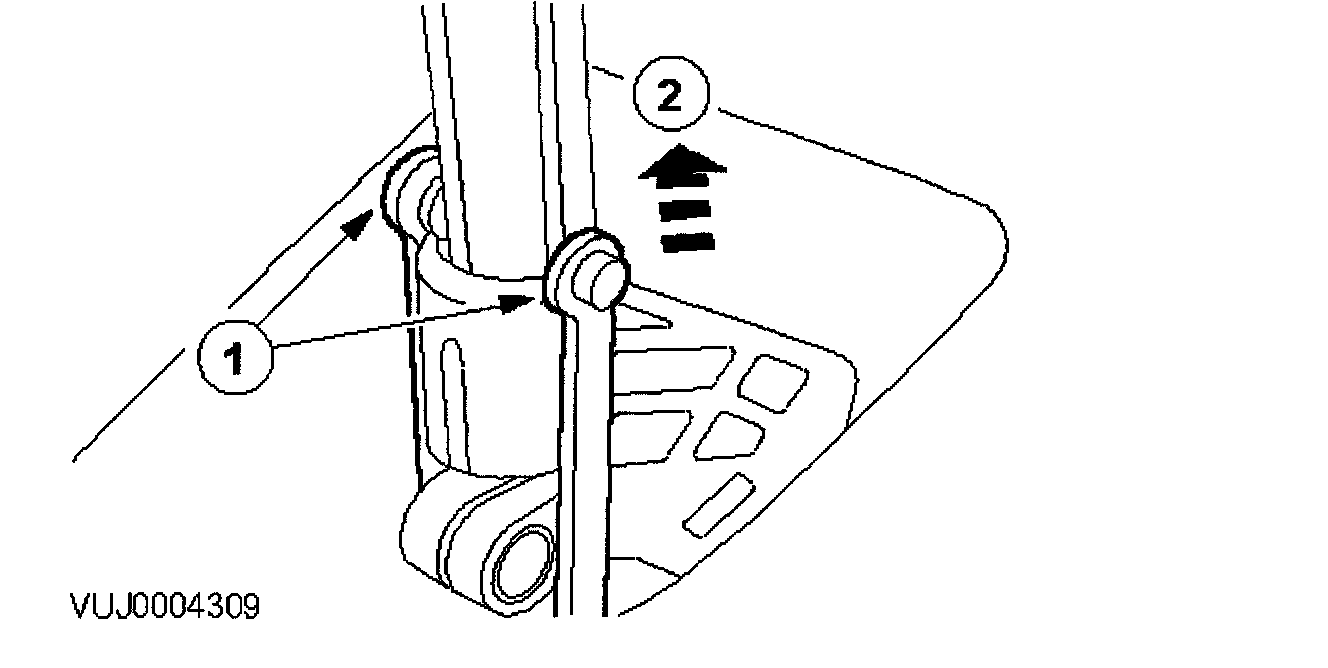

7. Remove the gearshift lever.

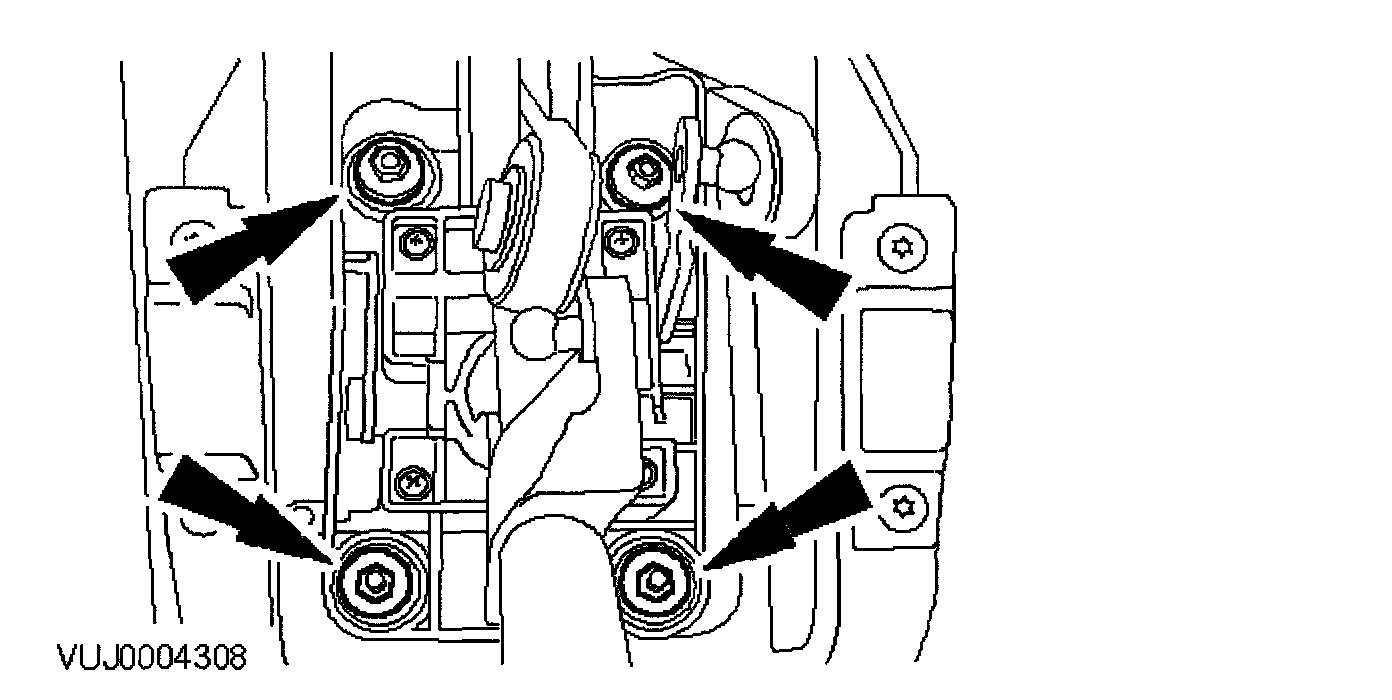

1. Remove the gearshift lever mounting retaining nuts.
2. Remove the gearshift lever.

Installation





1. Tighten to 60 ft. lbs.
