Steering Shaft Coupler: Service and Repair

Steering Column Flexible Coupling

Removal

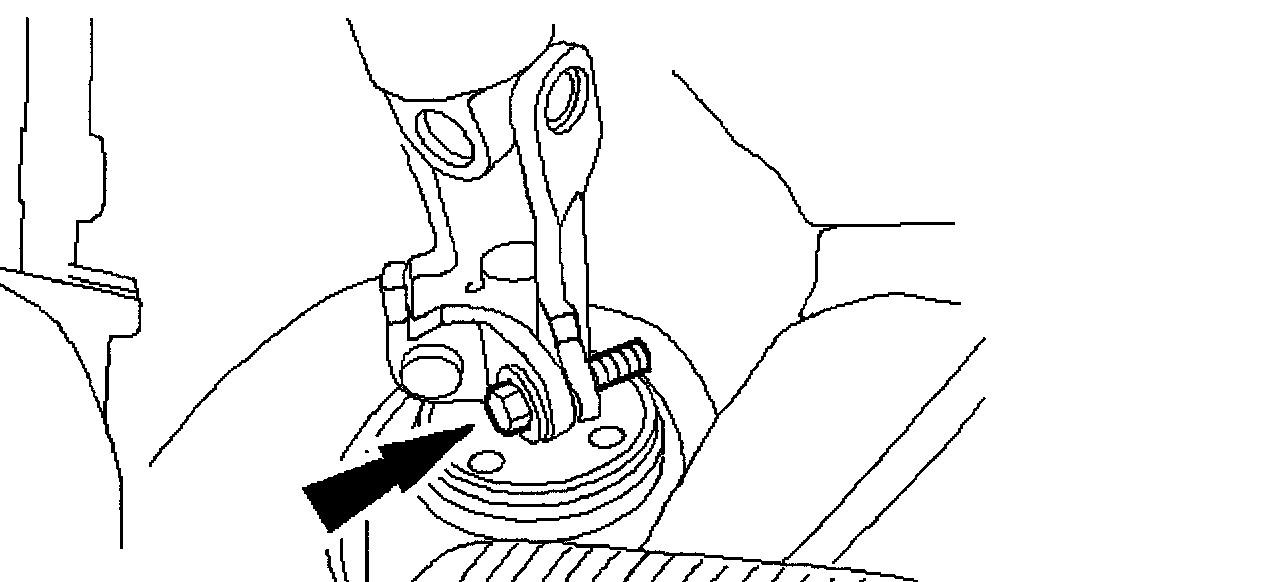

1. Remove the steering column lower retaining bolt.

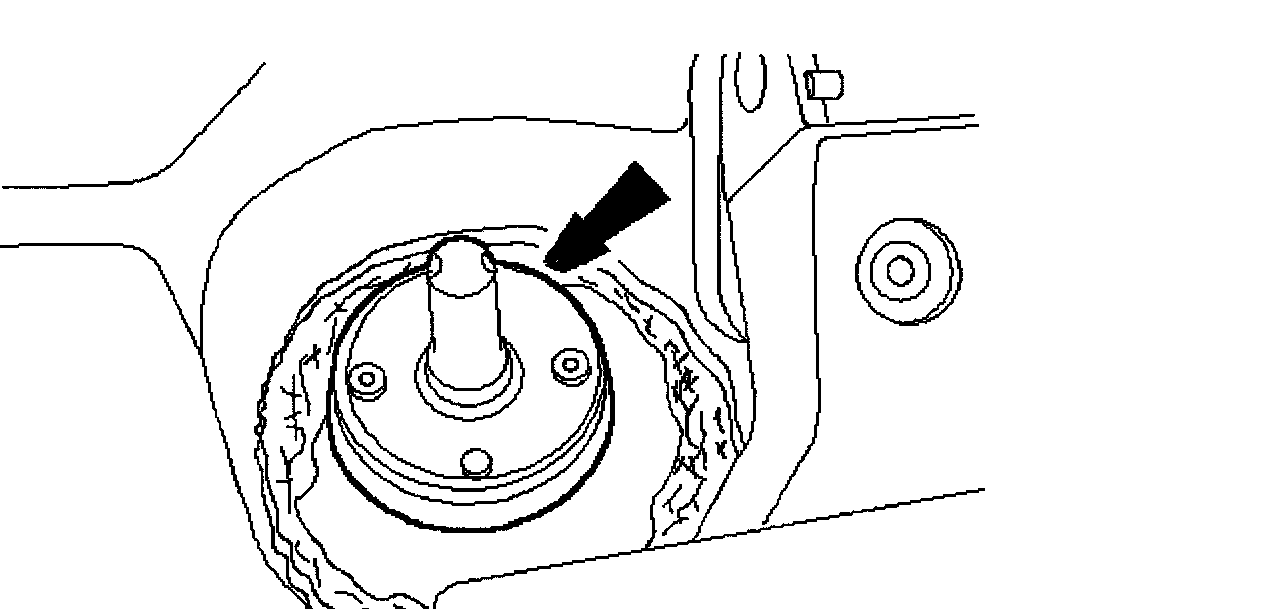

2. Remove the steering column flexible coupling.
^ Remove the steering column flexible coupling retaining bolt.

Installation
1. To install, reverse the removal procedure.

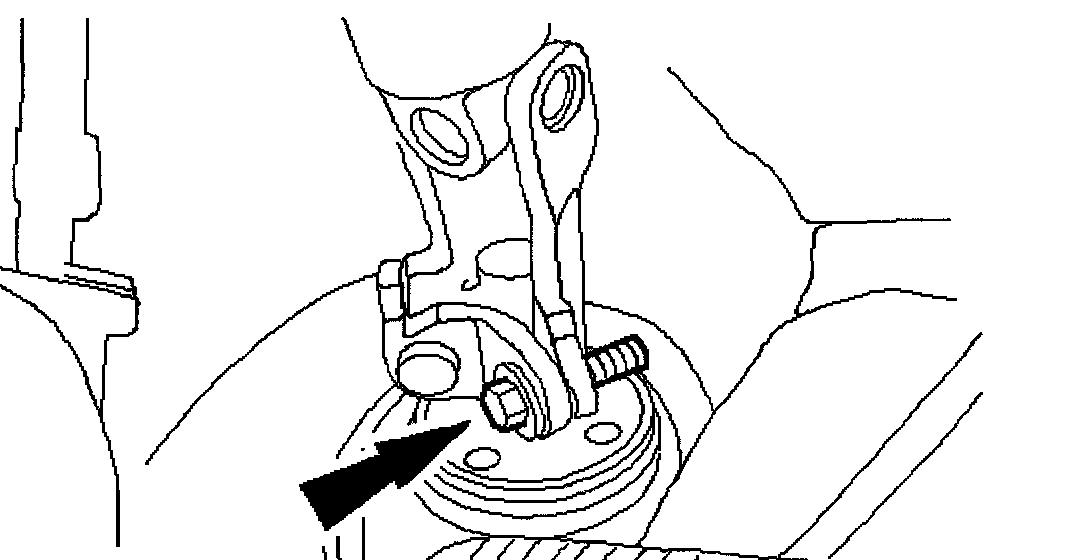

^ Tighten to 27 Nm.

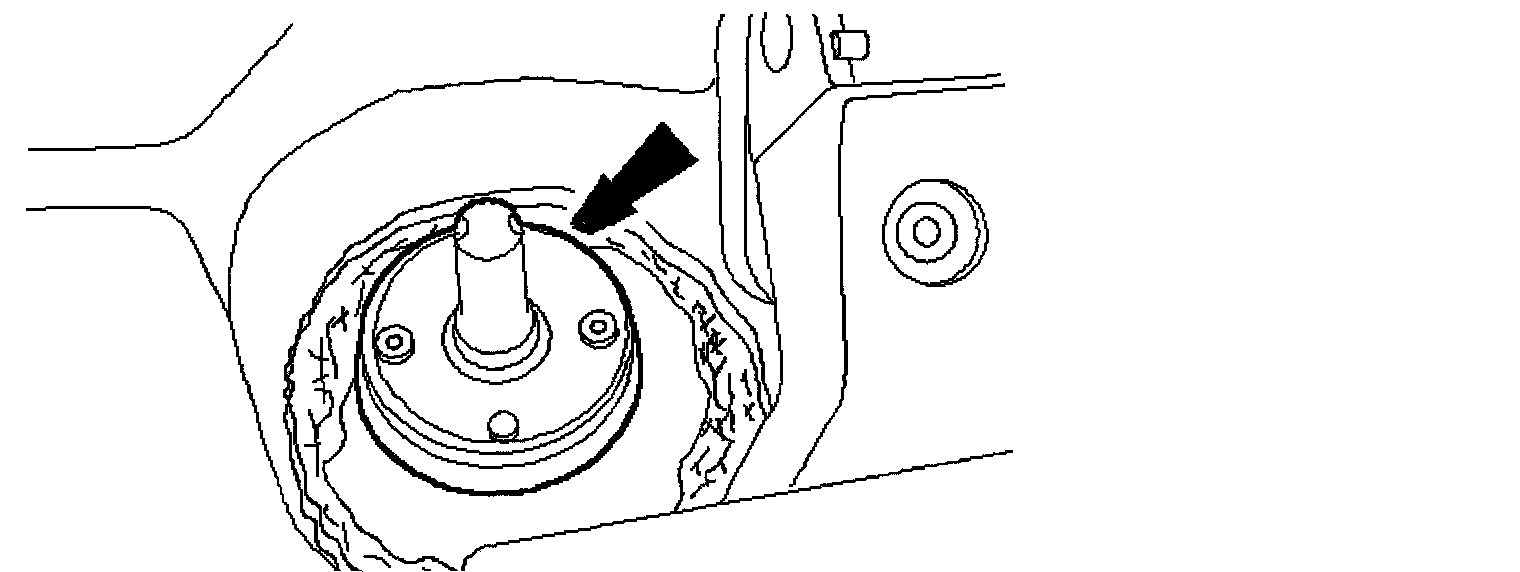

2. Tighten to 26 Nm.
