Seat Belt Height Adjuster: Service and Repair

Front Safety Belt Shoulder Height Adjuster

Removal

1. Remove the upper B-pillar trim panel.

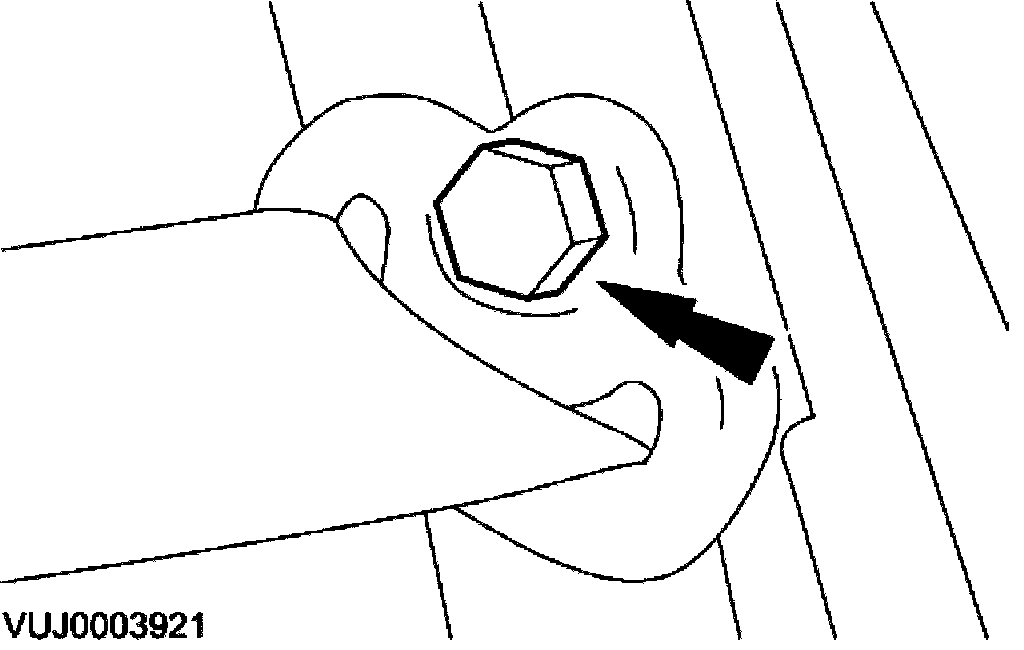

2. Detach the safety belt upper retaining bolt.

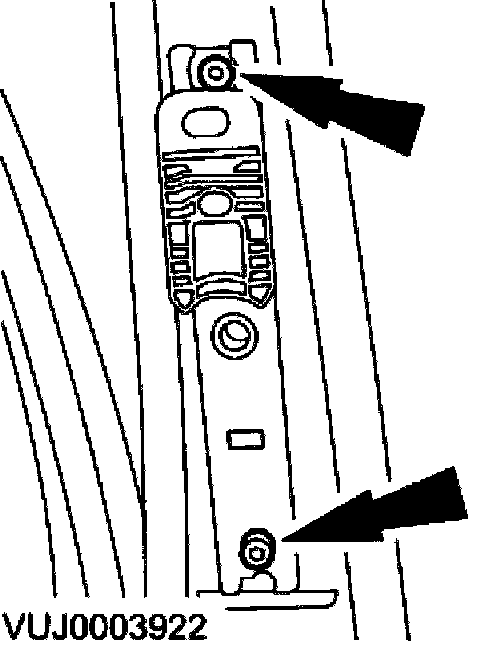

3. Remove the front safety belt shoulder height adjuster retaining bolt.
- Remove the retaining bolts.

Installation

1. To install reverse the removal procedure.







2. Tighten to 25 Nm.







3. Tighten to 25 Nm.
