Fuel Pressure Pulsation Damper: Service and Repair

Fuel Pulse Damper 2.5L/3.0L 18.30.98

Removal

1. Remove the throttle body.

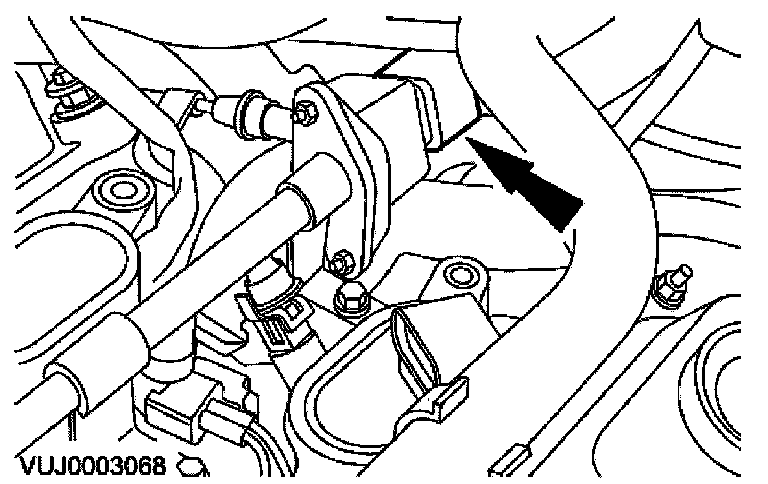

2. Disconnect the electrical connector.

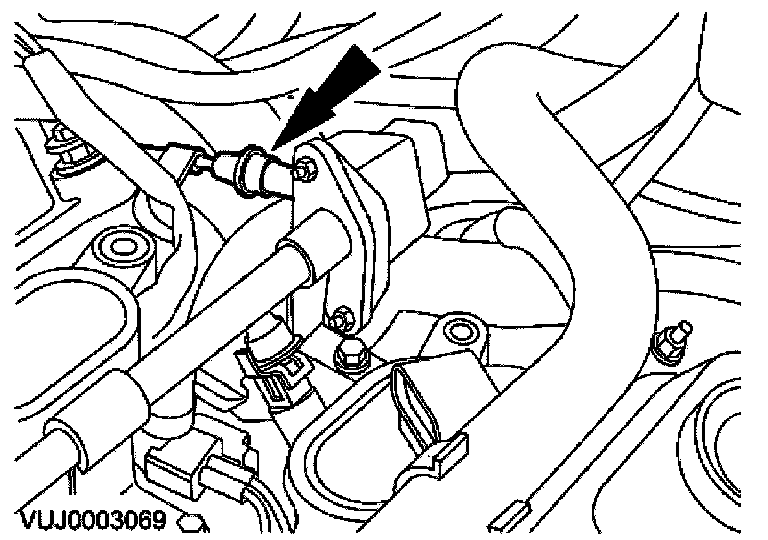

3. Detach the fuel pressure sensor vacuum line.

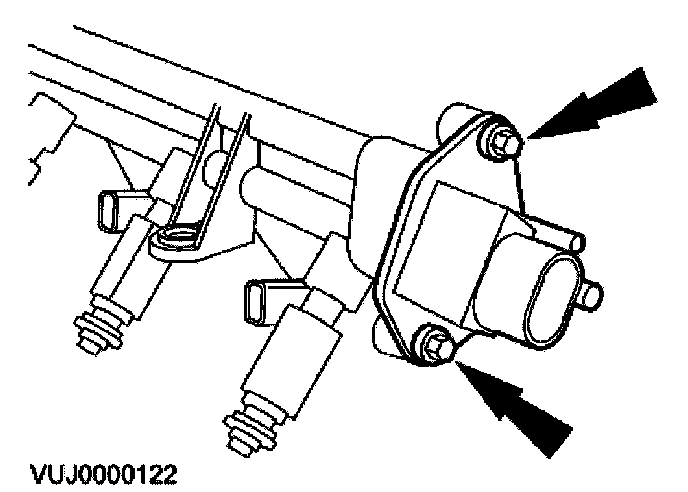

4. Remove the fuel pressure sensor.
- Remove and discard the gasket.

Installation







1. NOTE: Install a new gasket.

To install, reverse the removal procedure.

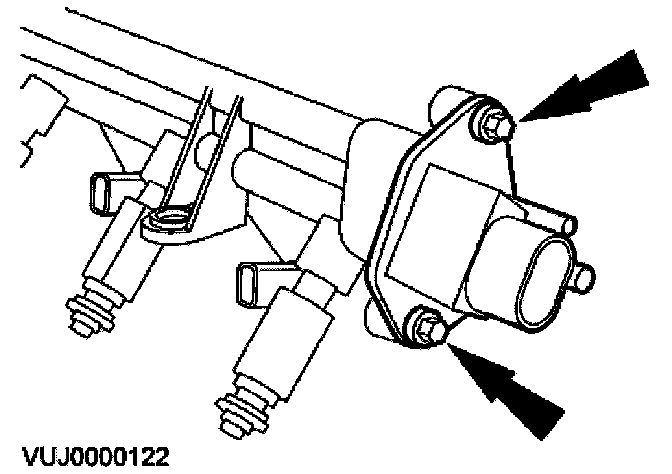

- Tighten to 10 Nm.
