Fluid - A/T: Testing and Inspection

Transmission Fluid Level Check

WARNING:

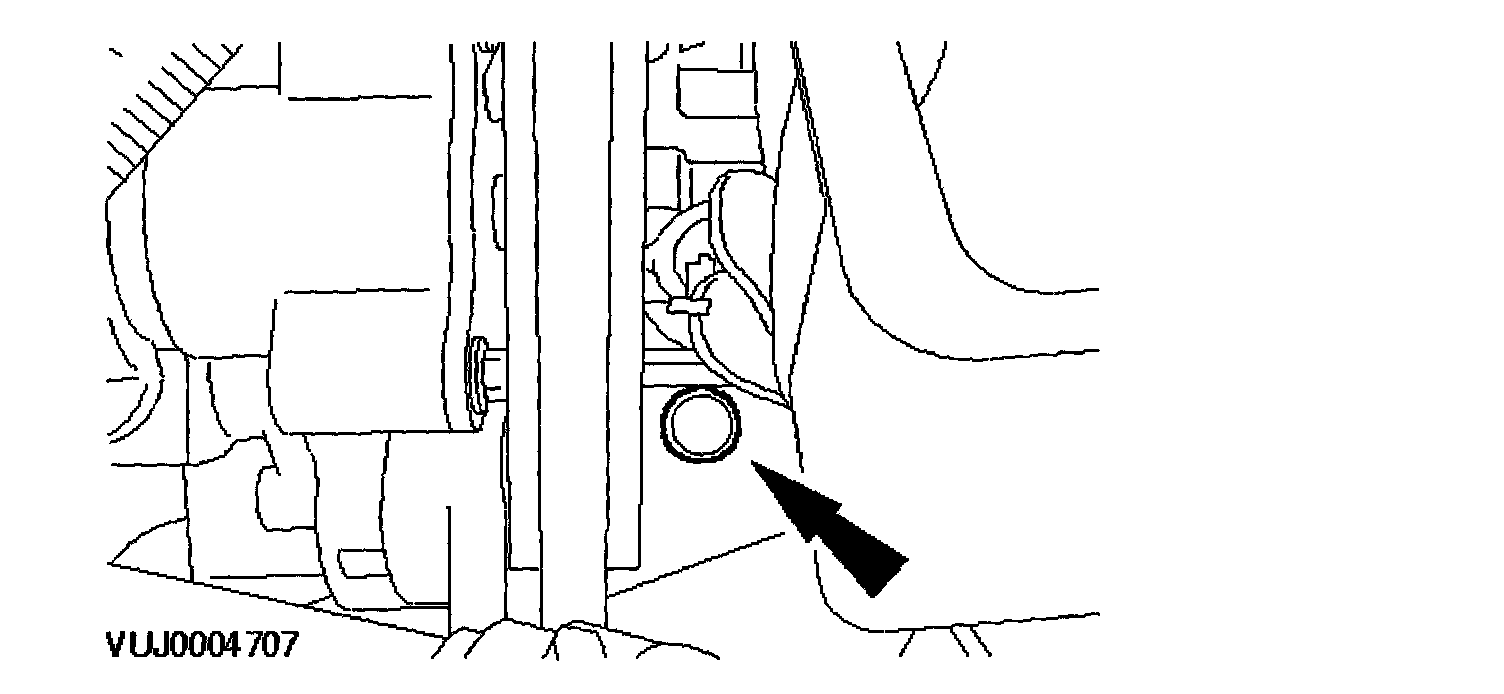

VERIFY PROPER PLUG IS REMOVED FOR LEVEL CHECK.

Because of the similarity to other plugs and fasteners on the transmission, the potential for loosening an incorrect fastener, instead of the level plug, exists. There is a risk for internal transmission damage if the improper fastener is removed.

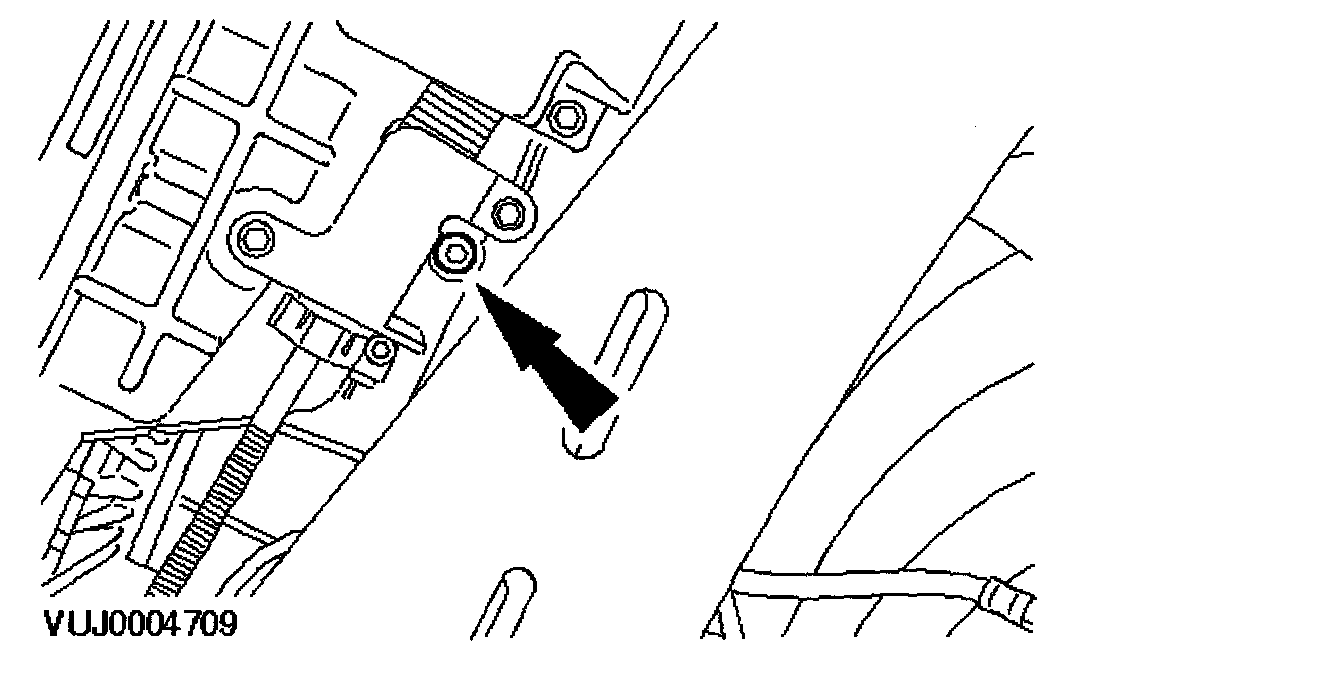

- Removal of the reduction gear brake band bolt can cause total loss of drive or a substantial reduction in the performance of the transmission.

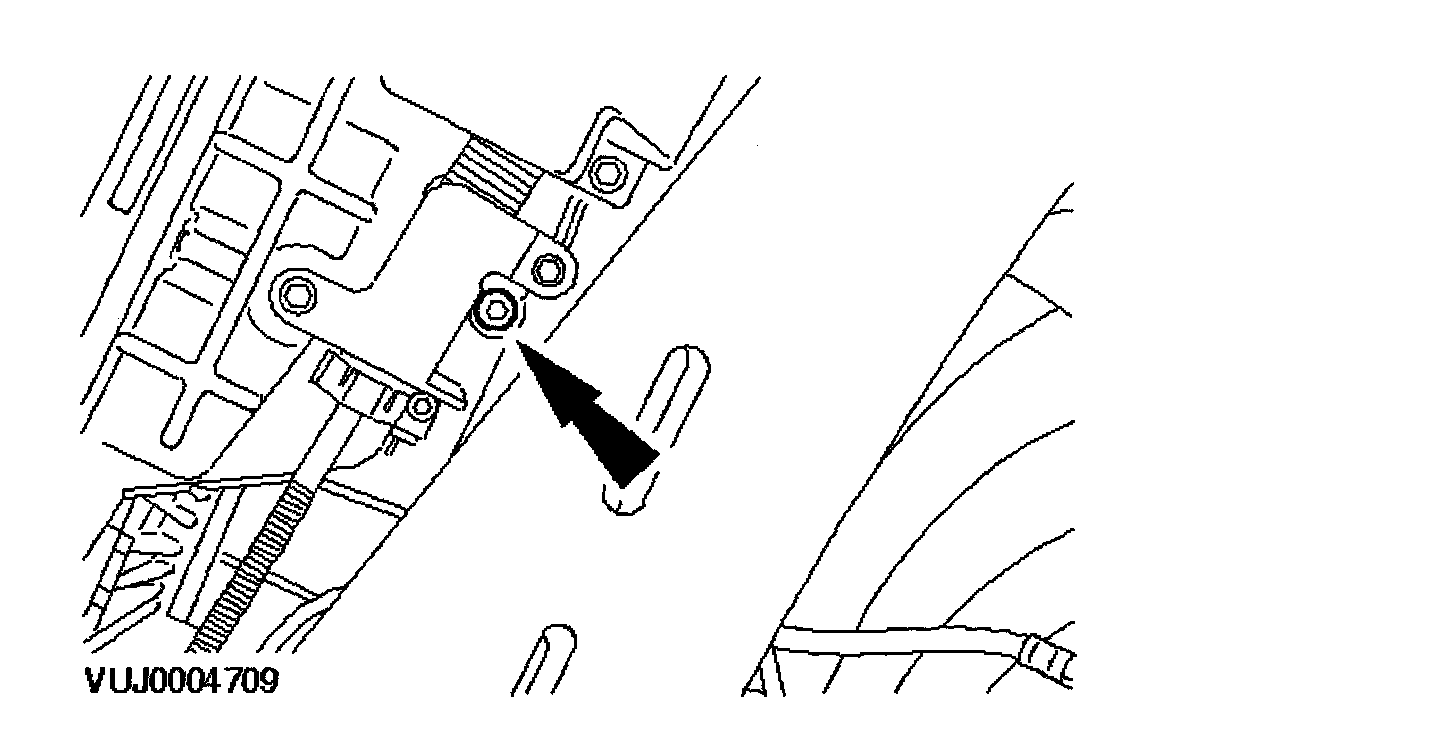

- Removal of the parking pawl rod plate retaining bolt (located next to the XYZ switch) will result in problems/gear lever movement restrictions.

1. Raise and support the vehicle.

2. Connect the approved Jaguar diagnostic system.

3. Make sure J-Gate shift selector is in the Park position (P).

4. With the engine running and the foot brake applied, move the J-Gate shift selector through "P-R-N-D-4-3-2" and back to the "P" position to circulate the automatic transmission fluid until the temperature reaches 30 to 40°C (86 to 104°F) on the approved Jaguar diagnostic system.

5. When the automatic transmission fluid temperature reaches 35°C (95°F) check that the selector lever is in the "P. position raise the vehicle.





6. With the engine running, remove the automatic transmission fluid level tube plug.
^ Remove and discard the sealing washer.





7. If the automatic transmission fluid does not come out of the transmission fluid level tube the automatic transmission fluid level is insufficient. If this is the case add the automatic transmission fluid in 0.5 litre units into the automatic transmission fluid charging pipe until the automatic transmission fluid comes out of the automatic transmission fluid level tube.
^ Remove the automatic transmission fluid charging pipe cap.

NOTE: Use automatic transmission fluid WSS-M2C922-A1 or equivalent meeting Jaguar specification.

8. Allow the automatic transmission fluid to come out of the automatic transmission fluid level tube until the overflow stops at a temperature of no more than 40°C (104°F).

NOTE: Make sure the automatic transmission fluid temperature does not exceed 40°C (104°F). If the automatic transmission fluid temperature does exceed 40°C (104°F) stop the automatic transmission fluid level check and allow the automatic transmission fluid to cool until the temperature reaches 30 to 40°C (86 to 104°F).

9. If when the automatic transmission fluid level plug is first removed and automatic transmission fluid comes out of the automatic transmission fluid level tube, allow the automatic transmission fluid to come out of the automatic transmission fluid level tube until the overflow stops at a temperature of no more than 40°C (104°F).

NOTE: Make sure the automatic transmission fluid temperature does not exceed 40°C (104°F). If the automatic transmission fluid temperature does exceed 40°C (104°F) stop the automatic transmission fluid level check and allow the automatic transmission fluid to cool until the temperature reaches 30 to 40°C (86 to 104°F).





10. Install the transmission fluid level plug.
^ Install a new sealing washer.
^ Tighten to 15 Nm.





11. Install the automatic transmission fluid charging pipe cap.

12. Lower the vehicle.

13. Disconnect the approved Jaguar diagnostic system.
