Coolant Reservoir: Service and Repair

Removal

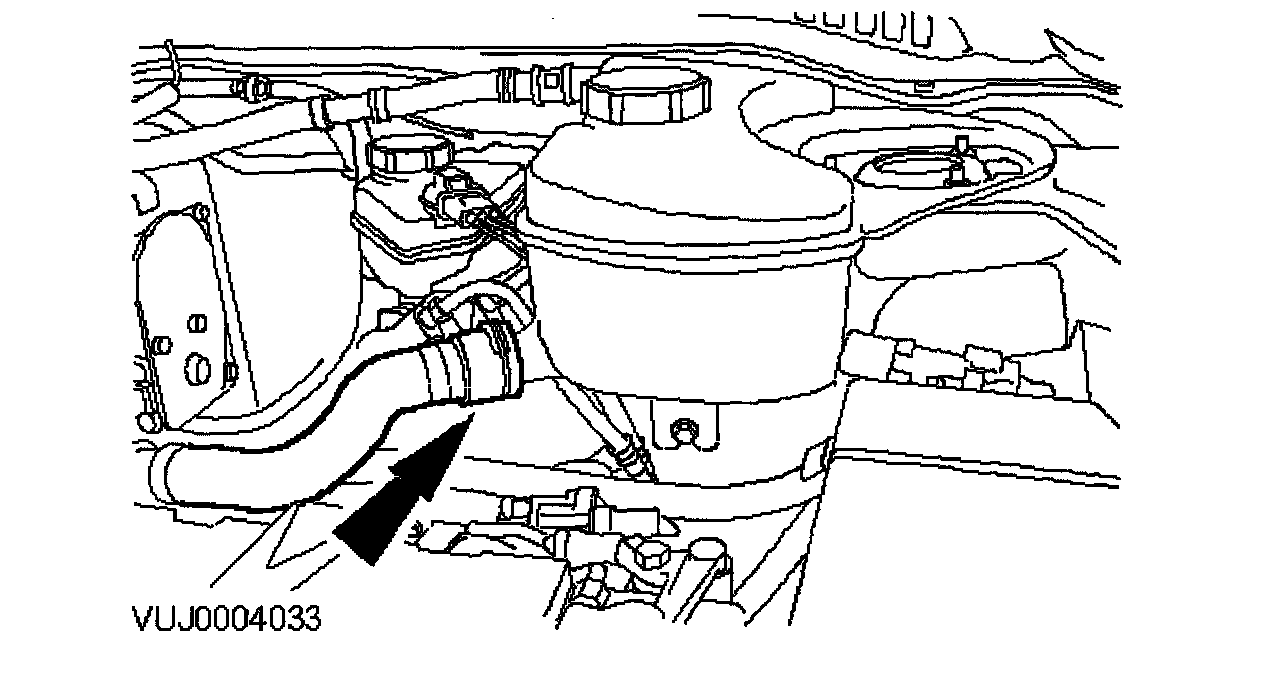

1. Detach the coolant expansion tank outlet hose from the coolant expansion tank.

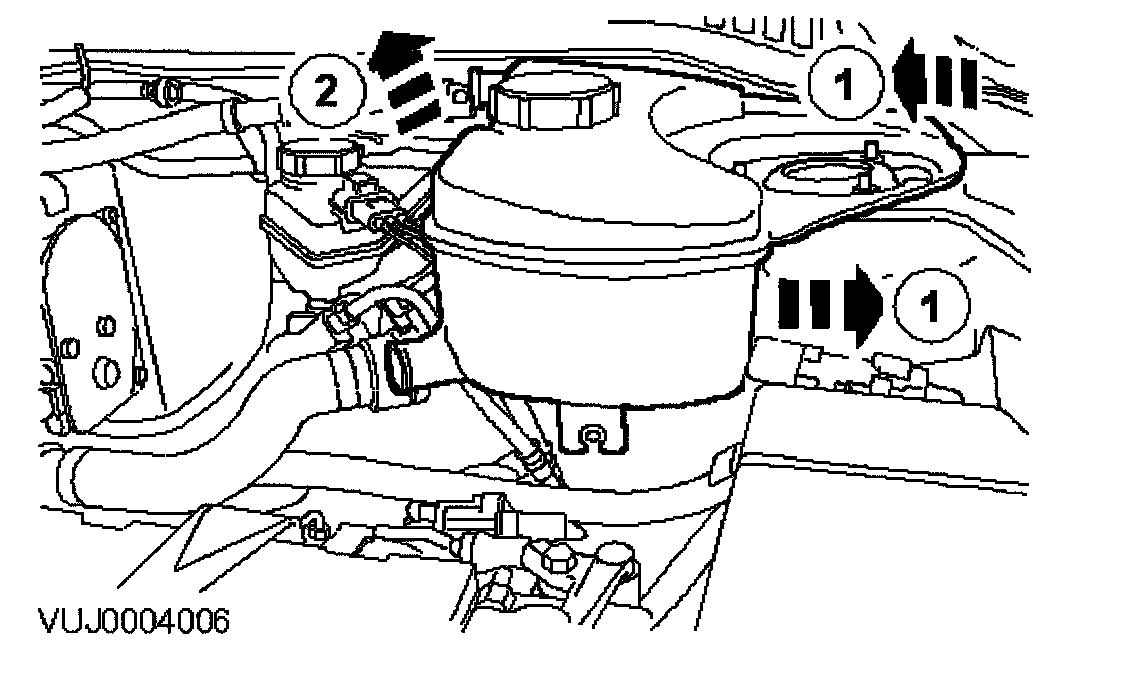

2. Detach the cooling system vent hoses from the coolant expansion tank.





3. Remove the coolant expansion tank retaining bolt.





4. Remove the coolant expansion tank.

Installation





1. To install, reverse the removal procedure.
- Tighten to 3 Nm.
2. Fill the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding.
