Parking Brake Cable: Service and Repair

Removal
1. Remove the rear road wheel and tire. For additional information, refer to Steering and Suspension.

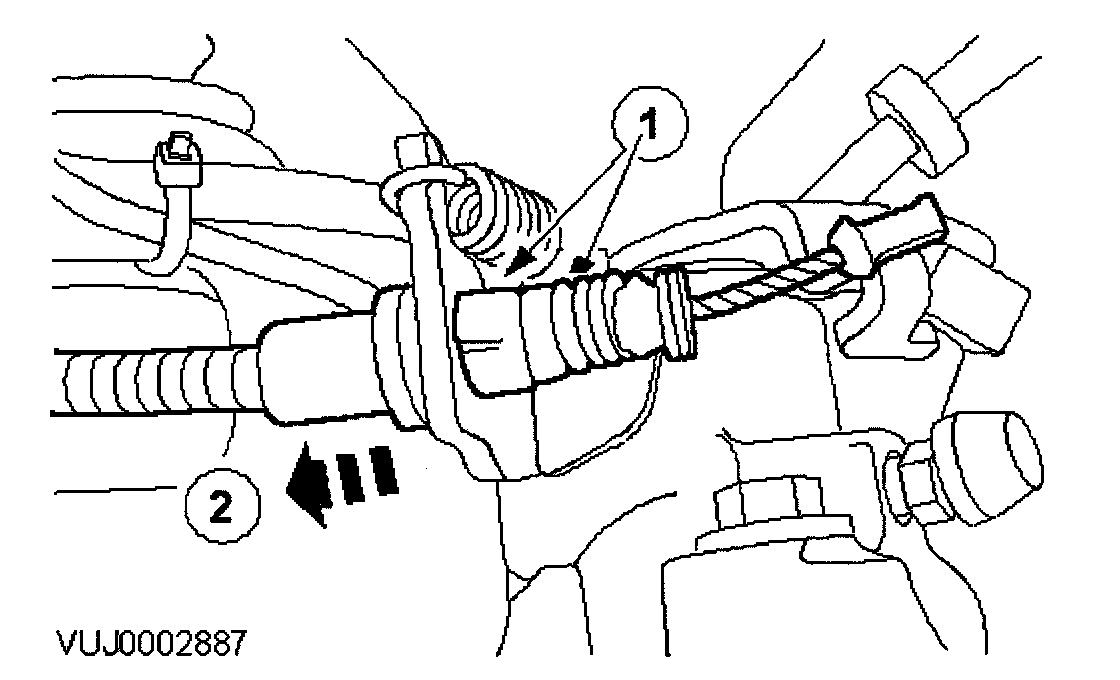

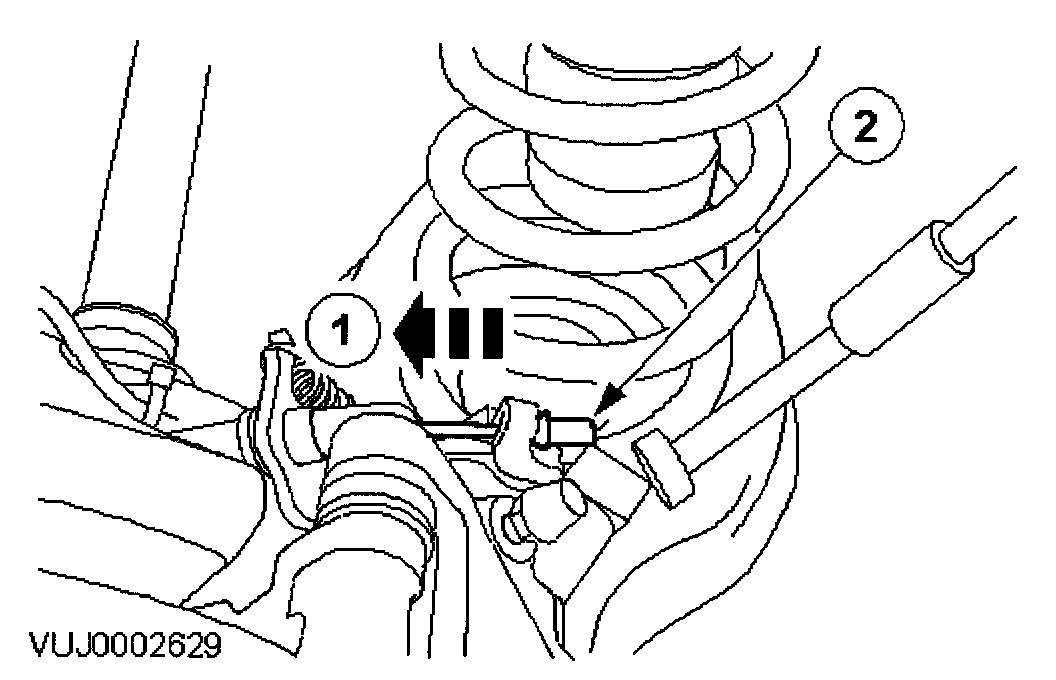

2. Detach the rear parking brake cable.
1. Release the tension.
2. Detach the rear parking brake cable.

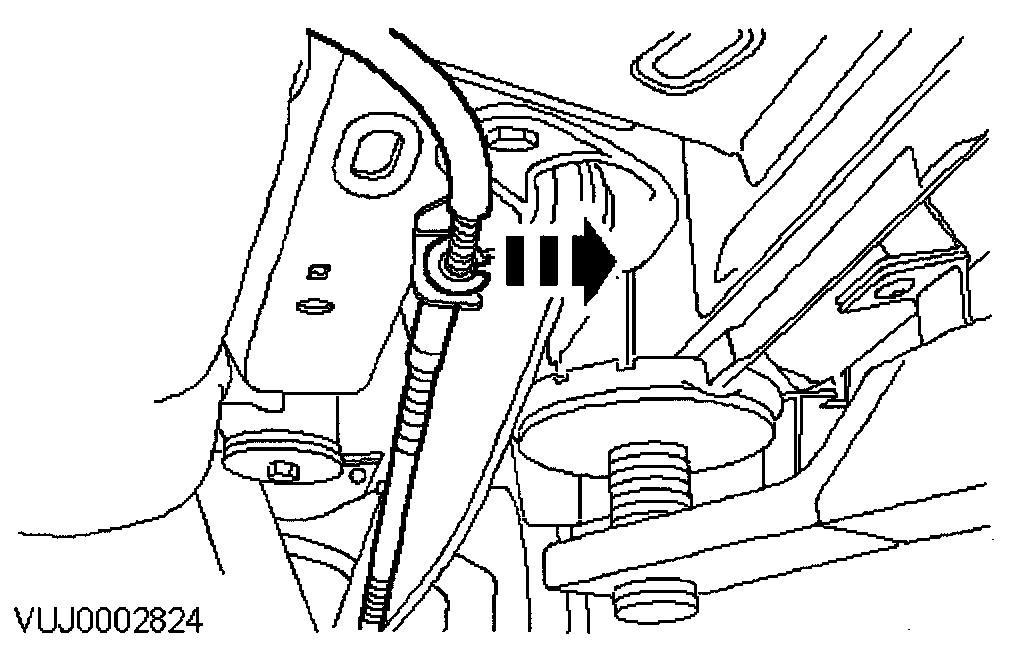

3. Detach the parking brake cable and conduit.
1. Release the parking brake conduit retaining tangs.
2. Detach the parking brake cable and conduit.

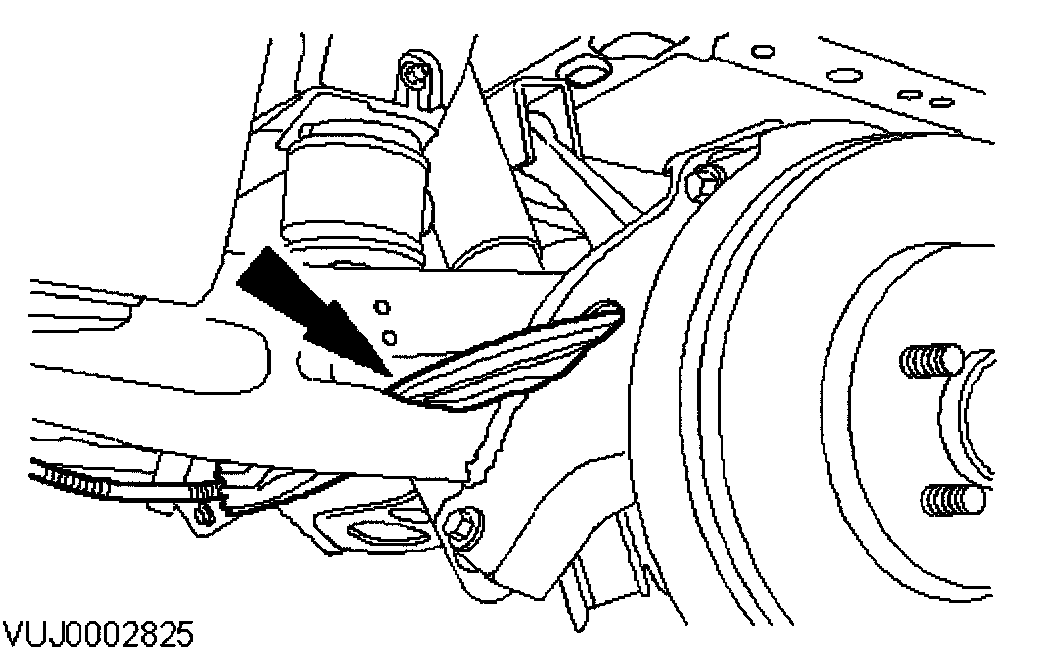

4. Detach the parking brake cable and conduit.
5. Remove the body undertray.

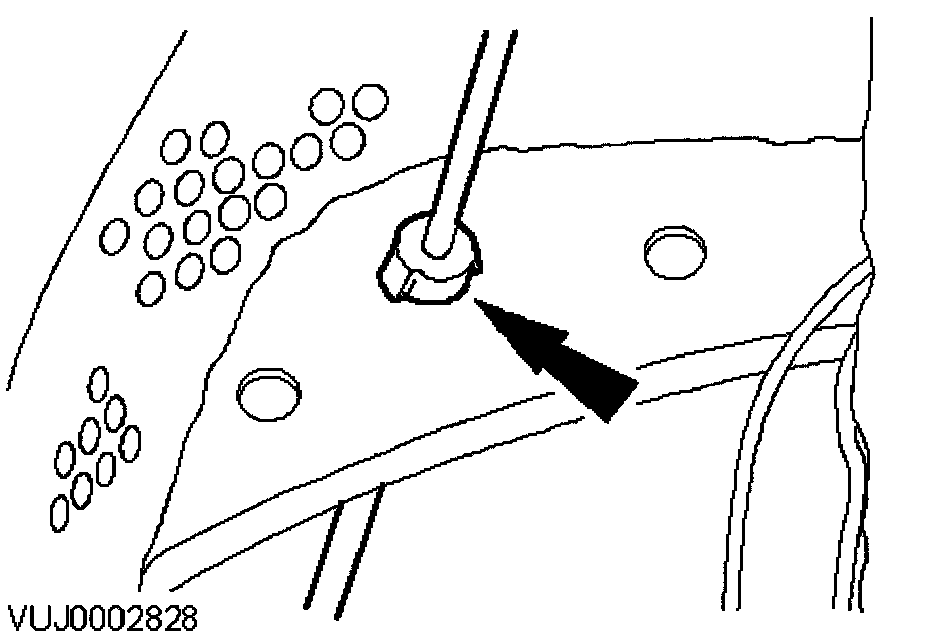

6. Detach the parking brake cable and conduit.

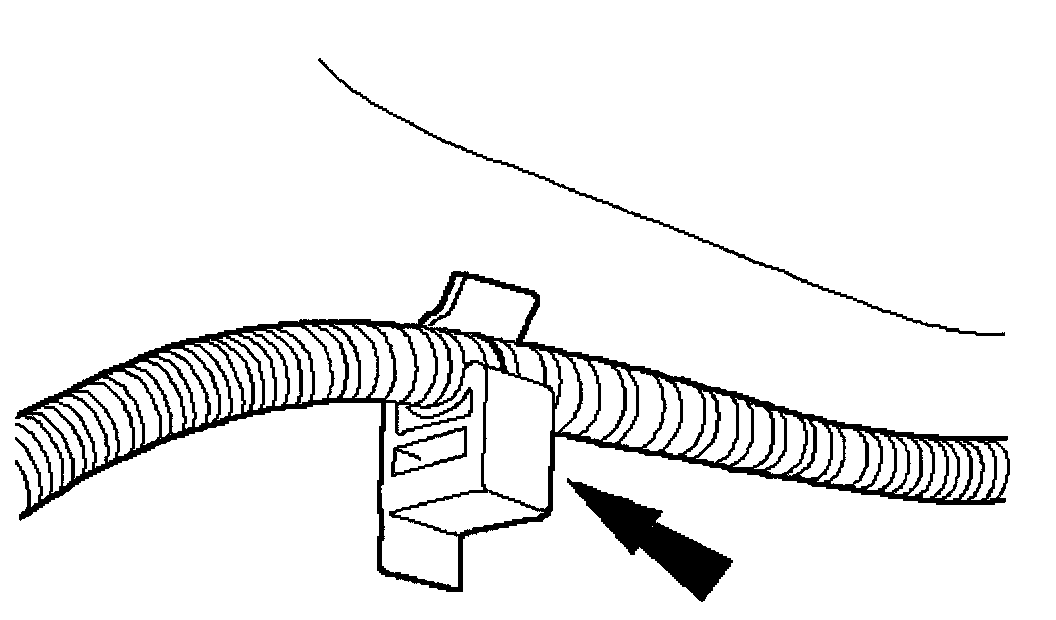

7. Detach the parking brake cable and conduit.

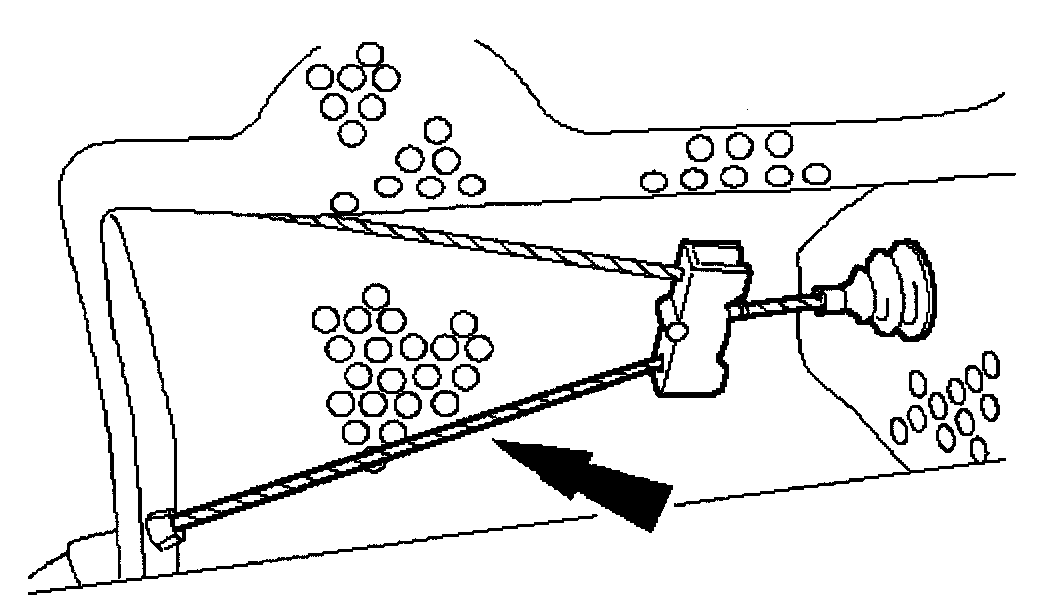

8. Detach the rear parking brake cable.





9. Remove the parking brake rear cable and conduit.

Installation
1. To install, reverse the removal procedure.
