Home >> Jaguar >> 2003 >> S-Type (X200) V8-4.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

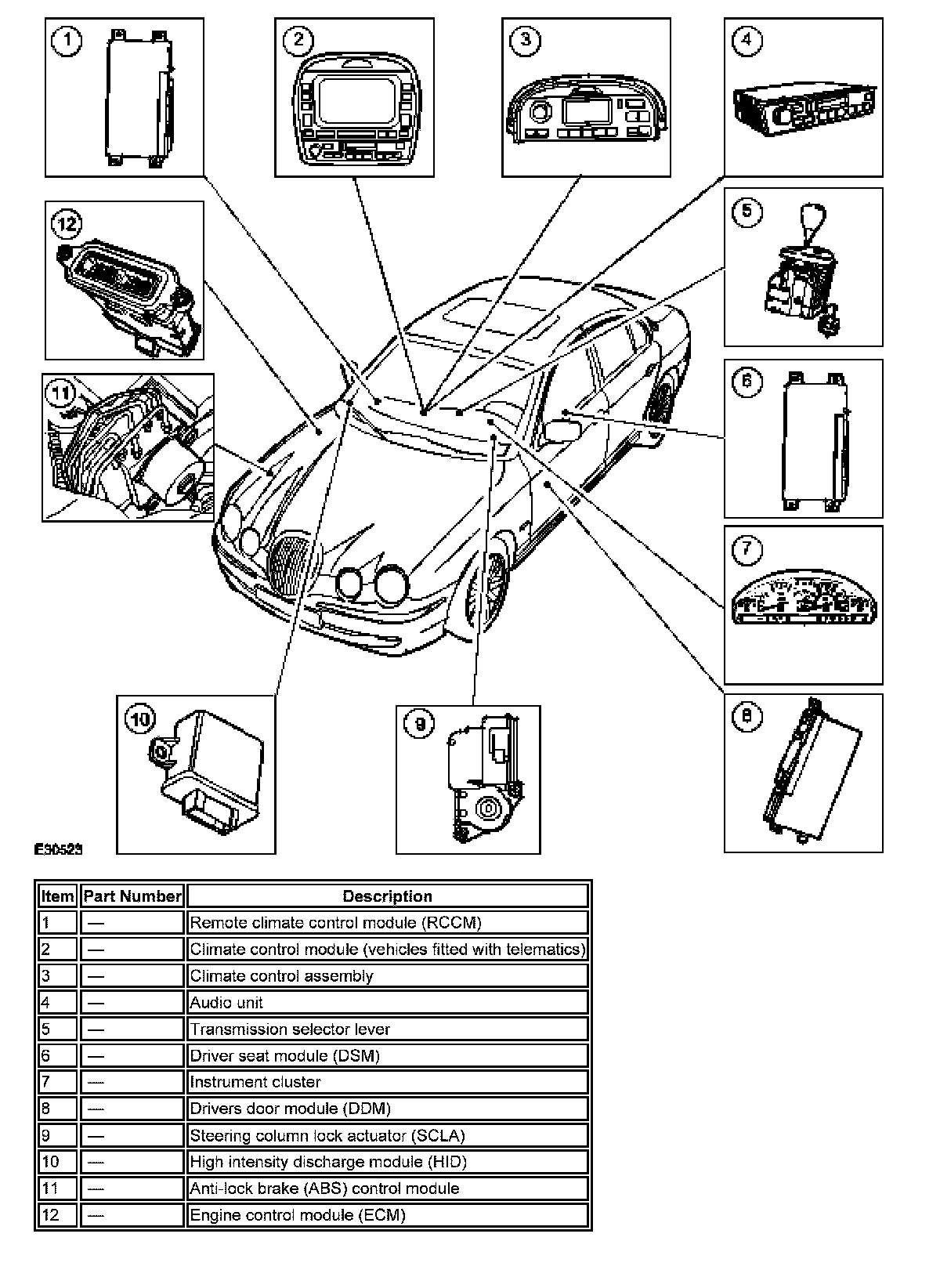

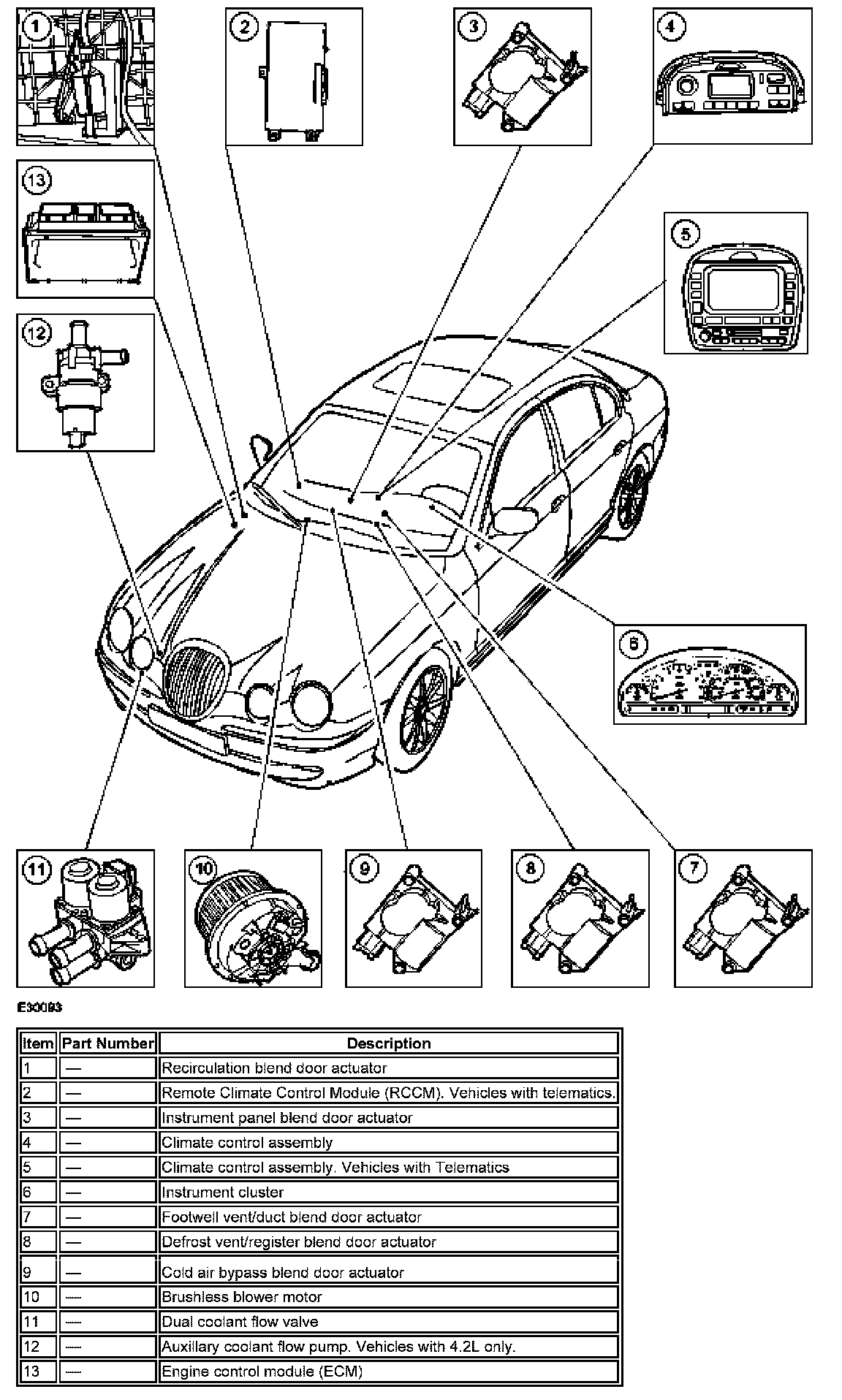

Heating And Air Conditioning Components:

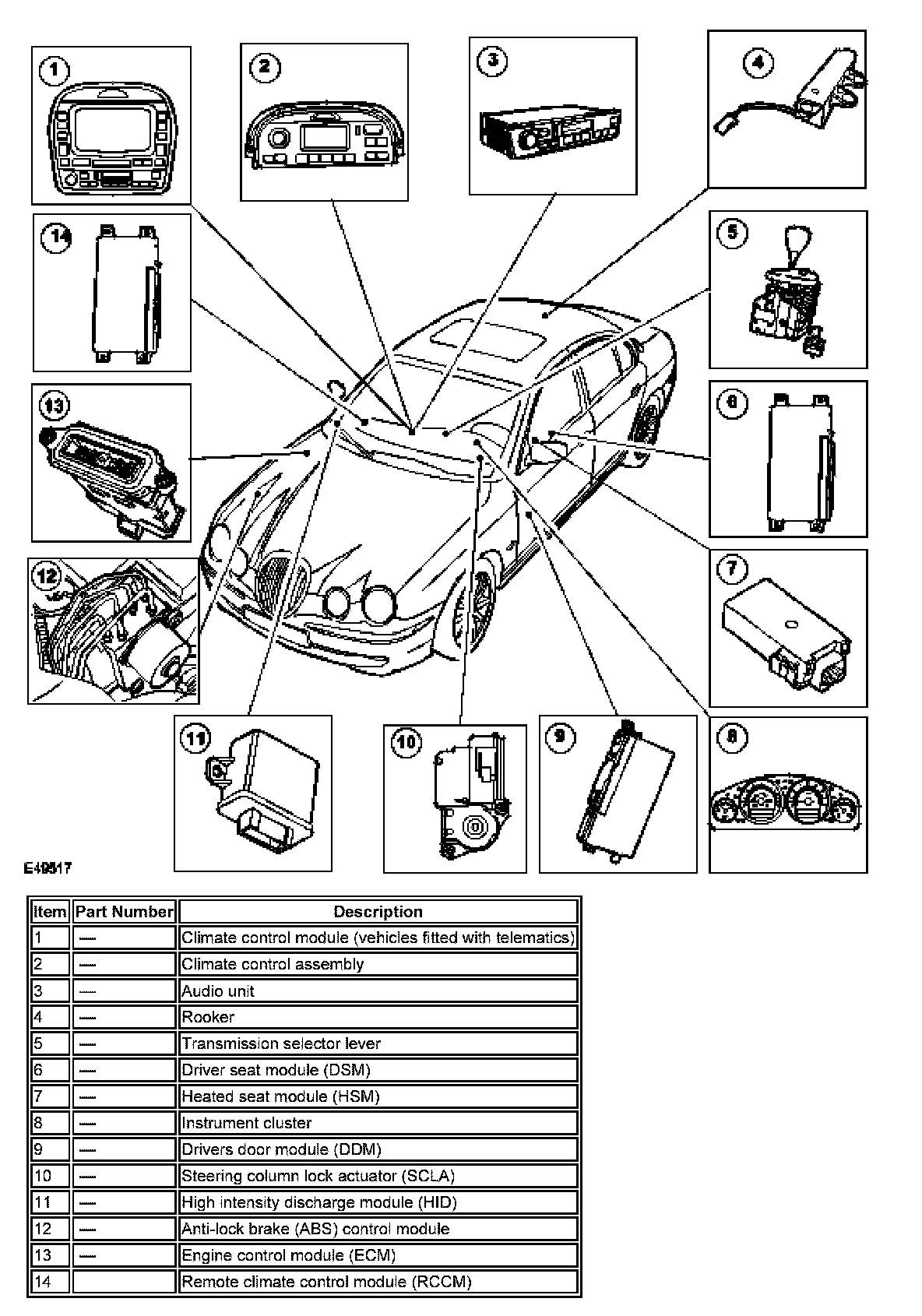

Vehicle Module Locations:
