Campaign - Supercharger Idler Pully Bolt Retorque
S303-S151S-TYPE
DATE 08/02
MODEL
2003 MY
S-TYPE R
VIN
M48607-M59563
Retorque Idler Pulley - Supercharged Vehicles - Service Action S151
Issue:
On 4.2L Supercharged S-TYPE vehicles within the above VIN range the supercharger idler pulley bolt has been incorrectly torqued to 25 Nm instead of the specified 40 Nm. If the bolt becomes loose the idler pulley may oscillate causing a loss of tension of the supercharger drive belt. This will cause a loss of drive to the supercharger. Vehicle which have not been checked at the ports are listed in this bulletin.
Action:
At the next available opportunity, apply the correct torque of 40 Nm to all vehicles listed on the shown VIN list.
WORKSHOP PROCEDURE
1. Open hood and fit fender covers.

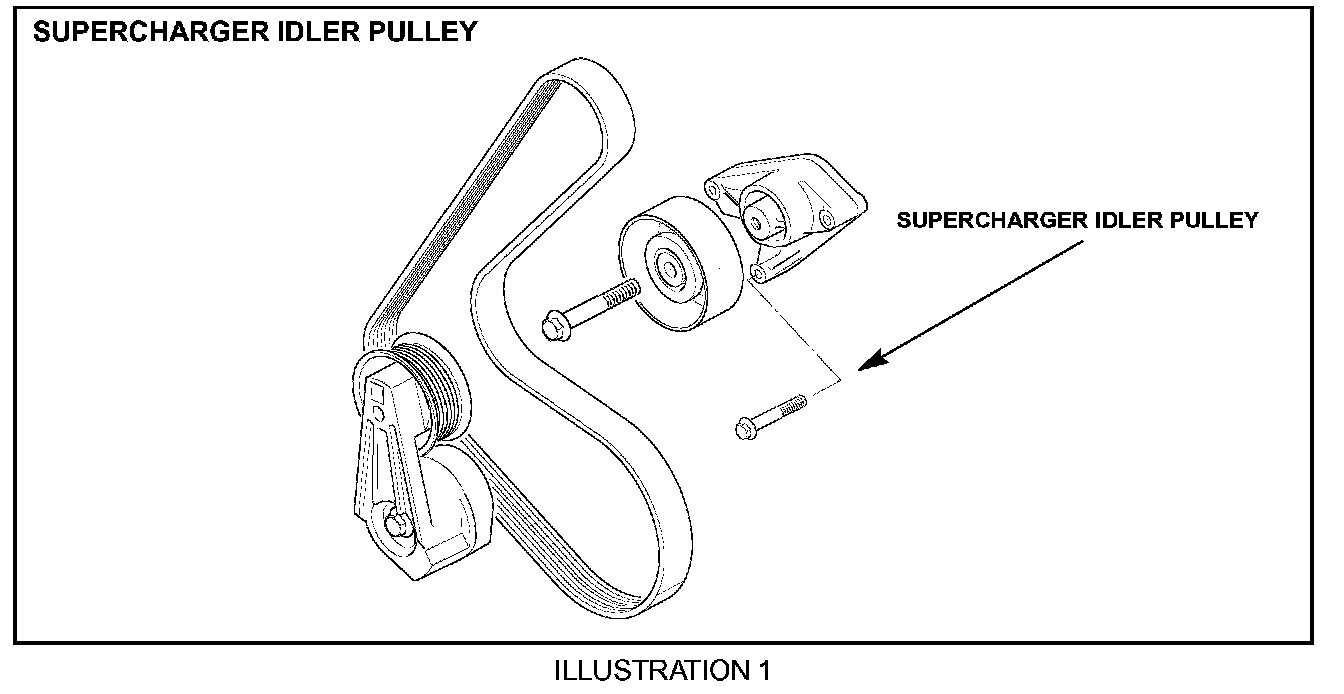

2. Locate the supercharger idler pulley (Illustration 1).
3. Using a 15 mm AF standard socket and a suitable torque wrench, set to 40 Nm, torque the bolt to 40 Nm.
4. Remove covers protectors and close hood.
Warranty Information
GLOBAL ACES

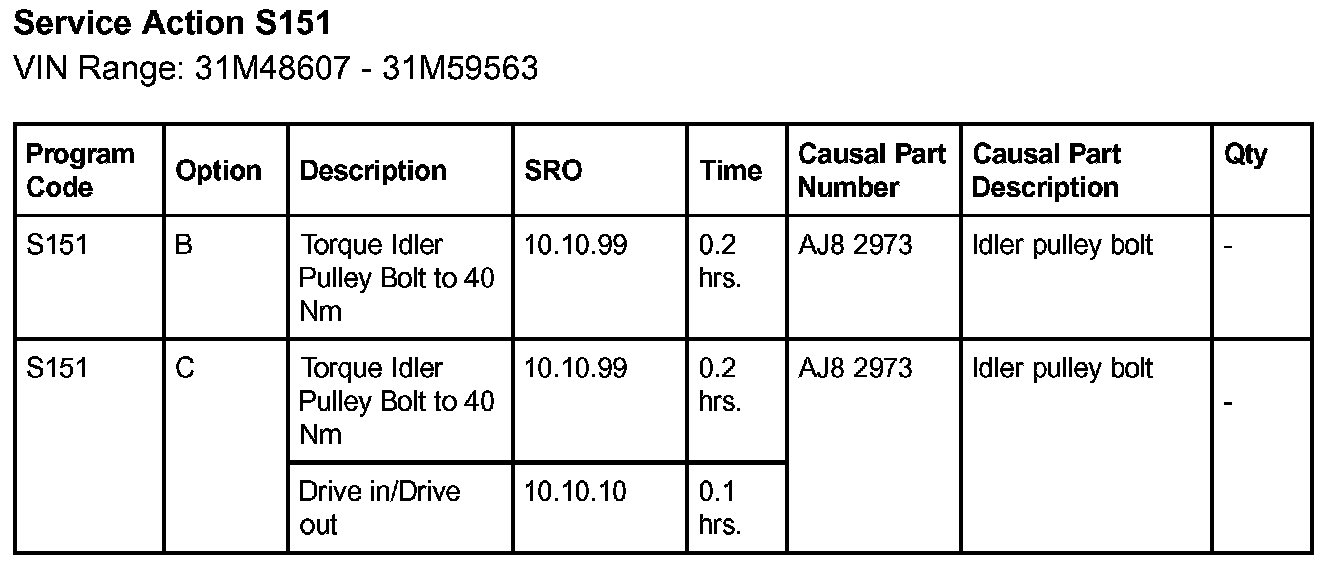

Warranty claims should be submitted quoting the information found in the table. This will result in payment of the stated time and, where applicable parts/miscellaneous expense codes as listed.
Drive in/drive out may only be claimed when the vehicle has been brought in for this action alone to be undertaken.
Use S151 as the program code with the relevant option code and also enter the SRO(s) and parts details on the claim applicable to the repair completed.
NOTE:
Always perform a DDW claim search first to determine whether this service action has been performed on this vehicle. The warranty selection under the vehicle inquiry will give a listing of all claims against the vehicle. If S151 appears in the fault code field, do not perform this service action.
