Recall - Rear Wheel Brakes Unitentionally Apply: Overview
S206-R166S-TYPE
DATE: 12/04
Amended 01/05
MODEL:
2003 MY
S-TYPE
VIN:
M44998-M72584
Unintended Rear Wheel Braking - No Park Brake Warning Lights Displayed - RECALL R166
Updated information is shown with a black bar.
Issue:
A concern has been identified on a number of 2003 MY S-TYPE vehicles within the above VIN range. It is possible that the electronic parking brake can be unintentionally applied resulting in the vehicle decelerating or, in extreme cases, the rear wheels locking up, which may result in a vehicle crash. This condition can occur at any speed without warning lights displayed on the instrument cluster.
Jaguar Cars has made the decision to recall all affected vehicles within the above VIN range for the electronic parking brake module to be renewed.
Recall Action R167 - Unintended rear wheel braking with warning lights, is being released at the same time as Recall Action R166. All of the vehicles in this Recall Action require both R166 and R167. You must ensure that all repairs are completed at one visit. Refer to S206-R167 for repair information.
A copy of the customer letter is shown in this bulletin.
Action:
At the time of confirming a booking for vehicle repair, ensure that all outstanding Field Service Actions are identified to ensure the correct parts are available and adequate workshop time is allocated for repairs to be completed at one visit.
To replace the Electronic Parking Brake module, refer to Workshop Manual Section 206-05, SRO 70.35.47.
NOTE:
Use WDS to configure the new EPB module, after installation.
Warning:
After replacing the EPB module, destroy the old module by striking it with a hammer to prevent its unintentional reuse.
Global Technical Reference (GTR) Workshop Manual Information:
Internet access: http://www.jaguartechinfo.com
Parts Information:
To help determine the actual number of parts required by your dealership, please visit the Service Support Web site to access the spreadsheets which identify the number of vehicles sold by your dealership that are affected by recall R166. These spreadsheets are accessible by clicking the document link in the VIN column based on your dealer code. These spreadsheets can be manipulated to suit your own needs. Please order according to actual demand.
Warranty Information:

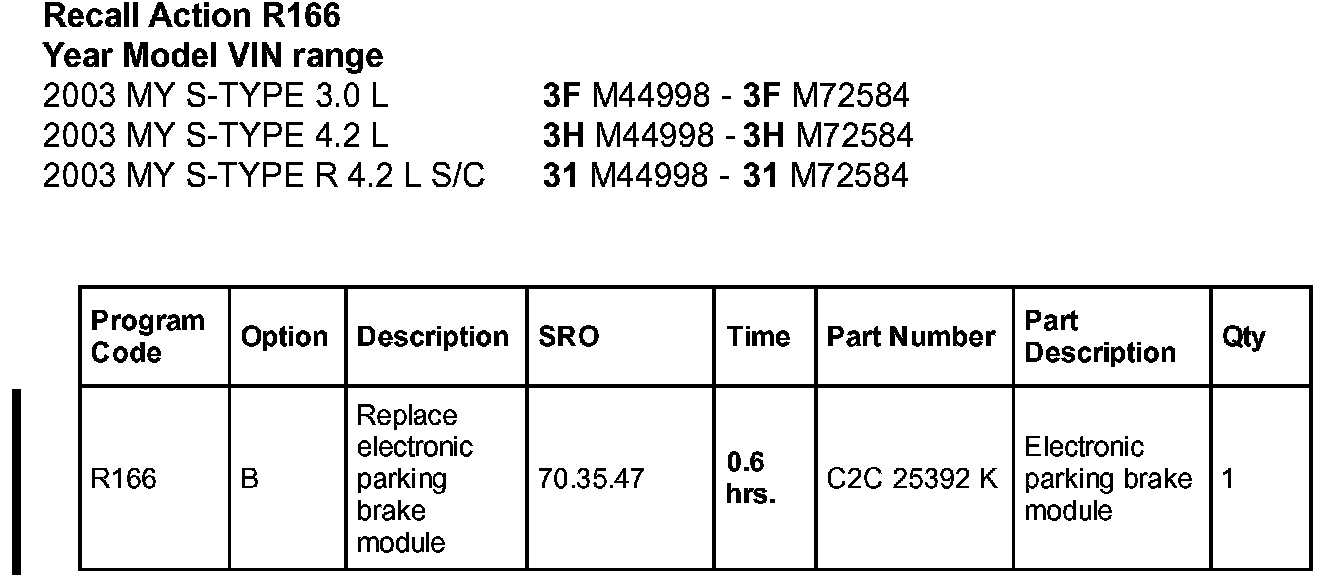

Warranty claims should be submitted quoting program code R166 together with option code B as listed in the table shown.
No allowance has been made for drive in/drive out, as this repair must be completed at the same time as Recall Action R167.
