Seat Belt Height Adjuster: Service and Repair

Front Safety Belt Shoulder Height Adjuster

Removal
1. Remove the B-pillar upper trim.

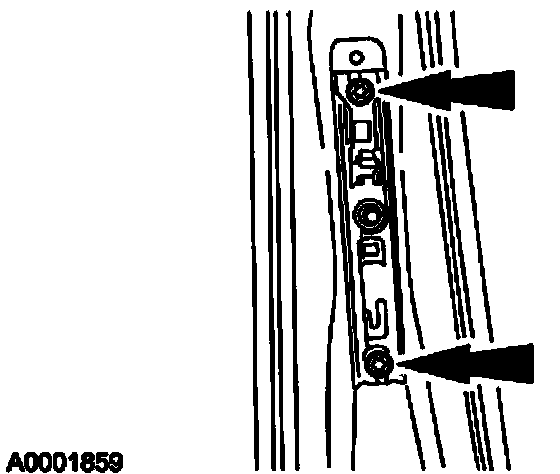

2. Remove the front safety belt shoulder height adjuster.

Installation







1. CAUTION: Make sure all retaining bolts and retaining nuts are hand started and hand tightened prior to final tightening. Failure to follow this instruction may result in component damage.

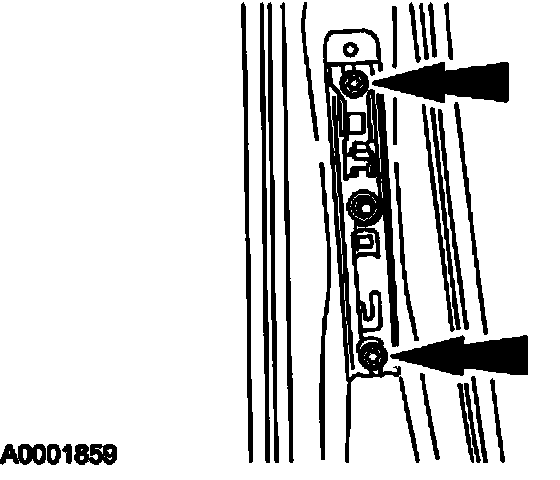

To install, reverse the removal procedure.
- Tighten to 40 Nm.
