Supercharger Belt

Supercharger Belt
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet pipe.





3. Detach the supercharger belt.
^ Use a 1/2 inch square drive bar to rotate the supercharger belt tensioner.
1. Detach the supercharger belt.

4. Remove the air deflector.





5. Reposition the supercharger belt tensioner.

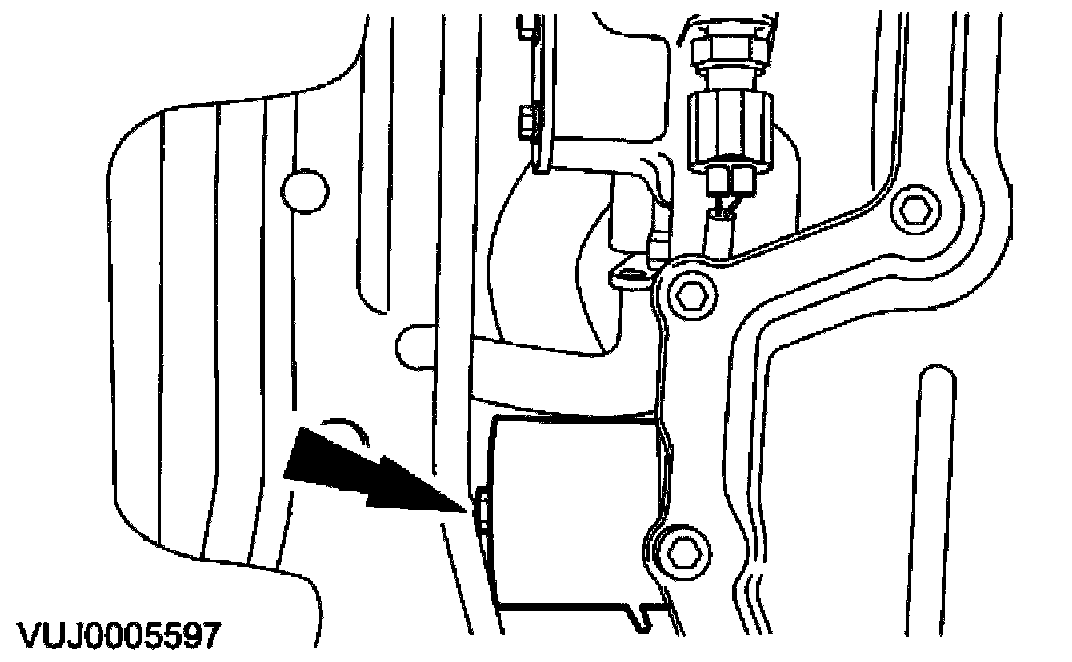

^ Loosen the supercharger belt tensioner retaining bolt.
^ Reposition the supercharger belt tensioner.

6. Lower the vehicle.
7. Remove the supercharger belt.

Installation





1. To install, reverse the removal procedure.

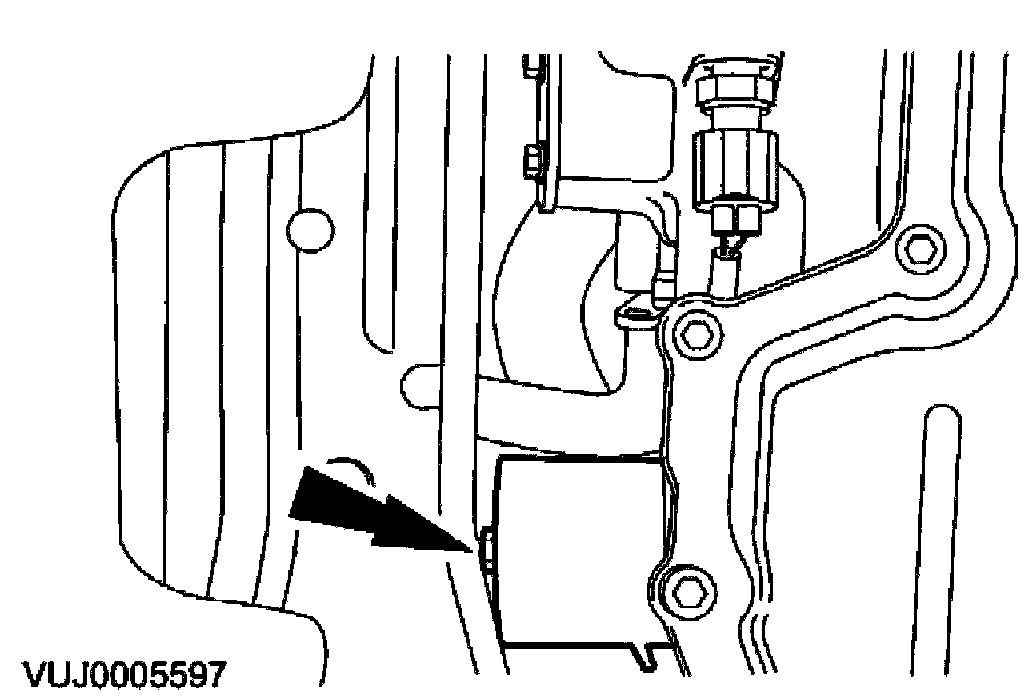

^ Tighten to 40 Nm.
