Muffler: Service and Repair

Front Muffler

Removal

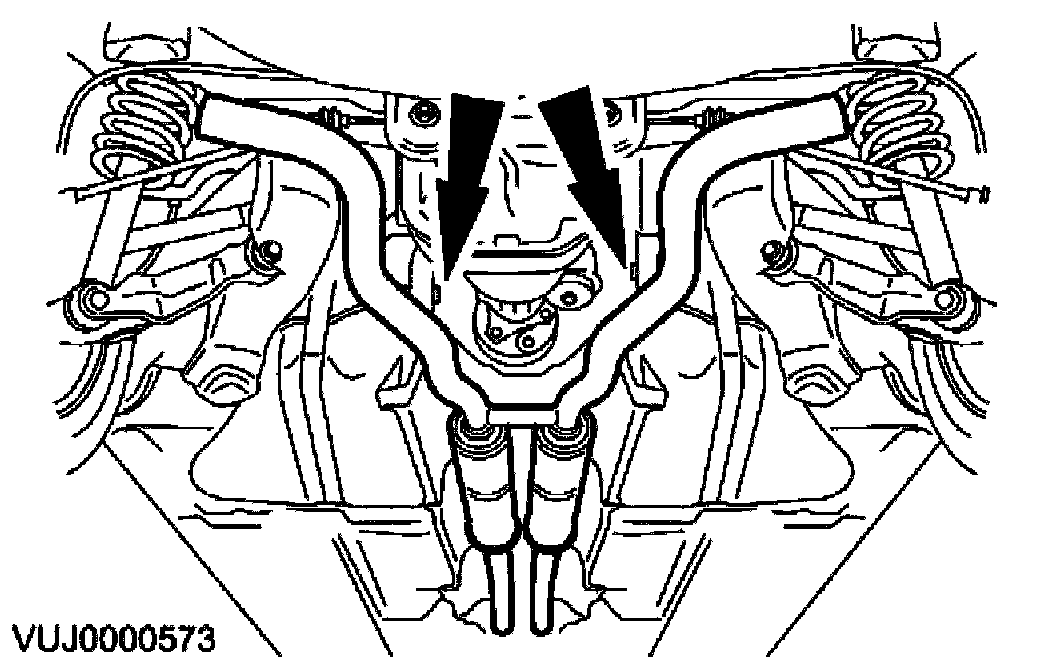

1. Remove both muffler and tailpipes.

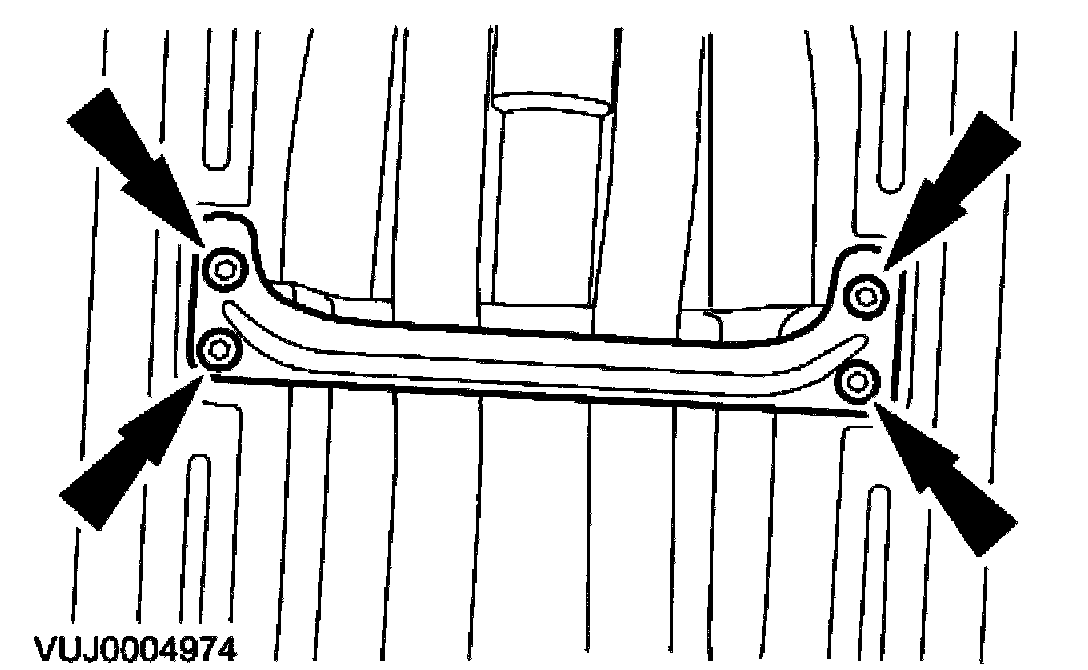

2. Remove the support bracket.
3. Support the exhaust system using suitable stands.

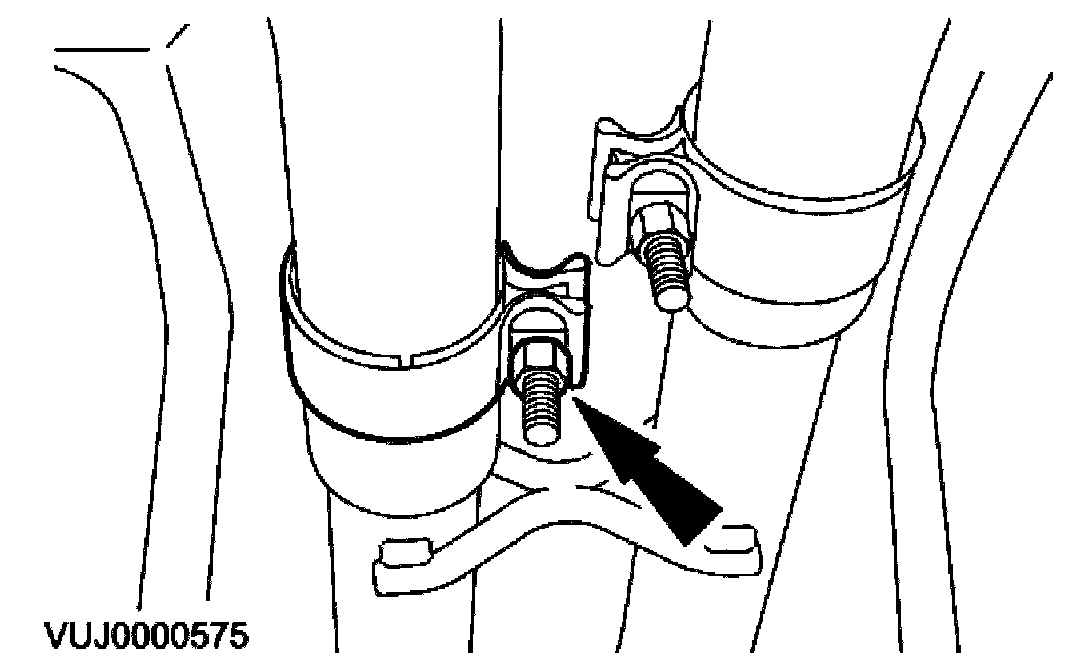

4. NOTE: Left-hand shown, right-hand similar.

Loosen both catalytic converter retaining clamps.







5. NOTE: Detach both front muffler hanger insulators.

Remove the front muffler.

Installation







1. CAUTION: The hanger insulators are constructed of a special material. Use only the correct specification insulators.

NOTE: Check the hanger insulators for damage or fatigue. Install new hangers if required.

To install, reverse the removal procedure.

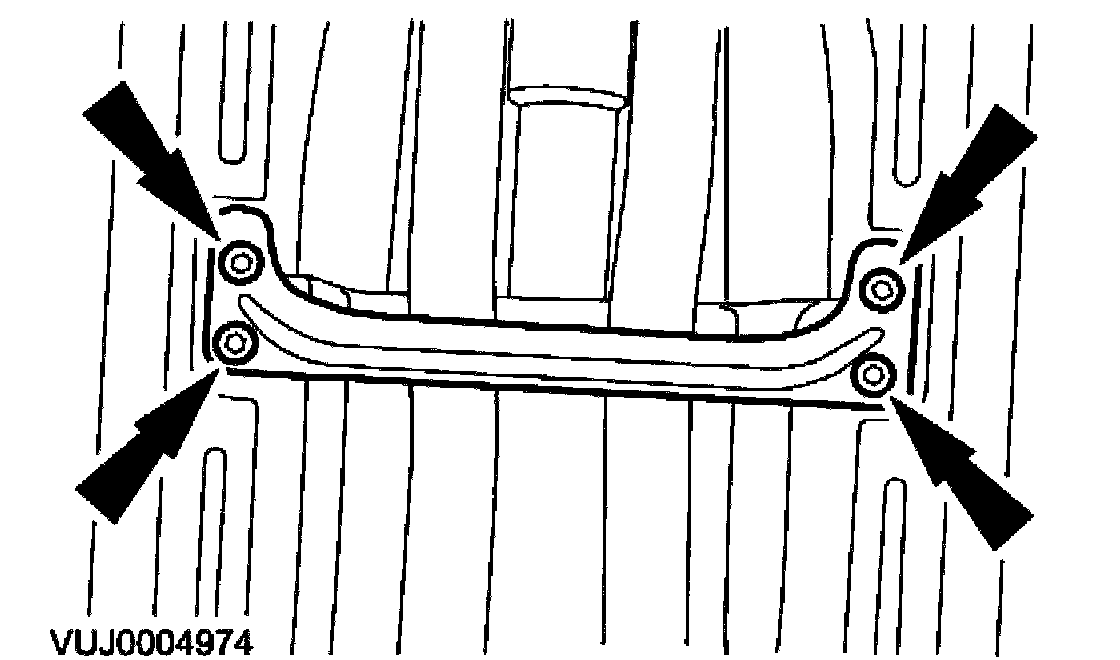

- Tighten to 55 Nm.

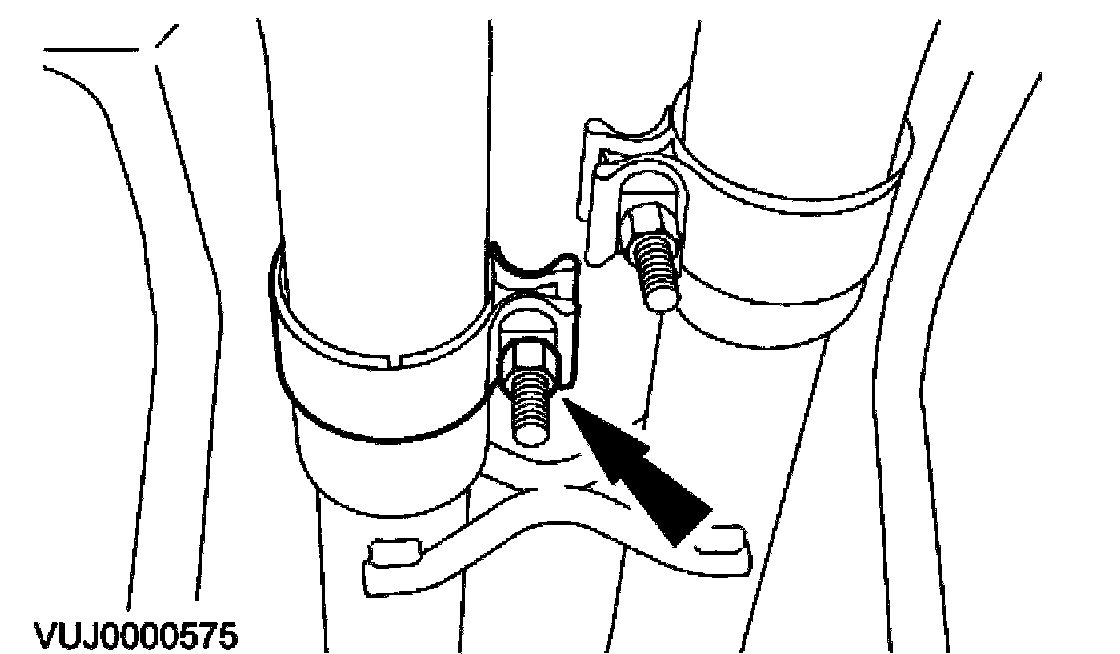

2. Tighten to 6 Nm.
