Supercharger Coolant Pump: Service and Repair

Water Pump

Removal
1. Carry out the supercharging cooling system draining procedure.





2. Disconnect the water pump coolant hoses.

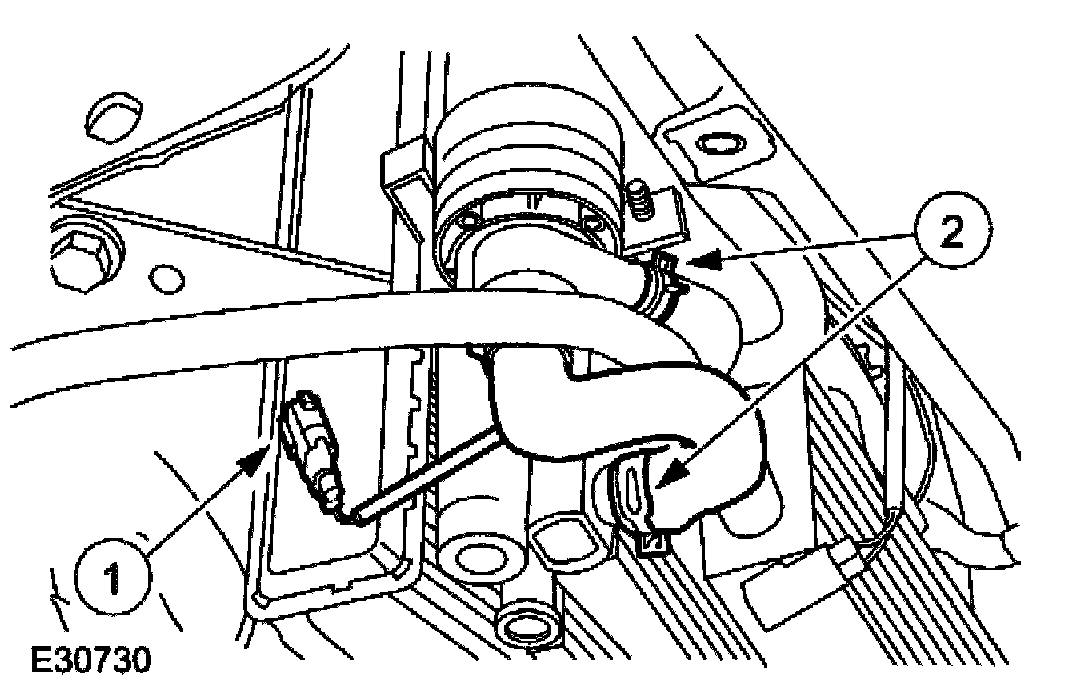

1. Disconnect the water pump electrical connector.
2. Disconnect the water pump coolant hoses.





3. Remove the water pump.

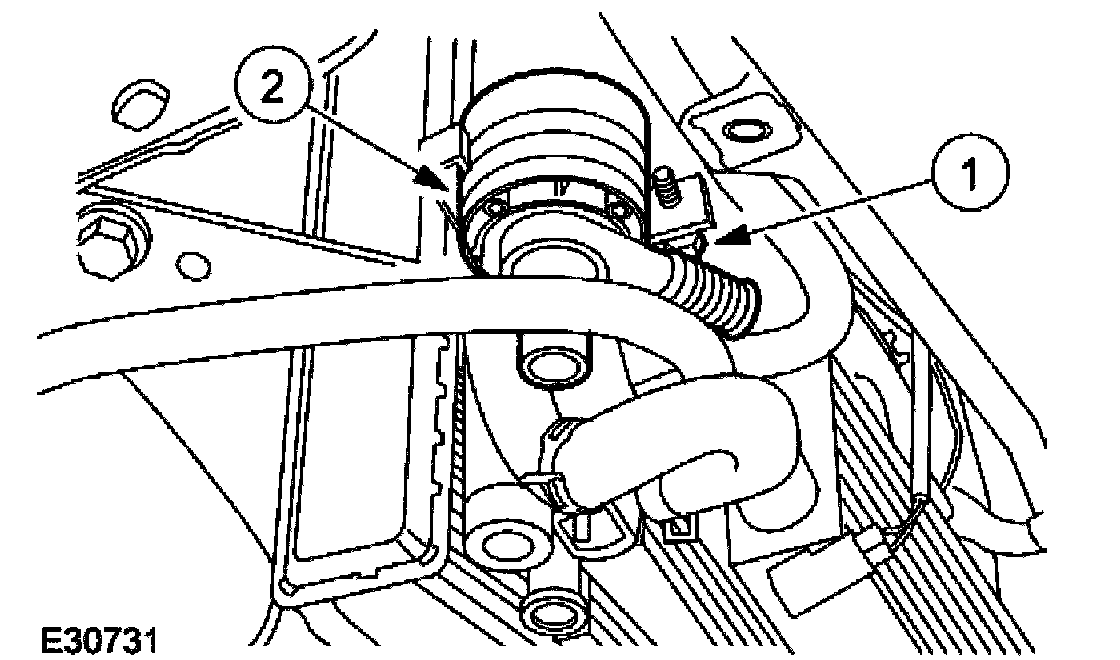

1. Remove the water pump retaining bolt.
2. Remove the water pump.

Installation
1. To install, reverse the removal procedure.
2. Carry out the supercharging cooling system filling and bleeding procedure.
