Coolant Reservoir: Service and Repair

Coolant Expansion Tank
Removal





Vehicles without supercharger

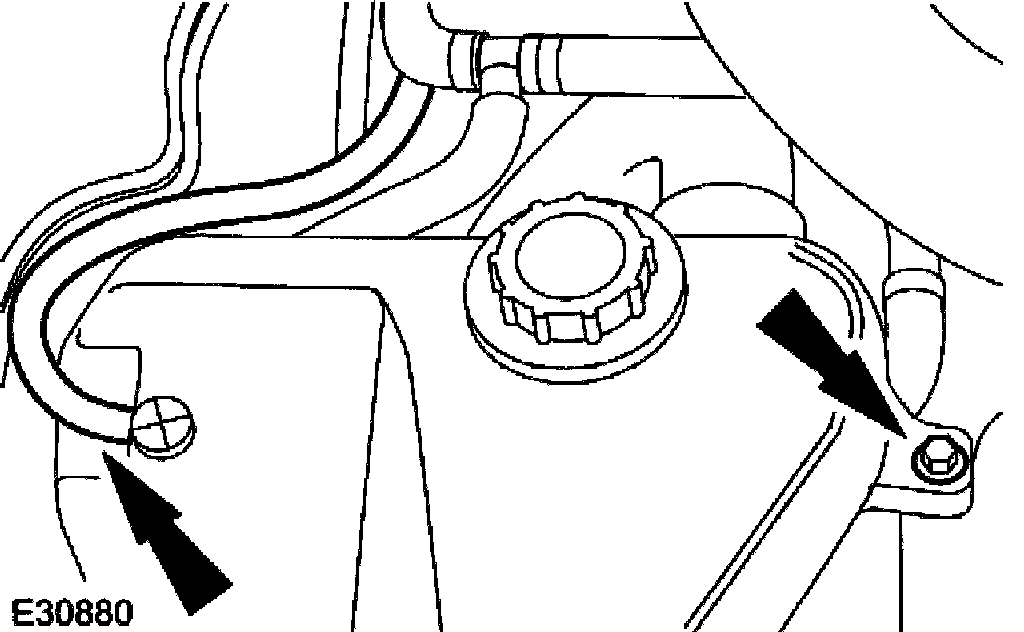

1. NOTE: Cap the vent hose to minimize coolant loss.

Detach the coolant expansion tank.
^ Detach the vent hose.
^ Remove the coolant expansion tank retaining bolt.





Vehicles with supercharger

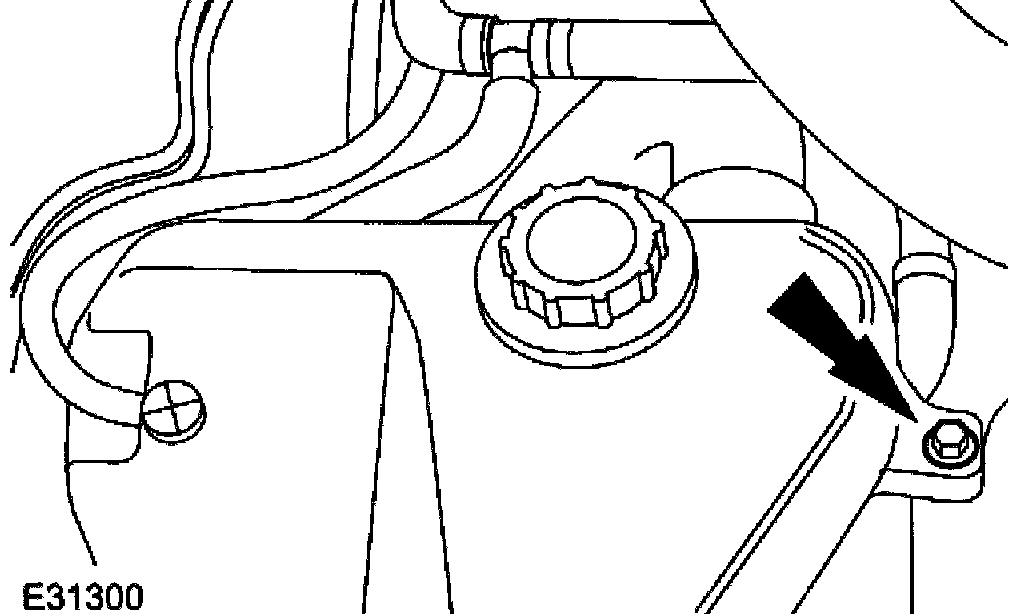

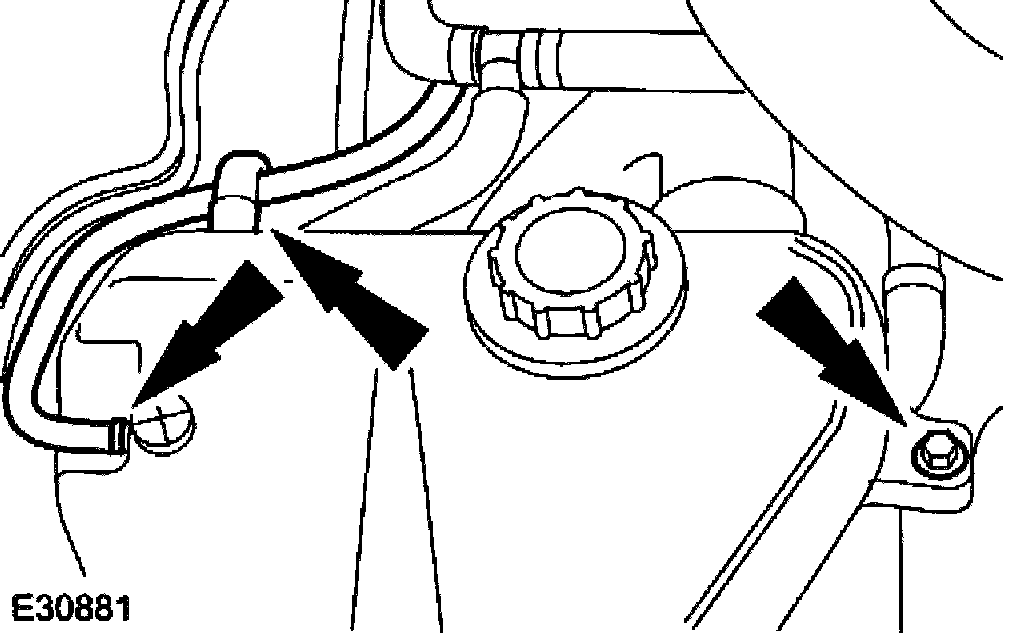

2. NOTE: Cap the vent hoses to minimize coolant loss.

Detach the coolant expansion tank.
^ Detach the vent hoses.
^ Remove the coolant expansion tank retaining bolt.





All vehicles
3. Detach the coolant expansion tank.

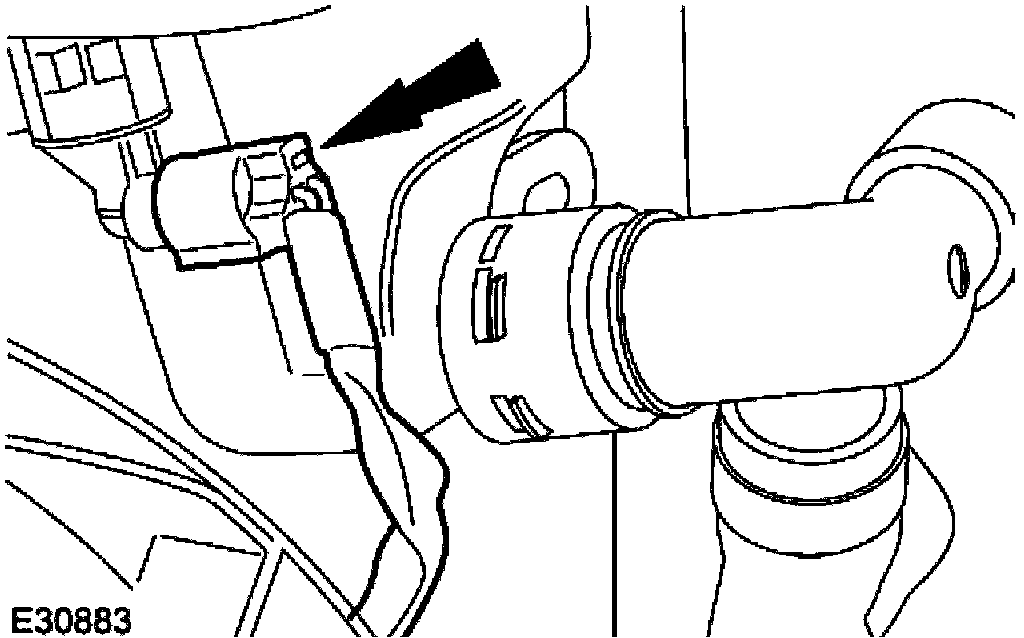

4. Disconnect the coolant expansion tank low level sensor.





5. NOTE: Make sure the retaining clip is not removed.

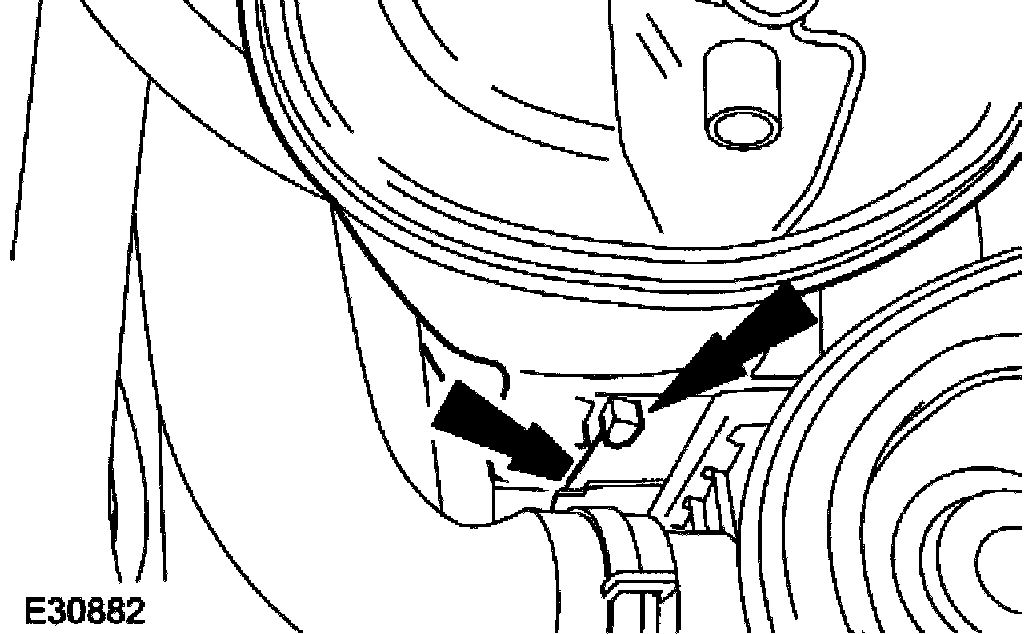

NOTE: Cap the coolant expansion tank lower hose to minimize coolant loss.

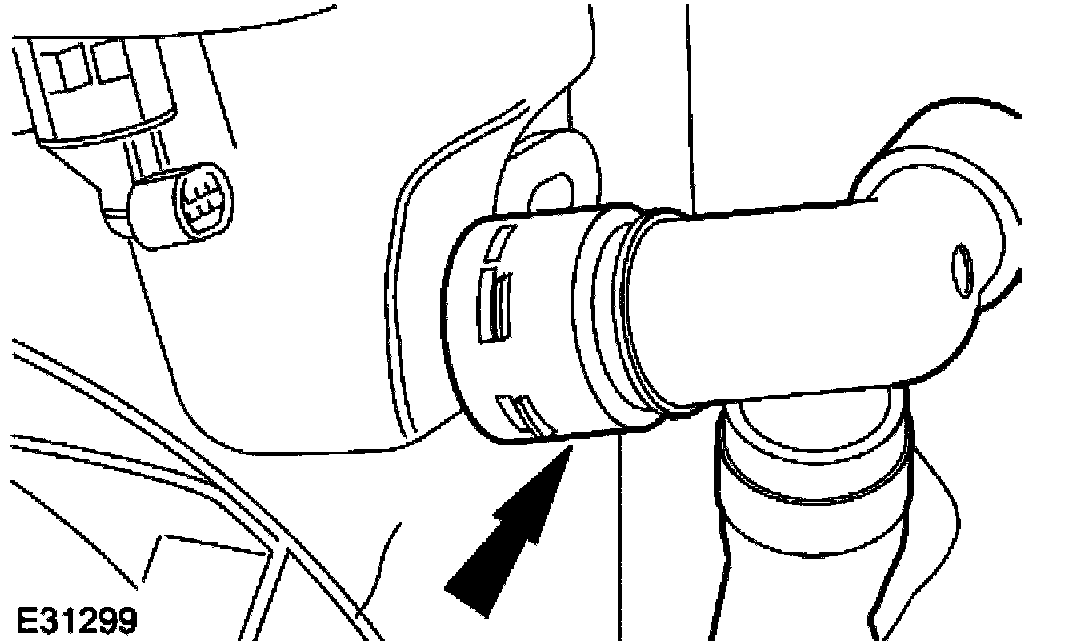

Detach the coolant expansion tank lower hose.
^ Remove the coolant expansion tank.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 3 Nm.

2. Check and top up the cooling system as required.
