Parking Brake Cable: Service and Repair

Parking Brake Cable

Removal
1. Carry out the parking brake cable release.
2. Remove both rear wheels and tires.

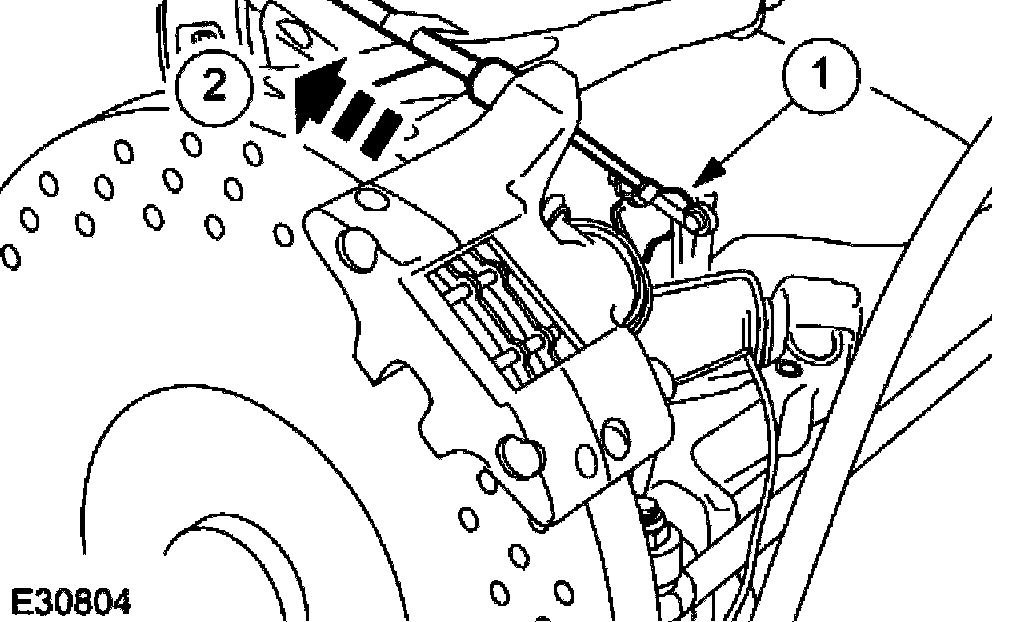

3. Detach the parking brake cable.
1. Reposition the parking brake caliper lever.
2. Detach the parking brake cable.

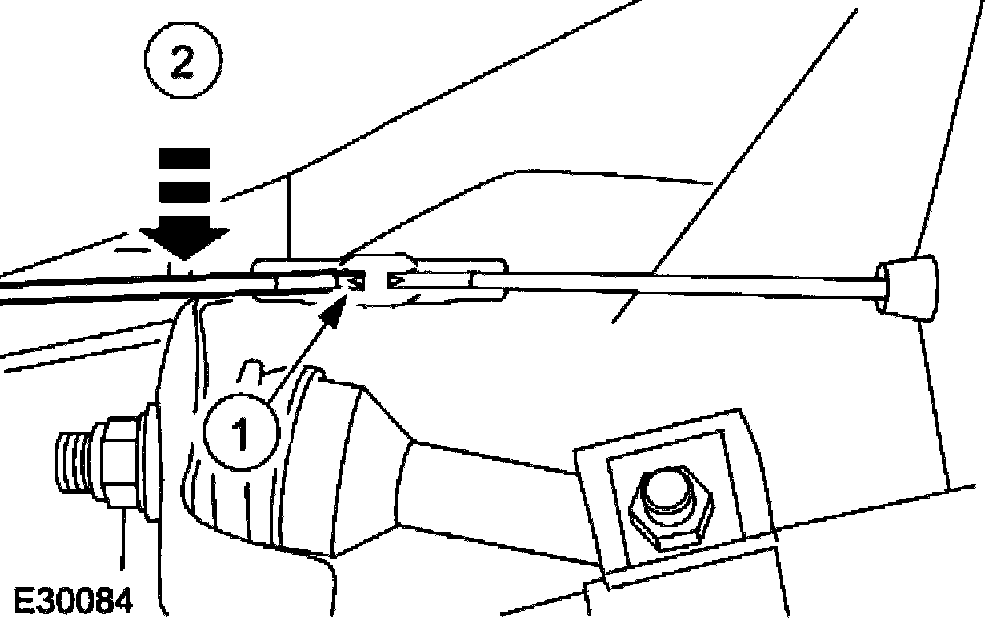

4. Detach the parking brake cable.
1. Reposition the retaining tang.
2. Detach the parking brake cable.

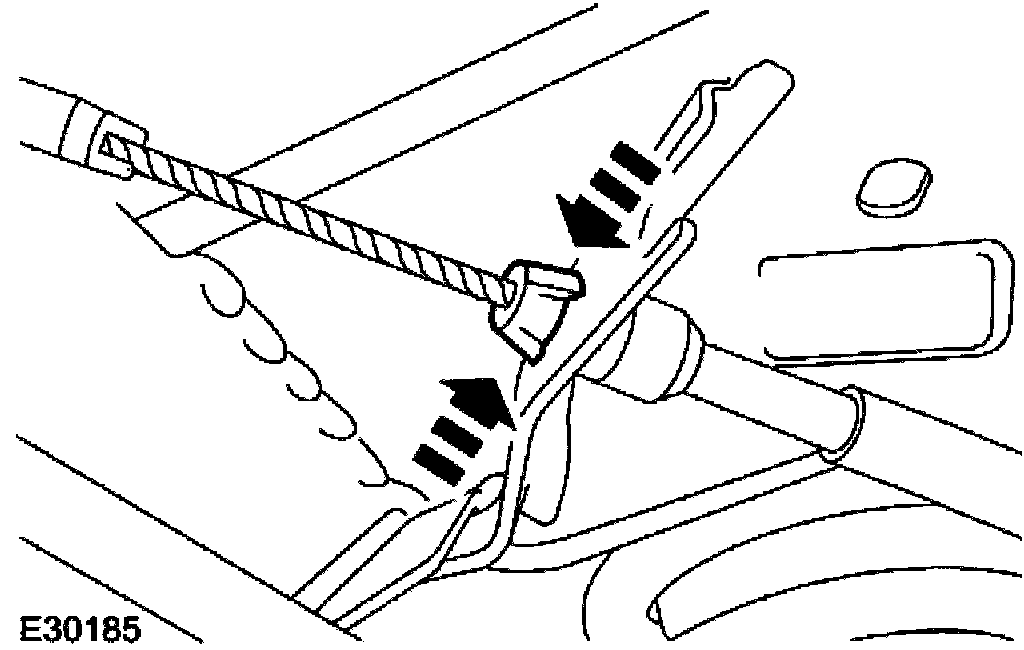

5. Remove the parking brake cable.
1. Detach the parking brake cable retaining tangs.
2. Remove the parking brake cable.

Installation

1. NOTE: Install a new parking brake cable retaining bracket.

To install, reverse the removal procedure.
