Flex Plate: Service and Repair

Flexplate
Removal
1. Remove the automatic transmission.

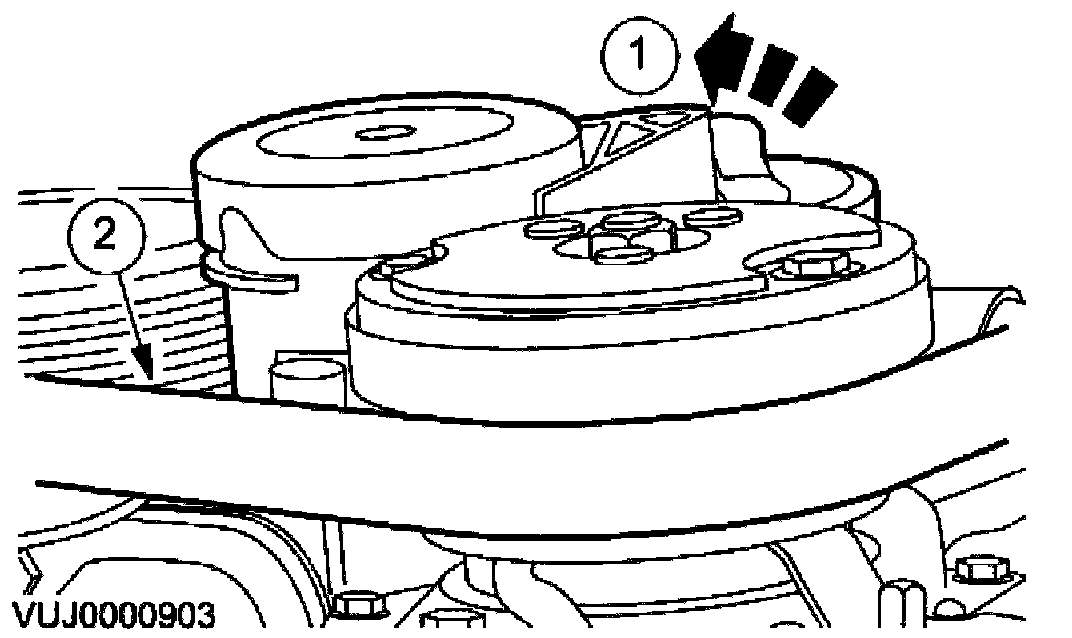

2. Detach the accessory drivebelt.
1. Rotate the belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the belt tensioner.

2. Detach the accessory drivebelt.

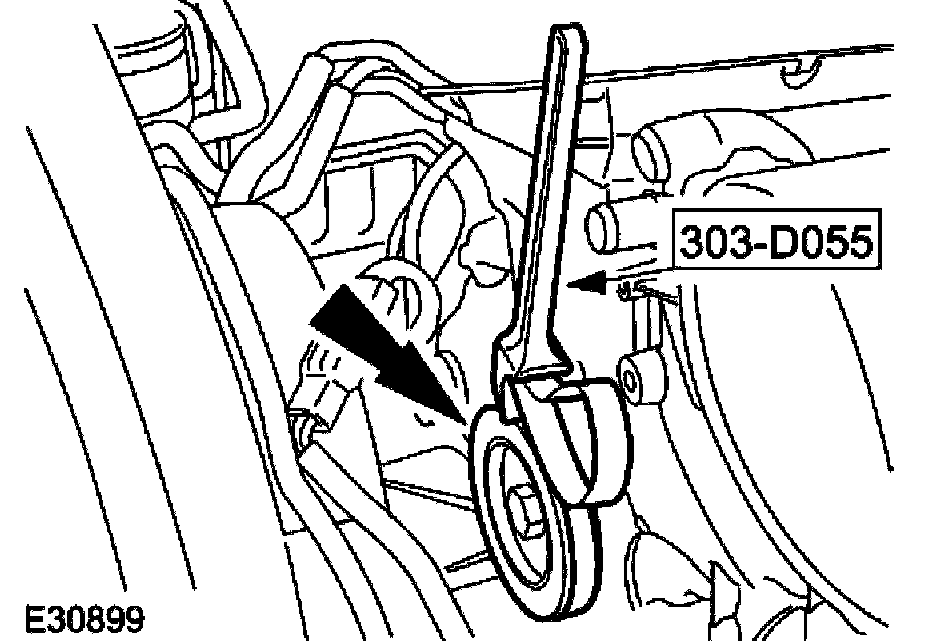

3. Install the special tool.





4. NOTE: Prevent the flexplate from rotating.

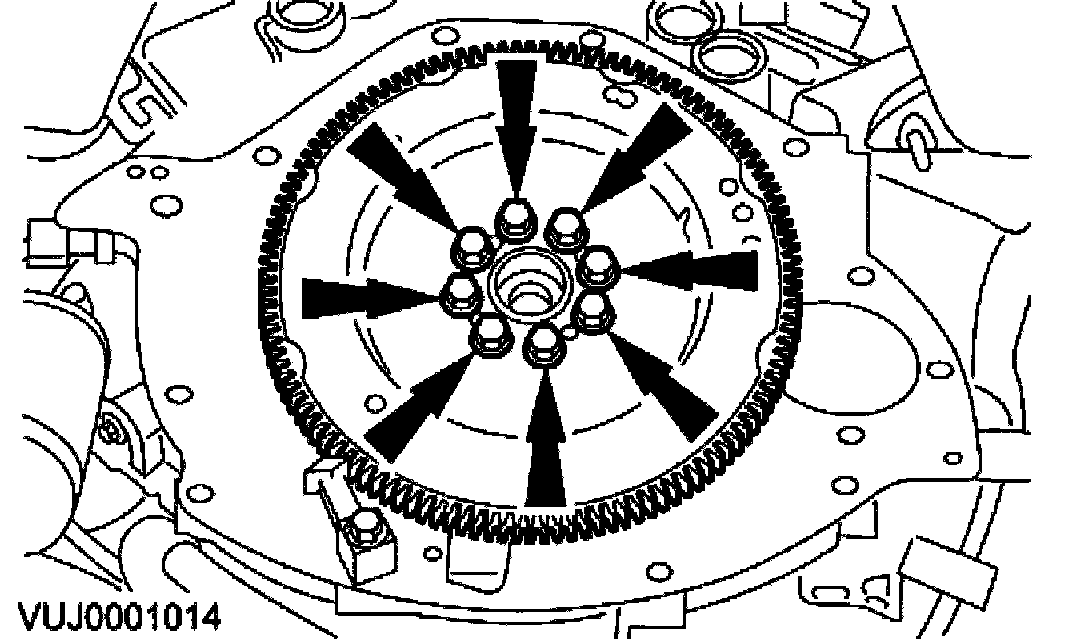

Remove the flexplate.

Installation

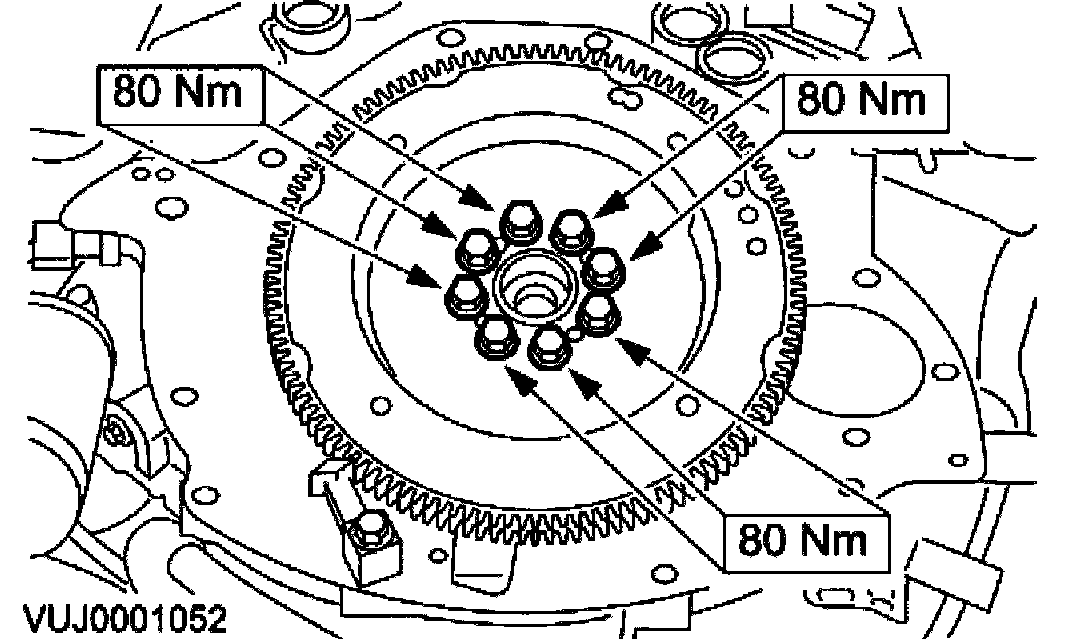

1. NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.

NOTE: The flexplate will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

Install the flexplate.
^ Prevent the flexplate from rotating.





2. Remove the special tool.

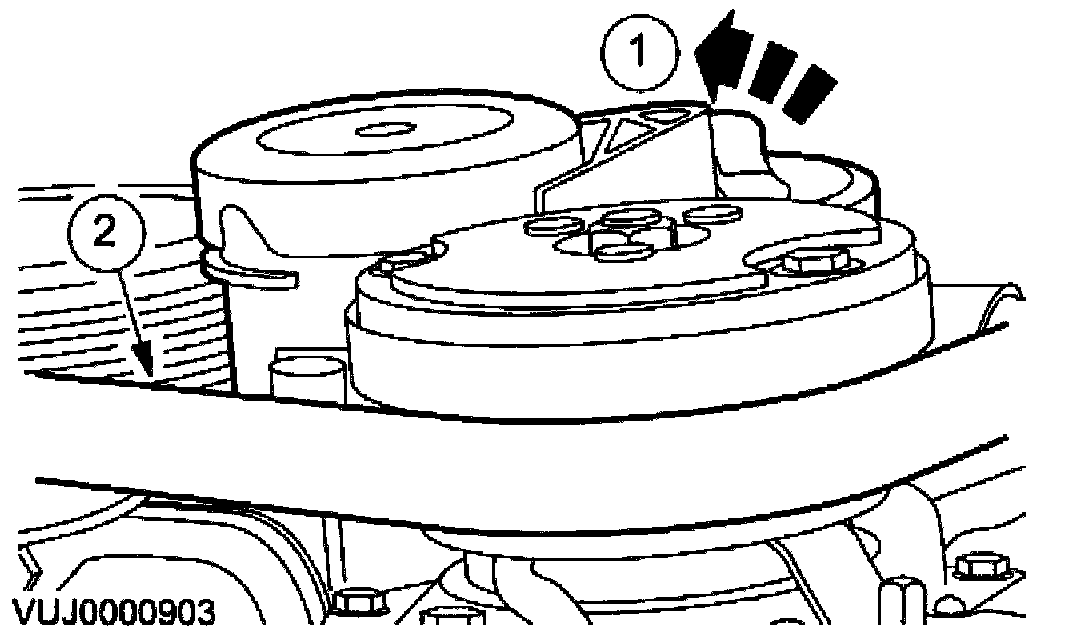

3. Attach the accessory drivebelt.
1. Rotate the belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the belt tensioner.

2. Attach the accessory drivebelt.
4. Install the automatic transmission.
