Differential Axle Housing: Service and Repair

Axle Housing Bushing

Part 1:

Part 2:

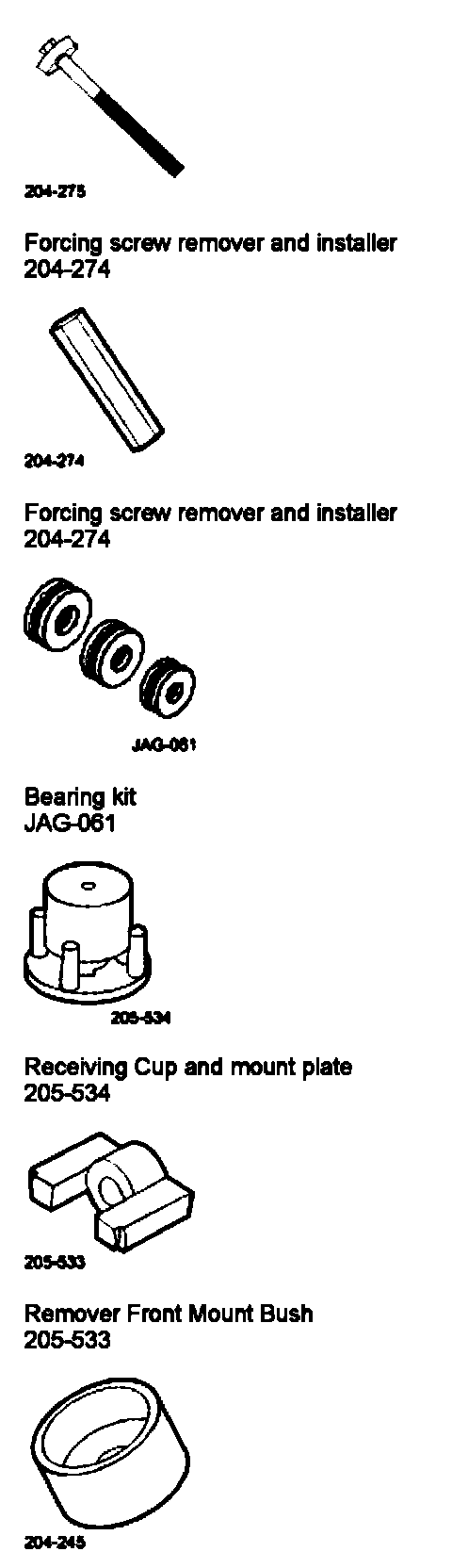

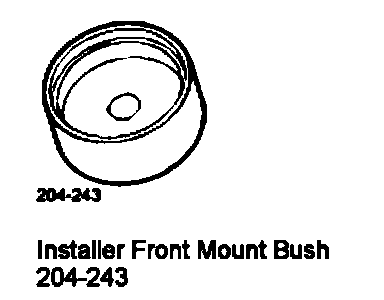

Special Service Tools

Removal
1. Remove the axle assembly.

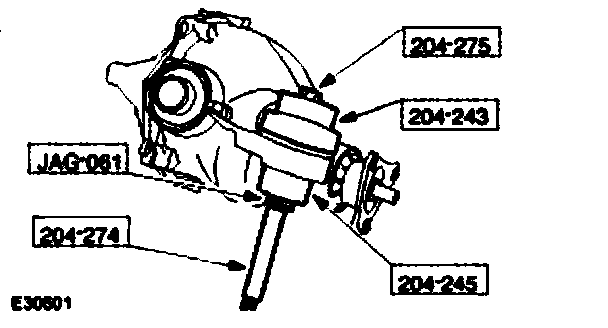

2. Using the special tools, remove the axle housing bushing.

Installation

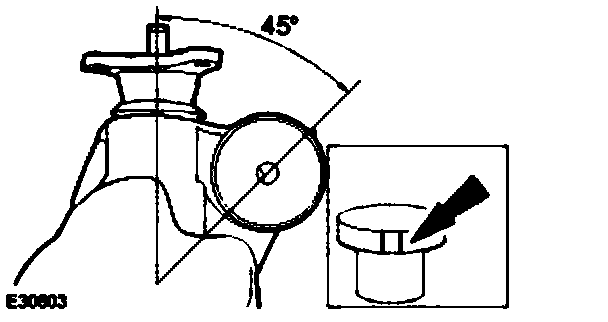

1. The bushing should be installed with the raised molding at 45 degrees to the centre line of the pinion shaft.





2. Using the special tools, install the axle housing bushing.
3. Install the axle assembly.
