Trip Computer Switch Pack

Trip Computer Switch Pack

Removal

1. Disconnect battery ground cable.
2. Remove instrument panel veneer panel.







3. Remove trip computer switch pack.

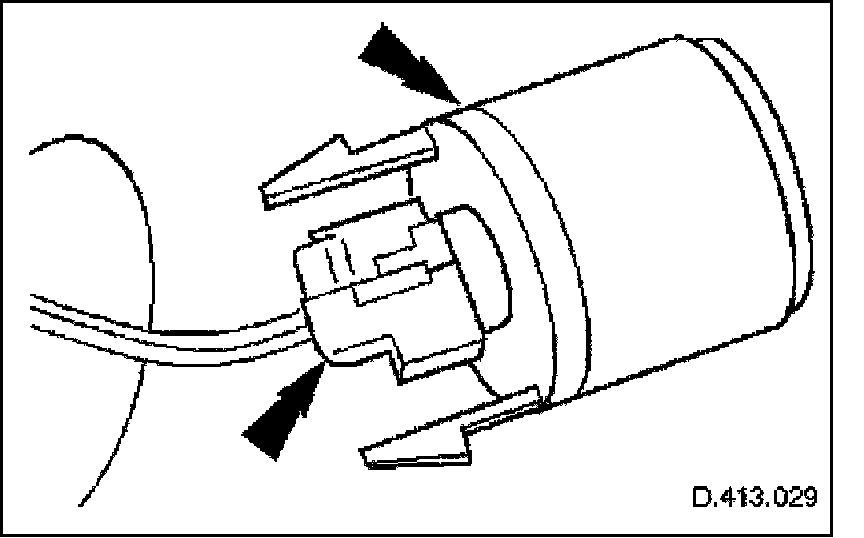

- Use suitable small screwdriver to displace upper retaining tang.
- Reposition switch pack for access to connector.
- Disconnect connector and remove switch pack.

Installation

1. Installation is reverse of removal.
