Headlamp Washer Pump: Service and Repair

Headlamp Washer Pump

Removal

1. Raise and support the vehicle.







2. Remove the radiator splash shield.

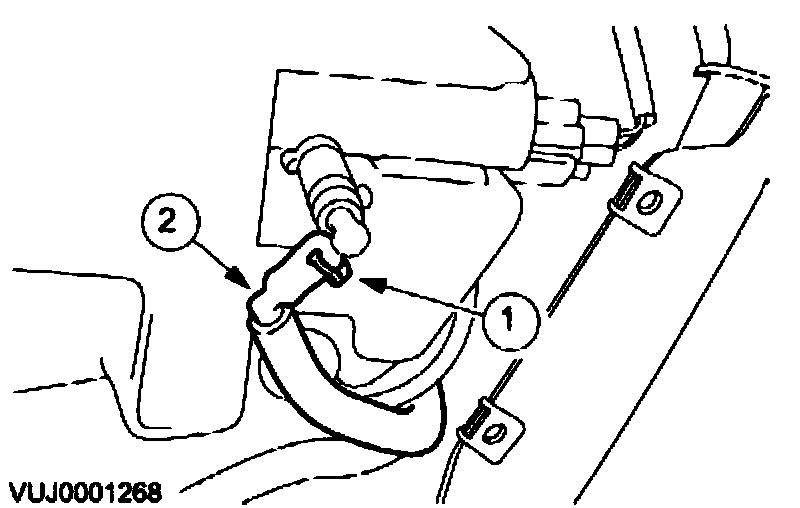

3. Disconnect the headlamp washer supply hose.
1. Remove the headlamp washer supply hose clip.
2. Disconnect the headlamp washer supply hose.

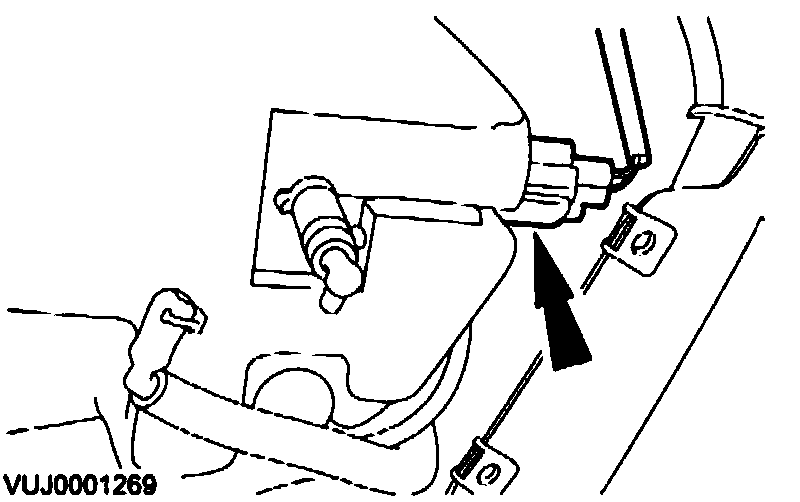

4. Disconnect the headlamp washer pump electrical connector.

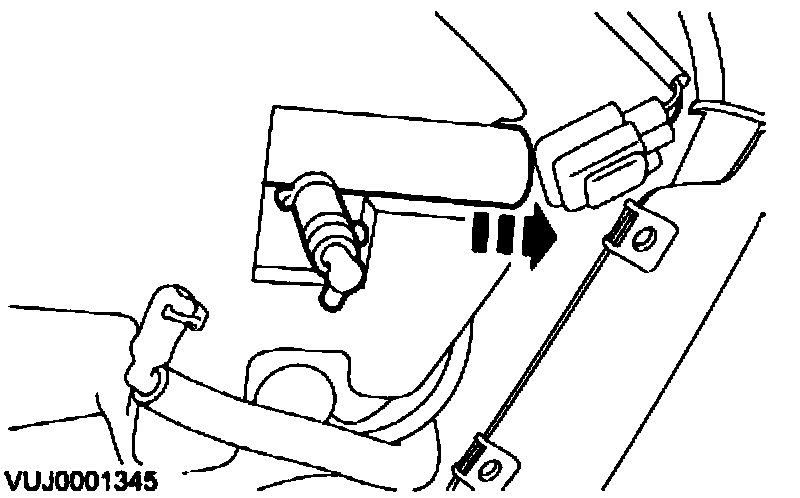

5. Remove the headlamp washer pump.

Installation

1. To install, reverse the removal procedure.
