Differential Axle Housing: Service and Repair

Special Service tools

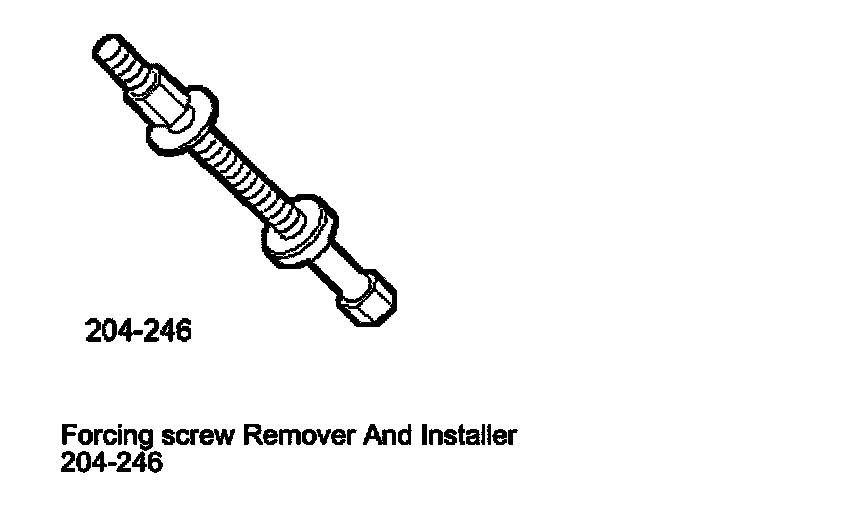

Forcing Screw Remover and Installer

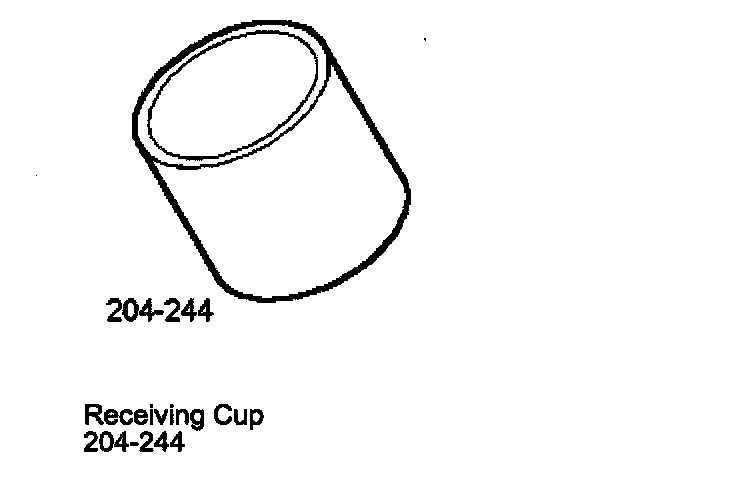

Receiver cup

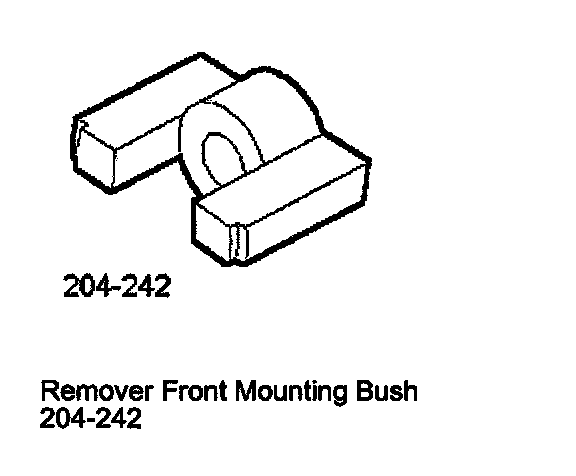

Remover Front Mounting Bush

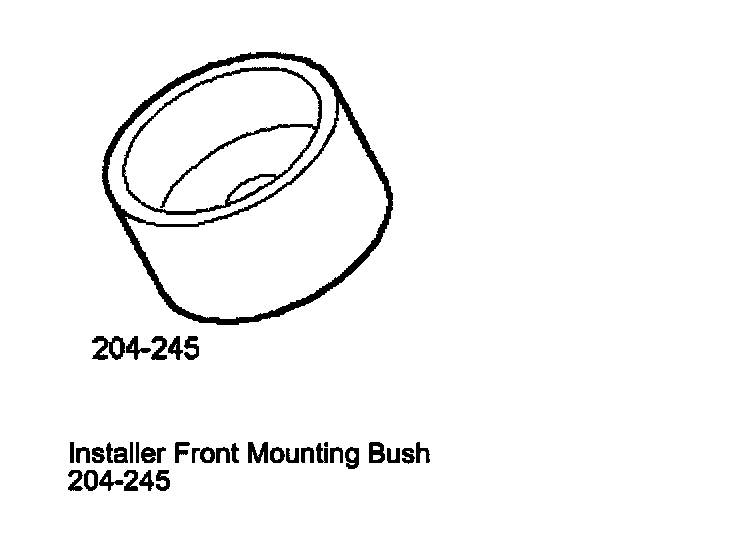

Installer Front Mounting Bush 204-245

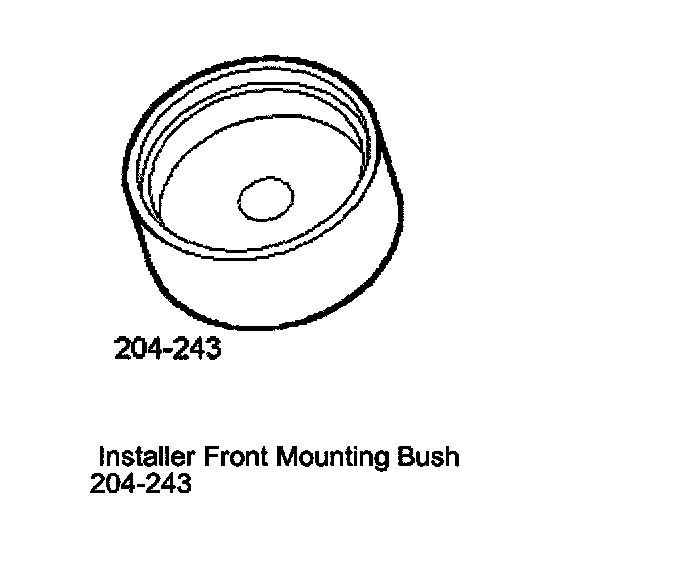

Installer Front Mounting Bush 204-243

Removal
1. Remove the axle assembly.

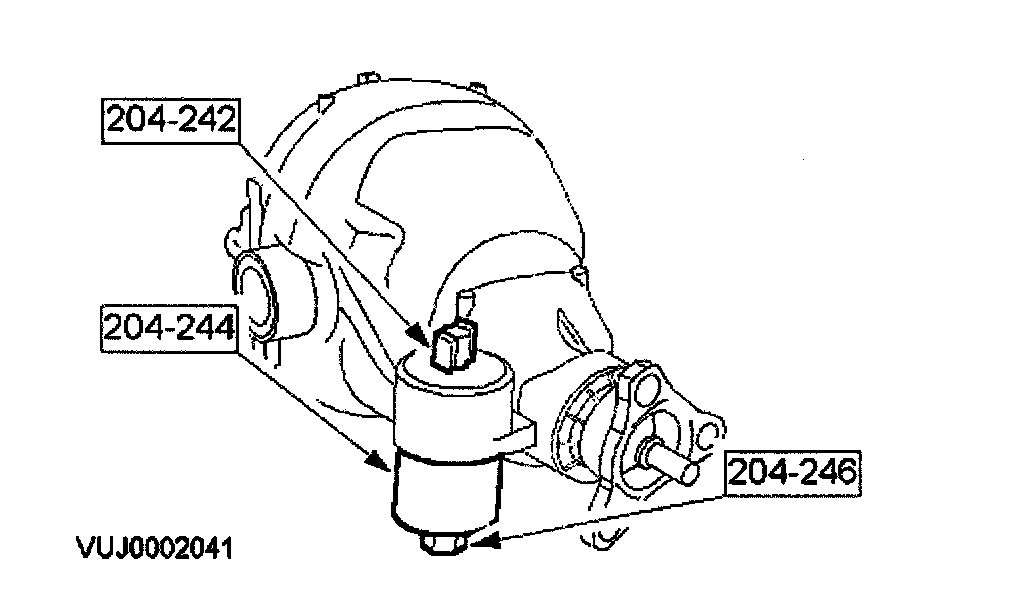

2. Using the special tools, remove the differential bush.

Installation

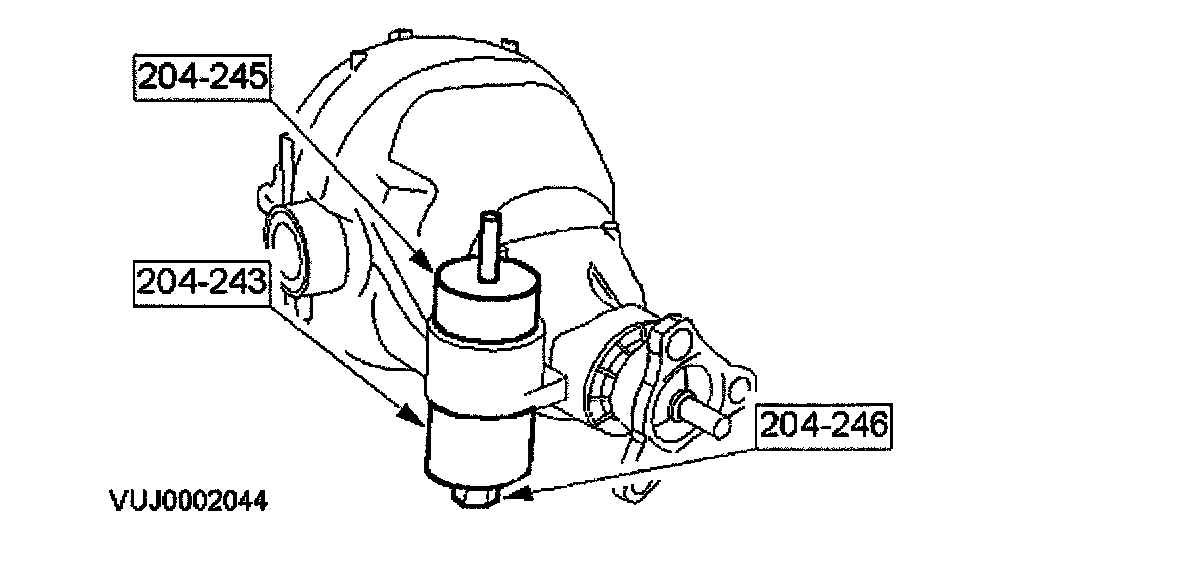

1. Using the special tools, install the differential bush.
2. Install the axle assembly.
