Extension Housing: Service and Repair

Extension Housing Seal and Gasket
Special Service tools

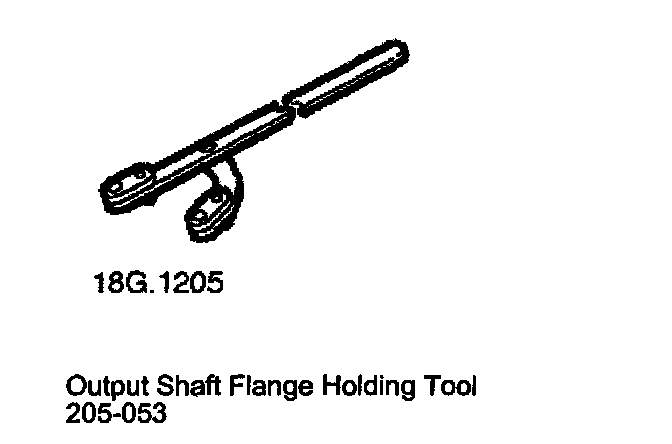

Output Shaft Flange Holding Tool

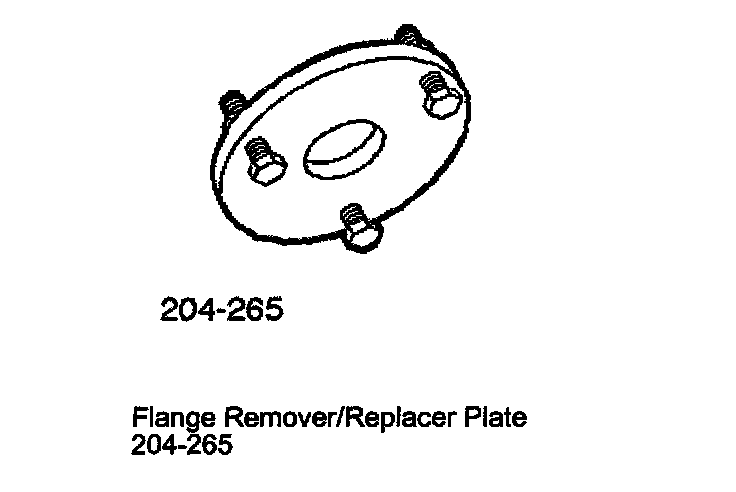

Flange Remover/Replacer Plate





Flange Remover/Replacer Boss

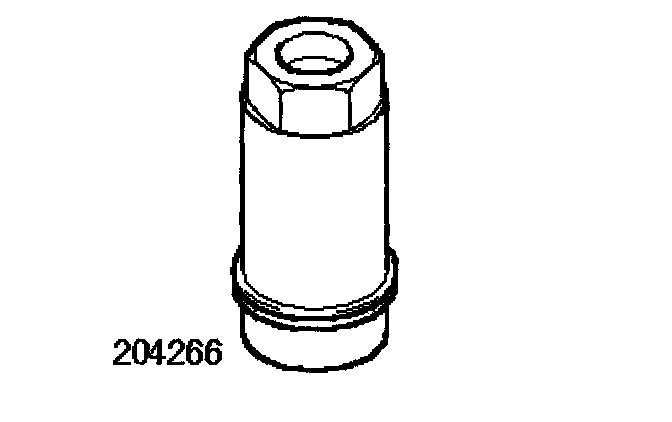

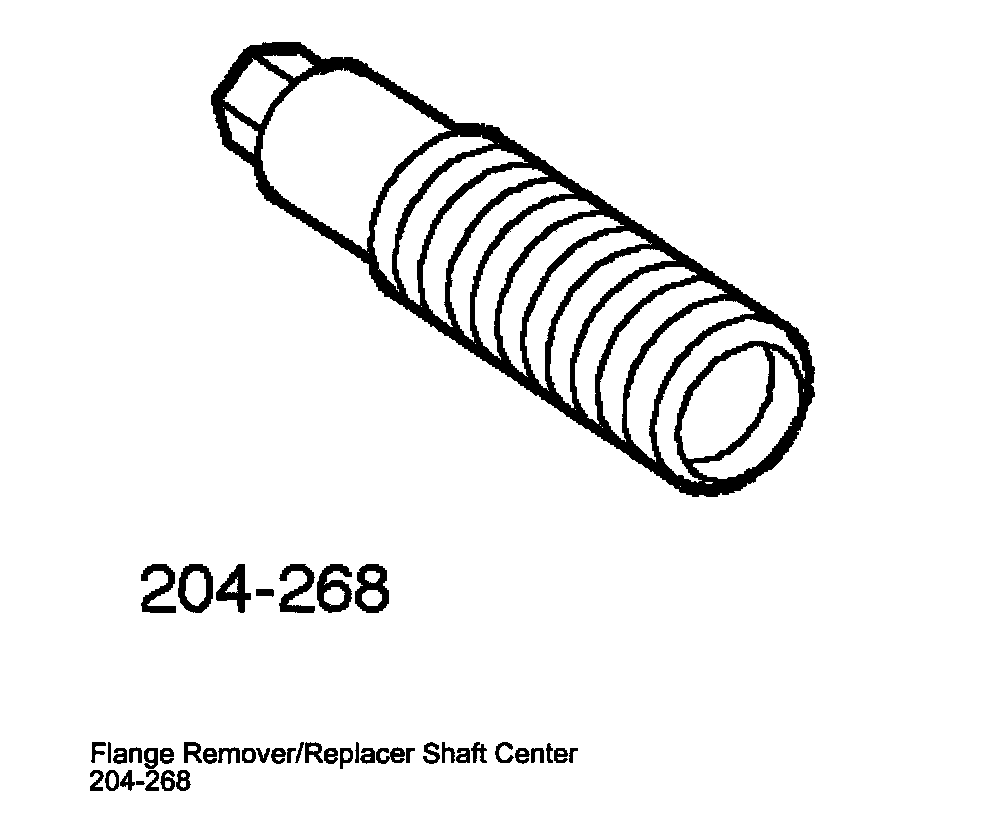

Flange Remover/Replacer Shaft Center

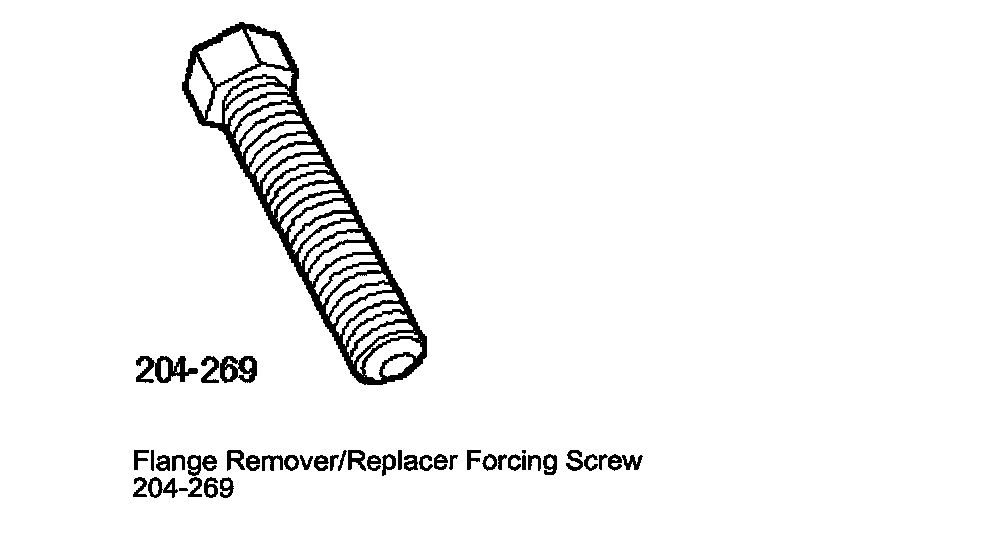

Flange Remover/Replacer Forcing Screw

Removal
1. Remove the driveshaft.

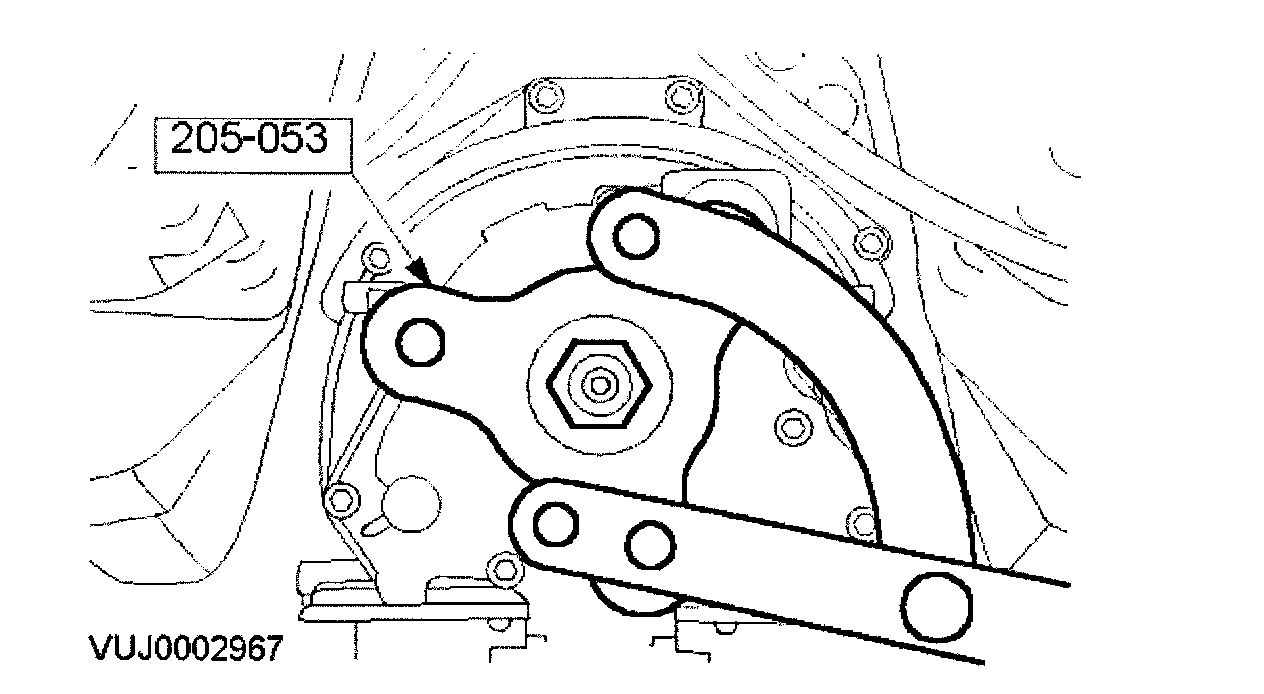

2. Using the special tool to hold the output flange, remove the output shaft flange nut.

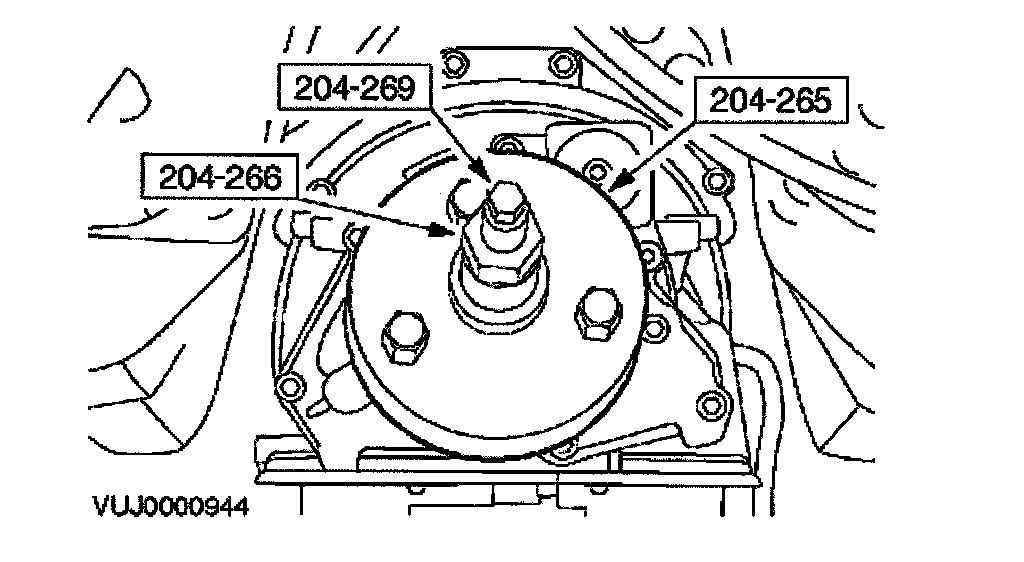

3. Using the special tool, remove the output flange.

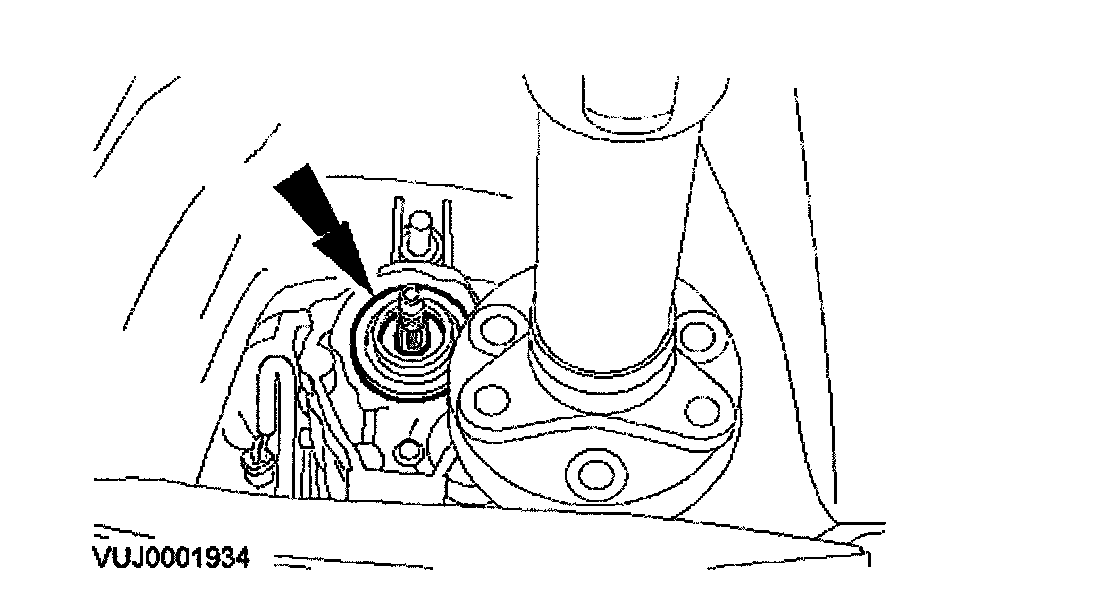

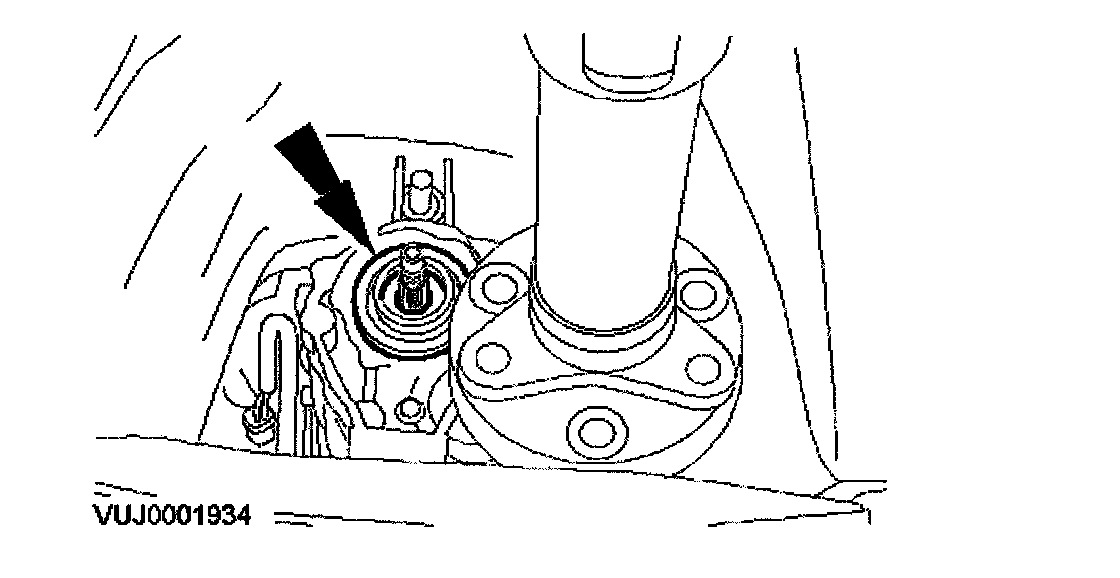

4. Using the special tools, remove the output shaft seal.

Installation

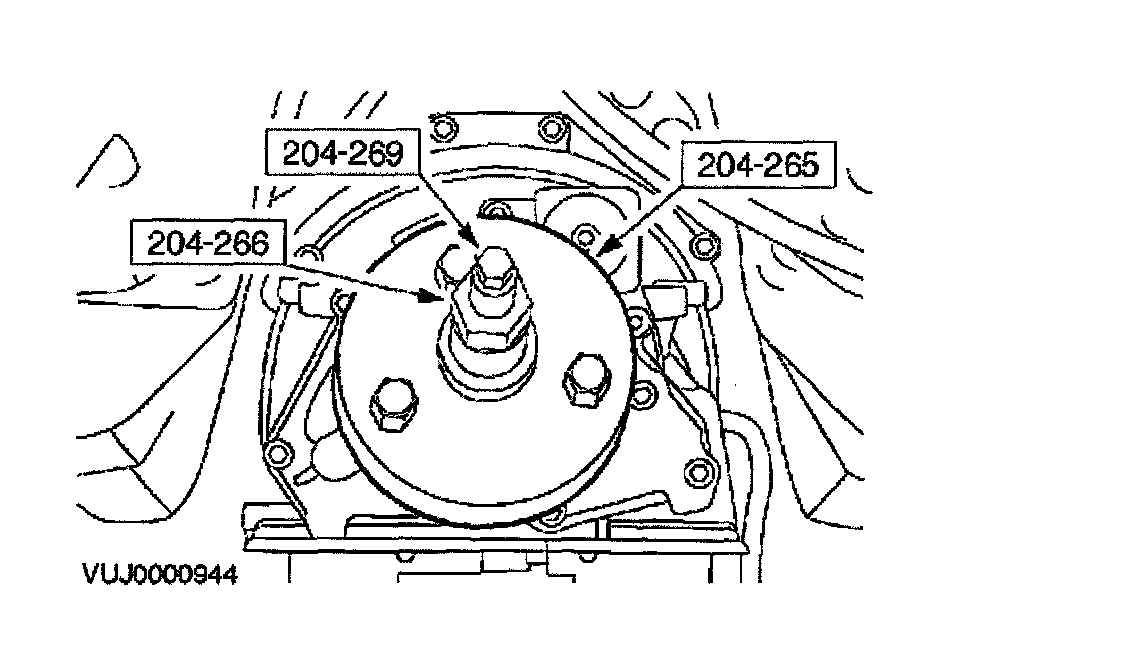

1. Using the special tools, install the output shaft seal.





2. Using the special tool, install the output flange.





3. Using the special tool to hold the output flange, install the output shaft flange nut.
