Clutch Disc: Service and Repair

Disc and Pressure Plate 12.53.13
Removal
1. Remove the manual transmission. For additional information, refer to Manual Transmission/Transaxle.

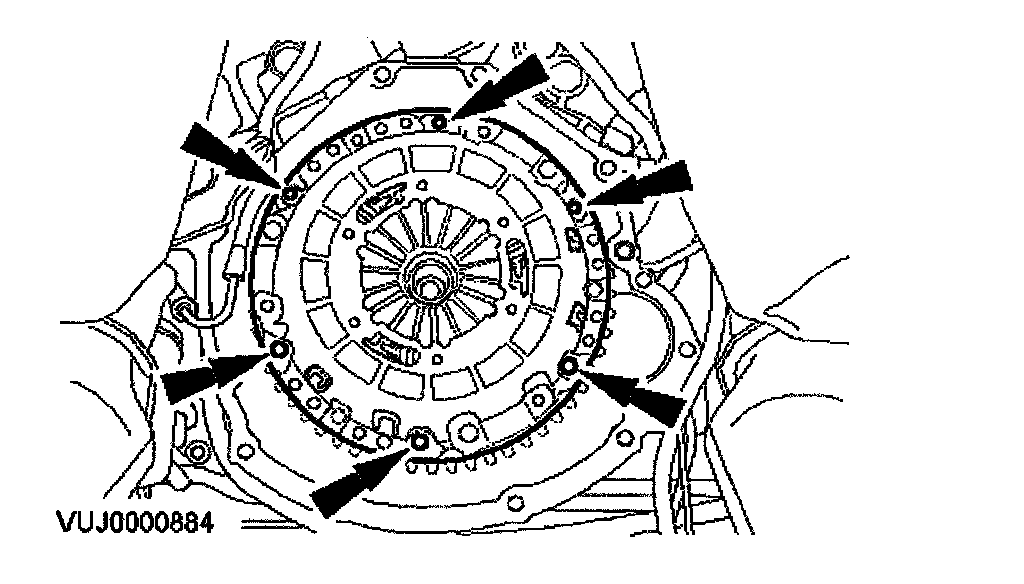

2. Remove the clutch disc and pressure plate.
^ Remove the pressure plate bolts in a uniform sequence.

Installation





1. NOTE: The clutch disc is marked "Transmission side" for correct installation.

Using the special tool, align the clutch assembly.

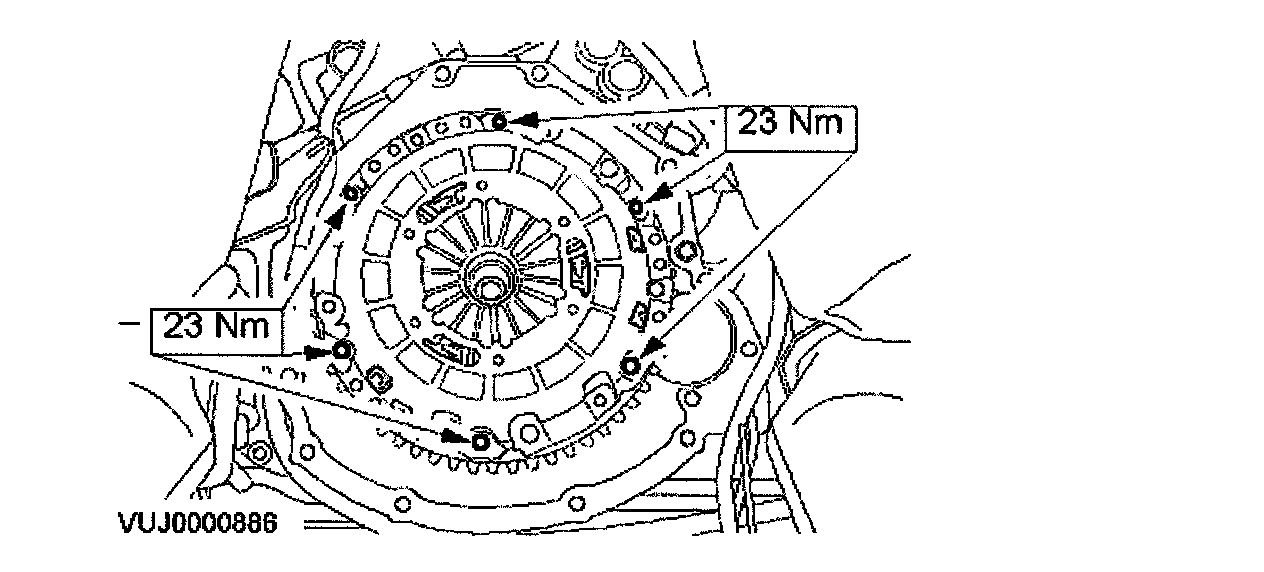

2. Locate the clutch pressure plate on the flywheel dowels and tighten the bolts in a diagonal sequence.

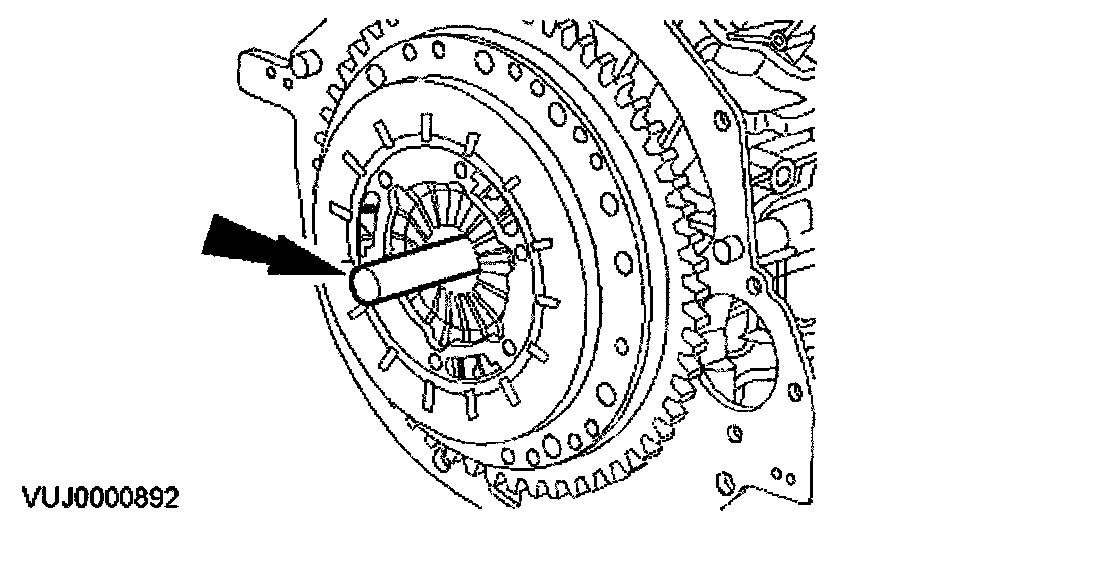

3. Remove the special tool.

4. NOTE: Make sure that the input shaft of the transmission is moved squarely into the hub of clutch disc. Do not bend in any direction.

Install the manual transmission.
