Steering - Steering Wheel Vibration
S100-09S - TYPE
DATE 09/03
MODEL
2001-02 MY S-TYPE
VIN
L86902-M44997
Steering Wheel Vibration - Revised Power Assisted Steering Rack
Issue:
On some 2001-2002 MY S-TYPE vehicles within the above VIN range, customers may complain of a steering wheel vibration. A new Power Assisted Steering (PAS) rack incorporating a modified mechanism to improve center feel has been introduced.
Action:
When all other steering vibration causes have been eliminated, (e.g. out of balance wheels - as per Technical Bulletins S204-07 and S204-09) and all possible mechanical causes have been addressed, a new modified PAS rack should be installed. On a customer complaint basis only follow the workshop procedure outlined below.
Note:
Replacement of the PAS rack for any other concerns must be carried out using the normal replacement PAS racks as appropriate.
Note:
The improvement to the PAS rack is designed to eliminate slight shimmy that may be felt at the steering wheel and is not designed to compensate for other influences.
WORKSHOP PROCEDURE
1. Disconnect battery (see Workshop Manual, JTIS CD ROM, section: 414-01).
2. Install new PAS rack (see Workshop Manual, JTIS CD ROM, section: 211-02, SRO 57.10.01).
3. Connect battery (see Workshop Manual, JTIS CD ROM, section: 414-01).

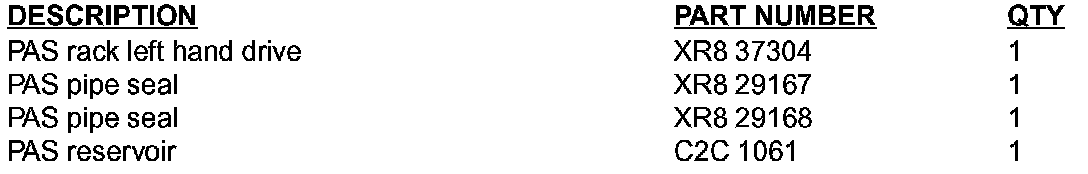

Parts Information

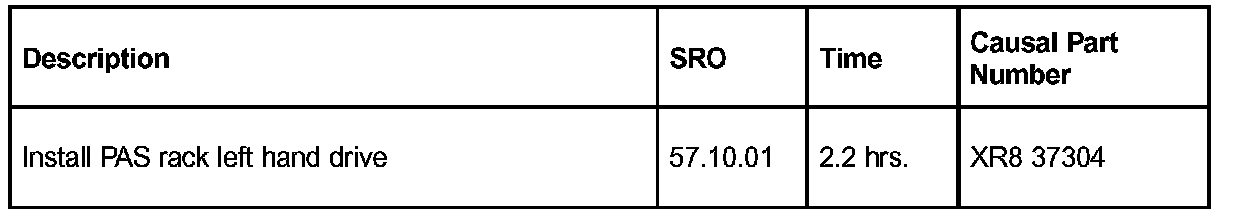

Warranty Information
Warranty claims should be submitted quoting the information found in the table.
This will result in payment of the stated time and, where applicable parts/miscellaneous expense codes as listed.
Note:
Ensure that the parts return label is clearly identified with this Technical Bulletin reference number, and that comments to highlight that the PAS rack has been changed to resolve steering wheel vibration issues are entered into the technician's narrative.
