Intake Air Duct: Service and Repair

Air Cleaner Outlet Pipe

Removal

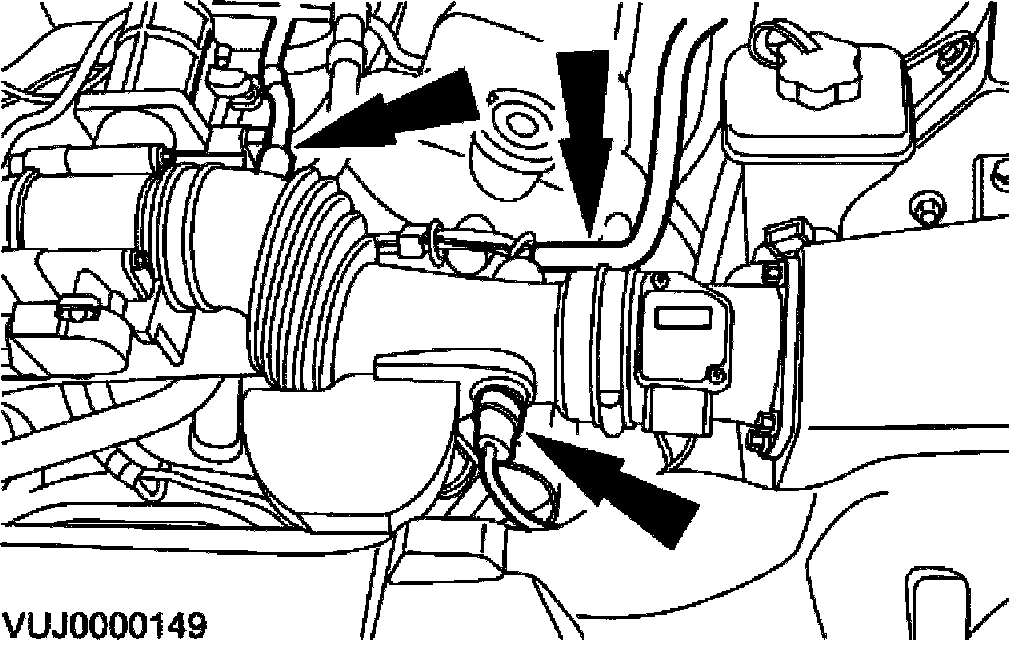

1. Disconnect the intake air temperature sensor electrical connector and the engine breather hoses.

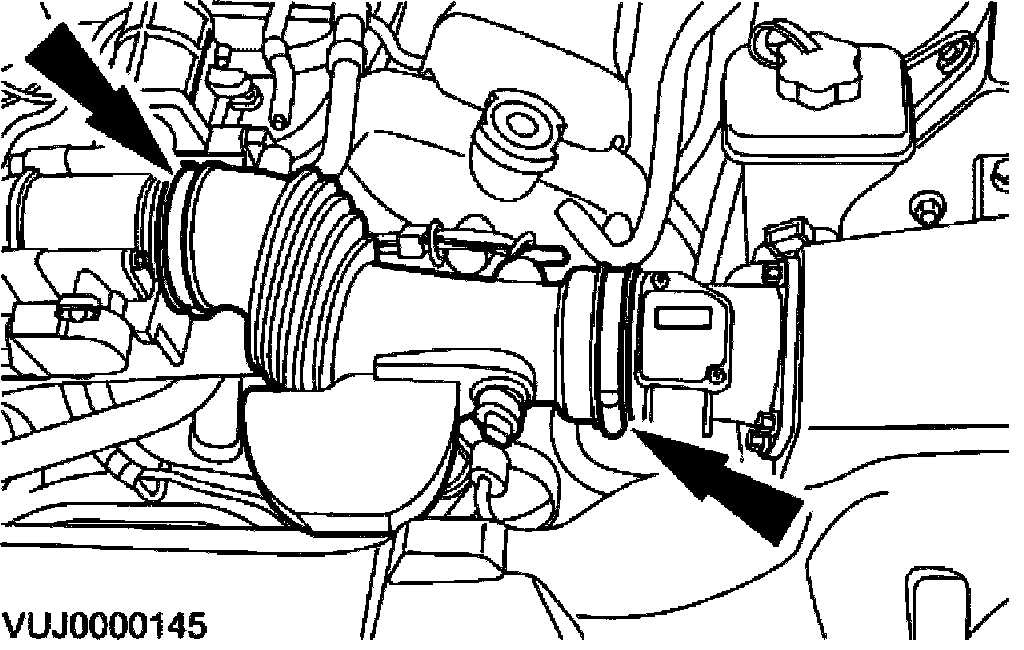

2. Remove the air cleaner outlet pipe.

Installation
1. To install, reverse the removal procedure.
