Fuel Pressure Pulsation Damper: Service and Repair

Fuel Pulse Damper


Removal
1. Depressurize the fuel system.

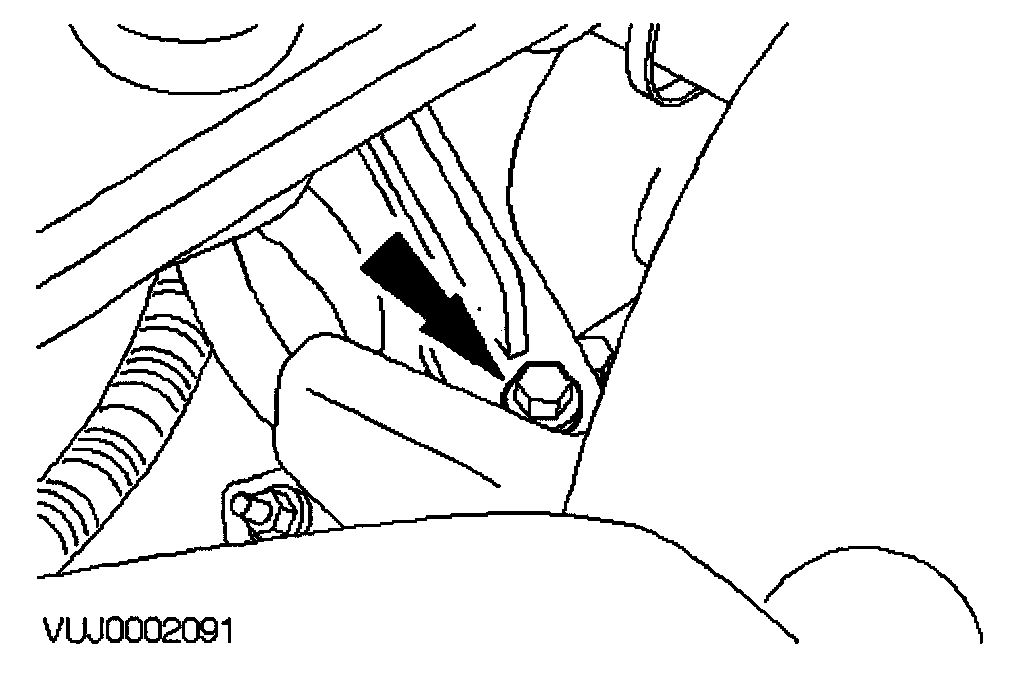

2. Remove the fuel pulse damper bracket bolt.

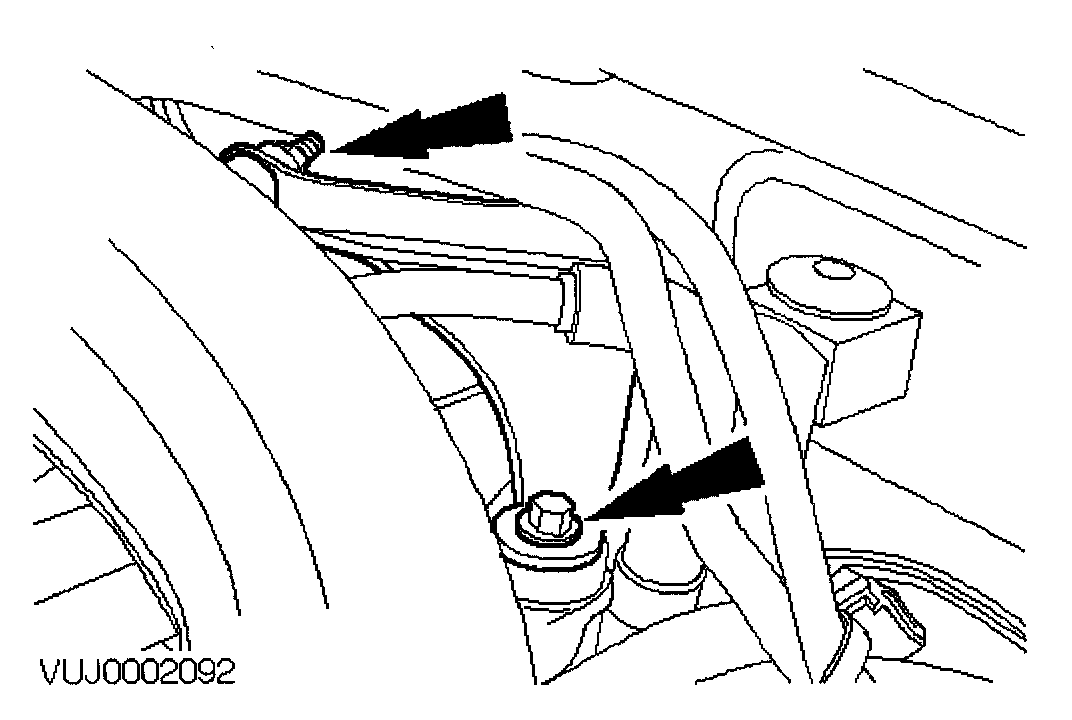

3. Remove the fuel pulse damper bracket.

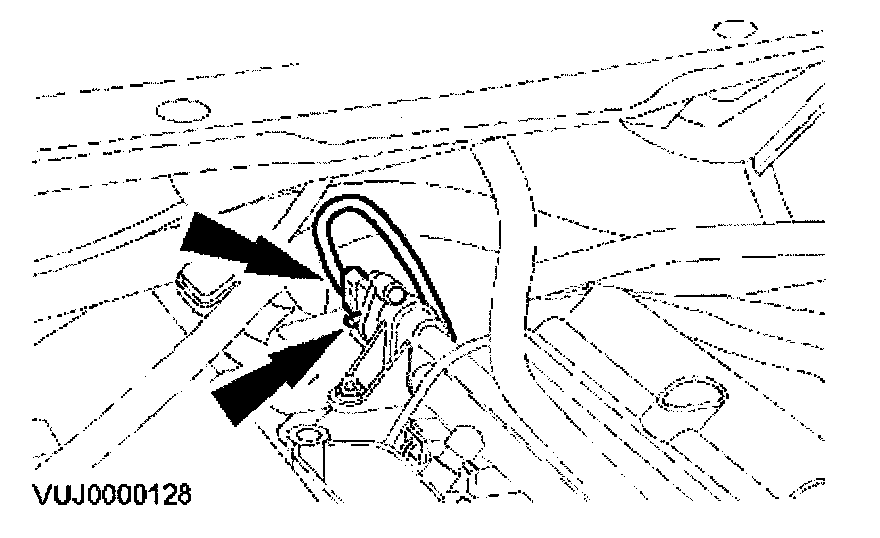

4. Disconnect the electrical connector and vacuum hose (intake manifold removed for clarity).

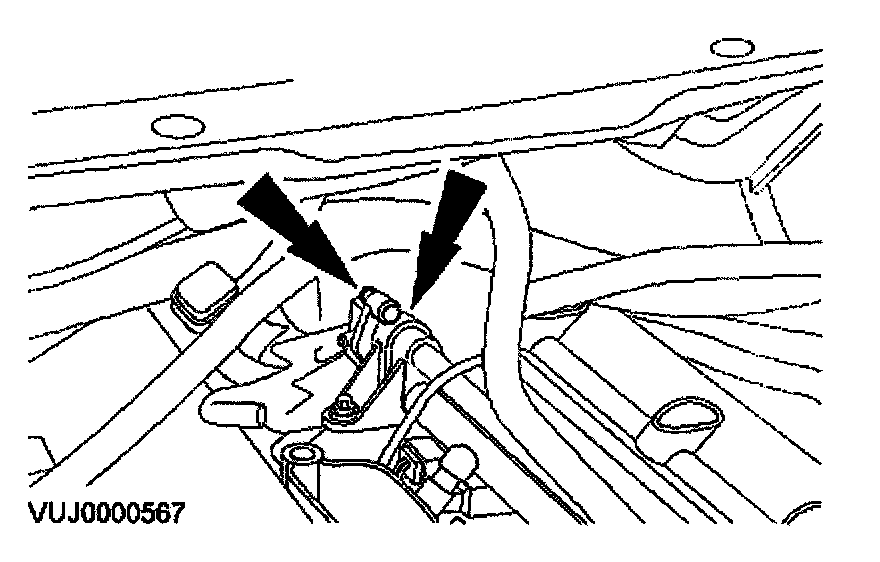

5. Remove the fuel pulse damper (intake manifold removed for clarity).

Installation

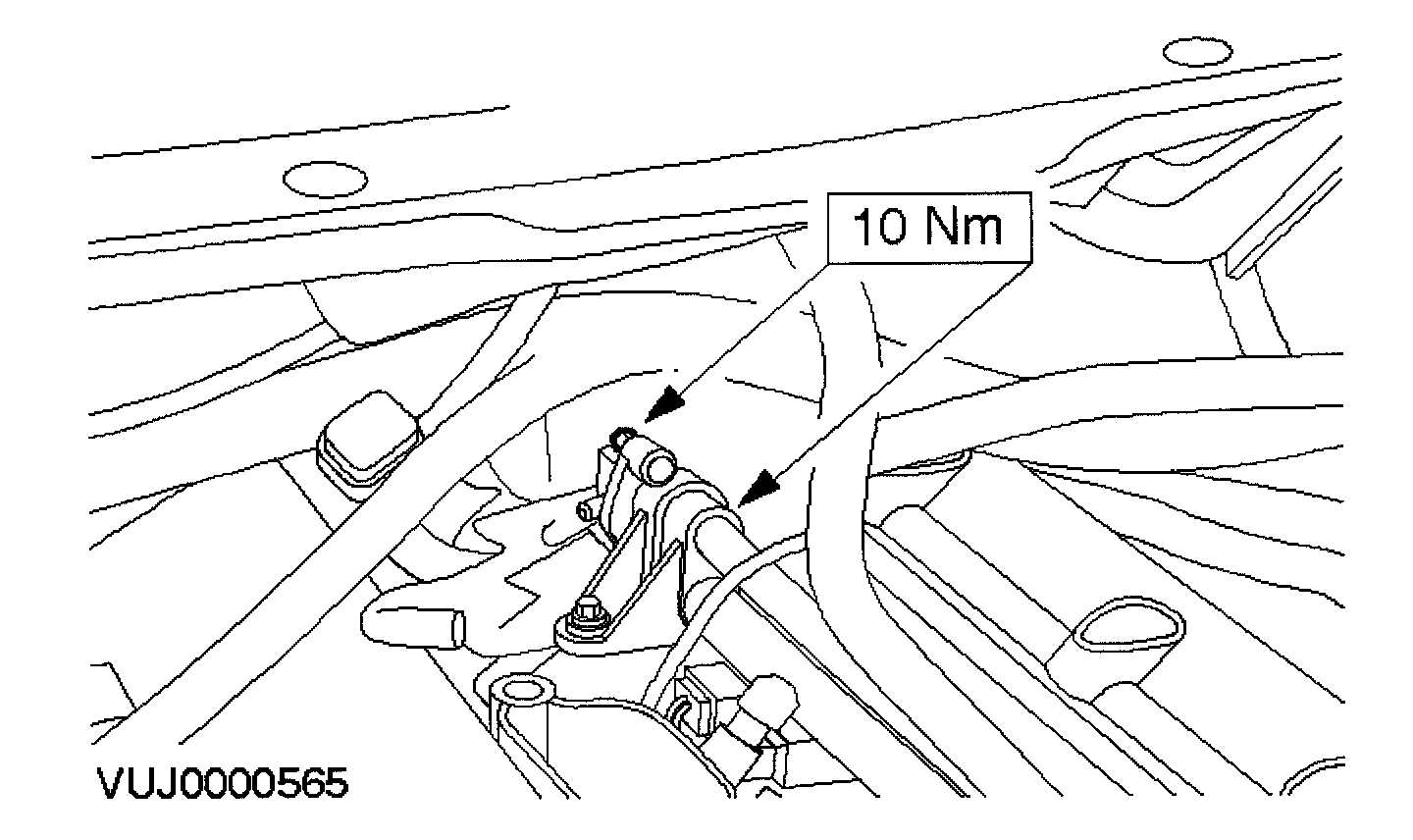

1. To install, reverse the removal procedure (intake manifold removed for clarity).
